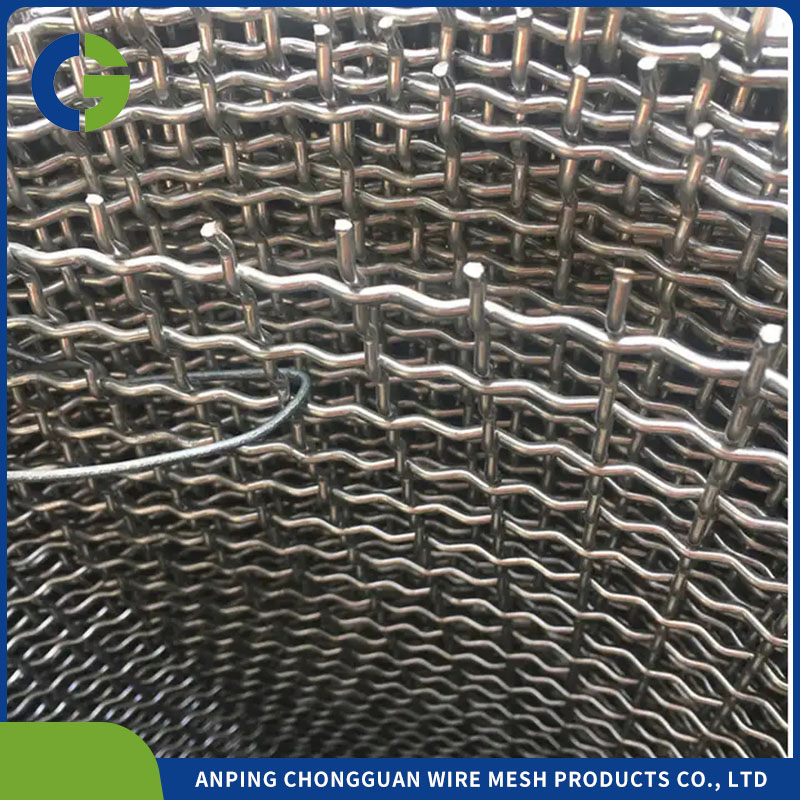

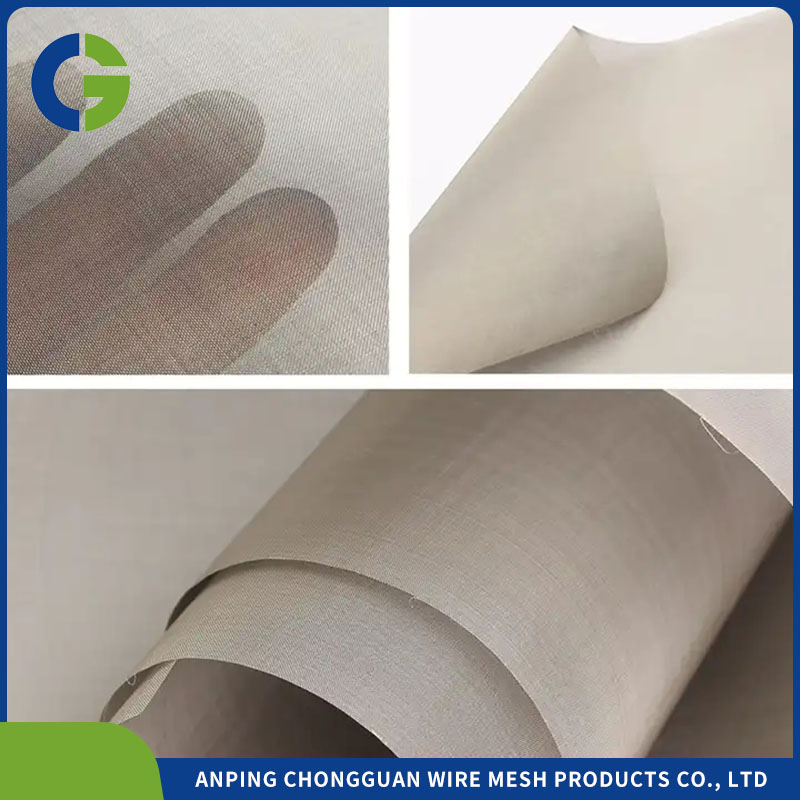

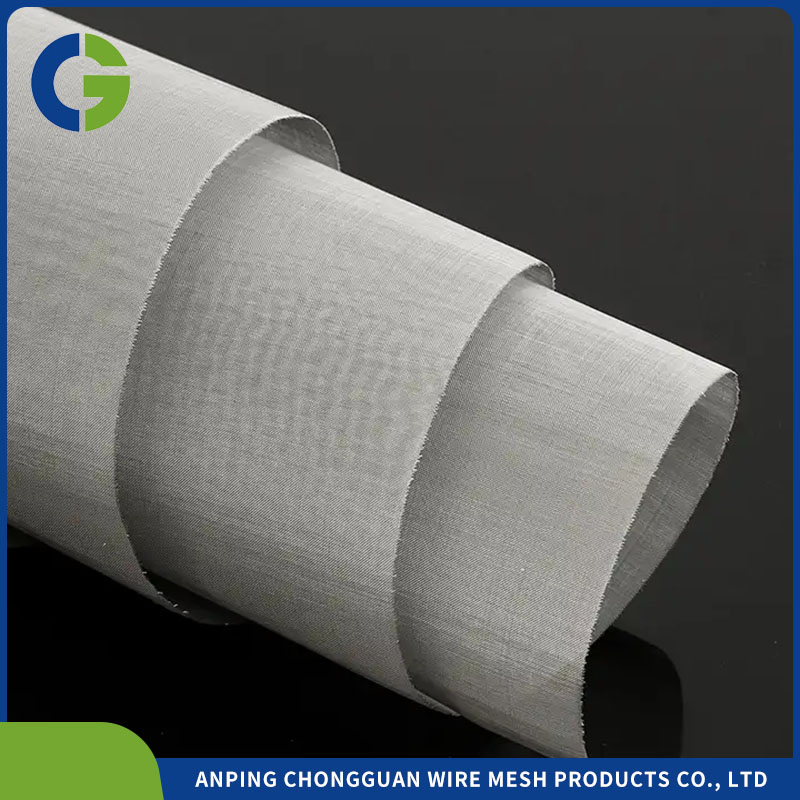

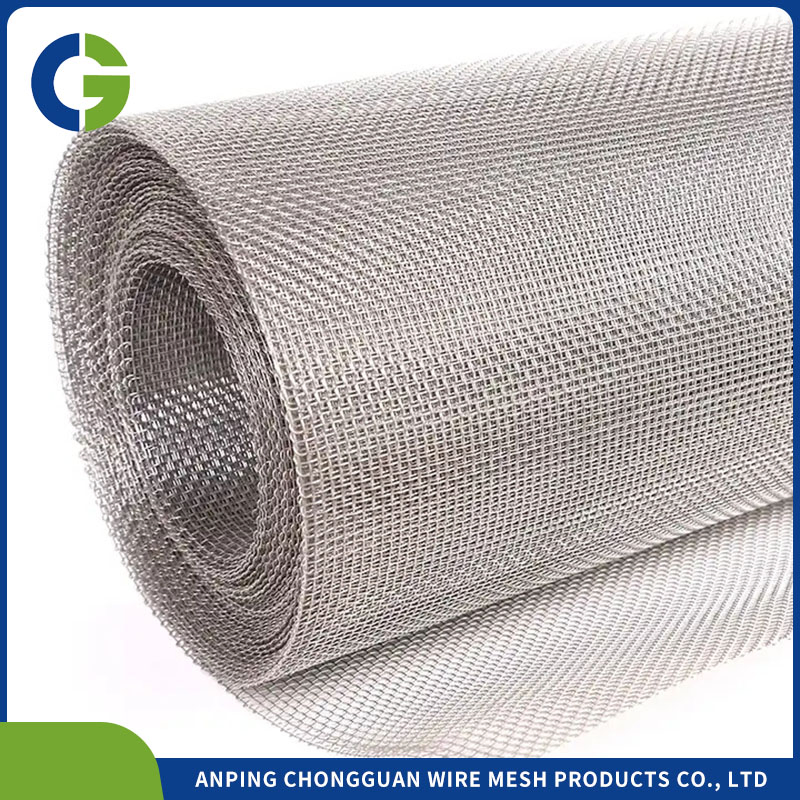

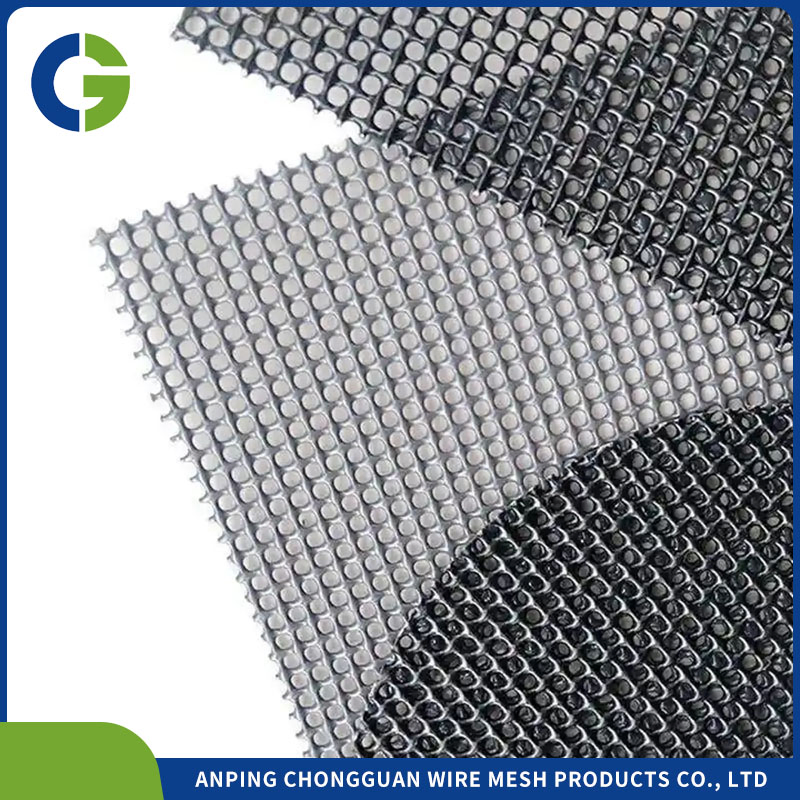

Stainless Steel Wire Mesh, is also commonly called stainless steel woven wire mesh and stainless steel woven wire cloth. Materials are usually stainless steel 304, 304L and 316, 316L, but we can also supply grade 321, 310s, 2520 duplex, 2205 duplex in stainless steel, and other SS grades to meet your needs.

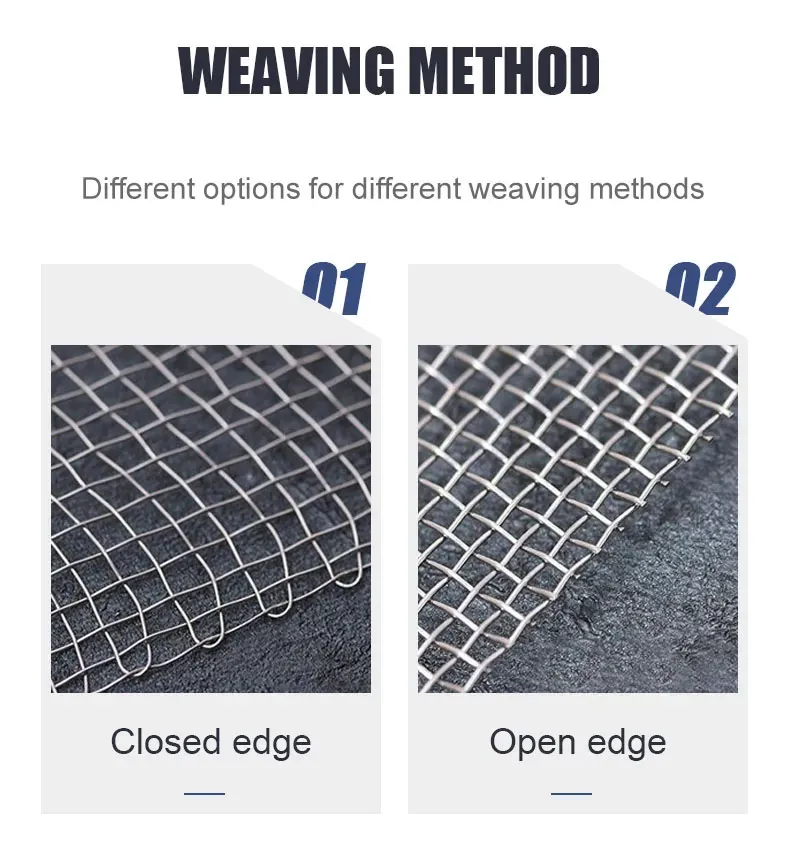

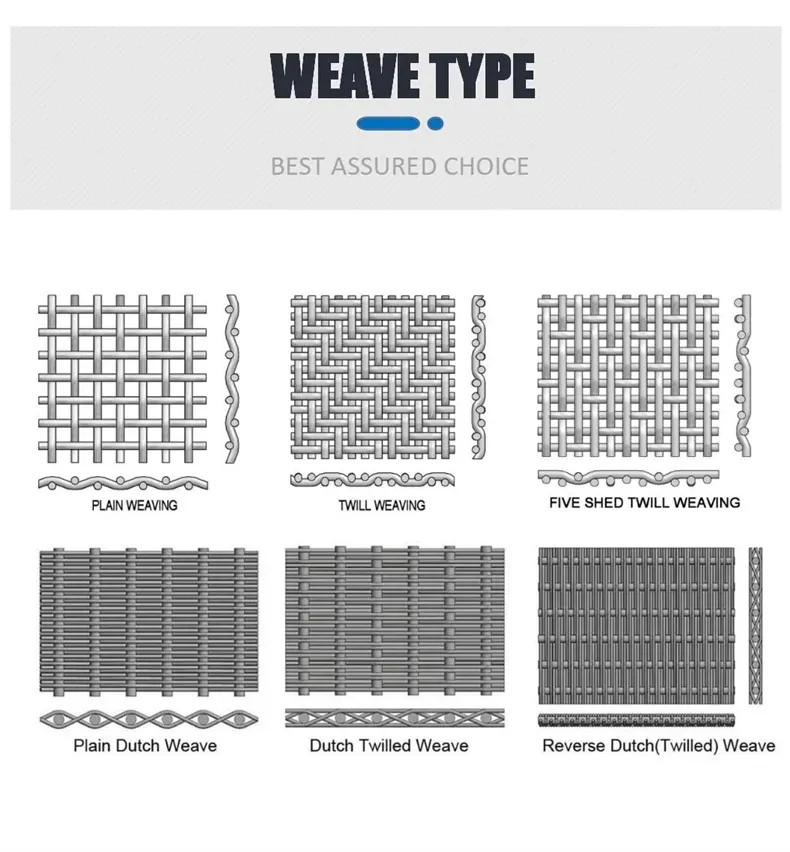

The most widely used weave types of stainless steel wire mesh are plain weave, twill weave, plain dutch weave, twill dutch weave, and reverse dutch weave.

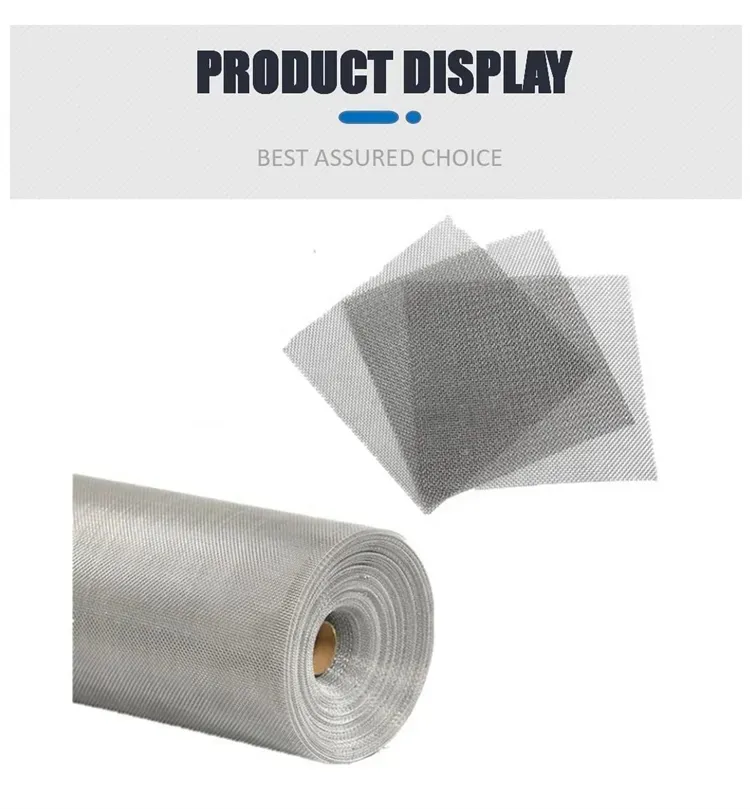

We have a wide variety of stainless steel wire mesh in stock, widths are usually 36", 48", 60", length is 100'. We are also able to produce a maximum width of 8.0 meters, and longer lengths as needed. To better serve our clients, the stainless steel woven mesh can be cut to size depending on your requirements.

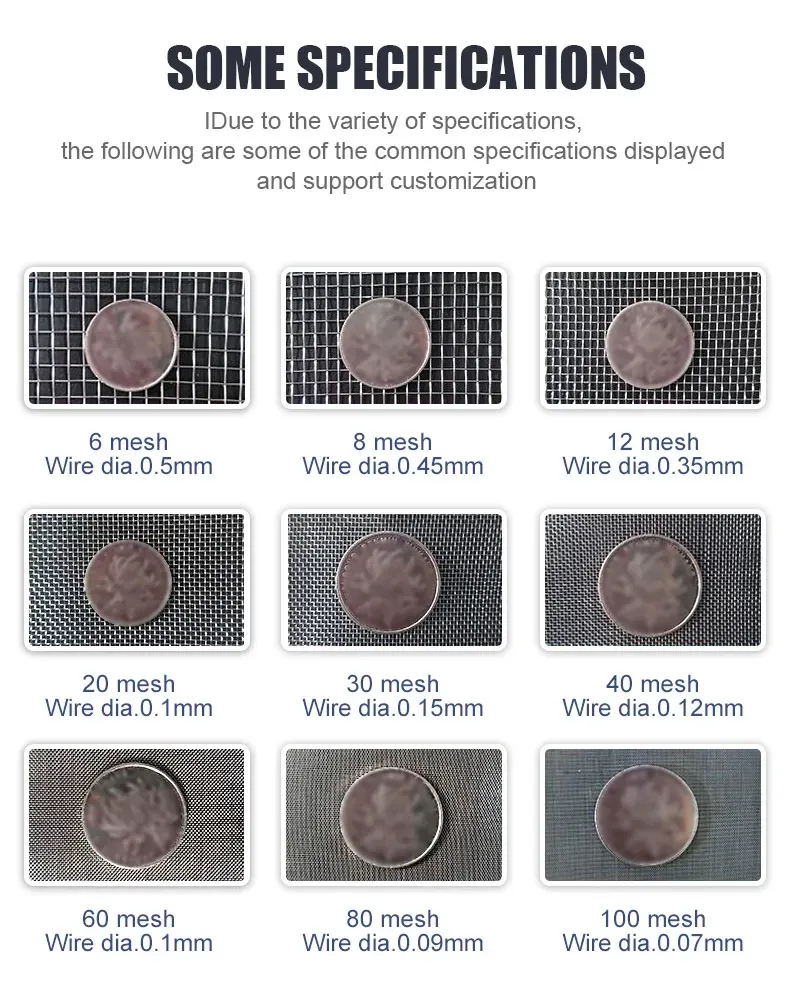

| Specification List of Stainless Steel Wire Mesh | ||
|---|---|---|
| Mesh/Inch | Wire Gauge(BWG) | Aperture (mm) |
| 3mesh x 3mesh | 14 | 6.27 |
| 4mesh x 4mesh | 16 | 4.27 |
| 5mesh x 5mesh | 18 | 3.86 |
| 6mesh x 6mesh | 18 | 3.04 |
| 8mesh x 8mesh | 20 | 2.26 |
| 10mesh x 10mesh | 20 | 1.63 |
| 20mesh x 20mesh | 30 | 0.95 |
| 40mesh x 40mesh | 36 | 0.44 |
| 60mesh x 60mesh | 40 | 0.30 |
| 80mesh x 80mesh | 42 | 0.21 |
| 100mesh x 100mesh | 44 | 0.172 |
| 200mesh x 200mesh | 47 | 0.077 |
| 400mesh x 400mesh | 50 | 0.0385 |
