45mm Furniture Hardware Cabinet Telescopic Channel Soft Close Ball Bearing Drawer Slider
45mm Furniture Hardware Cabinet Telescopic Channel Soft Close Ball Bearing Drawer Slider
45mm Furniture Hardware Cabinet Telescopic Channel Soft Close Ball Bearing Drawer Slider
45mm Furniture Hardware Cabinet Telescopic Channel Soft Close Ball Bearing Drawer Slider
45mm Furniture Hardware Cabinet Telescopic Channel Soft Close Ball Bearing Drawer Slider
1 / 5
45mm Furniture Hardware Cabinet Telescopic Channel Soft Close Ball Bearing Drawer Slider
45mm Furniture Hardware Cabinet Telescopic Channel Soft Close Ball Bearing Drawer Slider
45mm Furniture Hardware Cabinet Telescopic Channel Soft Close Ball Bearing Drawer Slider
45mm Furniture Hardware Cabinet Telescopic Channel Soft Close Ball Bearing Drawer Slider
45mm Furniture Hardware Cabinet Telescopic Channel Soft Close Ball Bearing Drawer Slider

45mm Furniture Hardware Cabinet Telescopic Channel Soft Close Ball Bearing Drawer Slider

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
HH4503
Structure
Three Knots
Slide Type
Steel Ball Type
Condition
New
Function
Soft Close with Double Spring
Color
Zinc or Black
Thickness
1.0X1.0X1.2mm / 1.2X1.2X1.4mm
Loading Rating
25kgs
Installation
Side Mounting with Screws
Specification
250mm-650mm

Product Description

45mm Full Extension Ball Bearing Drawer Slide
Featuring a Soft Close system with Double Spring for silent and smooth operation.

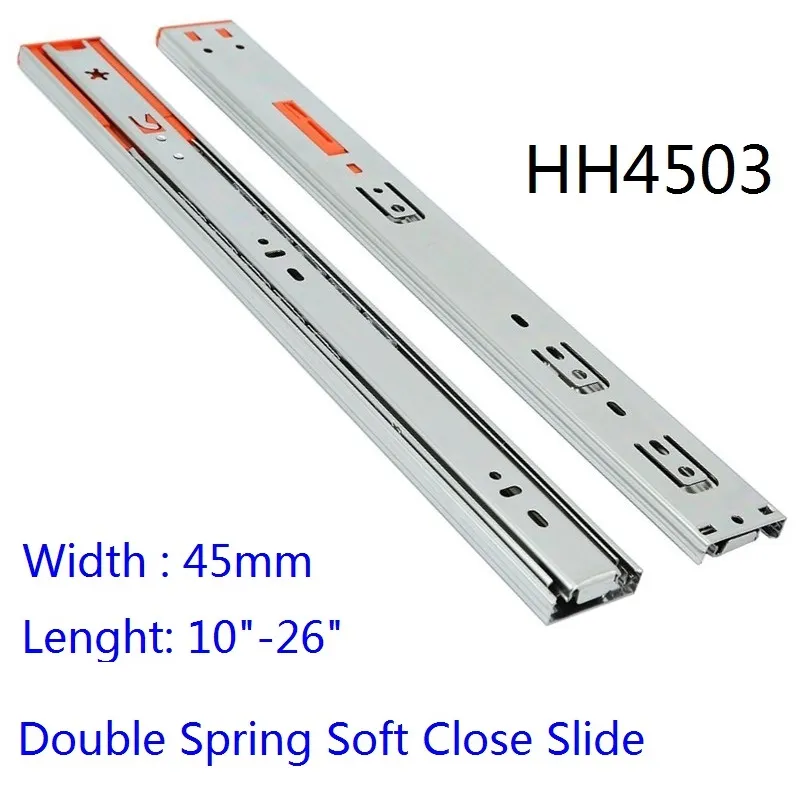

45mm Soft Close Drawer Slider

Detailed View

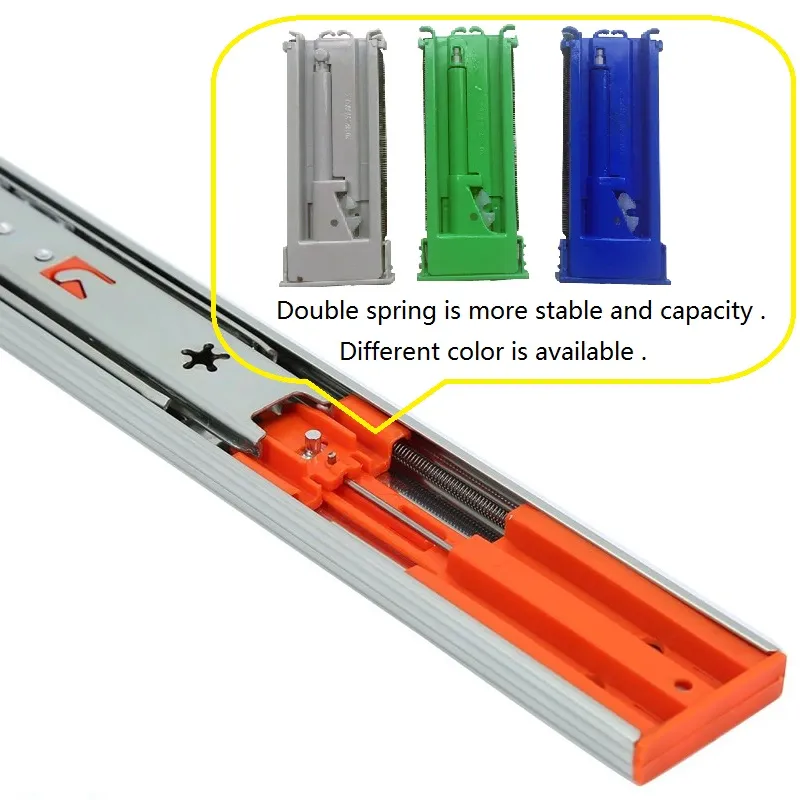

Telescopic Channel Detail

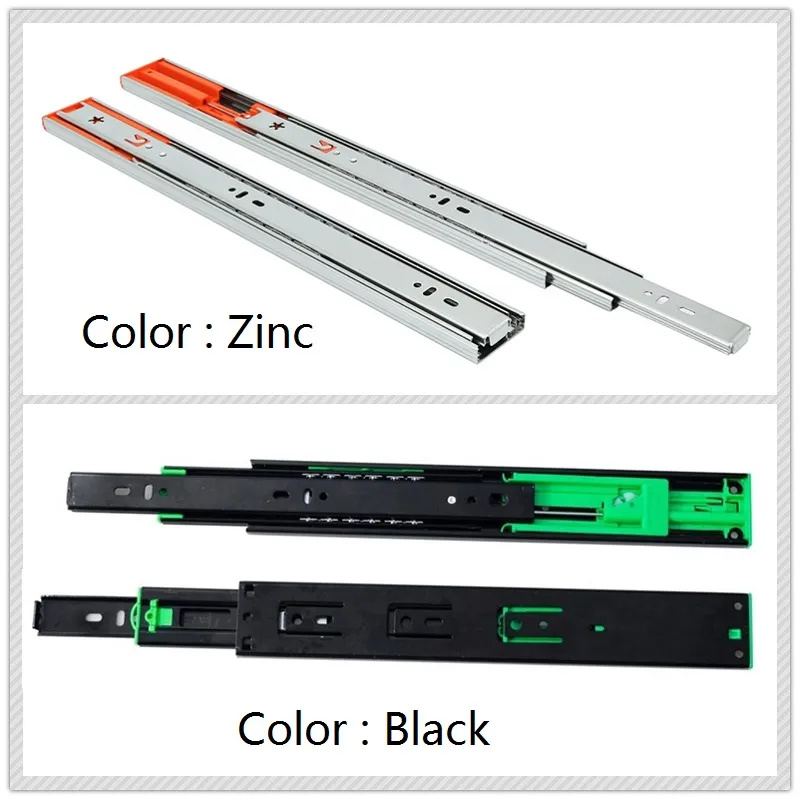

Soft Close Component

Technical Parameters

Item NoHH4503
ExtensionFull extension (3-folds)
InstallationSide installation
Width45mm
Length250mm(10") - 600mm(24")
Thickness1.0x1.0x1.2mm / 1.2x1.2x1.4mm
MaterialCold rolled steel
Surface TreatmentZinc or Black
Load Capacity25KGS
Package1 pair in polybag, 15 pairs per carton

Key Features

  • Smooth Motion: Full extension guarantees smooth movement without noise.
  • Durability: High strength solid steel balls ensure long-term smoothness.
  • Quality Material: Excellent cold rolled steel provides high precision and load capacity.
  • Silent Closing: Soft closing function makes drawer close gently and effectively.
  • Easy Installation: Simple horizontal mounting design for quick setup.
  • Versatile Application: Ideal for home furniture, office cabinets, and residential drawers.

Packaging & Factory

Package Size
250.00cm * 45.00cm * 12.50cm
Gross Weight
10.000kg

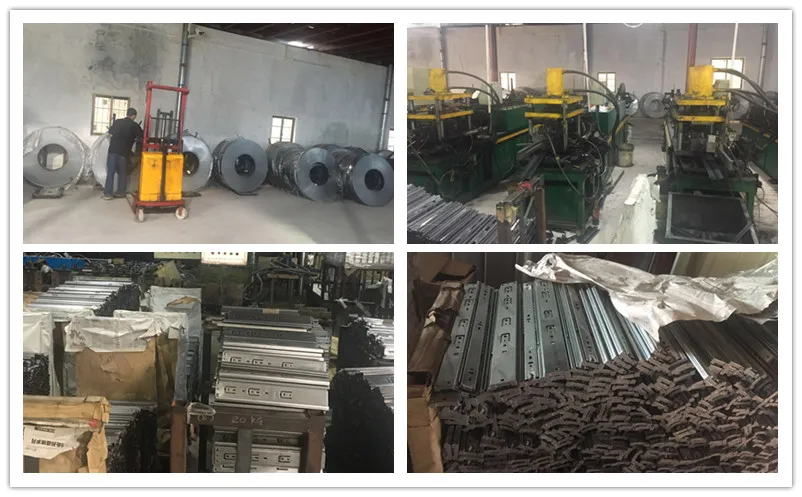

Production Facility

Frequently Asked Questions

1. What is the standard delivery time for orders?
Typically, it takes about 30-40 days for a full container order after the deposit is received.
2. What is the minimum order quantity (MOQ)?
We accept any amount for EXW terms. For FOB pricing, the total order value should be at least USD 10,000.
3. Can I mix different products in one container?
Yes, mixing different hardware products in a single container is available and supported.
4. How do you ensure the quality of the drawer slides?
Samples are provided for quality testing before placing a formal order to ensure they meet your requirements.
5. Are the samples free of charge?
We provide free samples; you only need to cover the freight or shipping costs.
6. What is the loading capacity of a 20ft container?
Depending on the destination country's regulations, a 20ft container can normally accommodate 20-22 tons.
