American Cr L 90 Degree Brass/Stainless Steel/Shower Enclosure Hardware Screen Glass Door Heavy Duty Door-Window-Hinges Pivot Shower Hinges

Customization: Available
After-sales Service: Online Technical Support
Warranty: 1 Year

Product Description

i

Basic Information

Model NO. SH-201-90-B
Type Door & Window Hinges
Material Brass, SS304, SS316
Finish Chrome, PVD, ORB, PSS, SSS, Brushed
Glass Thickness 8 / 10 mm
Bearing Weight 100kg
Application Hotel, Modern Residential
Production Capacity 80,000 Pieces Per Month
P

Product Description

American Wall To Glass 90 Degree Brass Shower Enclosure Hinges

Product Name Shower Hinge
Item No. SHT-201-90-B
Used For Wall to glass hinge applications
MOQ 1 PC

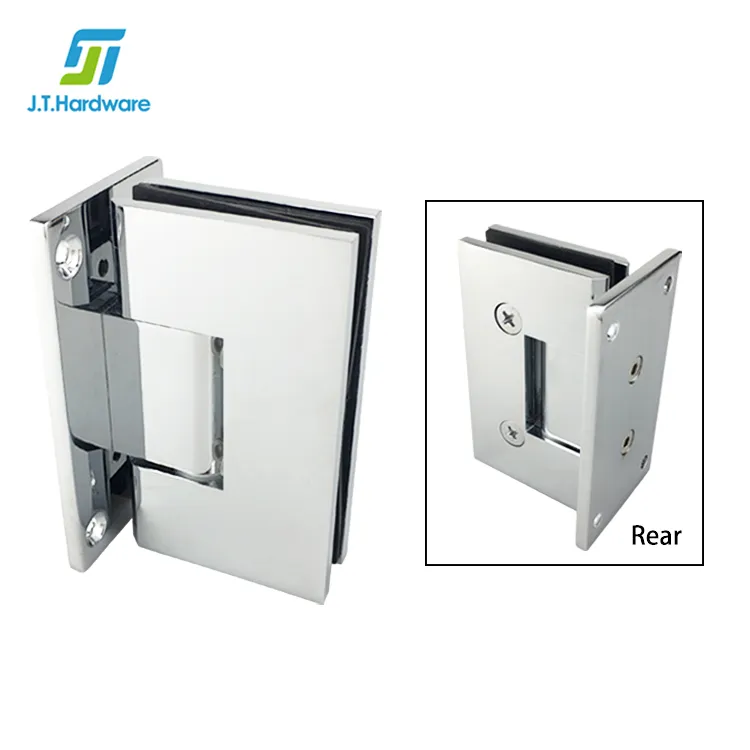

Shower Hinge View 1

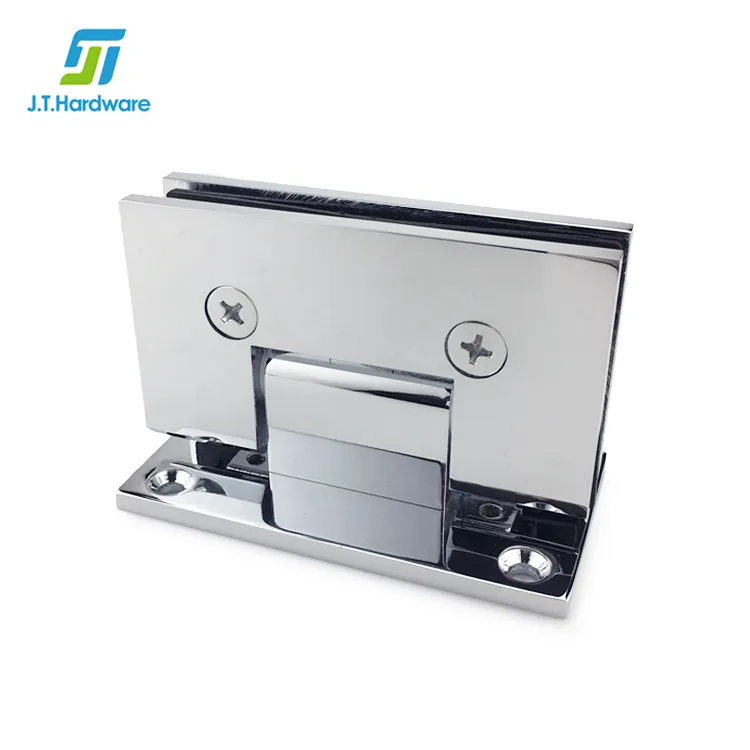

Shower Hinge View 2

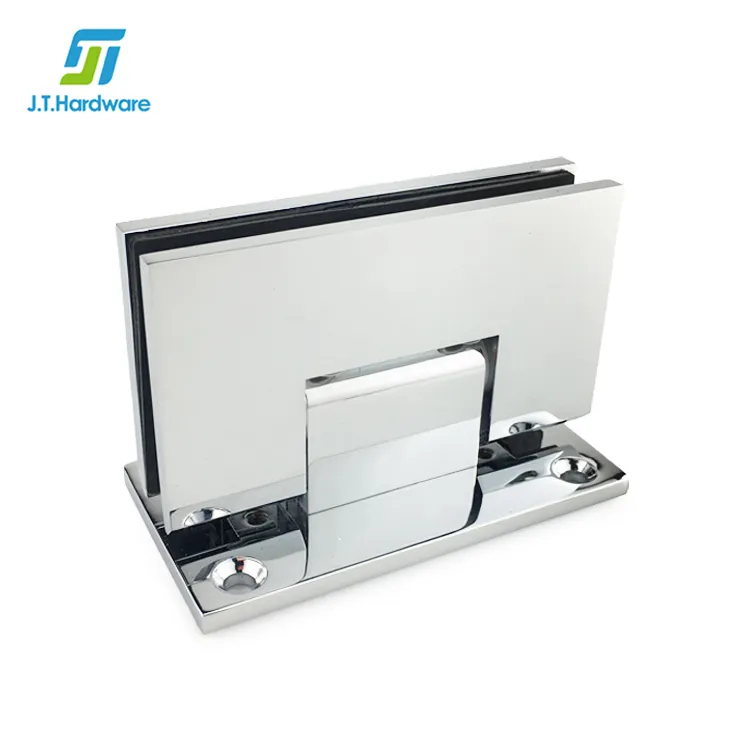

Shower Hinge View 3

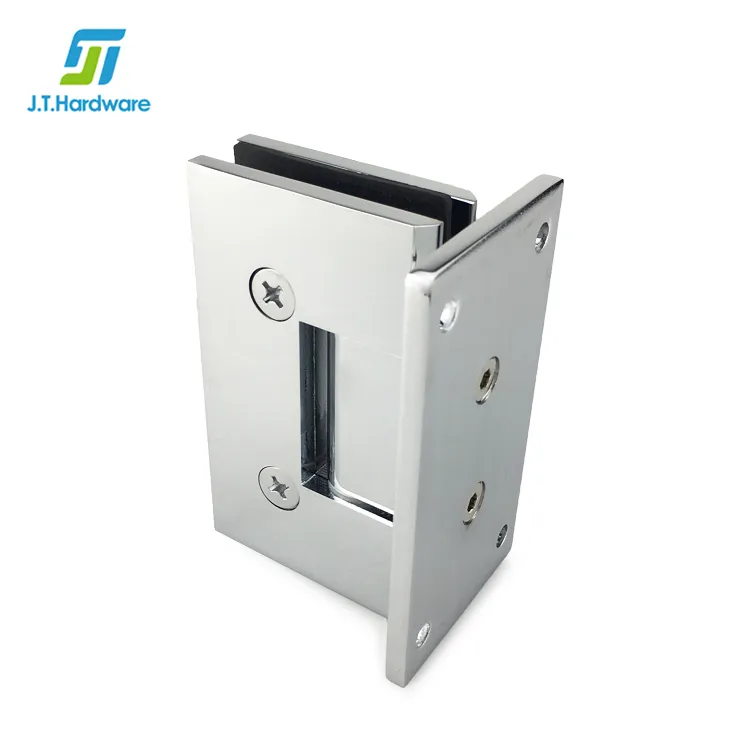

Shower Hinge View 4

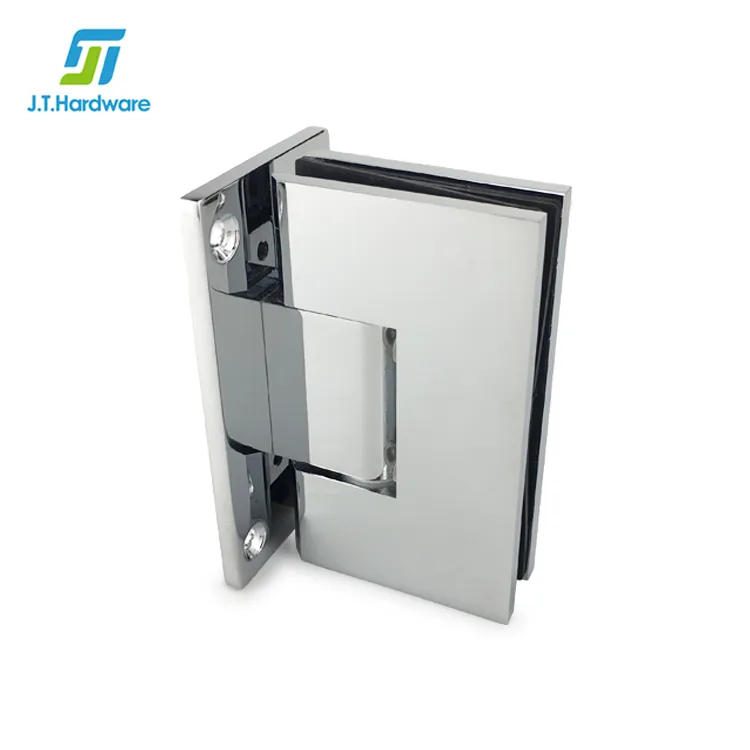

Shower Hinge View 5

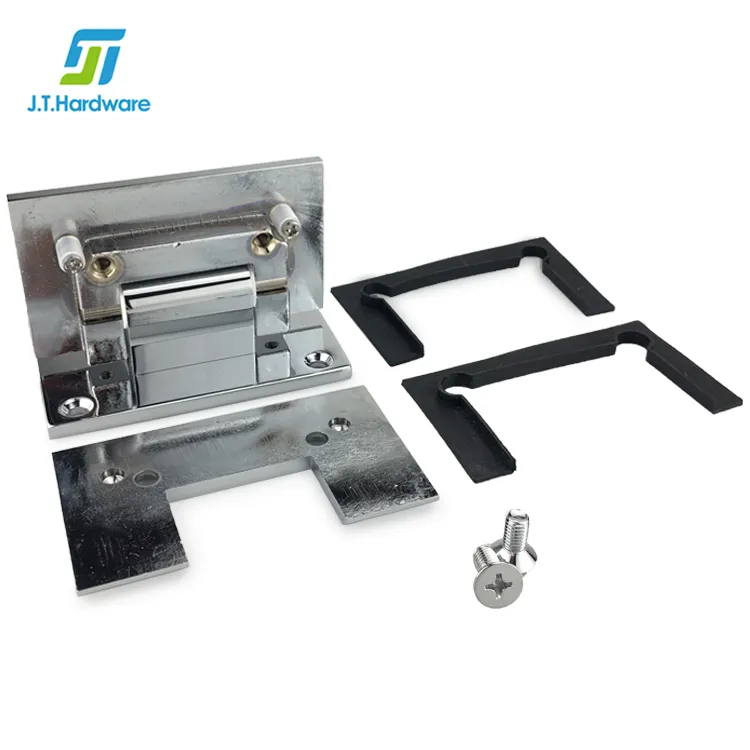

Shower Hinge View 6

Key Characteristics

  • Automatic Closing: The door will be closed automatically when within approximately 25 degrees of the closed position.
  • Compatibility: Suitable for tempered glass doors from 8mm to 12mm thick and up to 800mm wide.
  • Durability: One-piece casting body ensures long-lasting performance, passing 550,000 cycles of testing.
  • Finish Options: Available in Chrome plated, Nickel plated, P&L, S&L, Gold plated, and PVD.
  • Versatile Hardware: Heavy-duty design supporting up to 50kg-100kg door weight.

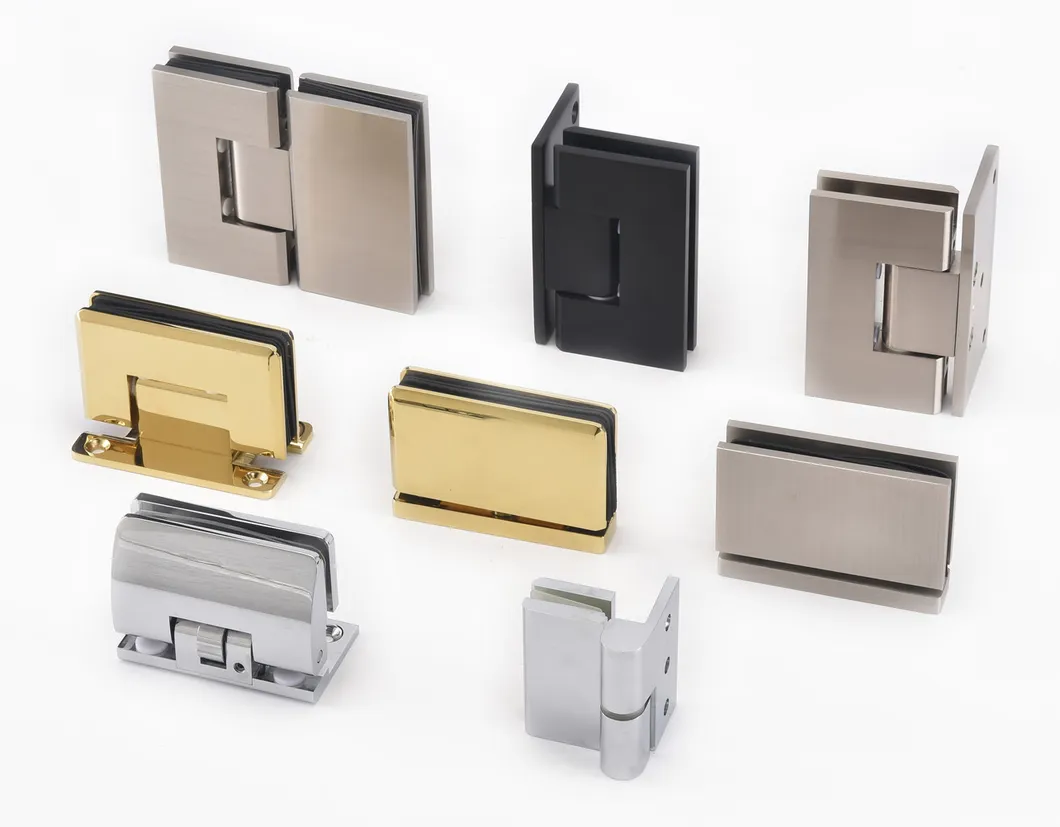

Application 1

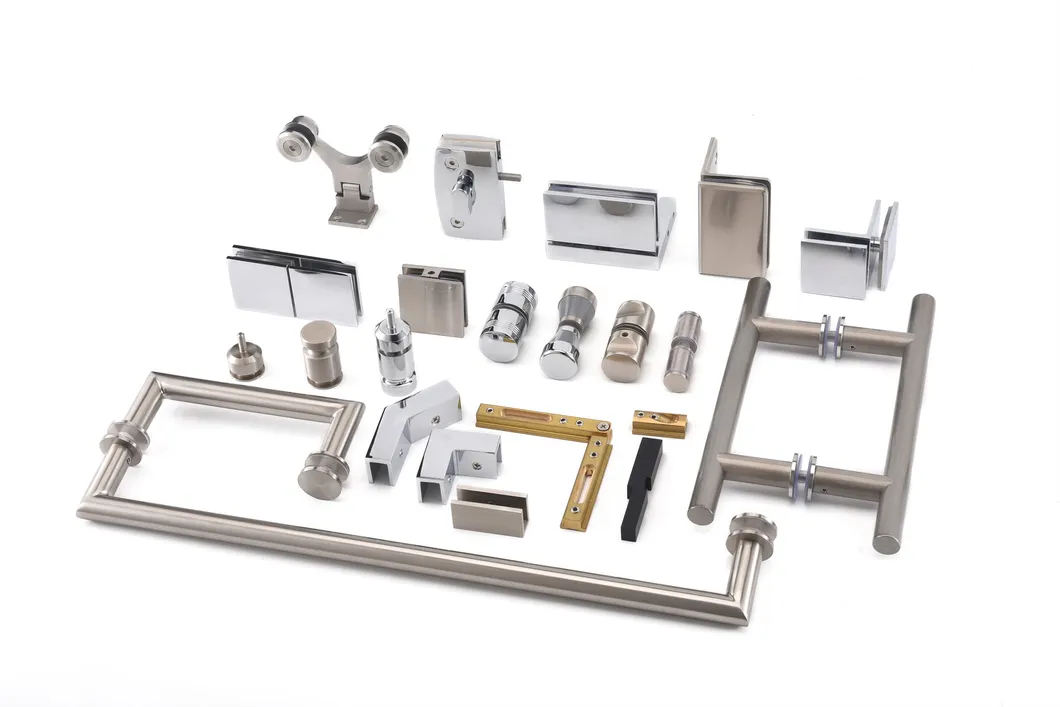

Application 2
M

Technical Dimensions

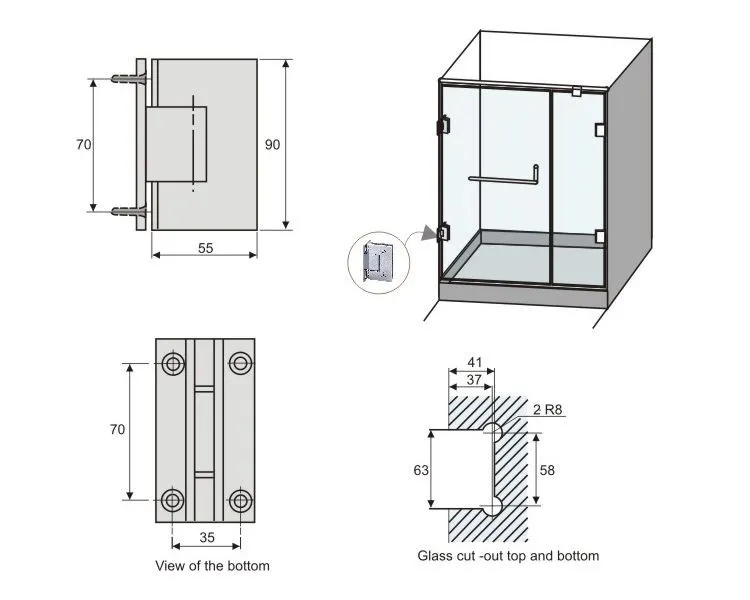

Product Sizes Chart

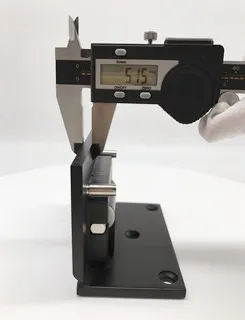

Technical Drawing
C

Categories & Finishes

Product Categories Categories
Optional Finishes Finishes

Certifications

Quality Certifications
?

Frequently Asked Questions

Q1. How can I get samples?

A: Please contact us to confirm details. New customers are expected to pay for the courier cost, while samples are free. This charge will be deducted from the formal order payment.

Q2. What colors and finishes are available?

A: We offer a wide range of finishes including Satin, Polished, Satin Nickel, Bright Chrome, Gold, Matt Black, and Satin Graphite.

Q3. Can I customize my products?

A: Yes, we provide customization services for logos, specific colors, materials, and specialized surface treatments to meet your requirements.

Q4. What is your standard payment term?

A: Our standard term is T/T with a 30% deposit and the balance before shipment. Other payment methods are also negotiable.

Q5. How long is the delivery time?

A: Delivery typically takes 15-35 days, depending on the specific product type and your total order quantity.

Q6. Can you offer customized packaging?

A: Sure, we can provide customized color boxes and instruction manuals if the order meets a certain quantity threshold.
