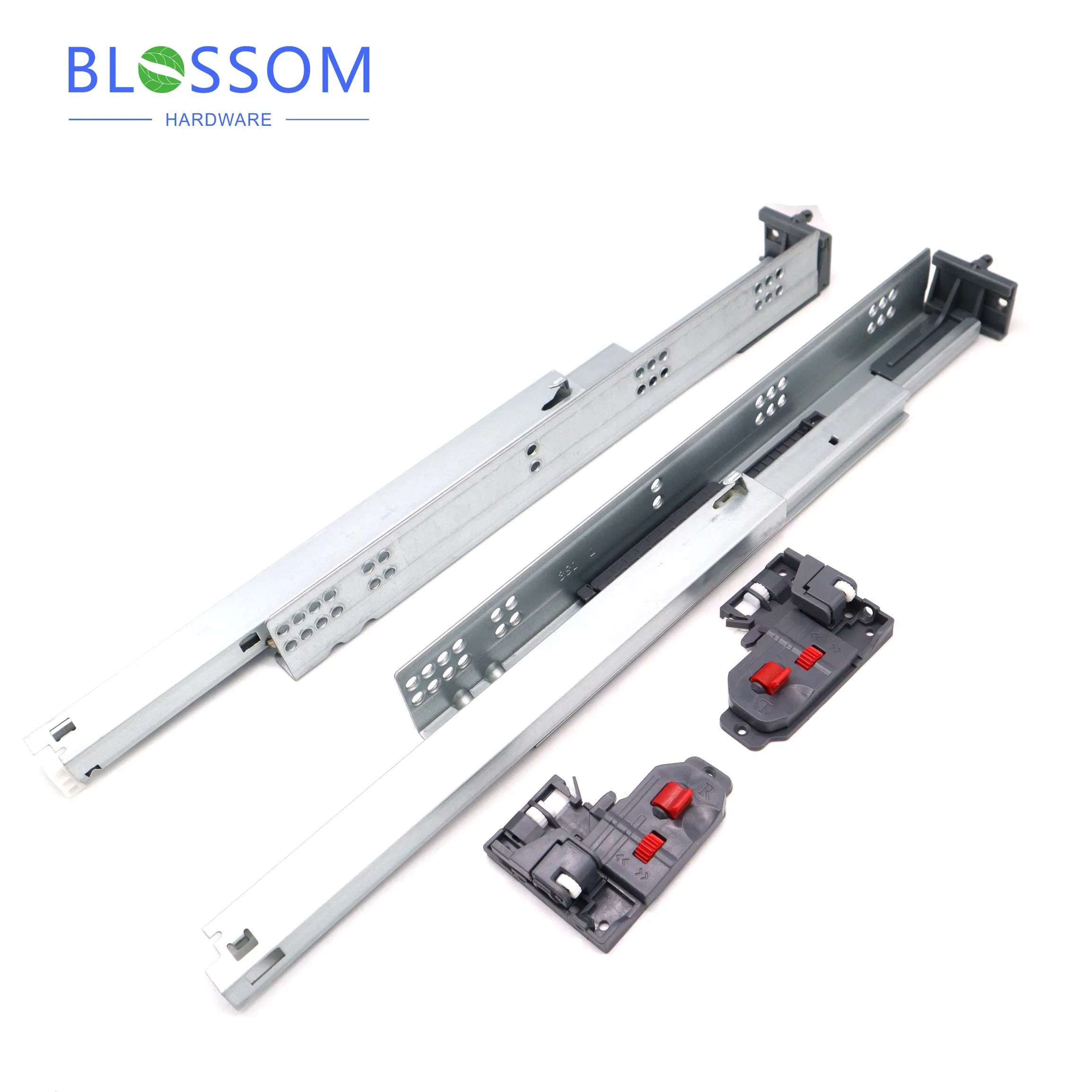

Full American Type 21inch Rail Heavy Duty Push Open Sliding Door Adjustable Undermount Drawer Slides

1 / 5

Full American Type 21inch Rail Heavy Duty Push Open Sliding Door Adjustable Undermount Drawer Slides

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Soft Close/Push Open

Structure

Three Members

Slide Type

Soft Close/Push Open

Length

9''-24''

Application

Commercial and Domestic Drawers

Load Capacity

35kg

Service Life

50,000 cycles

Features

Smooth and Silent

Material

Galvanized sheet (1.8*1.4*1.0mm)

Origin

China

Product Description

Application: Suitable for high-end commercial and domestic drawer systems.

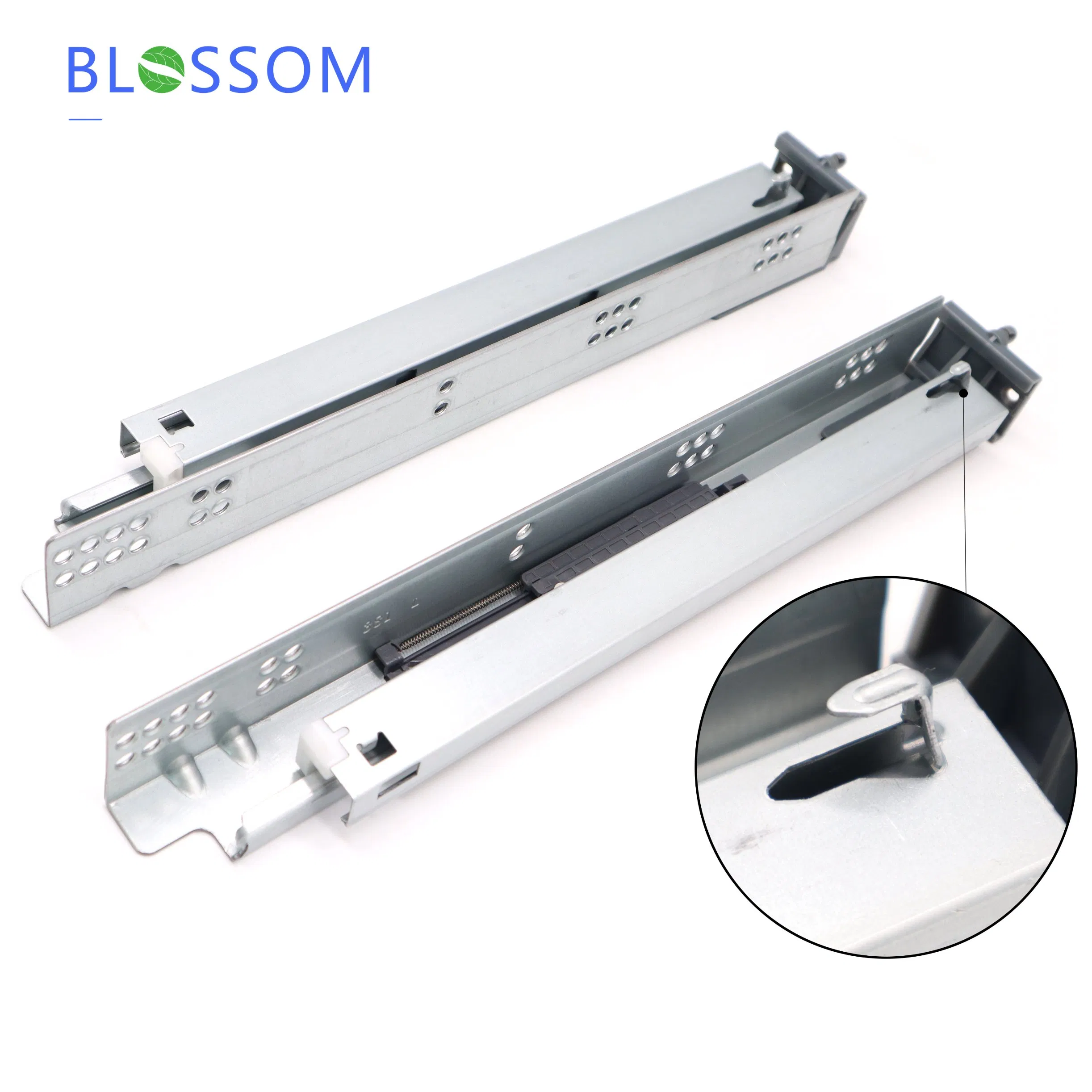

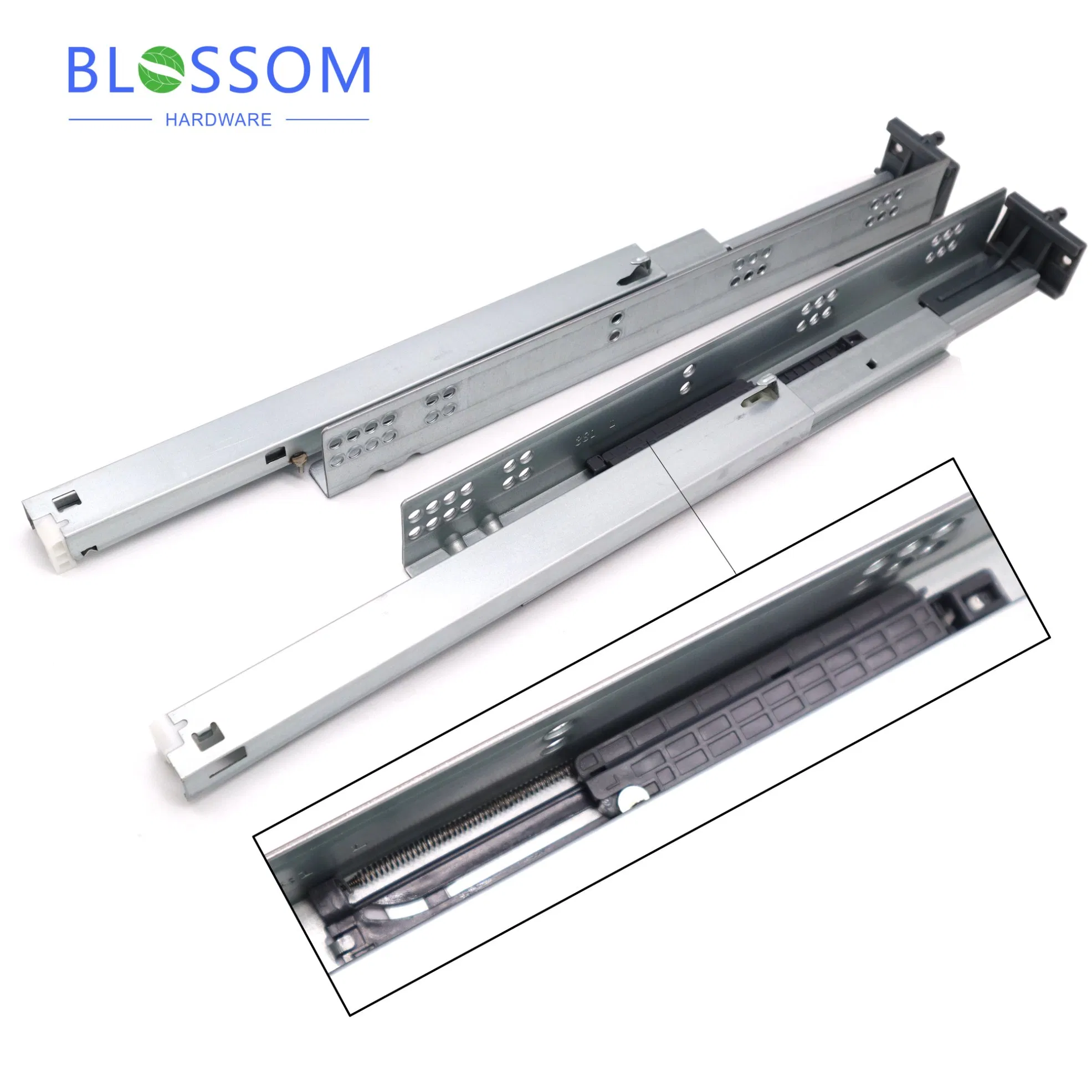

Advanced Buffering: Built-in Buffer for constant speed deceleration and automatic, silent closing.
Precision Adjustment: Features 2D (height 0-3mm) or 3D (up/down/left/right 0-3mm) adjustment options.
Durability: Rated for 35kg load with a lifespan exceeding 50,000 uses.

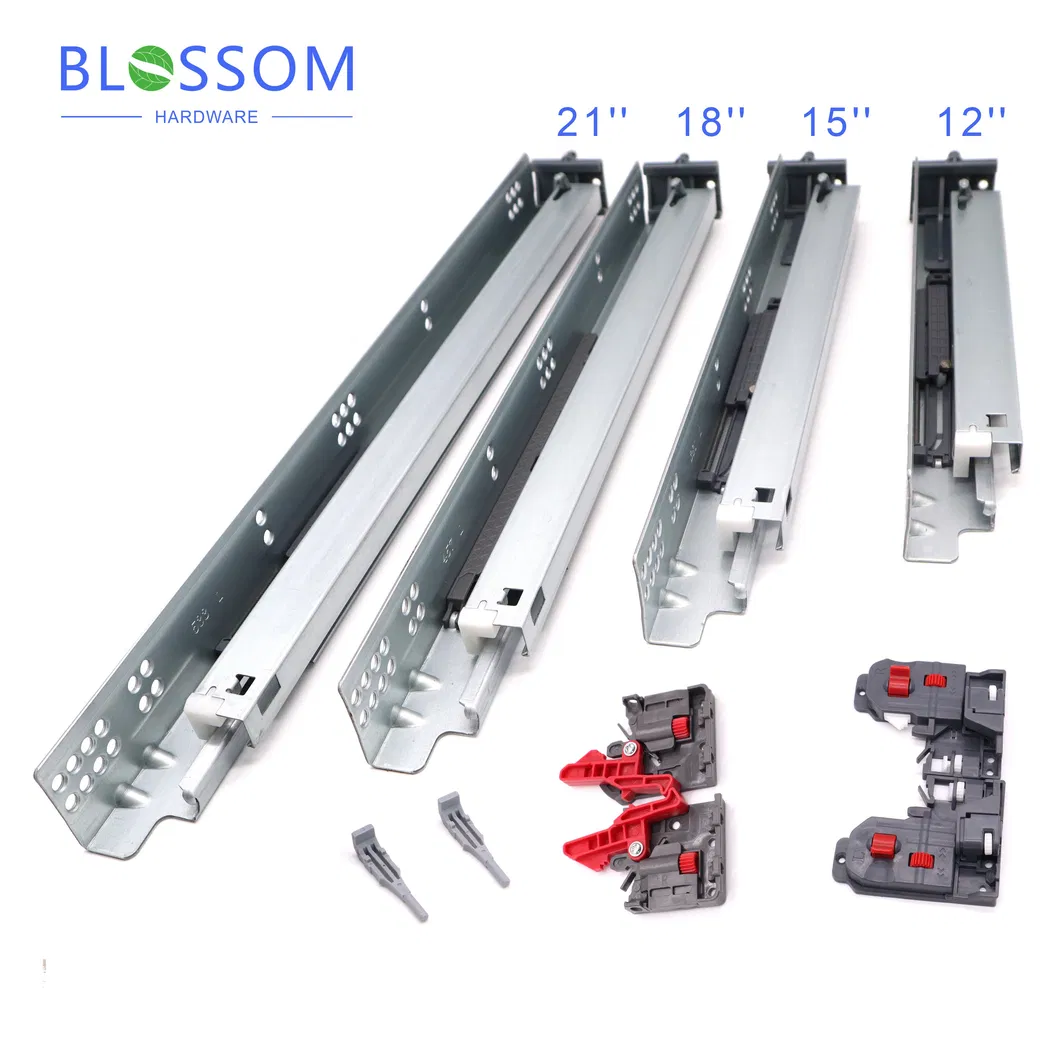

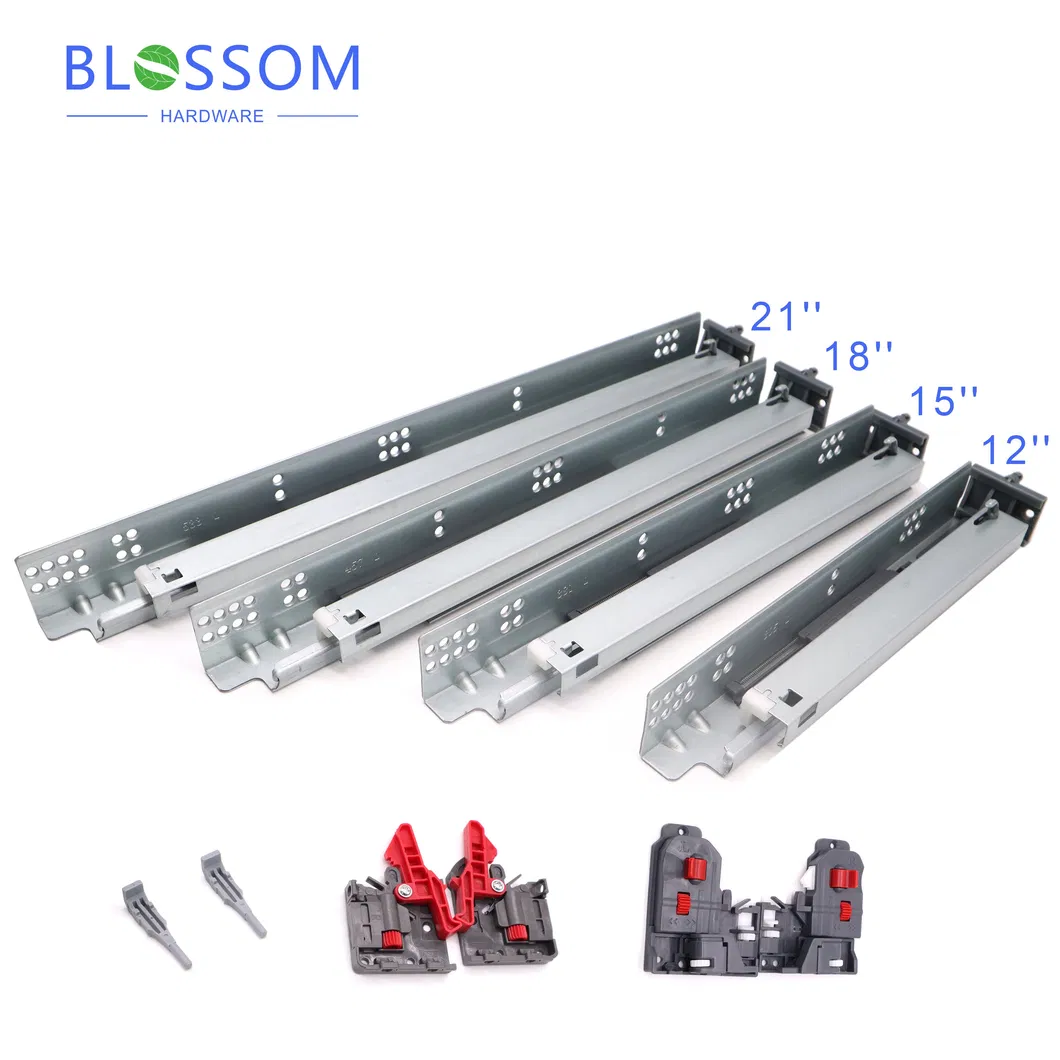

Product Number	Series Length	Drawer Length (L)	Min. External Depth	Min. Built-in Depth	Packing (Set/CTN)
BS901-HT/BS1801-HT-9''	229mm	229mm	266mm	286mm	8
BS901-HT/BS1801-HT-12''	305mm	305mm	342mm	362mm	8
BS901-HT/BS1801-HT-15''	381mm	381mm	418mm	438mm	8
BS901-HT/BS1801-HT-18''	457mm	457mm	494mm	514mm	8
BS901-HT/BS1801-HT-21''	533mm	533mm	570mm	590mm	8

Product Number	Series Length	Drawer Length (L)	Internal Depth	Packing (Set/CTN)
BS804-HH/BS1804-HH-10''	250mm	250mm	269mm	10
BS804-HH/BS1804-HH-14''	350mm	350mm	369mm	10
BS804-HH/BS1804-HH-18''	450mm	450mm	469mm	10
BS804-HH/BS1804-HH-22''	550mm	550mm	569mm	10
BS804-HH/BS1804-HH-24''	600mm	600mm	619mm	10

* PS: The drawer side panel model is 18mm. X denotes panel thickness.

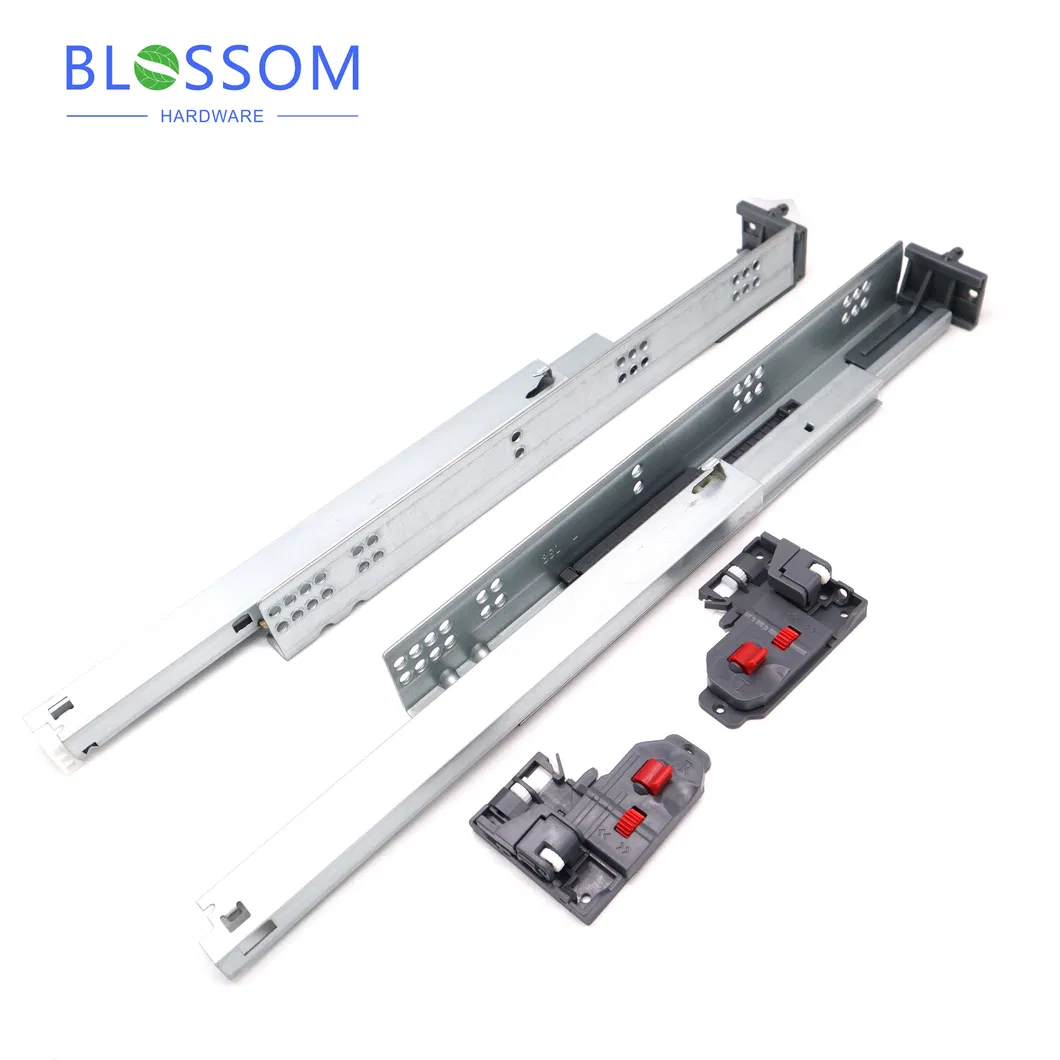

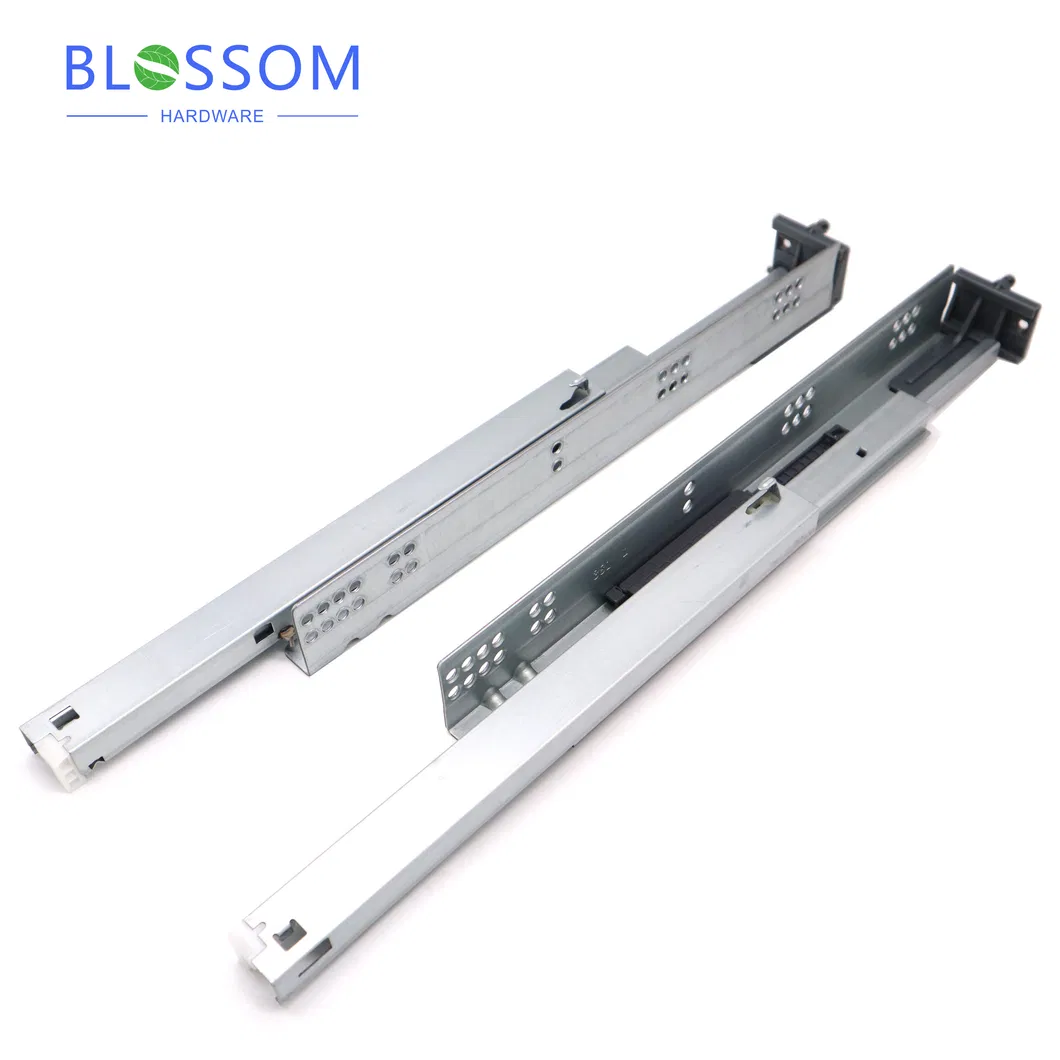

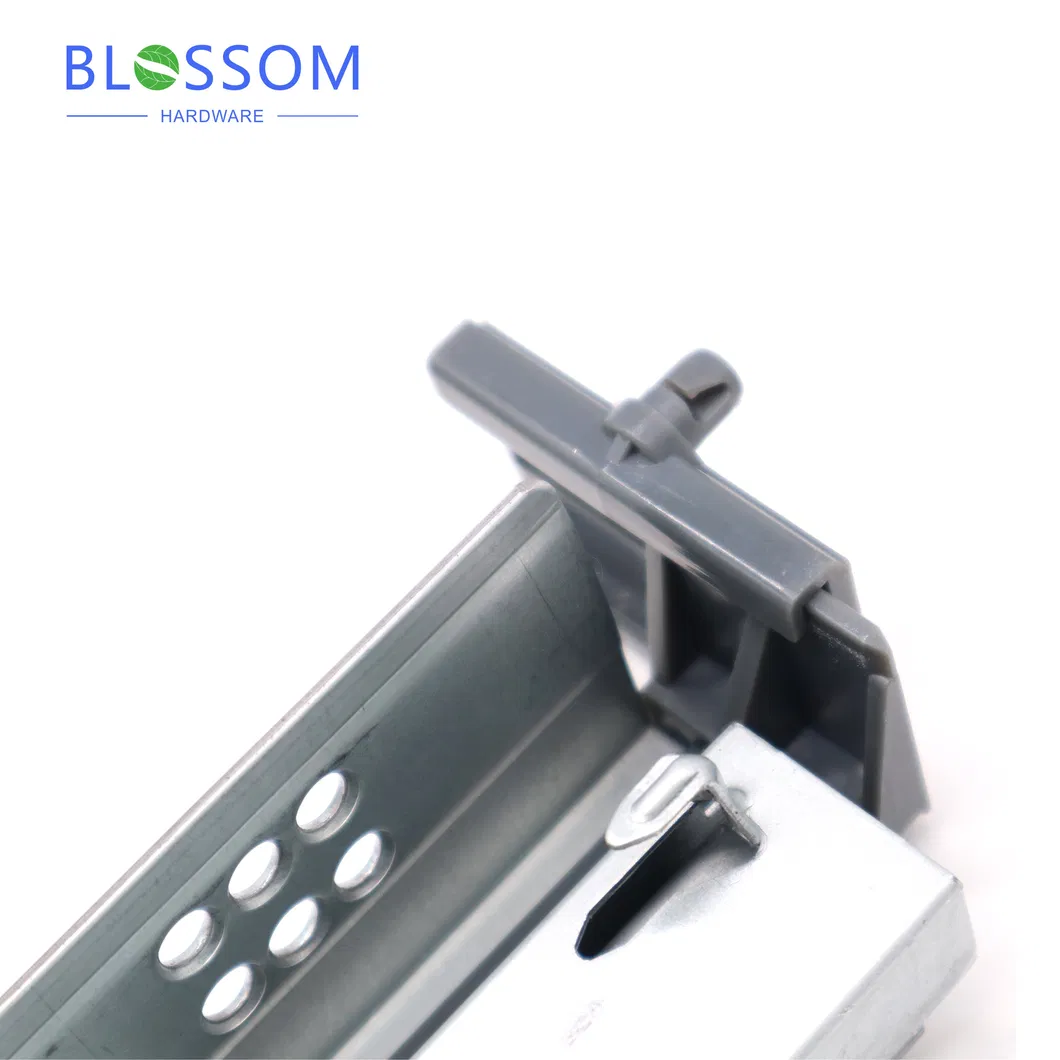

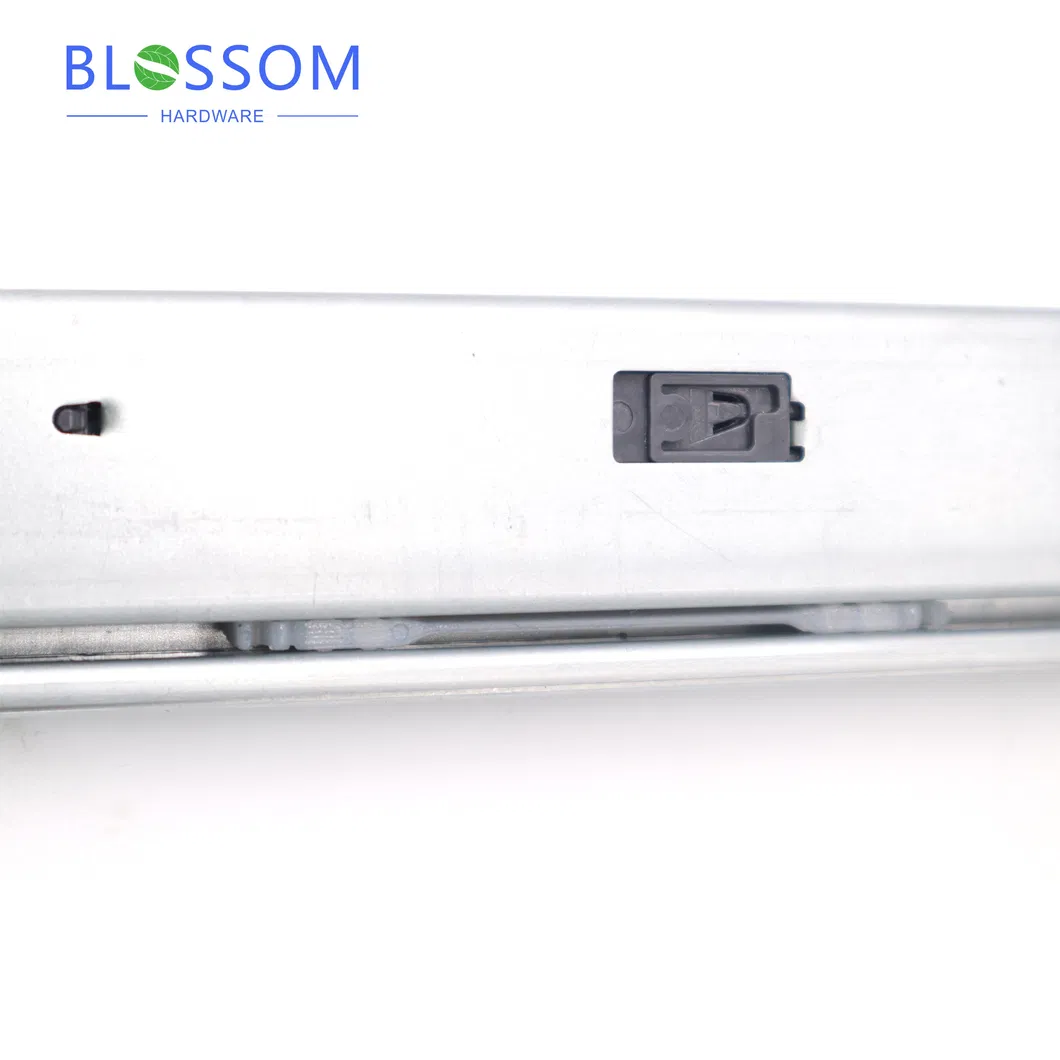

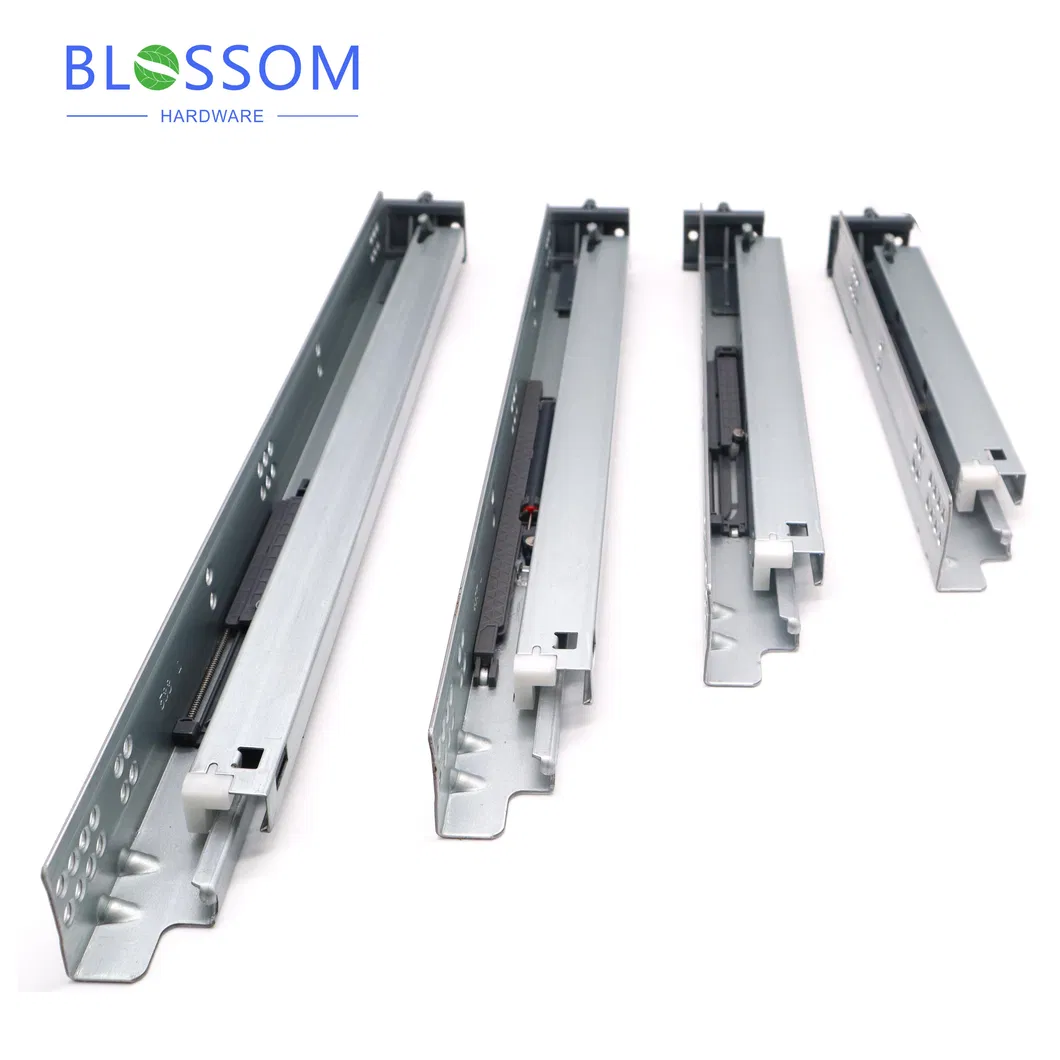

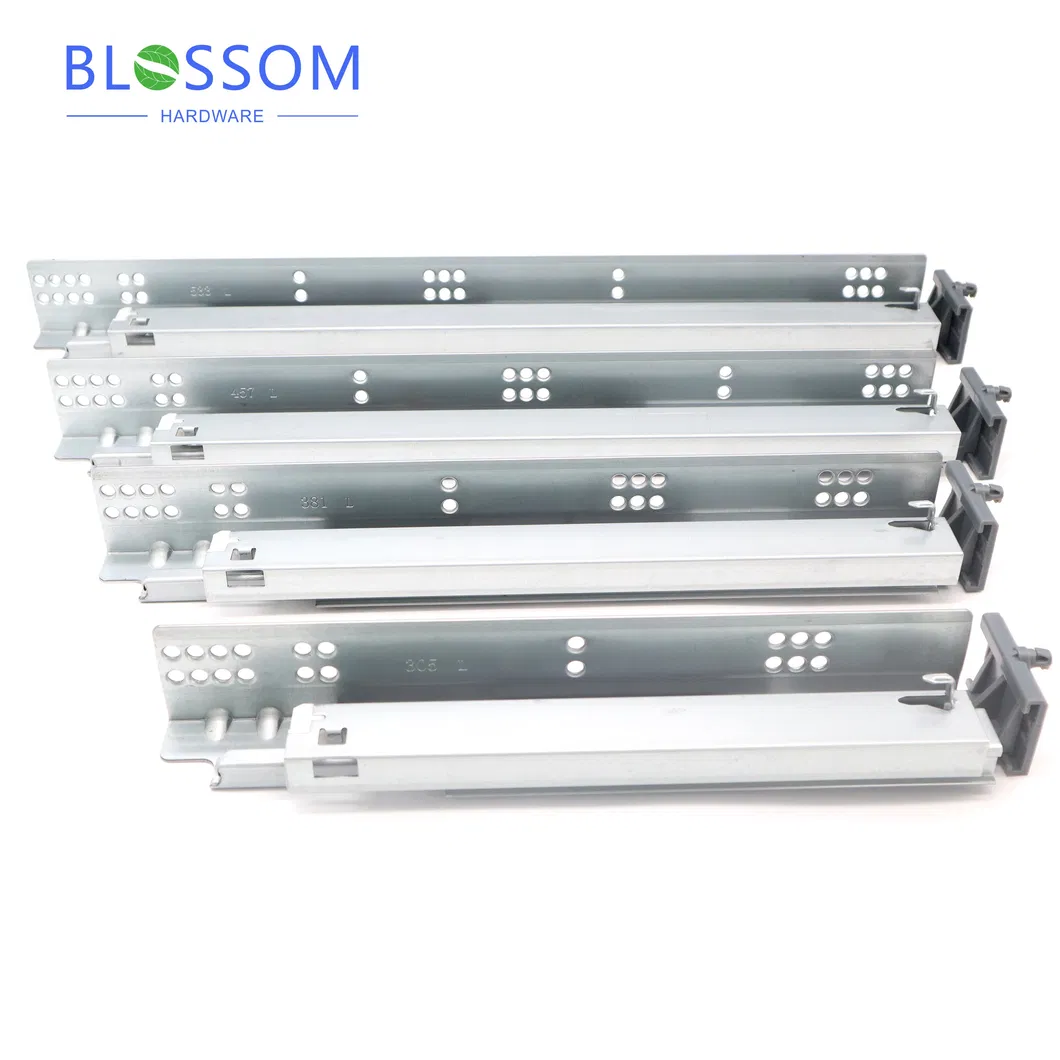

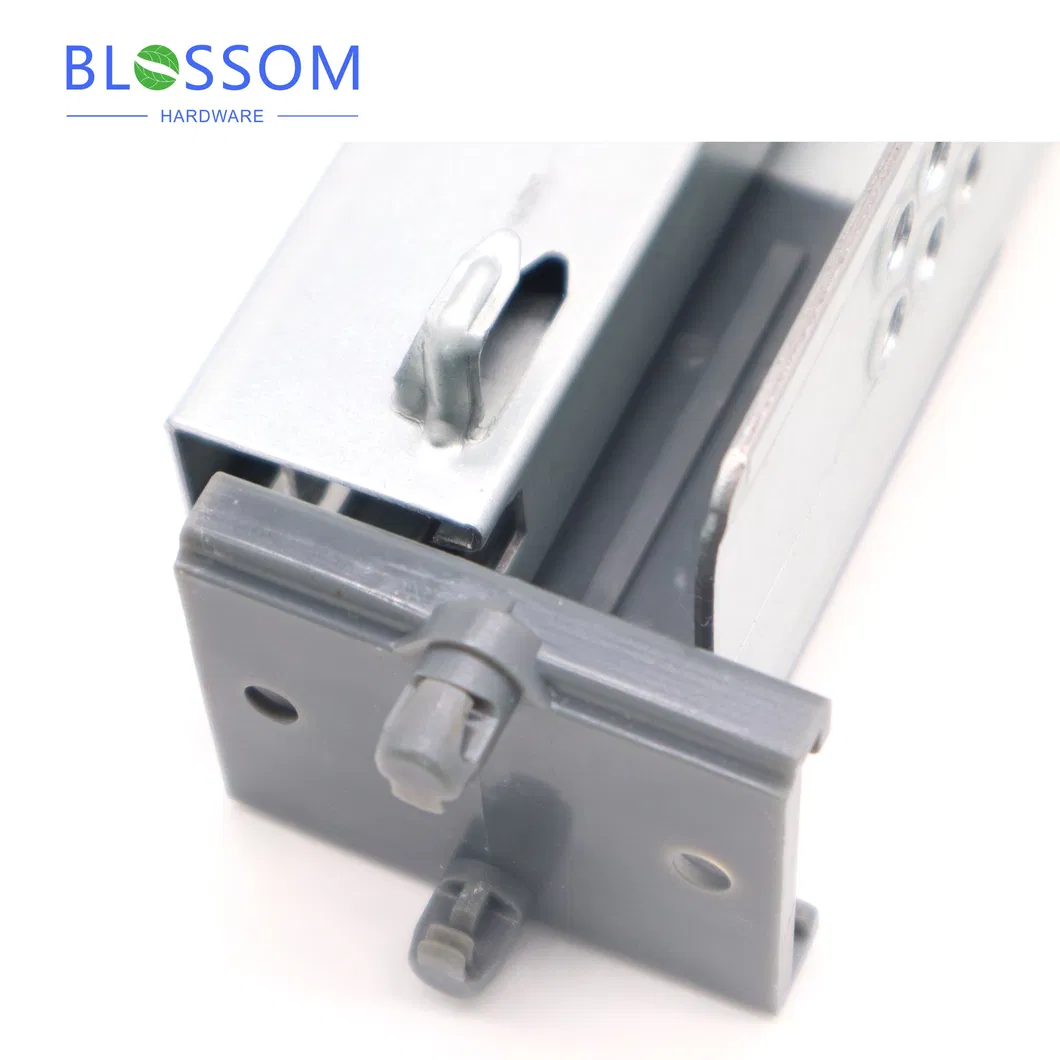

Product Visuals

Frequently Asked Questions

How to get samples?

Free samples are available for quality checks. You can provide your courier account number, arrange a pick-up, or pay the freight cost for delivery within approximately one week.

What is the Minimum Order Quantity (MOQ)?

The MOQ depends on the item. For drawer slides, it is typically 500 sets or an order amount exceeding $5,000.

What is the standard delivery time?

Delivery usually takes 15-30 days after receiving the deposit. Consolidated orders with multiple items may take up to 45 days.

What are the accepted payment and trade terms?

We support EXW, FOB, and CNF terms based on customer requirements.

What is the loading capacity for a 20ft container?

Typically, it is 22 tons. However, for shipments to the United States, the limit is approximately 17 tons.

Is it possible to mix different items in one order?

Yes, you can mix different items. Please send your specific requirements for a customized quotation.
