Basic Info.
Model NO.
JM-V101 5 Degree Pre-Set
Finish
SSS.Pss.Golden,Orb,Customize
Glazing Thickness
1/2 in. (12 mm)
Height
3-15/16 in. (100 mm)
Customized Brand
Laser Logo
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Sample Lead Time
3~15 Days
Max Clamping Torque
60 Lbf.in (677.9 Cn.M)
Max Weight (2 Hinges)
110 Lbs. (49.9 Kg)
Max Weight (3 Hinges)
140 Lbs. (63.5 Kg)
Maximum Door Width
36 in. (914 mm)
Production Capacity
10000 Piece/Pieces Per Month
Product Description

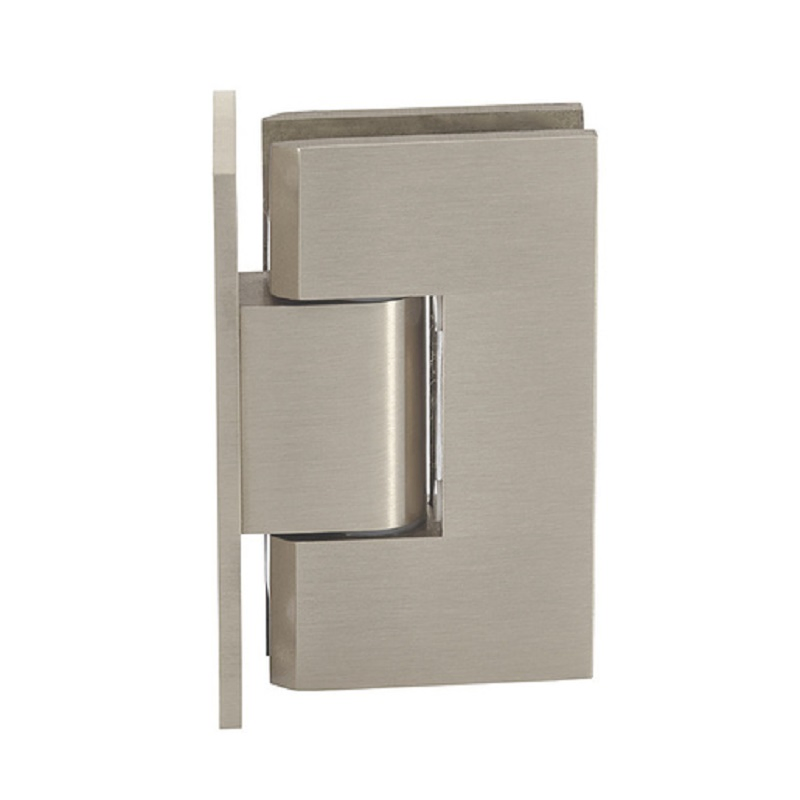

Brushed Nickel 90 Degree Glass Clamp 100*58mm Brass 5 Degree Pre-Set Wall Mount Door Hinge
- Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
- Self-Centering with Reversible 5 Degree Pivot Pin
- 5 Degree Pre-Set Model (Factory Set for 5 Degree Tighter Closure Into Shower Interior)
- Use Monolithic Tempered Glass
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

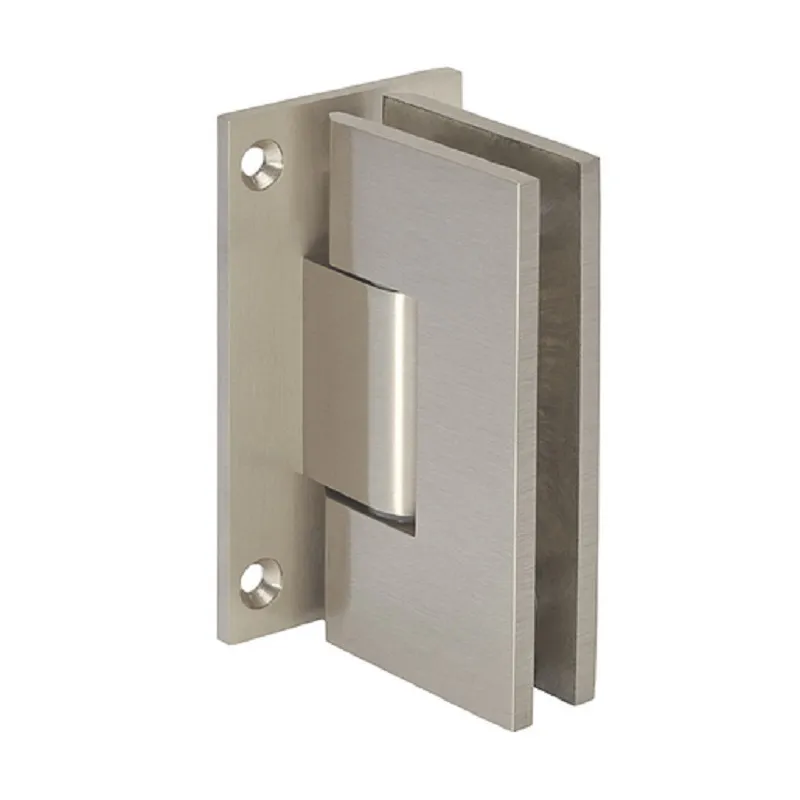

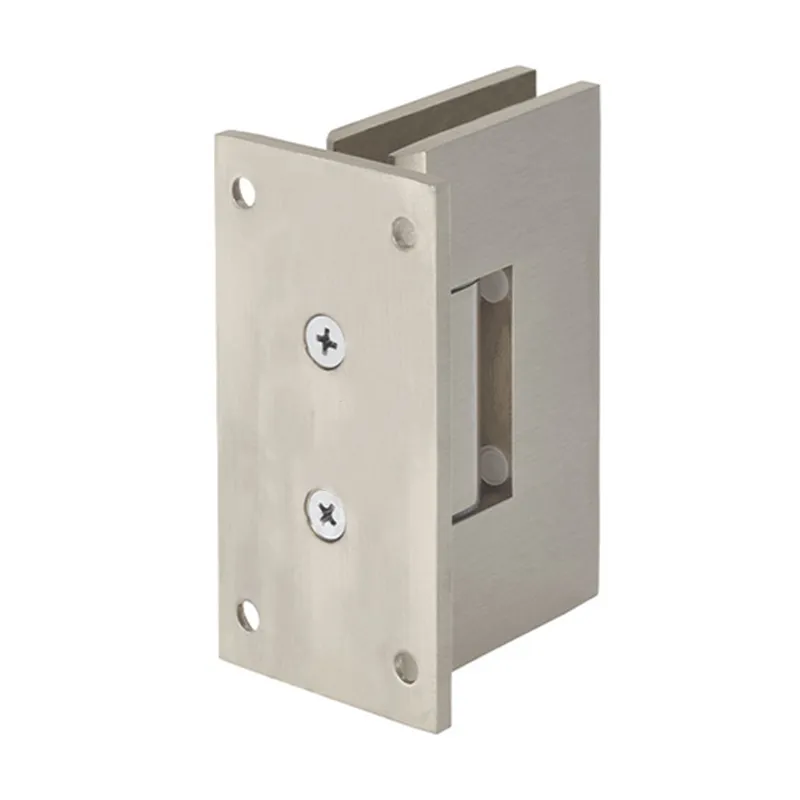

Product Details

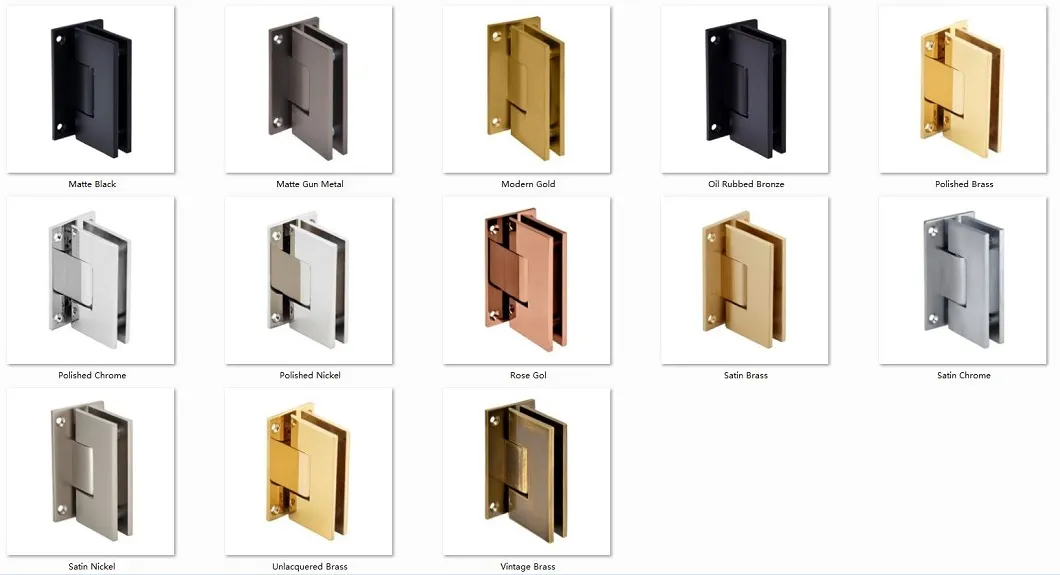

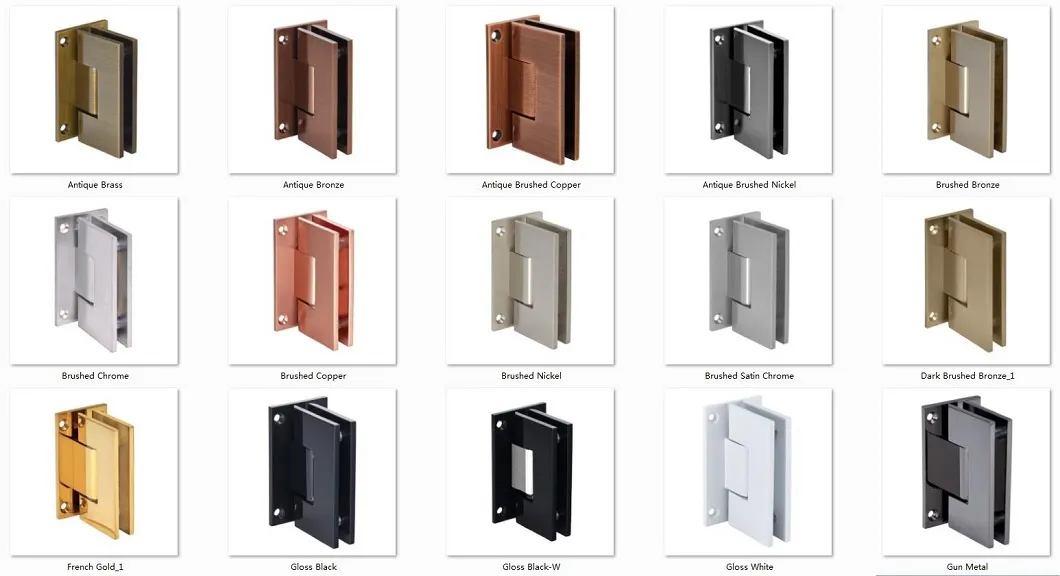

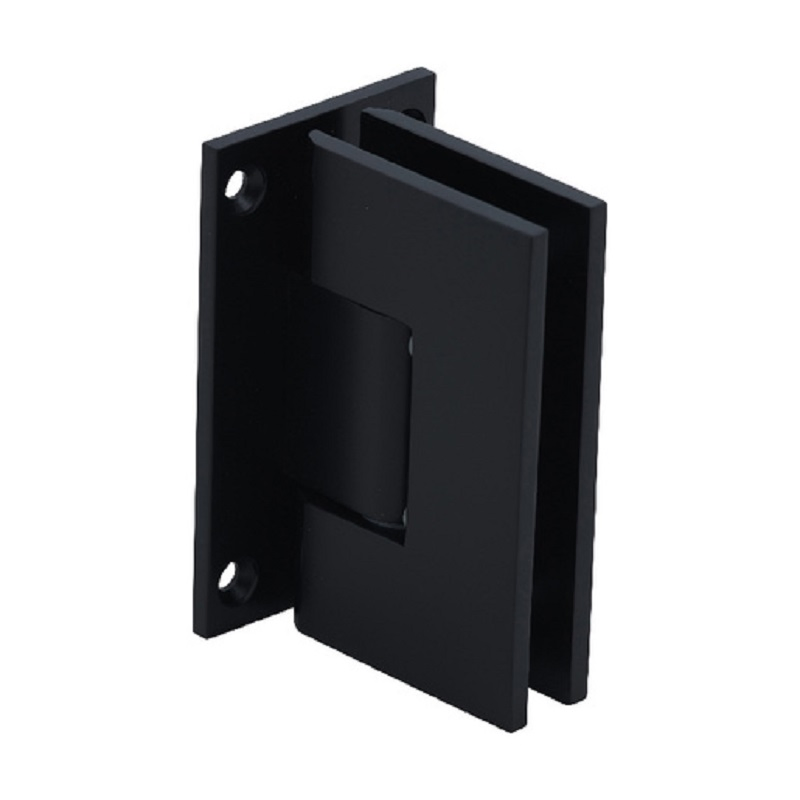

Available Finishes

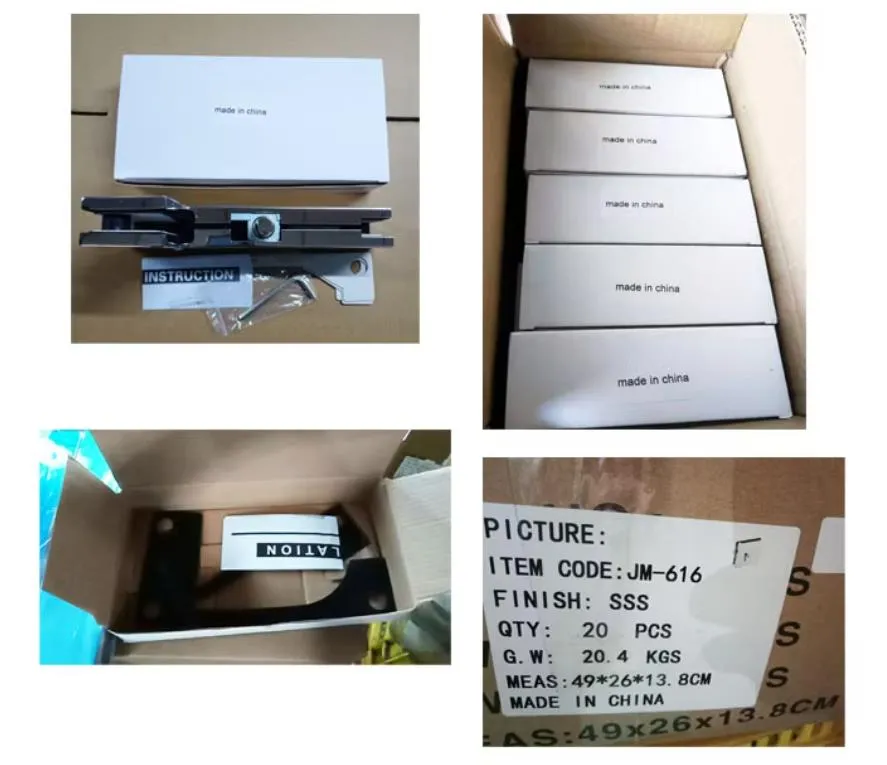

Package & Dimensions

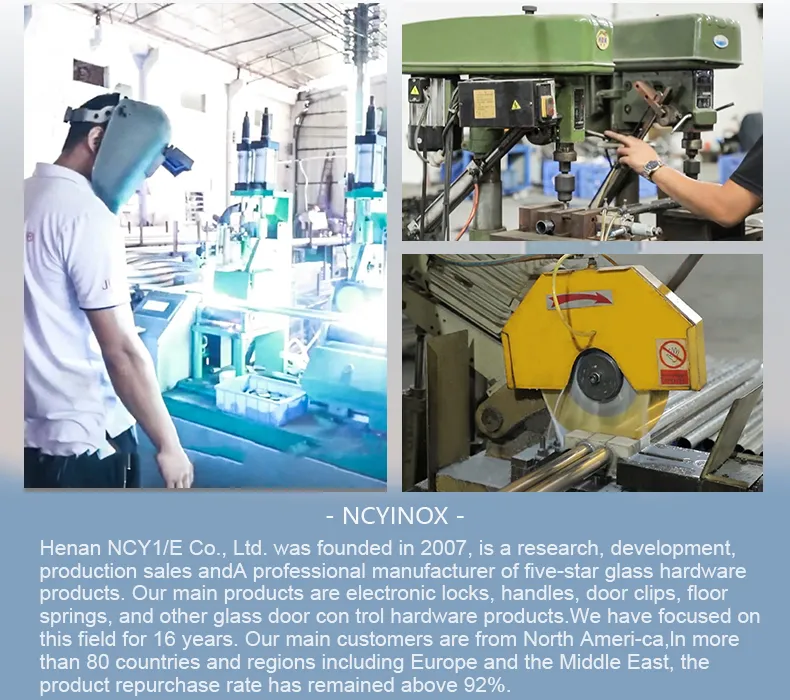

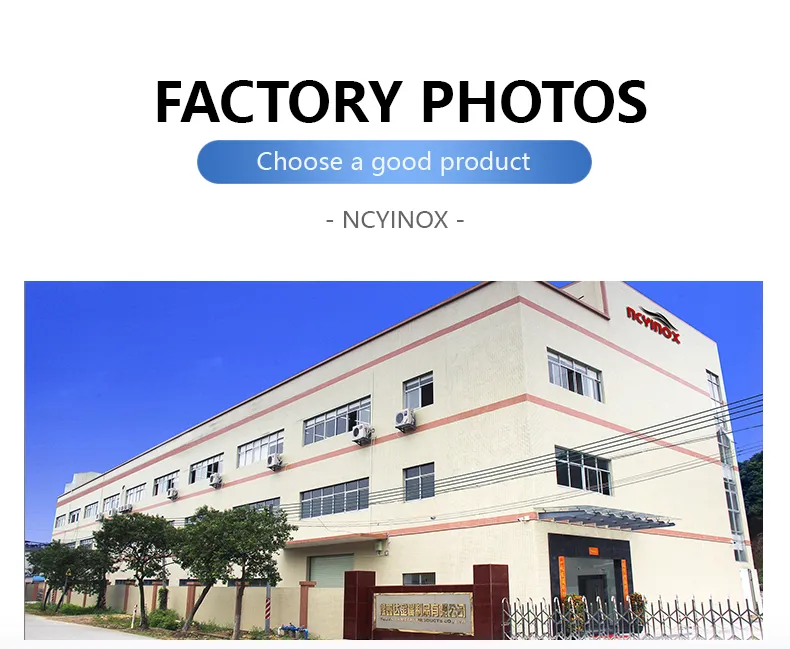

Factory Display
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a specialized manufacturer of glass accessories with over 15 years of industry experience.
What is the typical delivery time for orders?
Generally, it takes 5-10 days if the goods are in stock. For non-stock items, the lead time is approximately 15-20 days, depending on the order quantity.
What glass thickness is compatible with this hinge?
This model is designed to accommodate 3/8" to 1/2" (10 mm to 12 mm) tempered safety glass.
What are your standard payment terms?
For orders under 1000 USD, 100% advance payment is required. For orders over 1000 USD, a 30% T/T deposit is required before production, with the 70% balance due before shipment.
What does the "5 Degree Pre-Set" feature mean?
It is a factory setting that ensures a 5-degree tighter closure into the shower interior, providing a more secure seal and preventing water leakage.
Do you provide samples for quality testing?
Yes, we can offer samples. Please contact us to discuss the requirements and shipping arrangements.
