Decorative Ferrule Flexible Stainless Steel Wire Cable Rope Mesh Safety Mesh for Stair Railing Handrail Commercial Guard Rail System
Decorative Ferrule Flexible Stainless Steel Wire Cable Rope Mesh Safety Mesh for Stair Railing Handrail Commercial Guard Rail System
Decorative Ferrule Flexible Stainless Steel Wire Cable Rope Mesh Safety Mesh for Stair Railing Handrail Commercial Guard Rail System
Decorative Ferrule Flexible Stainless Steel Wire Cable Rope Mesh Safety Mesh for Stair Railing Handrail Commercial Guard Rail System
Decorative Ferrule Flexible Stainless Steel Wire Cable Rope Mesh Safety Mesh for Stair Railing Handrail Commercial Guard Rail System
1 / 5
Decorative Ferrule Flexible Stainless Steel Wire Cable Rope Mesh Safety Mesh for Stair Railing Handrail Commercial Guard Rail System
Decorative Ferrule Flexible Stainless Steel Wire Cable Rope Mesh Safety Mesh for Stair Railing Handrail Commercial Guard Rail System
Decorative Ferrule Flexible Stainless Steel Wire Cable Rope Mesh Safety Mesh for Stair Railing Handrail Commercial Guard Rail System
Decorative Ferrule Flexible Stainless Steel Wire Cable Rope Mesh Safety Mesh for Stair Railing Handrail Commercial Guard Rail System
Decorative Ferrule Flexible Stainless Steel Wire Cable Rope Mesh Safety Mesh for Stair Railing Handrail Commercial Guard Rail System

Decorative Ferrule Flexible Stainless Steel Wire Cable Rope Mesh Safety Mesh for Stair Railing Handrail Commercial Guard Rail System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.WY Rope Mesh
ApplicationConstruction, Protecting, Screen, Decorative, Fence
TypeStainless Steel Plain Wire Mesh
MaterialStainless Steel Wire (304, 316)
Weave TechniquePlain Weave / Woven
Wire Diameter1.0mm, 1.2mm, 1.5mm, 2.0mm
Wire Structure7*7, 7*19
FeatureFlexible, High-Strength
Mesh TypeFerruled Style / Knotted Style
Aperture25*25mm to 60*60mm
Product Description

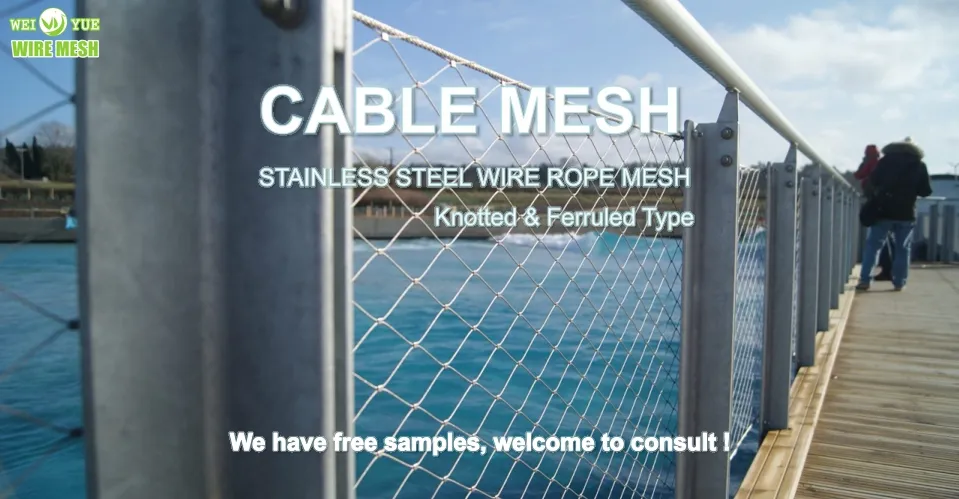

Stainless Steel Wire Rope Mesh Banner
Constructed of quality stainless steel wire ropes, flexible wire rope mesh has unique characteristics that allows design flexibility in architecture. It incorporates the tensile strength of the indestructible stainless steel and aesthetically diamond openings which is graceful and beautiful.
The mesh is light, robust and transparent, and it can stand up to heavy loads. It has been widely used as balustrade infill system, zoo enclosures, tensile facade, safety netting and green wall systems in interior and exterior applications.
Weaving Type

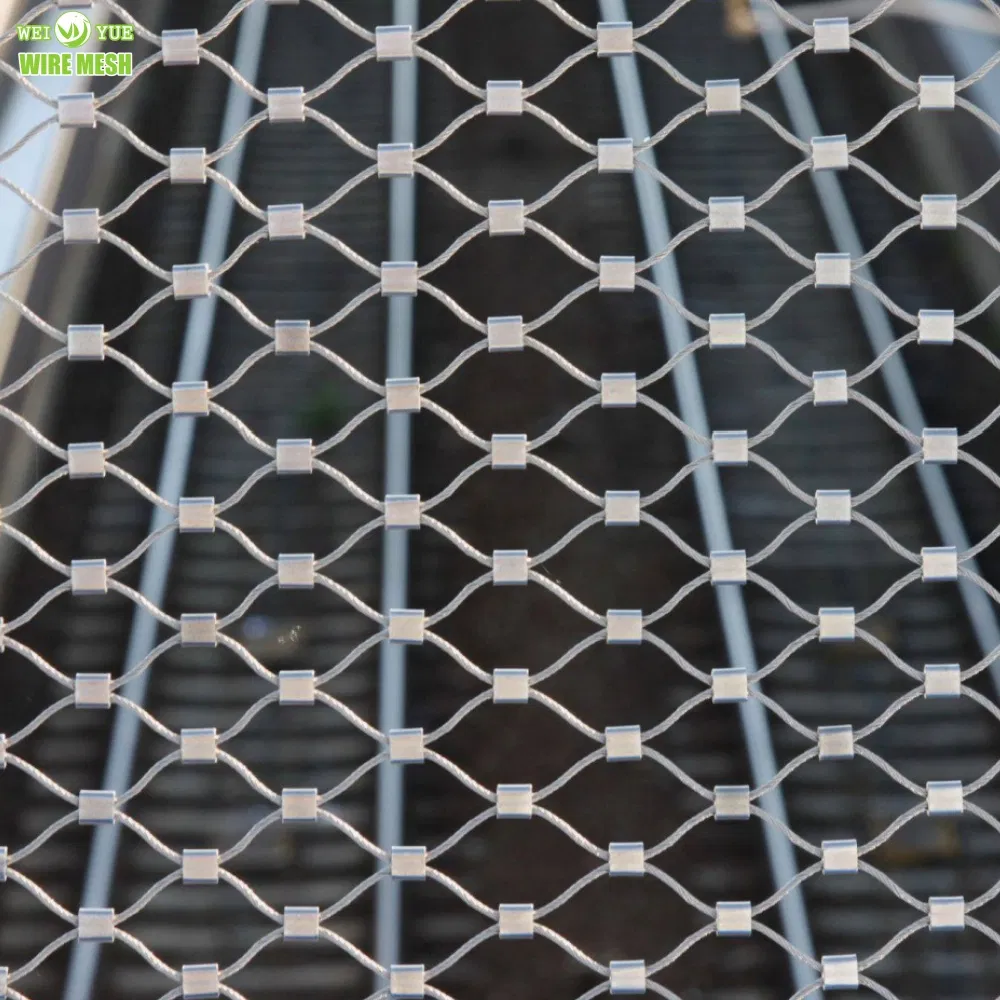

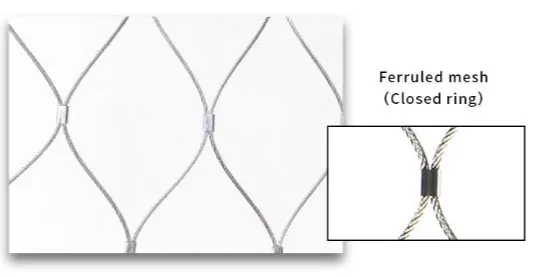

Ferruled Type Closed
Ferruled Type (Closed ring)
Ferruled Type Open
Ferruled Type (Open ring)
Knotted Type
Knotted Type Cable Mesh

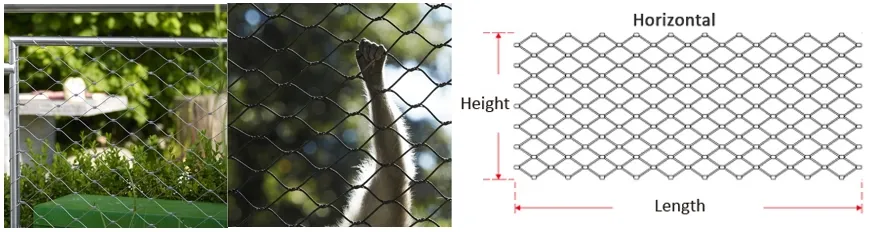

Horizontal installation
Horizontal Installation

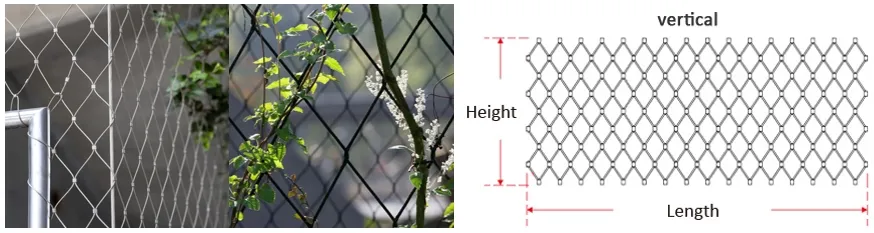

Vertical installation
Vertical Installation
Product Applications

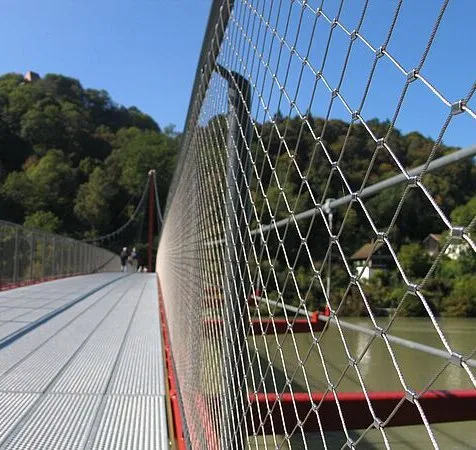

Bridge Mesh
Bridge Cable Mesh

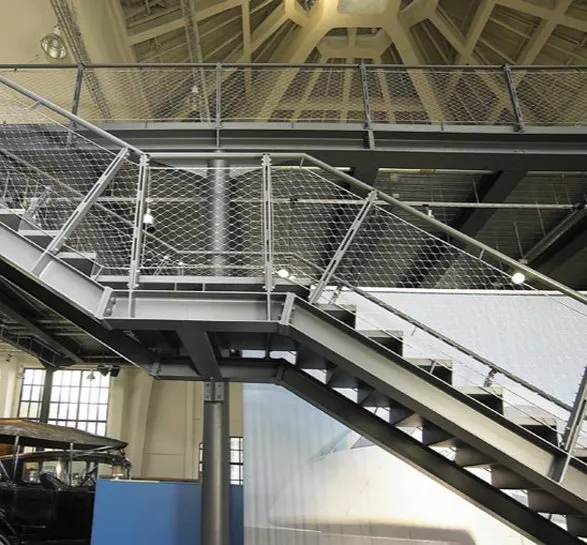

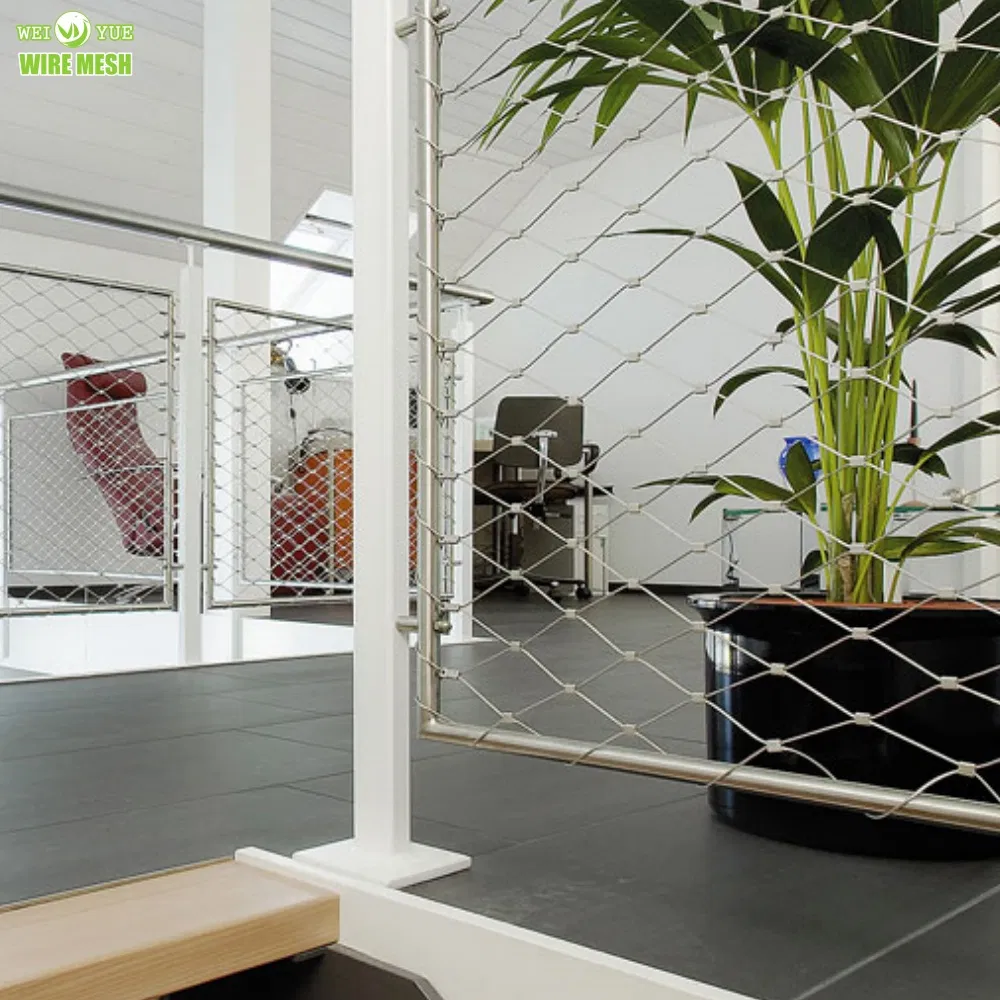

Stair Railing
Stair Railing System

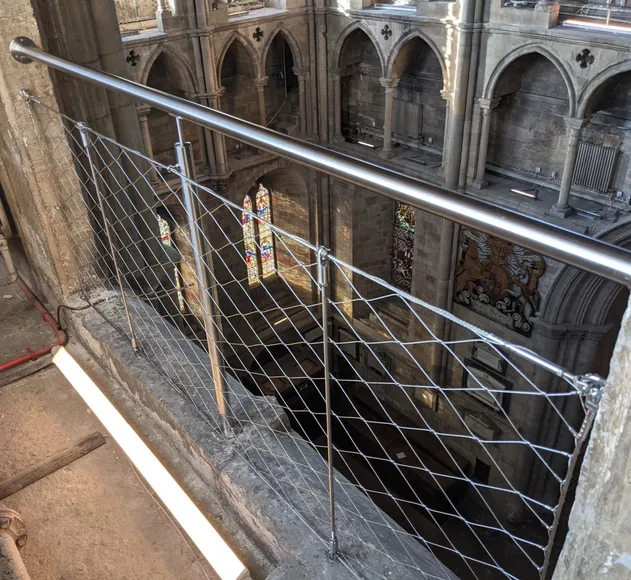

Balcony Balustrade
Balcony Balustrade

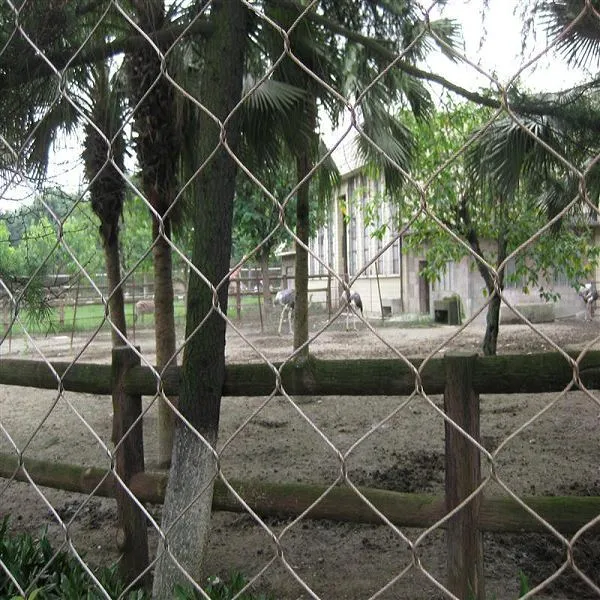

Zoo Mesh
Zoo Enclosure Mesh

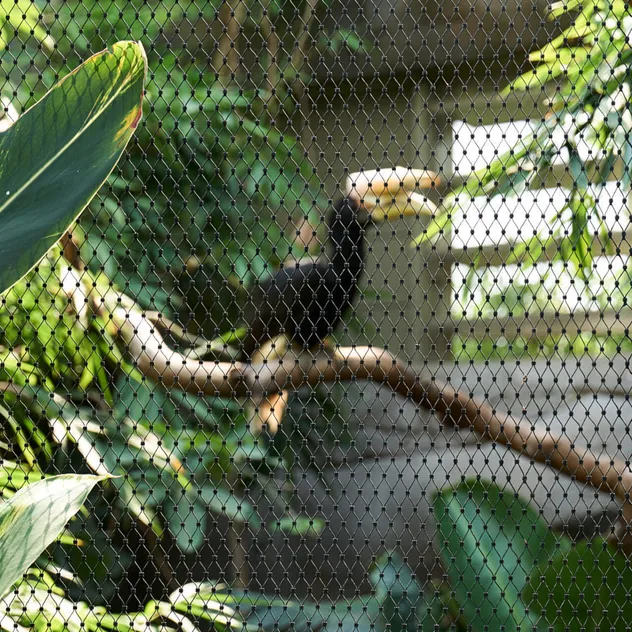

Parrot Mesh
Aviary / Parrot Mesh

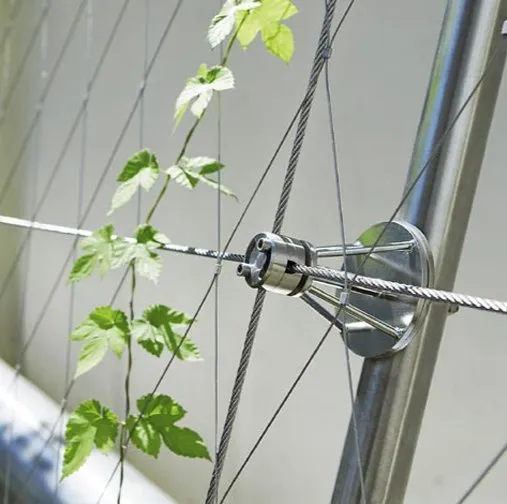

Green Facades
Green Facades
Specifications
Code Rope Construction Rope Dia (mm) Opening Size (mm) Breaking Force (KN)
WY-017 × 193.2120 × 1207.38
WY-027 × 193.2102 × 1027.38
WY-057 × 193.251 × 517.38
WY-087 × 72.476 × 764.18
WY-127 × 72.060 × 603.17
WY-157 × 71.676 × 762.17
Product Display

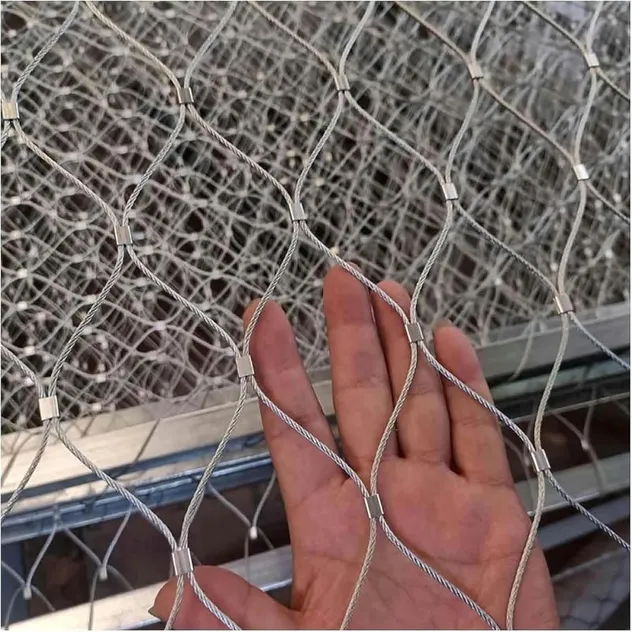

Display 1

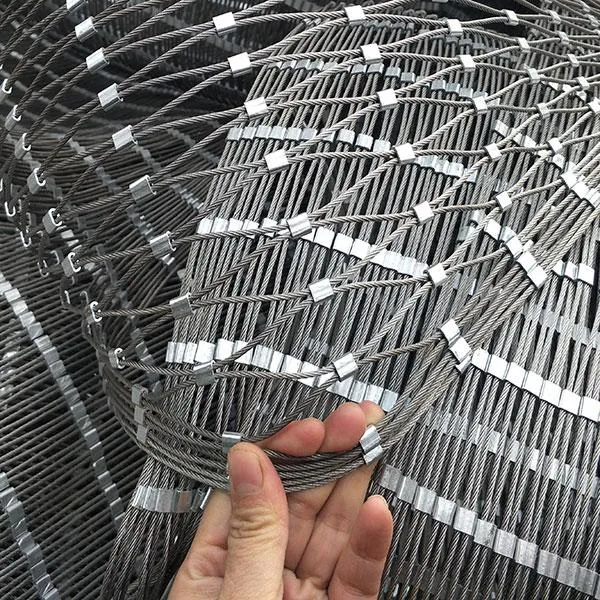

Display 2

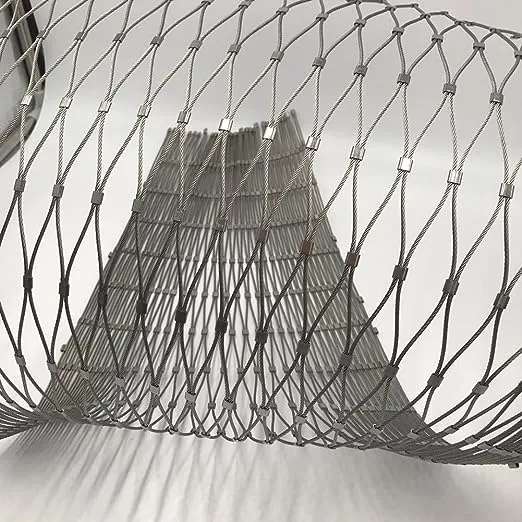

Display 3
Packing & Delivery
Packing Process
Packing 1
Packing 2
Frequently Asked Questions
Q1: What materials are used for the wire rope mesh?
The mesh is primarily made from high-quality stainless steel grades 304, 304L, 316, and 316L, ensuring durability and corrosion resistance.
Q2: What is the difference between Ferruled and Knotted types?
Ferruled type uses seamless ferrules to combine the ropes, offering a modern look, while the Knotted type is hand-woven, providing a traditional and highly flexible structure.
Q3: Can the wire rope mesh be used for outdoor safety?
Yes, it is widely used for bridge safety, balcony balustrades, and stair railings due to its high tensile strength and weather-resistant properties.
Q4: Is the mesh suitable for zoo animal enclosures?
Absolutely. It is an ideal choice for zoo mesh (like leopard or parrot enclosures) because it is strong enough to contain animals while remaining transparent for spectators.
Q5: Does the mesh block light or airflow?
No, the diamond opening design provides excellent transparency, allowing natural light and airflow to pass through without obstruction.
Q6: What are the standard rope structures available?
The standard rope constructions are 7x7 and 7x19, with diameters ranging from 1.0mm to 5.0mm depending on the application requirements.
