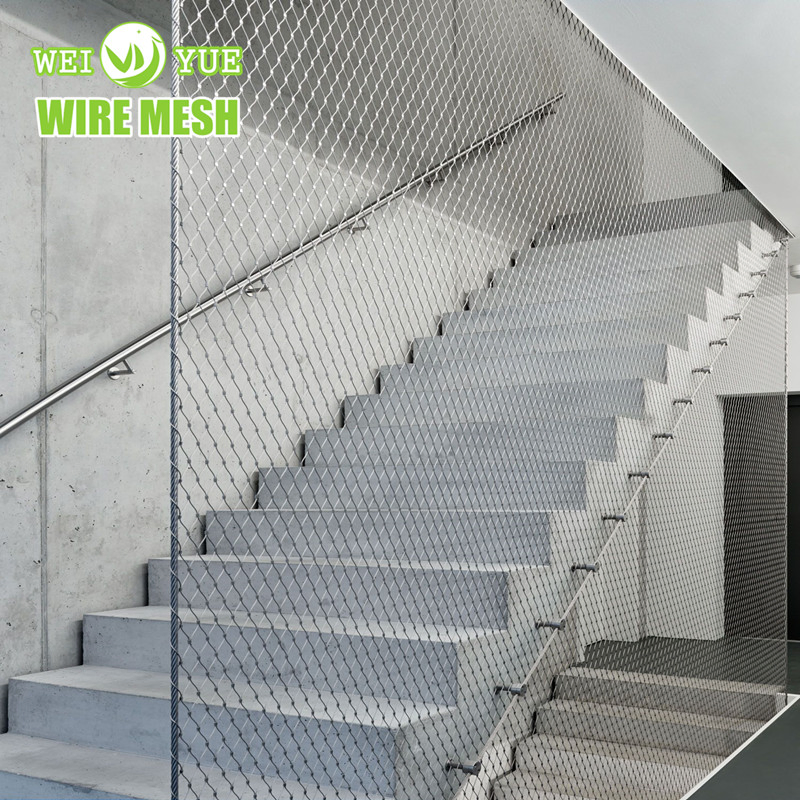

Emergency Stairway Falling Curing Stainless Steel Wire Cable Rope Mesh Net for Handrail/Railing/Staircase/Balcony/Garden/Decorative Building

Basic Specifications

Type

Stainless Steel Plain Wire Mesh

Material Type

Stainless Steel Wire 304, 304L, 316, 316L

Weave Technique

Plain Weave / Handwoven

Wire Mesh Width

Customizable

Nickels Content

8%

Hole Size

25 ~ 200 mm

Wire Diameter

1.0 ~ 5.0 mm

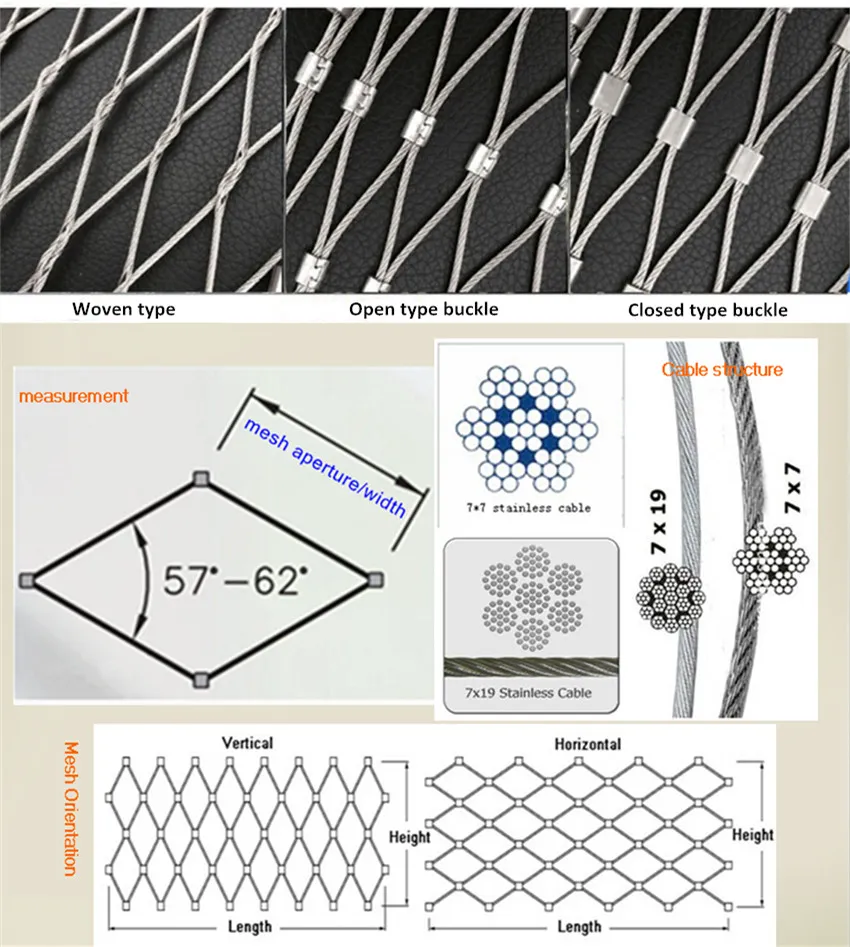

Cable Construction

7*7, 7*19

Surface Treatment

Primary Color or Black Oxide Finish

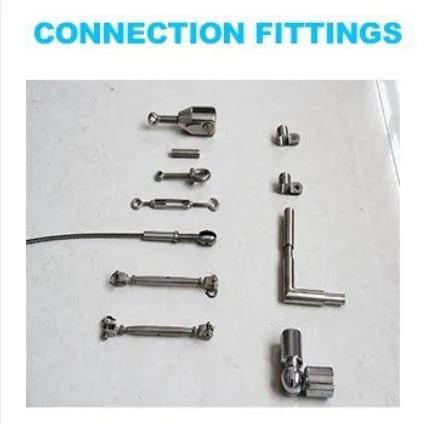

Connection Type

Ferrule or Knotted

Package

Carton or Wooden Box

Production Capacity

1000m² Per Day

Product Description

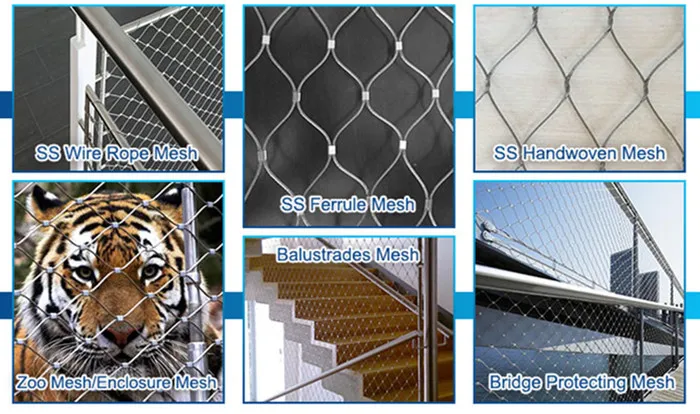

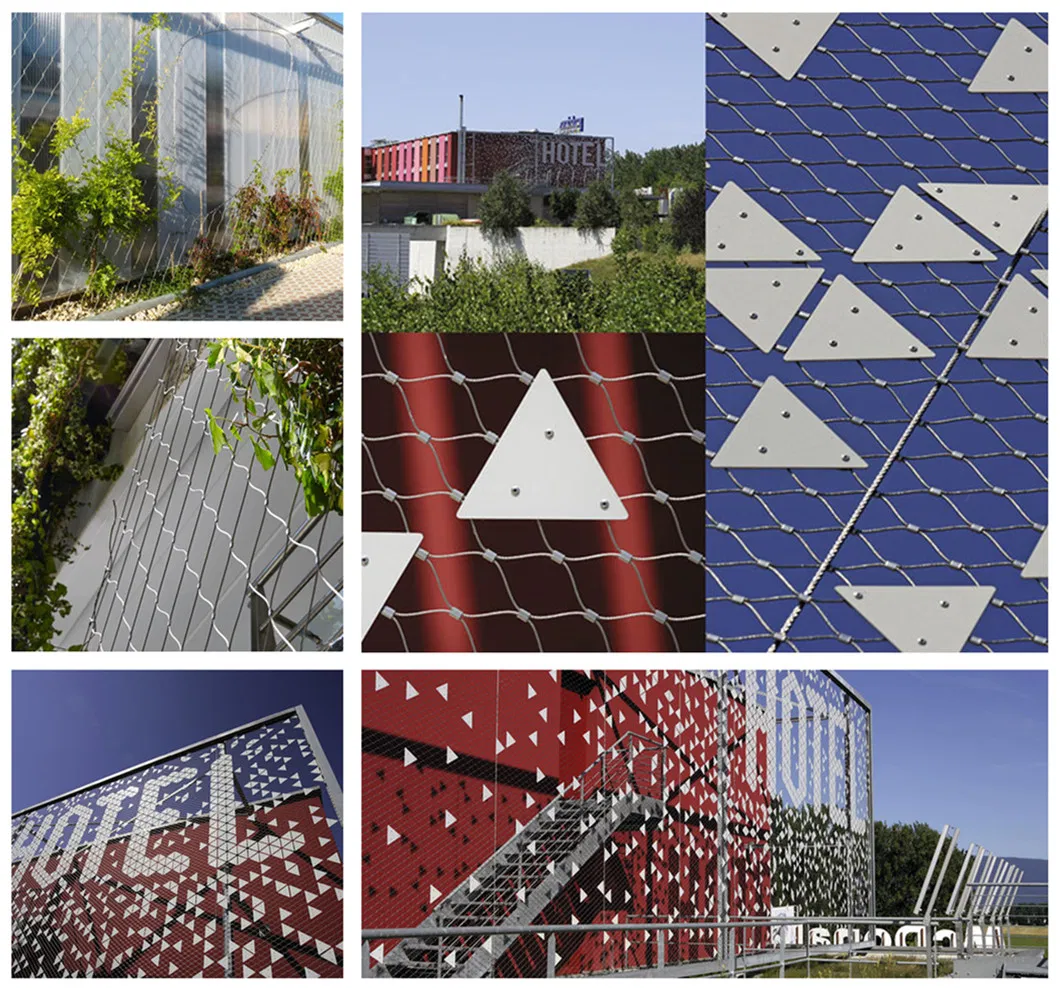

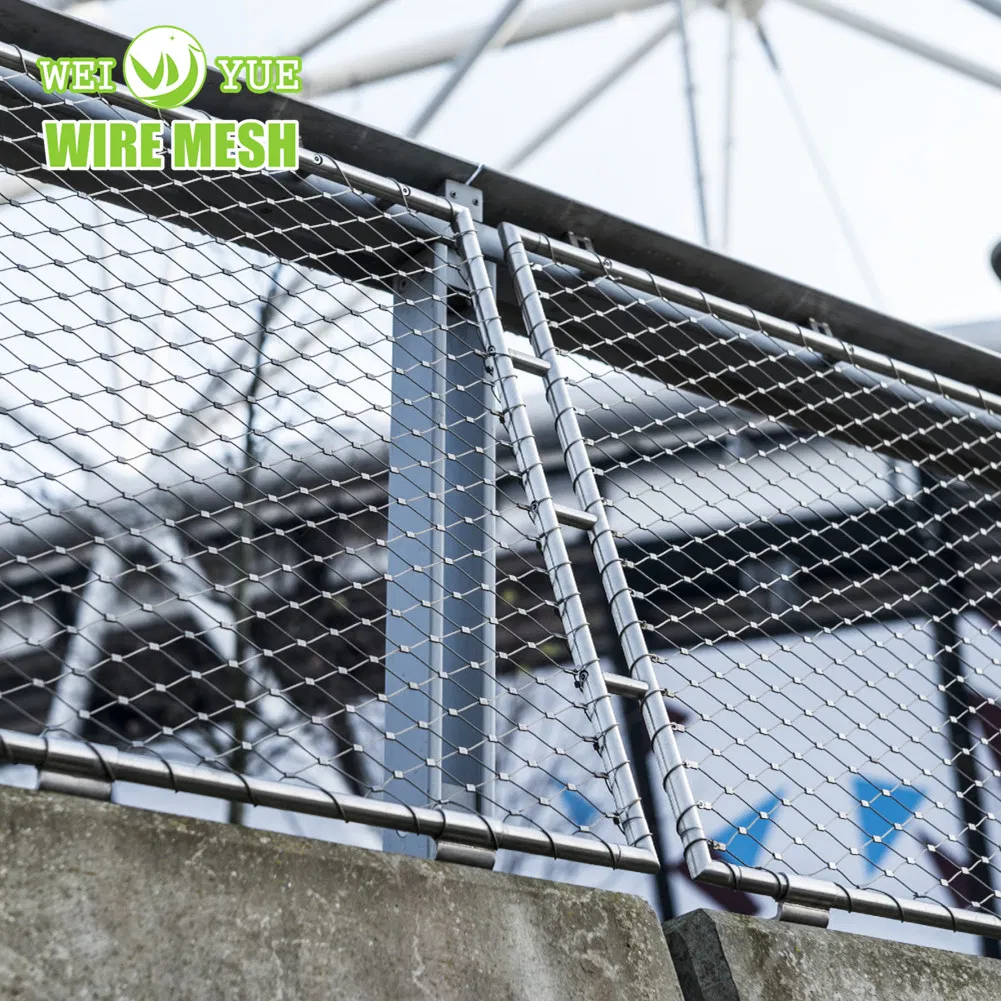

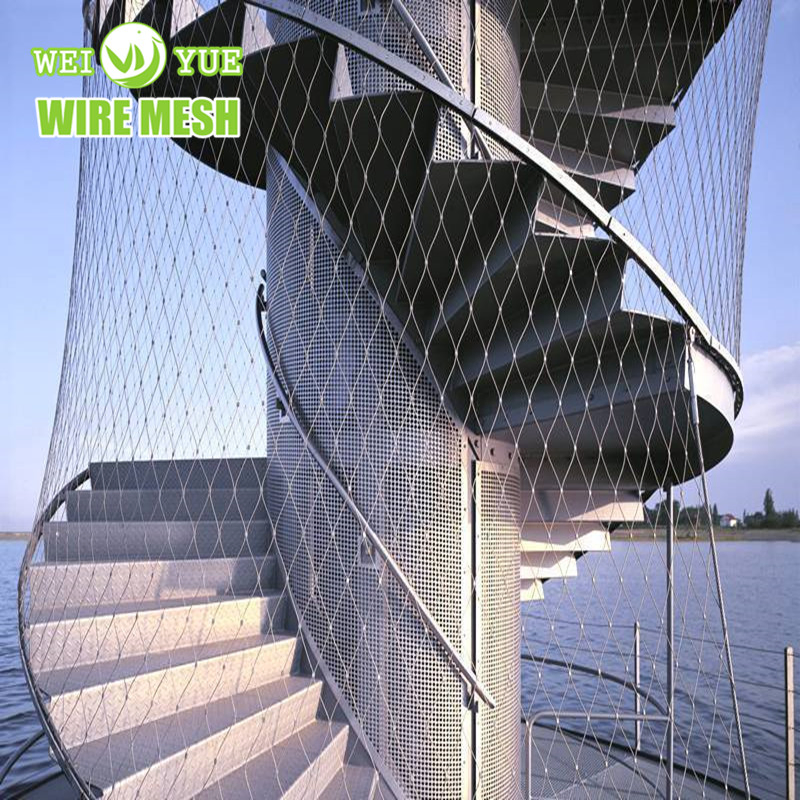

Stainless steel flexible wire rope mesh incorporates the tensile strength of indestructible stainless steel and aesthetically diamond openings. The mesh is light, robust, and transparent, capable of standing up to heavy loads. It is widely used as a balustrade infill system, zoo enclosures, tensile facade, safety netting, and green wall systems.

Core Features

Easy Installation: Flexible and adaptable to complex terrain and various installation angles.

Corrosion Resistance: Made of high-quality stainless steel wire for extreme stability in harsh environments.

High Durability: Service life up to several decades with very low maintenance costs.

Eco-Friendly: Non-flammable, reusable, and provides high transparency for natural light.

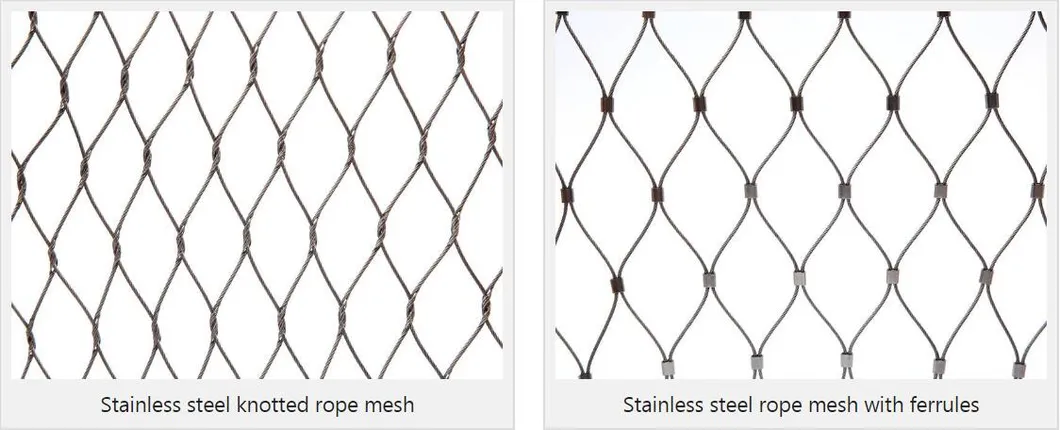

Types of Cable Mesh

1. Knotted Type Cable Mesh

An inter-woven mesh fabricated from high tensile stainless steel cables. Advantages include high versatility for fall protection, helipads, and zoo enclosures. It features high impact resistance and a lifespan of over 30 years.

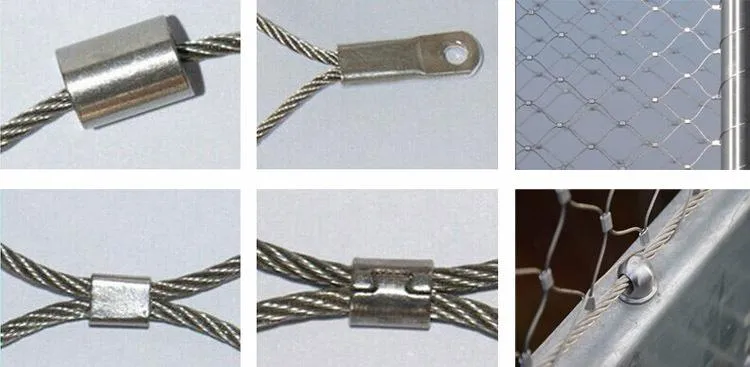

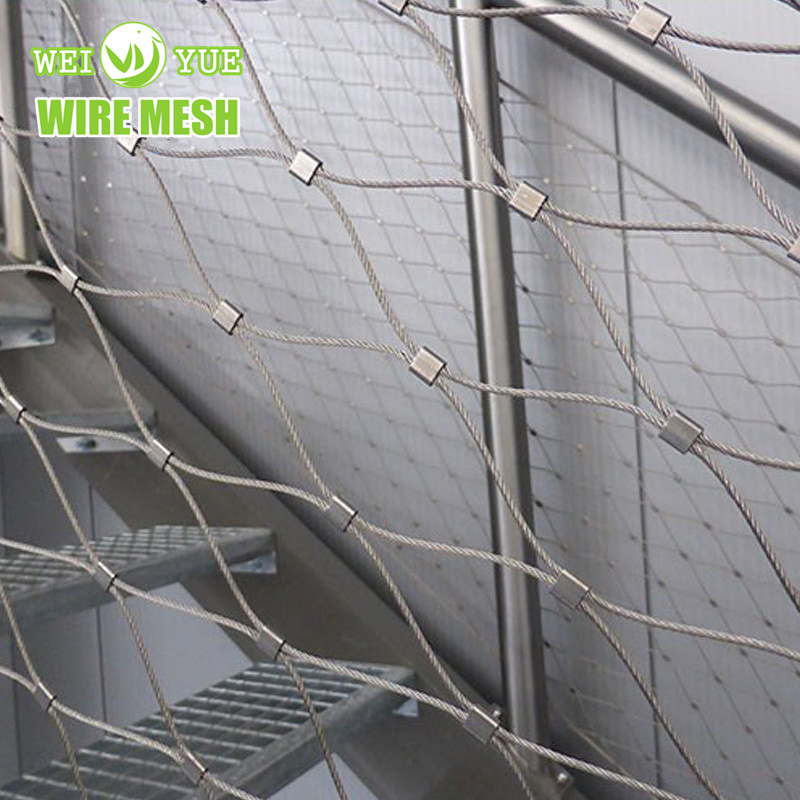

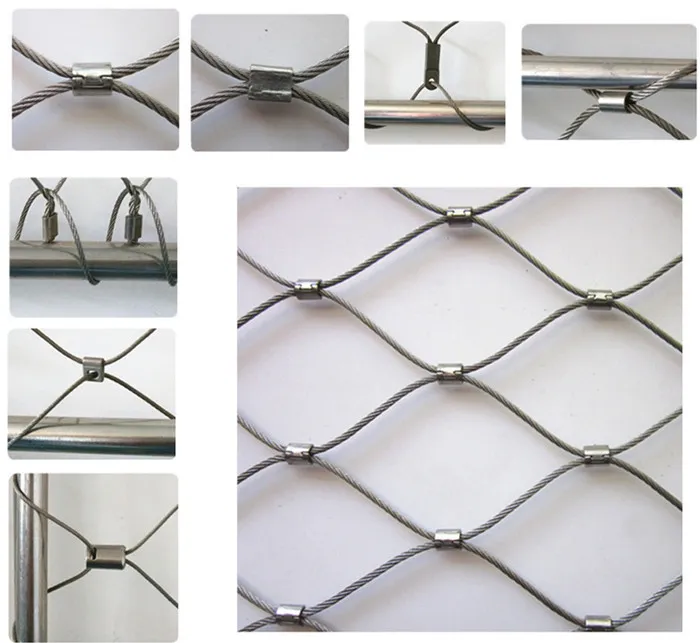

2. Ferrule Type Cable Mesh

Uses seamless ferrules to combine cables into a resilient metal fabric. Known for high transparency, anti-climb properties, and weather resistance, making it ideal for schools, museums, and public bridges.

Technical Data Table

Model	Structure	Rope Diameter	Mesh Opening	Breaking Force (KN)
WY-01	7 × 19	3.2mm	120 × 120mm	7.38
WY-05	7 × 19	3.2mm	51 × 51mm	7.38
WY-10	7 × 7	2.4mm	51 × 51mm	4.18
WY-15	7 × 7	1.6mm	76 × 76mm	2.17
WY-20	7 × 7	1.2mm	51 × 51mm	1.22
WY-24	7 × 7	1.2mm	20 × 20mm	1.22

Frequently Asked Questions (FAQ)

Q1: What materials are available for the wire rope mesh?

A: We primarily use high-quality Stainless Steel 304, 304L, 316, and 316L, which provide excellent corrosion resistance and strength.

Q2: What is the difference between knotted and ferrule types?

A: Knotted mesh is inter-woven by hand, offering a classic look and high flexibility. Ferrule mesh uses seamless metal sleeves (ferrules) to join the ropes, providing higher strength for heavy-load applications.

Q3: Is the mesh size and wire diameter customizable?

A: Yes, all parameters including wire diameter (1.0mm to 5.0mm) and mesh opening sizes (25mm to 200mm) can be modified according to your specific project requirements.

Q4: How long does the stainless steel rope mesh last?

A: Due to the high-grade stainless steel material, the mesh has a service life of over 30 years and requires minimal maintenance even in outdoor environments.

Q5: What are the typical applications for this product?

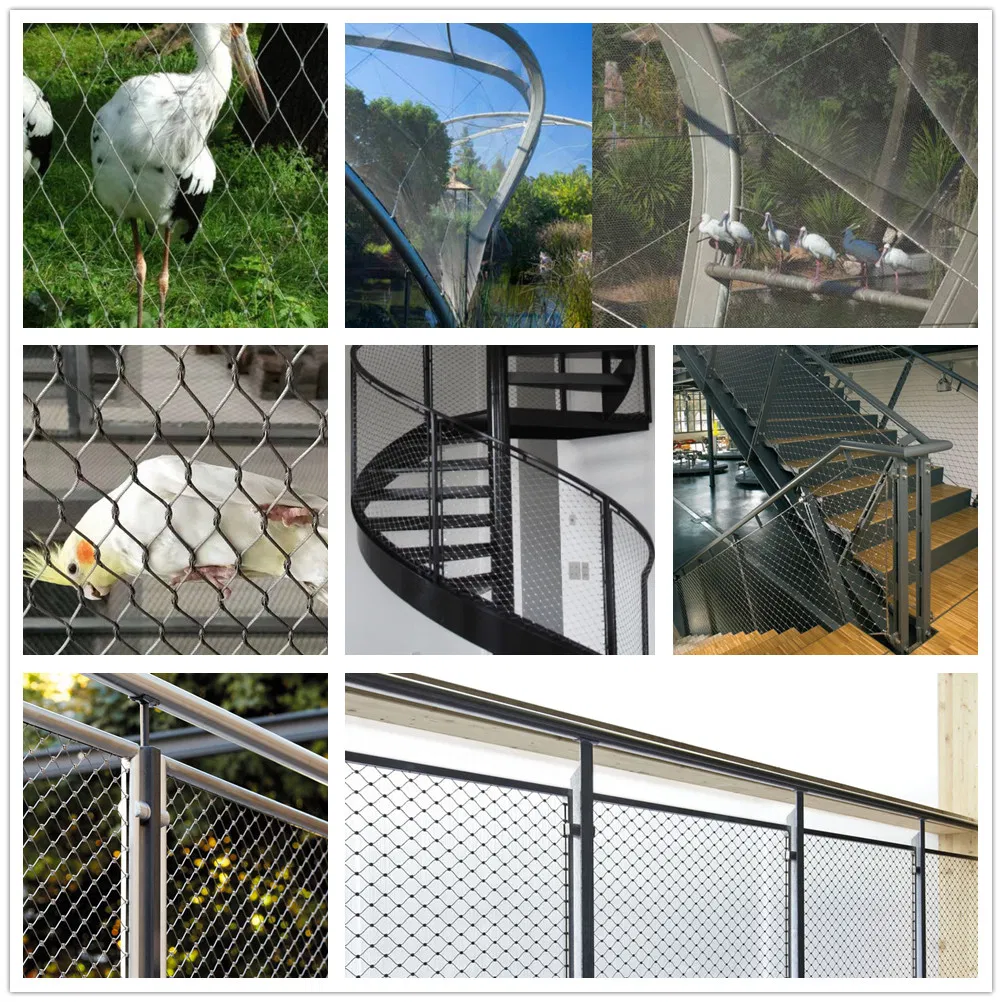

A: Common applications include bridge balustrades, stair handrails, zoo enclosures (bird aviaries, animal cages), green wall systems, and fall protection safety netting.

Q6: Can the surface color be changed?

A: Yes, besides the natural metallic primary color, we also offer a black oxide finish for a more decorative or low-glare appearance.
