Customization: Available
Material: 304 316 316L 304L, etc
Hole Shape: Square
Send Inquiry

Product Description

i

Basic Information

Model NO.WYCSSWM5
ApplicationFilter, Construction, Screen, Decorative, Cages
MaterialStainless Steel Wire (302, 304, 316, 316L)
TechniqueWoven (Plain/Twill/Dutch)
Width1m, 1.5m, 2m
Wire Diameter0.02 - 2.0mm
Mesh Range1 - 200 Mesh
Roll Length15m, 30m, 50m
CertificationISO9001
Capacity1000m2 Per Day

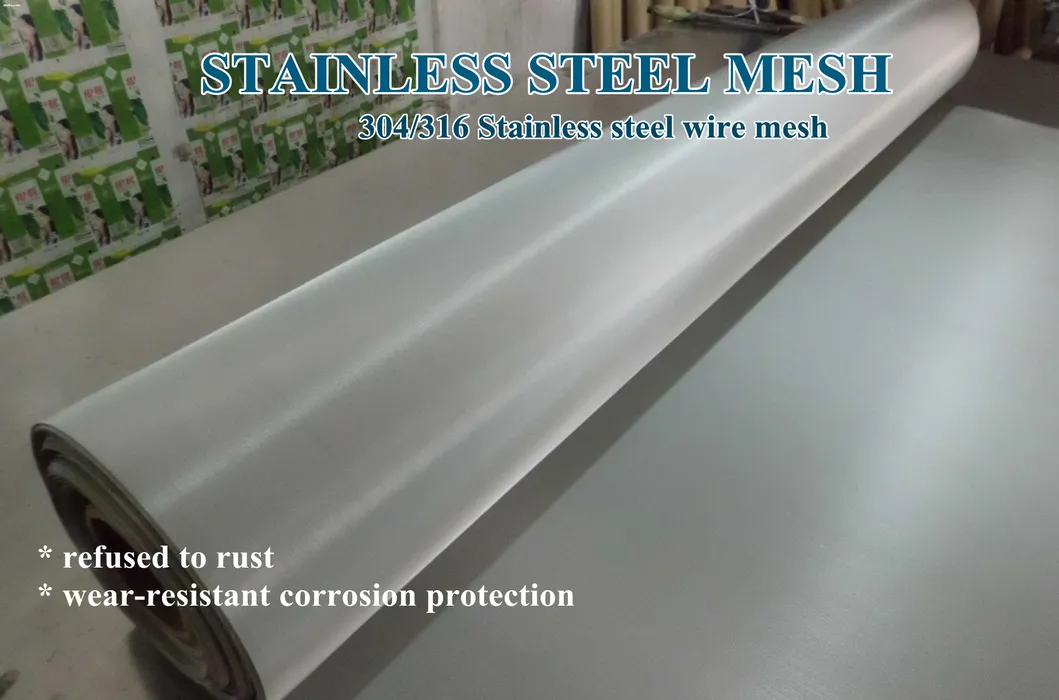

Stainless Steel Mesh

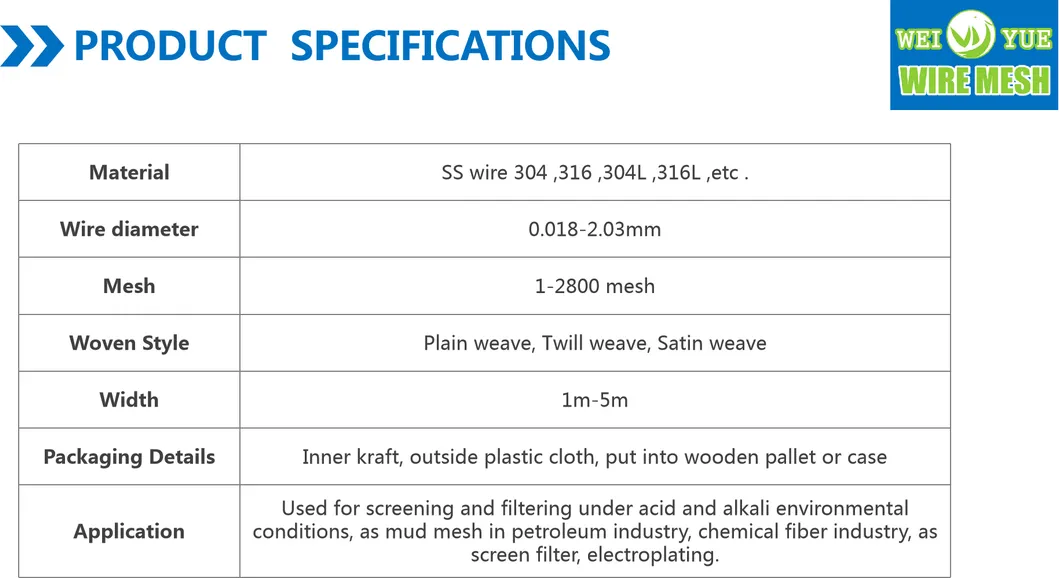

Woven Wire Detail
S

Technical Specifications

Commonly available in Stainless Steel grades 302, 304, 316, and 316L. Custom specifications can be accommodated based on requirements.

Mesh Gauge Wire Dia (mm) Weave Type
8240.558Plain/Twill
10260.457Plain/Twill
20300.315Plain/Twill
50360.193Plain/Twill
100420.102Plain/Twill
200470.051Plain/Twill
W

Weaving Methods

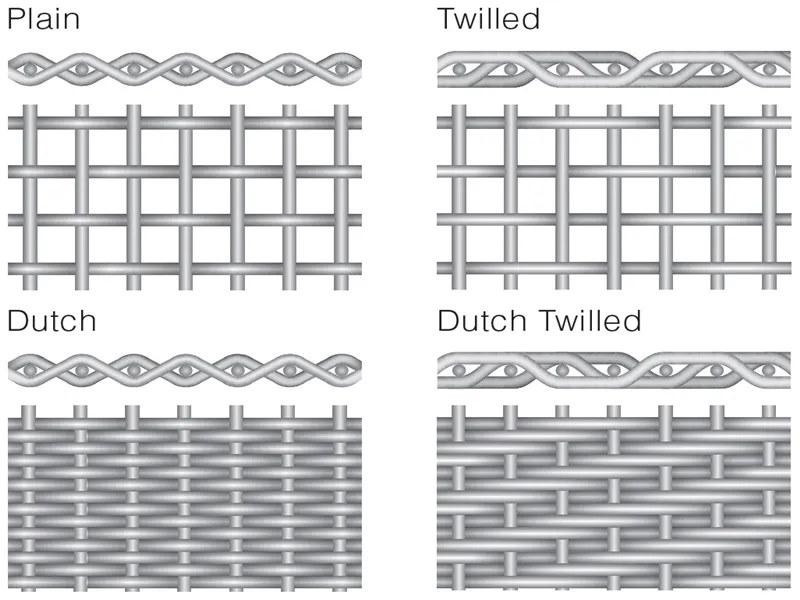

Weaving Method Diagram
Plain Weave

Warp and weft threads cross at right angles, forming a simple criss-cross pattern. Each thread goes over one and under the next.

Twill Weave

Passed over one or more warp threads then under two or more, creating a characteristic diagonal pattern. Offers better drape.

Plain Dutch Weave

Features larger warp wire diameters than weft. Produces a robust cloth with no readily visible apertures, ideal for high-pressure filtration.

Twill Dutch Weave

Combines Dutch weave principles with a twill pattern. Provides the finest filtration rates and a smooth surface.

D

Mesh Display & Packaging

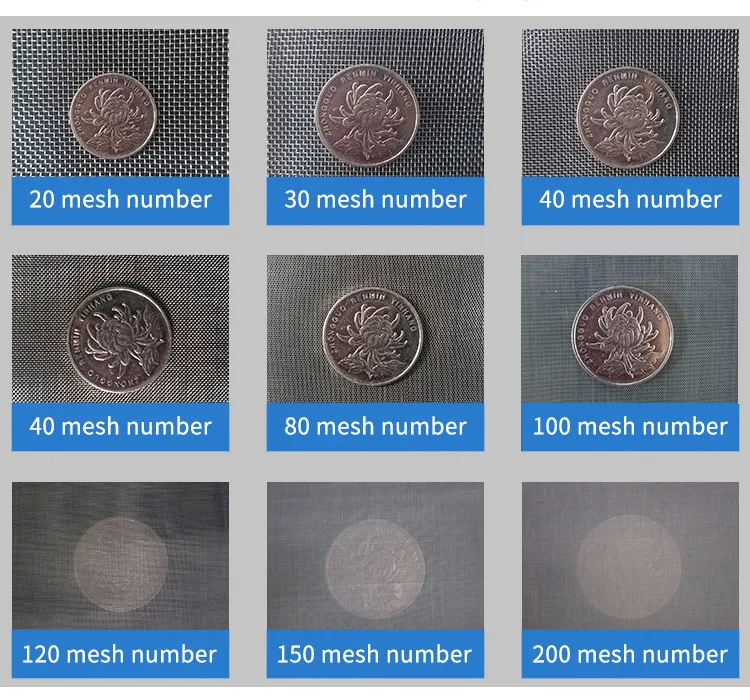

Mesh Number Display

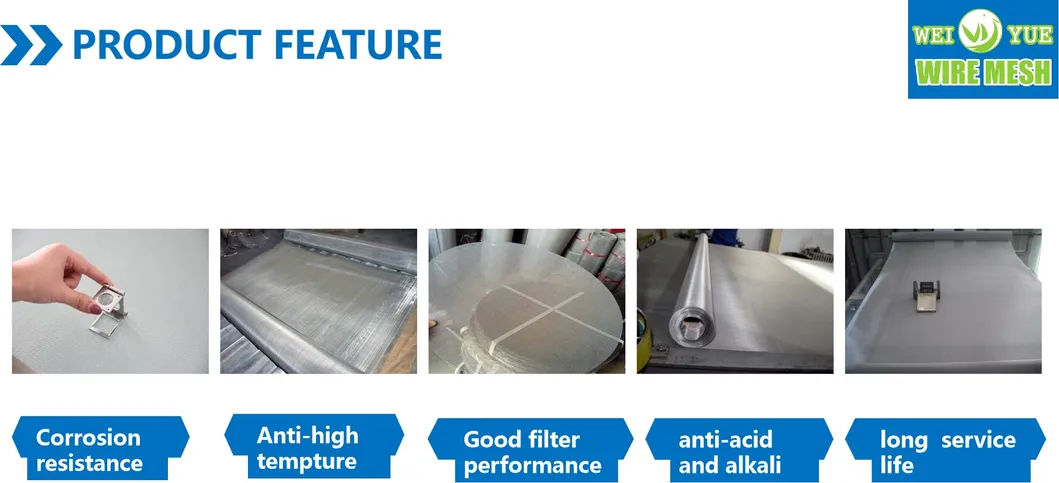

Rolled Mesh
Production View

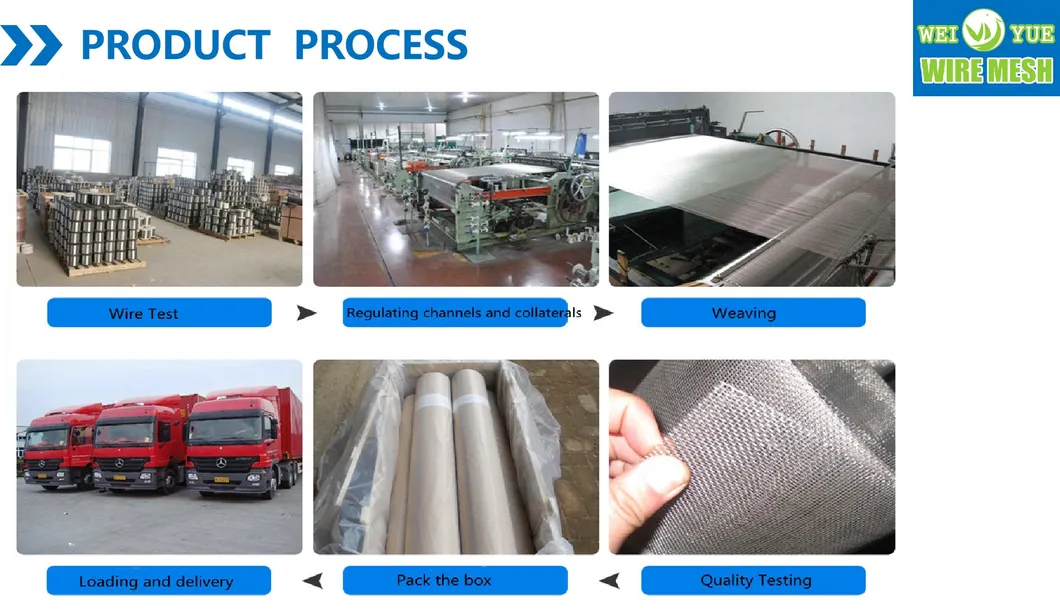

Quality Check

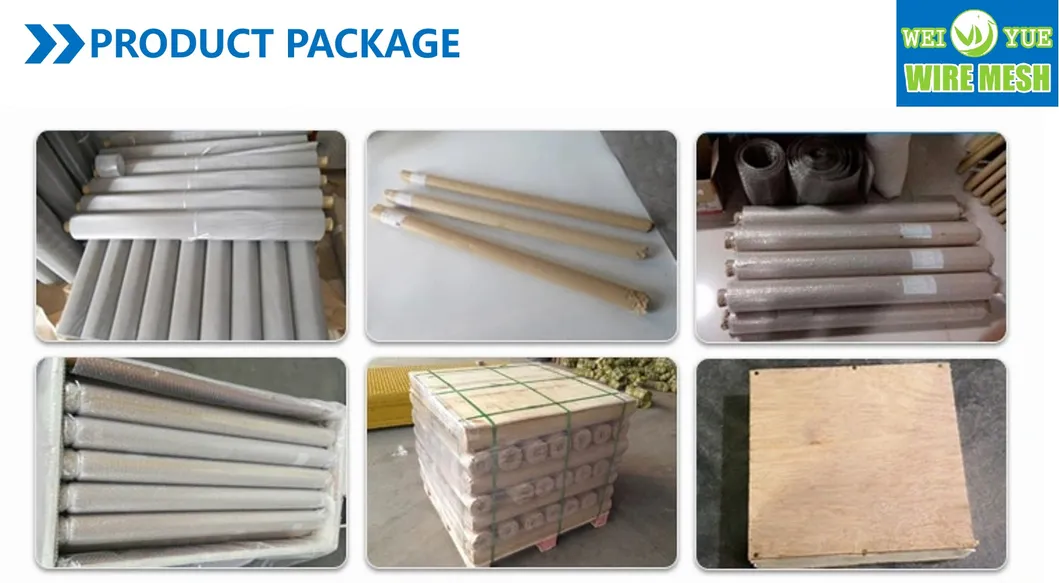

Packaging Box
P

Packaging & Delivery

Package Size110.00cm * 50.00cm * 30.00cm
Gross Weight80.000kg
Package TypeStandard Carton or Secure Wooden Box
?

Frequently Asked Questions

1. What grades of stainless steel are used for the wire mesh? We primarily use high-quality 302, 304, 304L, 316, and 316L stainless steel wires to ensure durability and corrosion resistance.
2. Which weaving technique should I choose for my application? Plain weave is standard for simple filtering. Twill weave is better for heavier loads. Dutch weaves (Plain or Twill) are specifically designed for high-precision filtration with fine particles.
3. Are the roll sizes customizable? Yes, while standard rolls are 1m or 1.5m wide and 30m or 50m long, we can customize the length and width to meet your specific industrial needs.

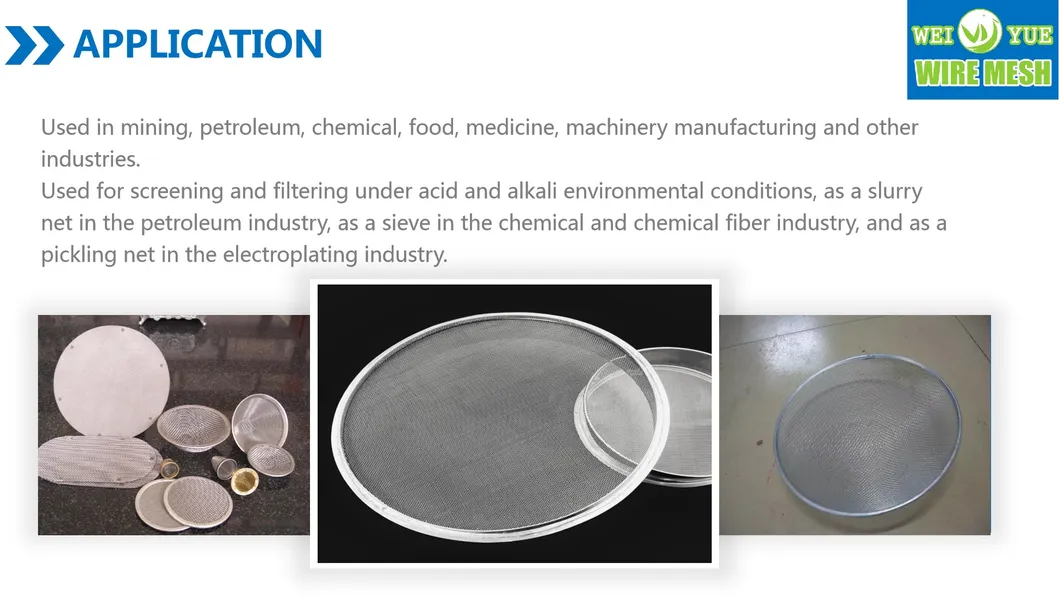

4. What are the common applications of this mesh? It is widely used for oil/gas/water filtration, coffee filters, window screens, architectural decoration, construction reinforcement, and protective cages.
5. How do you ensure the product arrives safely? All wire mesh rolls are packed in heavy-duty cartons or reinforced wooden boxes to prevent damage and compression during international transit.
6. What is the daily production capacity? Our facility is capable of producing up to 1000 square meters per day, ensuring rapid fulfillment of large orders.
