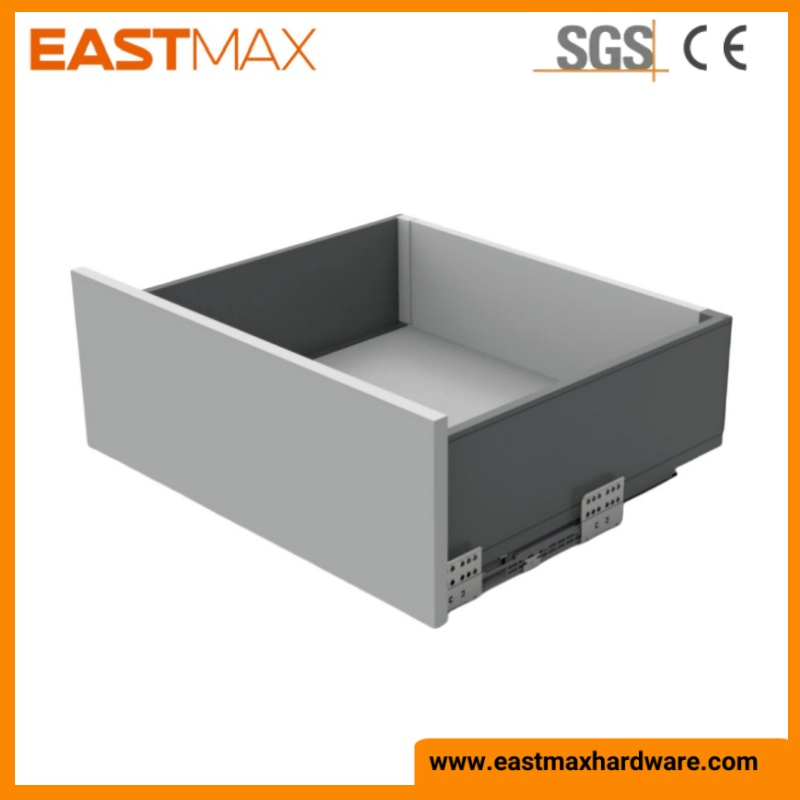

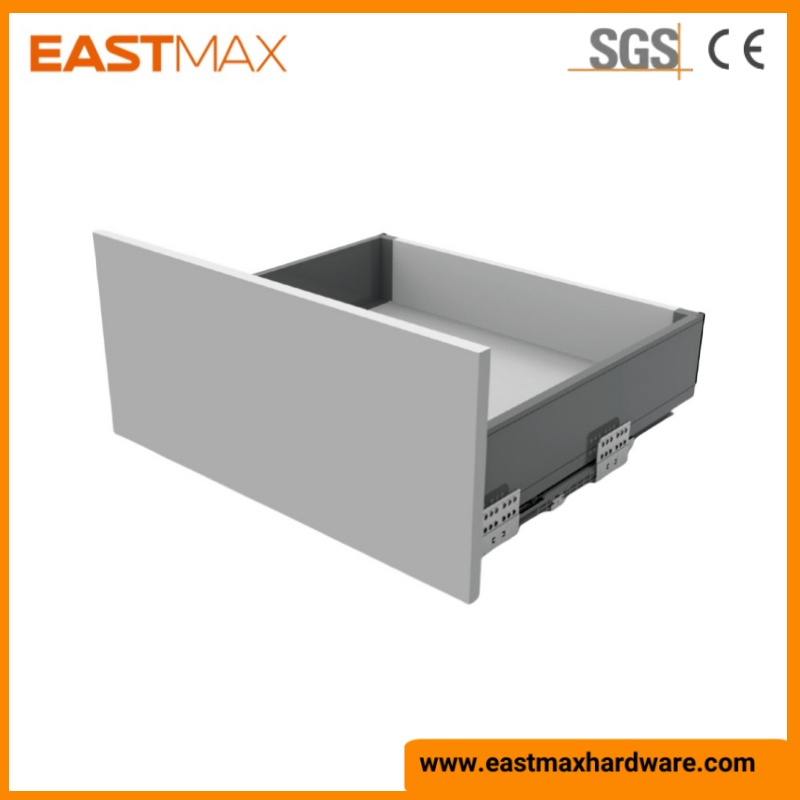

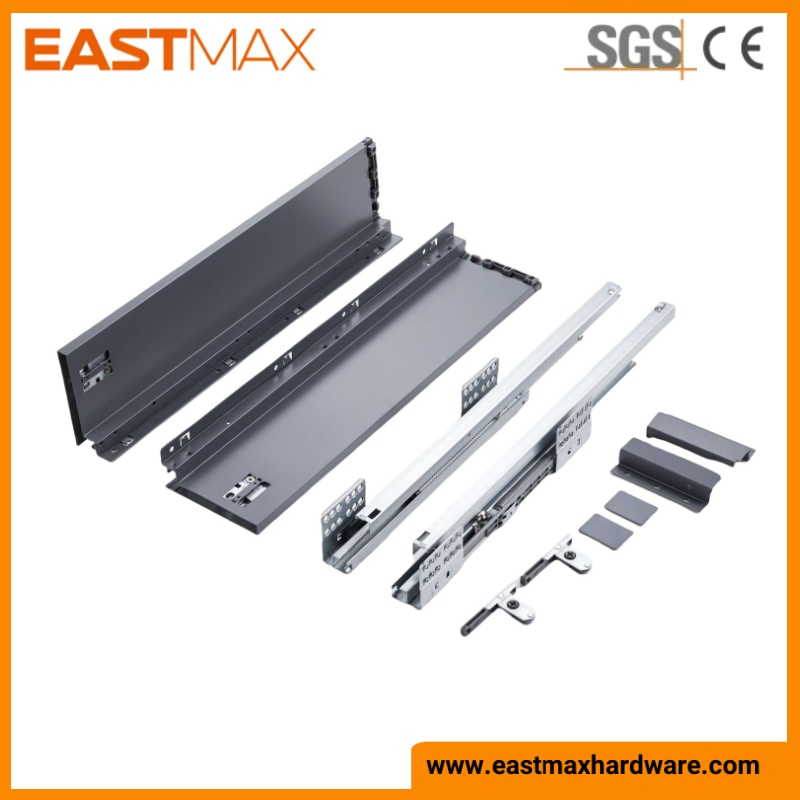

Full Extension Soft Close Furniture Hardware Drawer Slides Slim Box Metal Drawer Box

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
DL19
Structure
Three Knots
Slide Type
Concealed Slide
Function
Connector
Length
270-550mm
Max Loading Capacity
40kg
Thickness of Board
16mm
Life Guarantee
80000 Cycles
Drawer Height
86/135/167/199mm
HS Code
8302410000
Production Capacity
100,000,000 PCS/Year

Product Description

Soft Closing Full Extension Slim Metal Drawer Box System

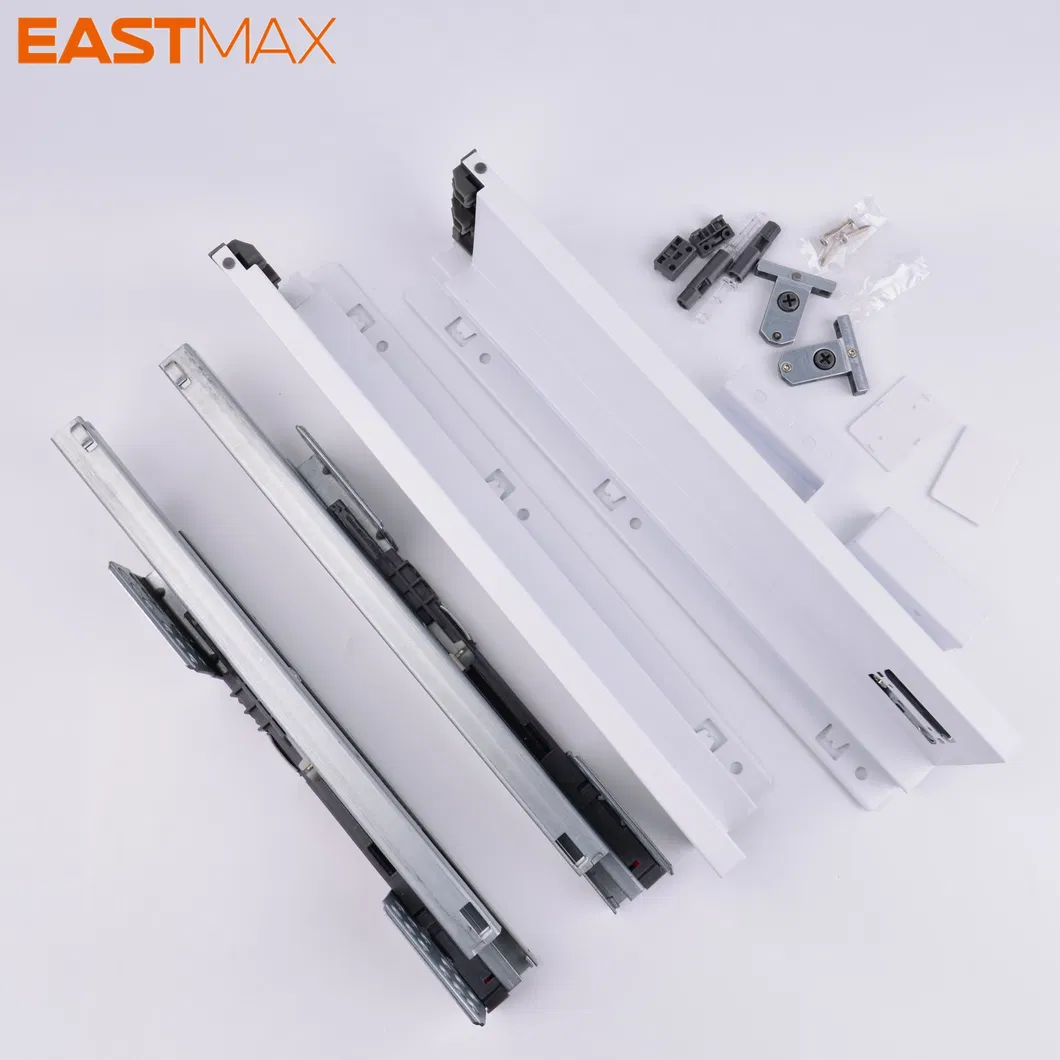

Slim Metal Drawer Box Drawer Slides Features
Max Loading Capacity 40kg Main Material Cold-rolled steel
Drawer Length 270--550mm Drawer Height 86/135/167/199mm
Thickness of Board 16mm Surface Finish Black / White / Dark gray / Light gray

OEM & ODM SERVICES AVAILABLE

We provide comprehensive customized services including Color, Material, Logo, Package, Size, and Craftsmanship according to your specific requirements.

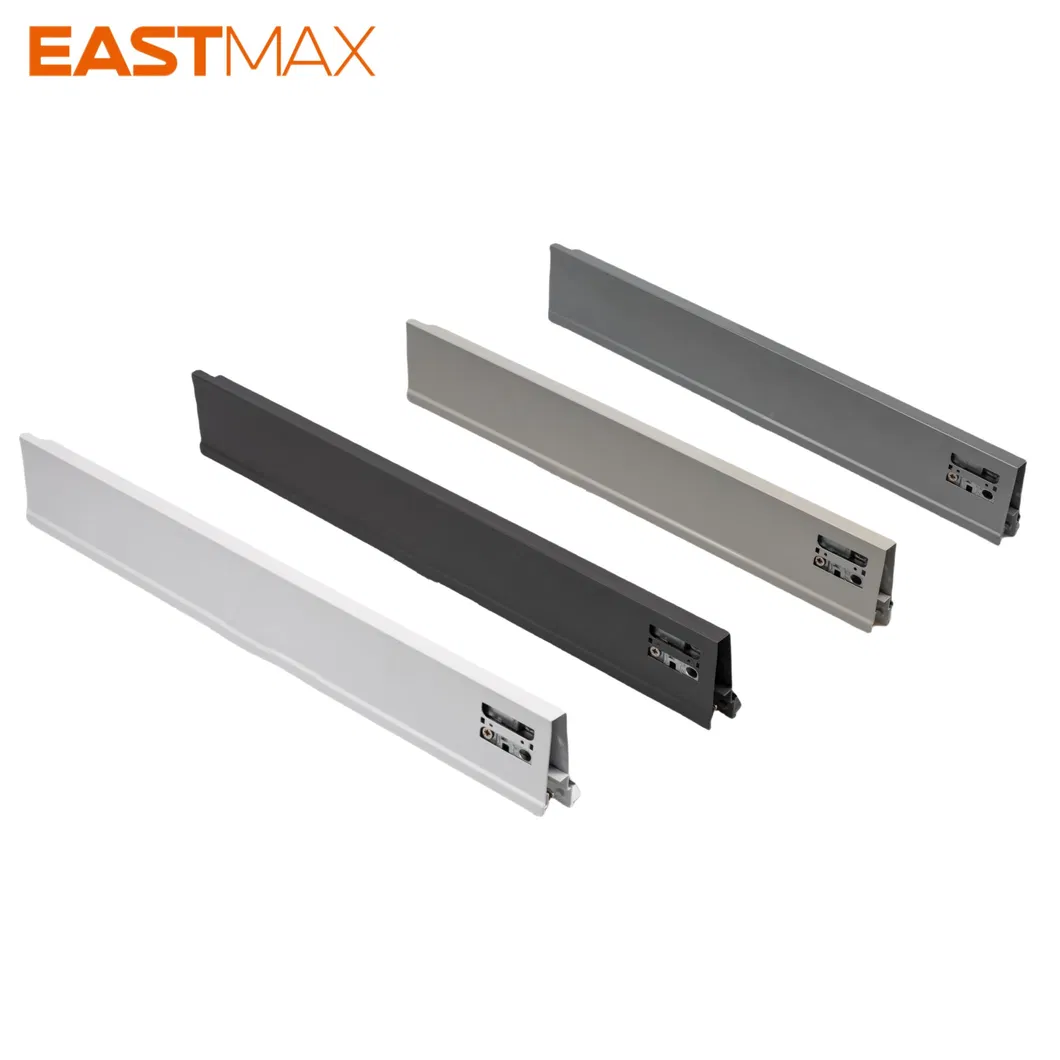

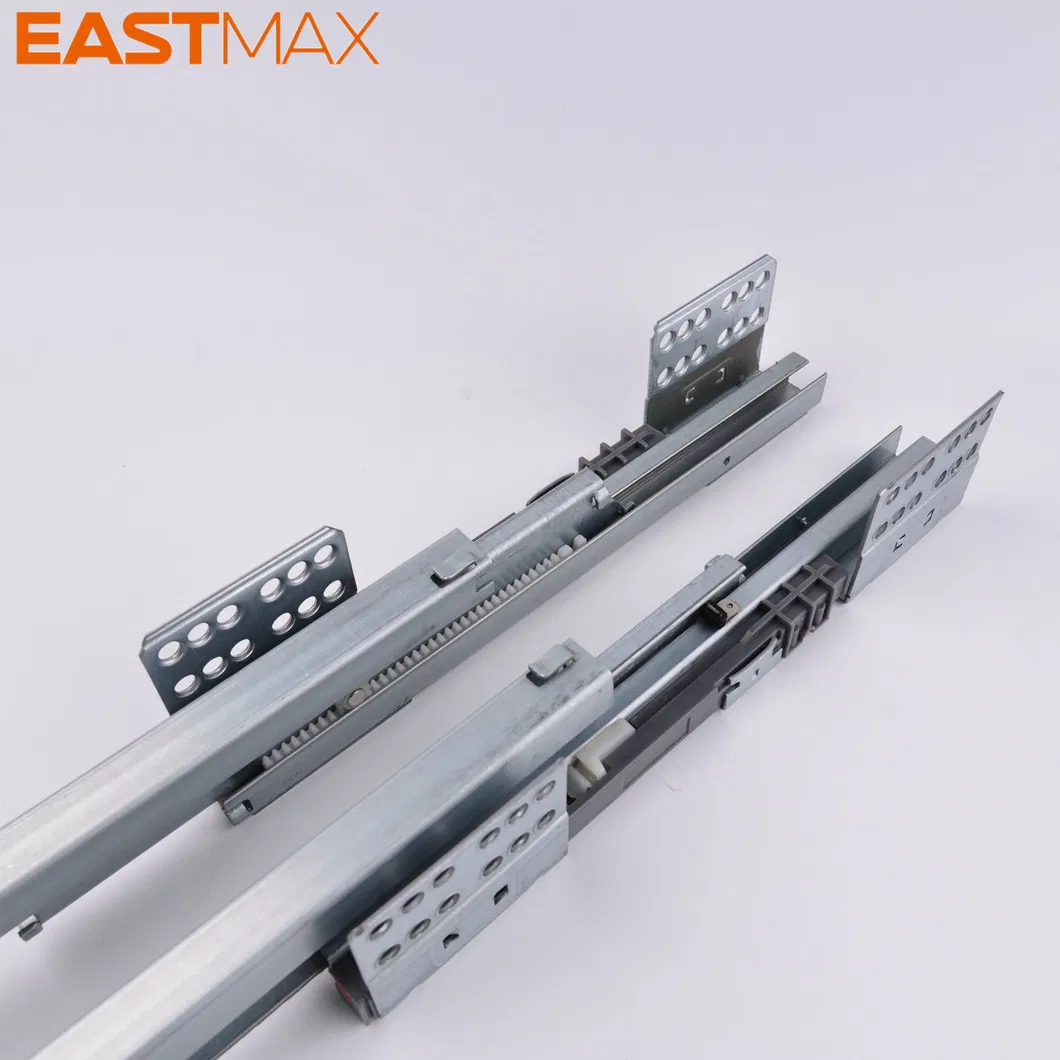

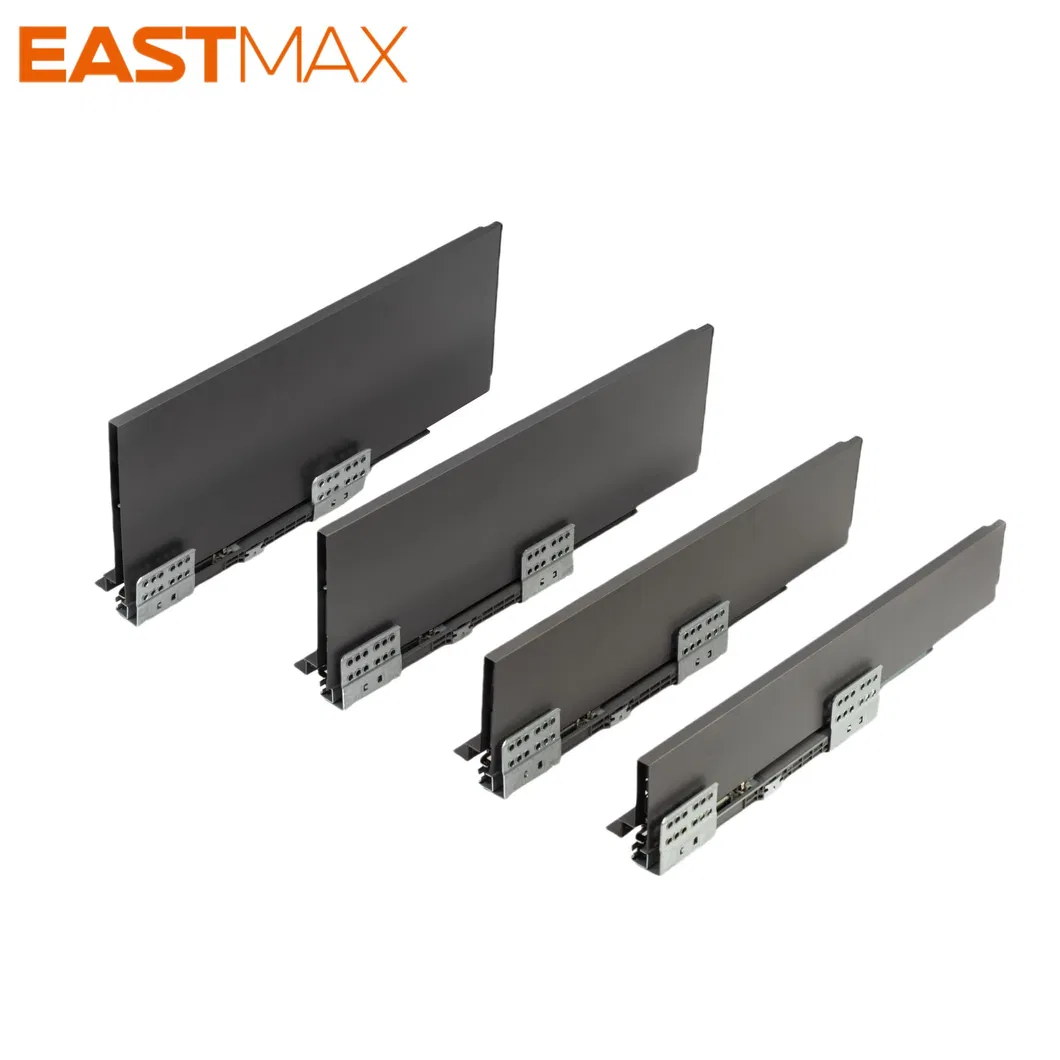

Detailed Photos

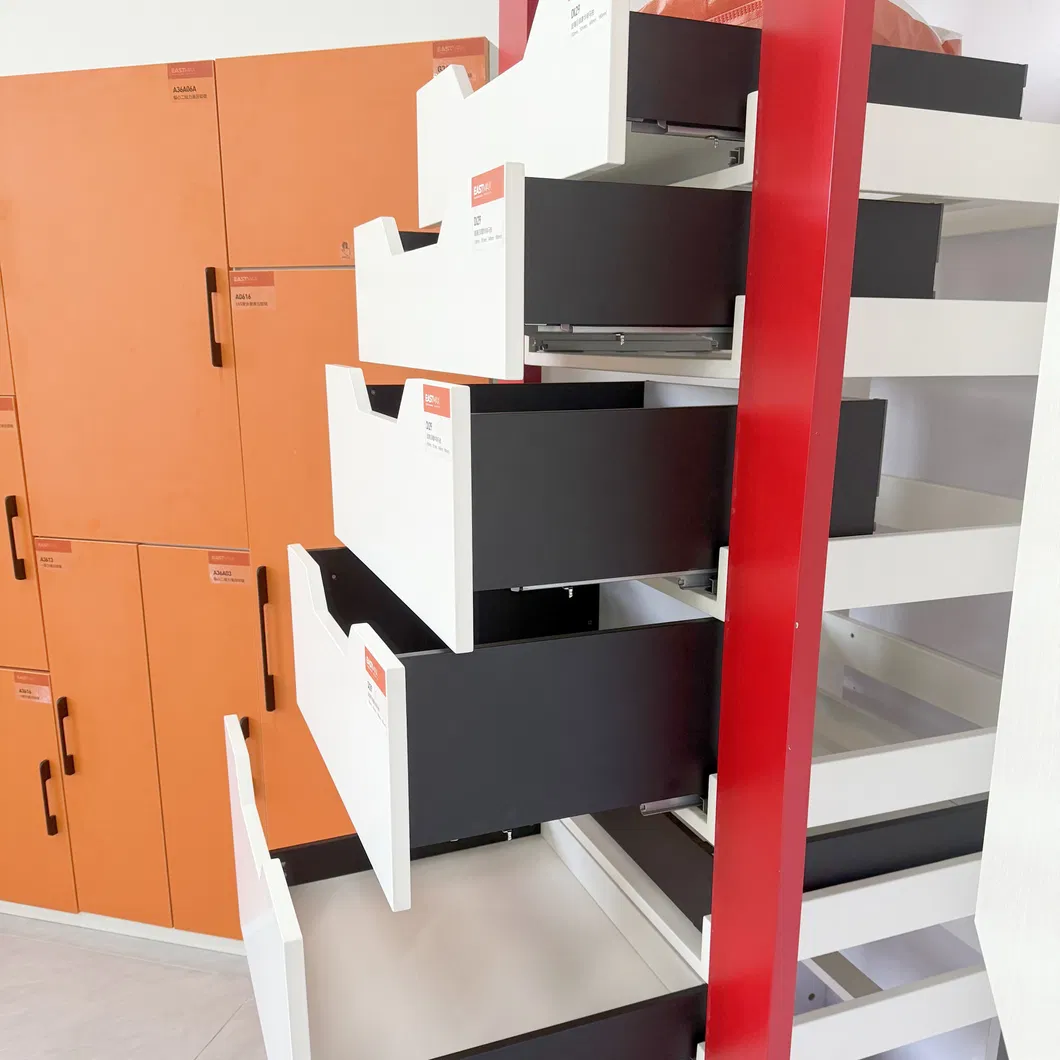

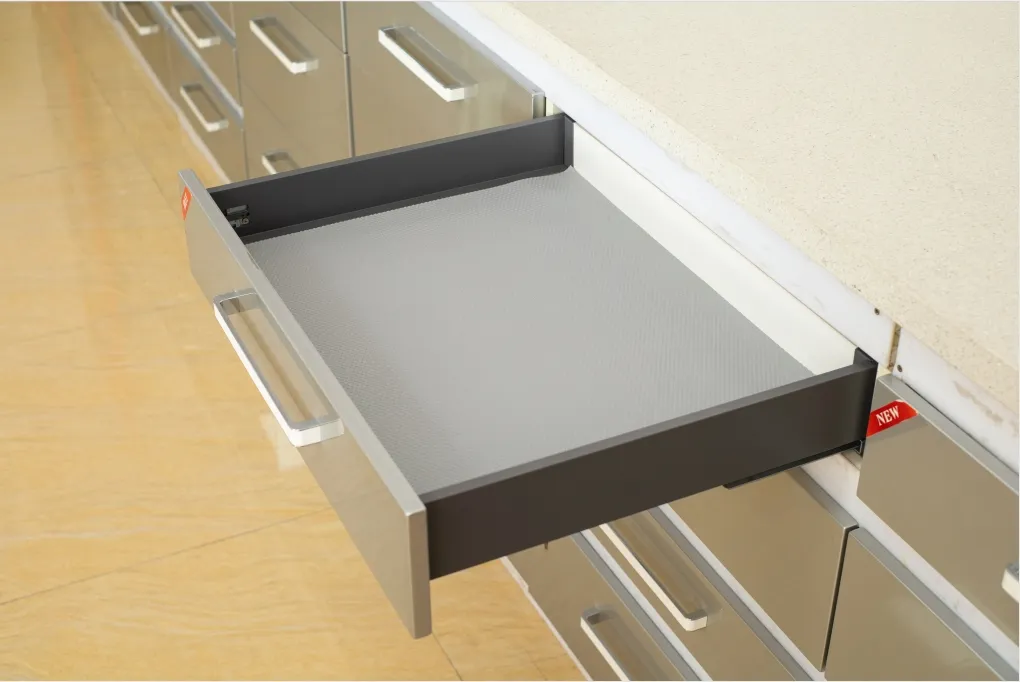

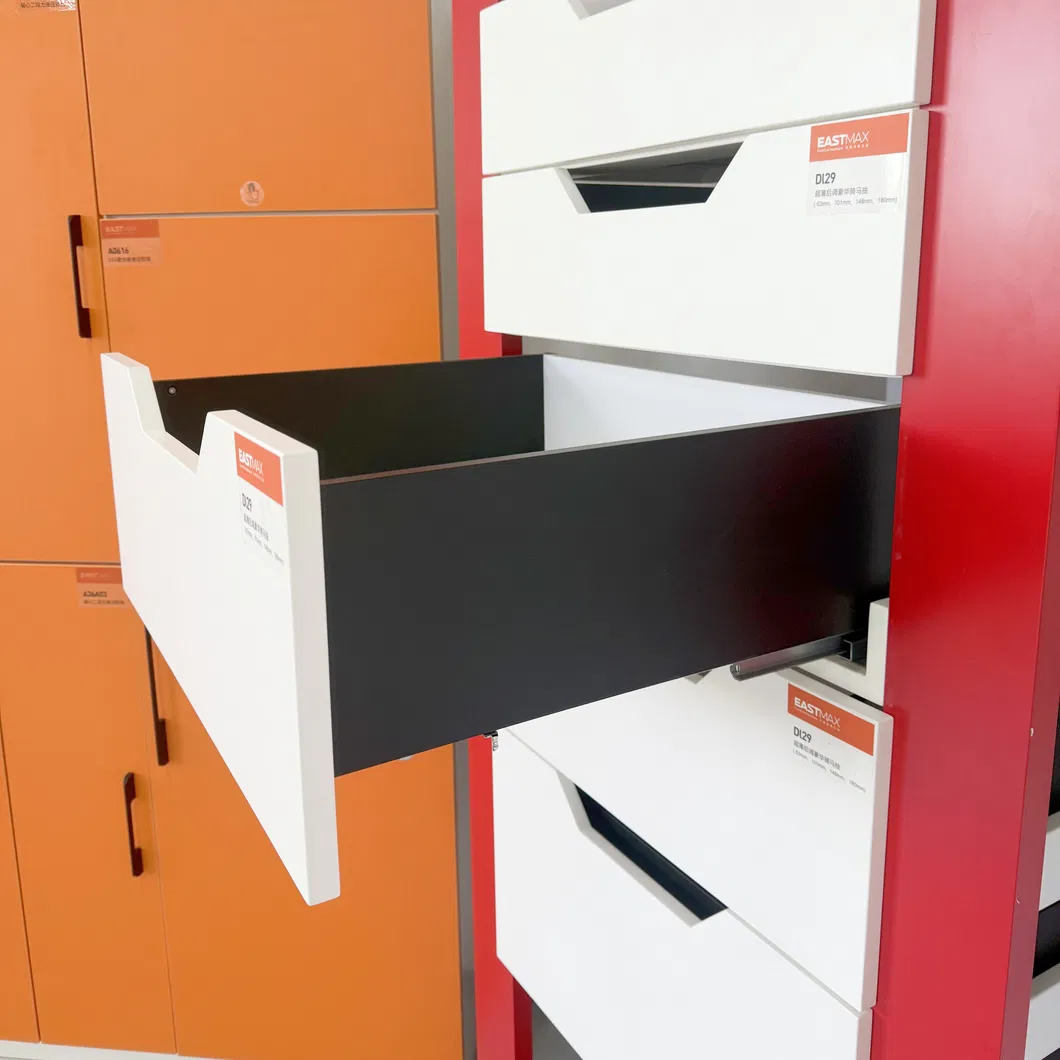

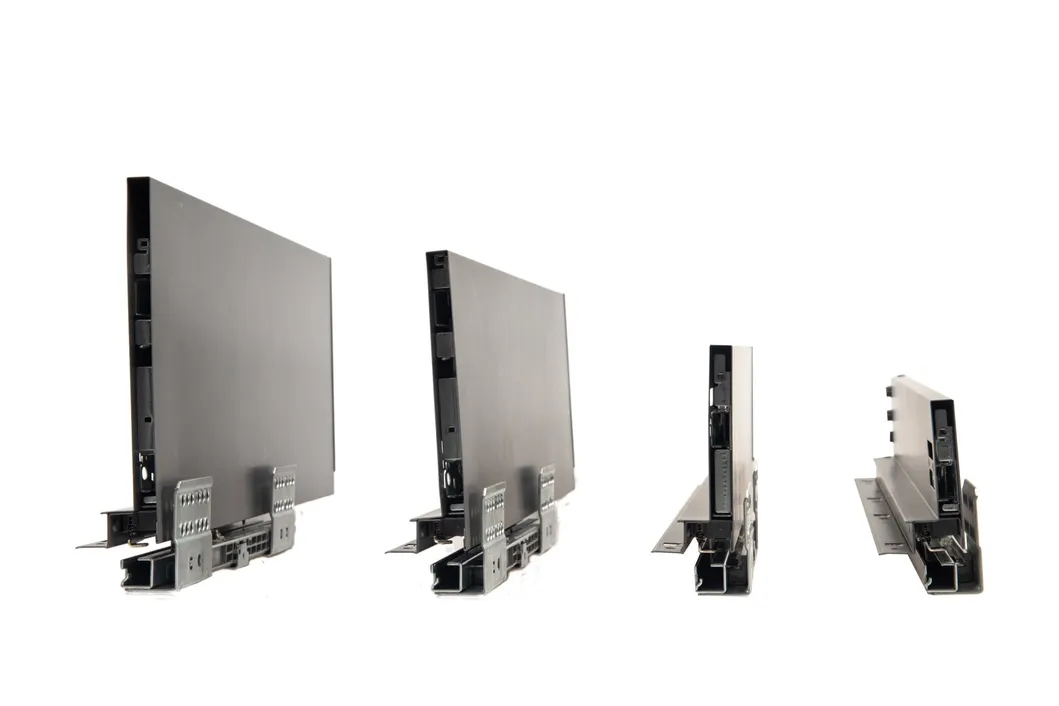

Application view Dimension view

Certifications

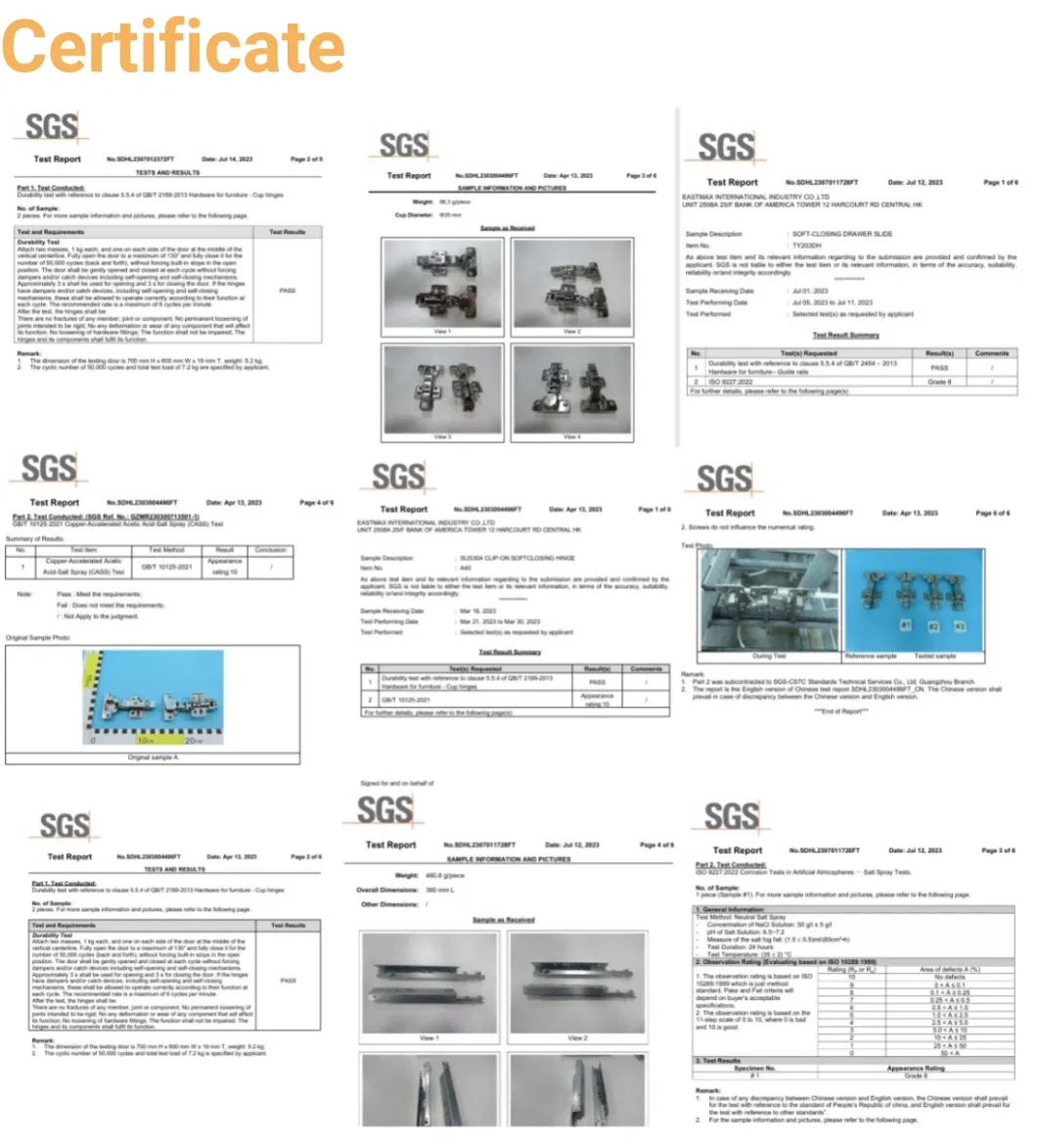

Product Certifications

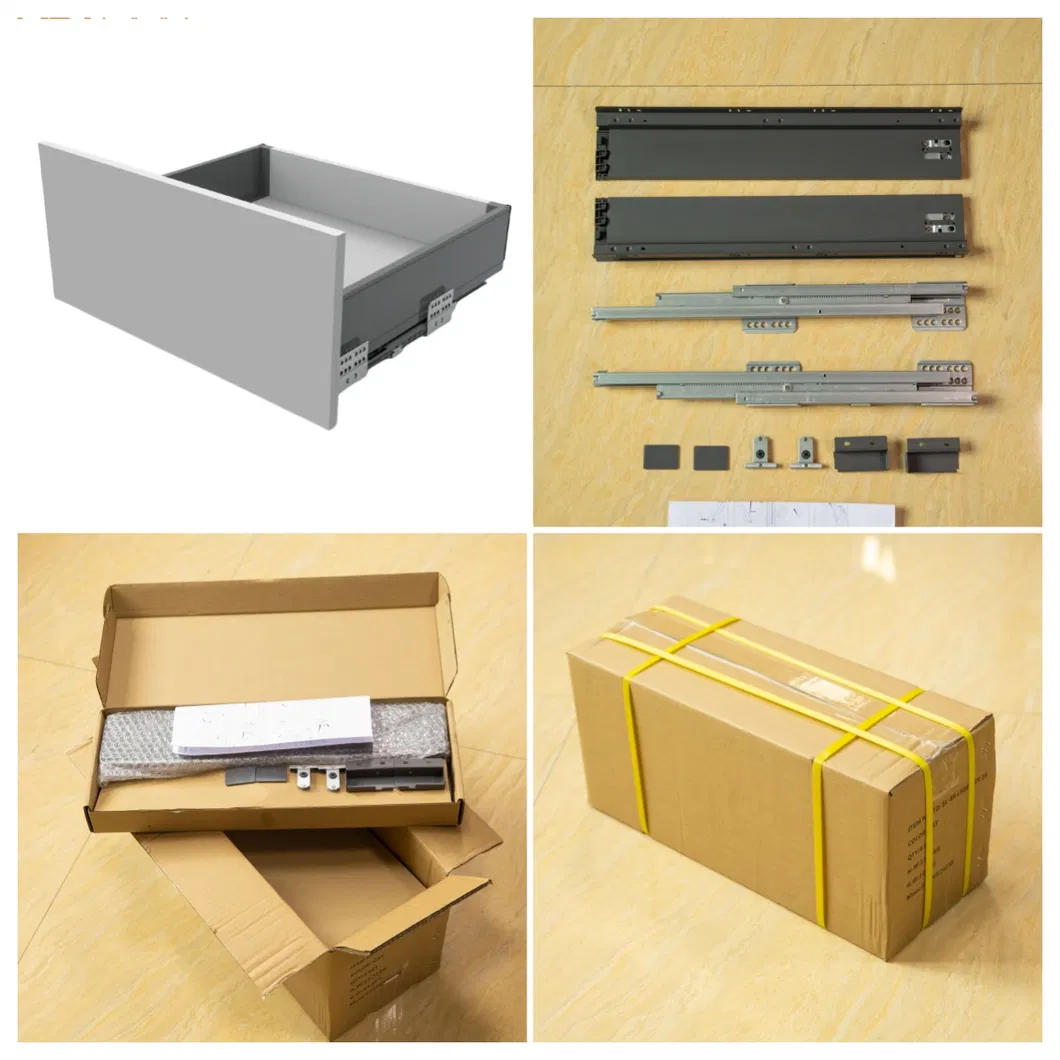

Packaging & Delivery

Package Size
45.00cm * 32.00cm * 25.00cm
Gross Weight
20.000kg
Carton Spec
10 or 15 PCS / Carton
Packaging Loading

Frequently Asked Questions

Q1: What's the minimum order quantity for the first purchase?
A1: Low MOQ, 1pc for sample checking is available. Samples are free, but shipping is required (offset in first order).
Q2: Do you provide free samples?
A2: Yes, samples are free. You only need to pay for the shipping cost, which will be returned to you upon your first official order.
Q3: What's the loading capacity for a 20ft container?
A3: The maximum loading capacity is approximately 22 tons. Exact capacity depends on the slide model and destination regulations.
Q4: How long is the delivery time?
A4: Typically 25-35 days after receiving the deposit. Special requirements can be discussed for urgent timelines.
Q5: What are your payment terms?
A5: Normally we require a 30% deposit by T/T, with the 70% balance paid before shipment.
Q6: Is it possible to load mixed products in one container?
A6: Yes, mixing products is available and we can arrange the logistics for consolidated shipments.
