Furniture Fitting Angle Bracket Rafix 20 Connector Housing Fastener with Bolts for Panels

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.KRYB-1566
StyleSimple Modern
AdjustedWith Adjusted
FoldedUnfolded
CustomizedCustomized
ColorColorful
SizeCustomized
MOQ3,000
HS Code3926300000
Transport PackageCustomized
SpecificationCustomized
Packaging & Delivery
Package Size35.00cm * 35.00cm * 35.00cm
Package Gross Weight15.000kg
Product Description
For wood thickness19 mm
Dim. A9.50 mm
Drilling depth14.2 mm +0.2 mm
Drill hole Ø housing20.00 mm
VersionWith rim, with tightening element, without ridge, without dowel, with countersunk rim
DrivePZ2 cross slot
MaterialPlastic, Tightening element: Zinc alloy
InstallationFlush-mounted
✔️ No projecting parts due to the countersunk rim on the housing
✔️ Housing is mounted flush to shelf
✔️ Panels can be stacked without spacers
✔️ Without ridge with tightening element
✔️ Mounting center: 9.5 mm
Detailed Photos

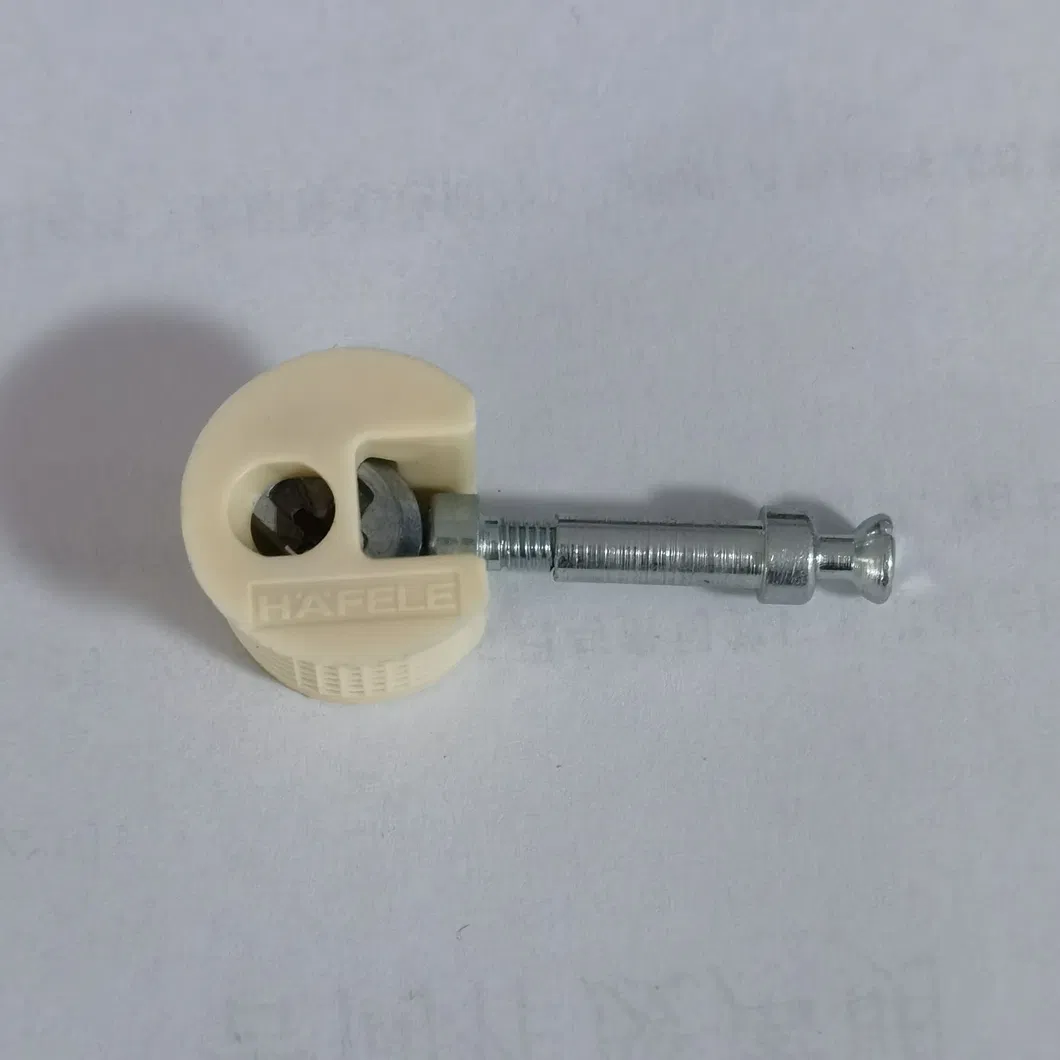

Connector Housing 1

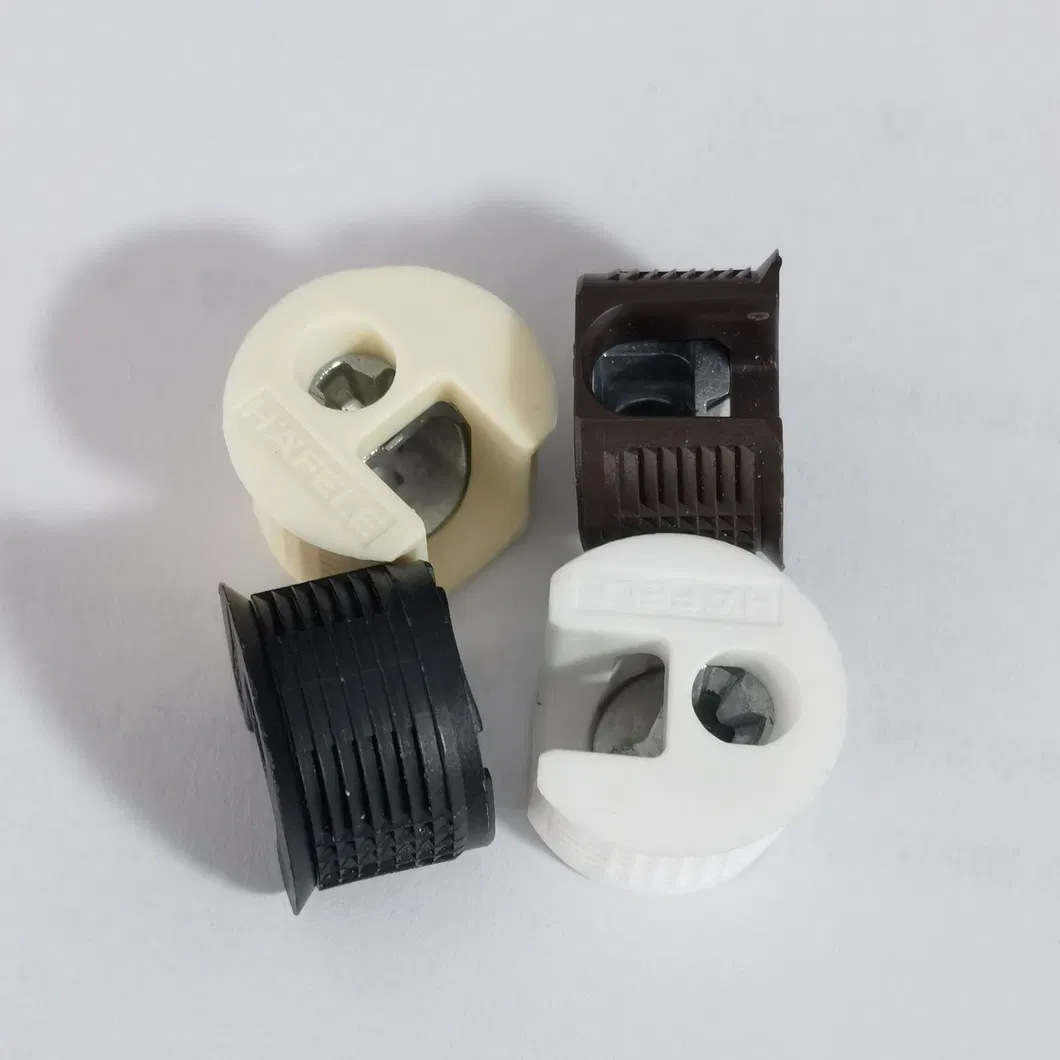

Connector Housing 2

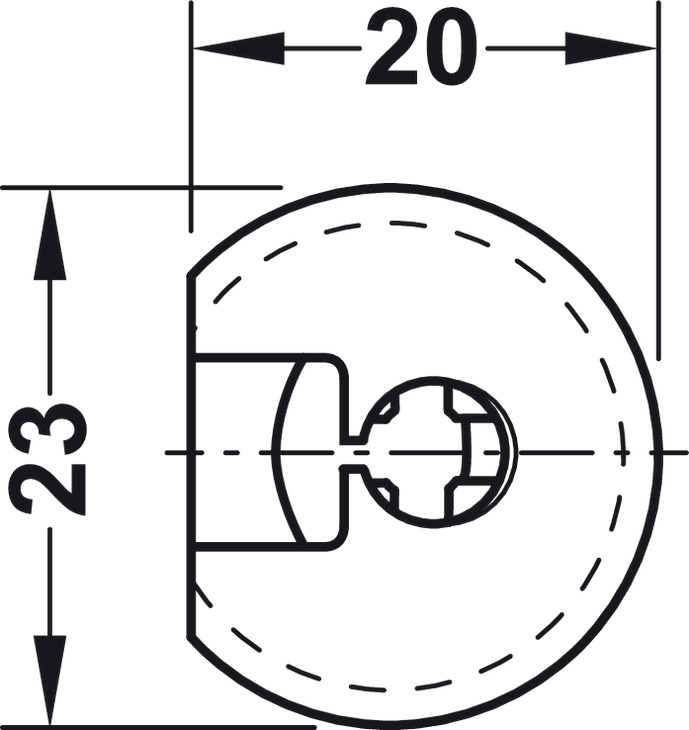

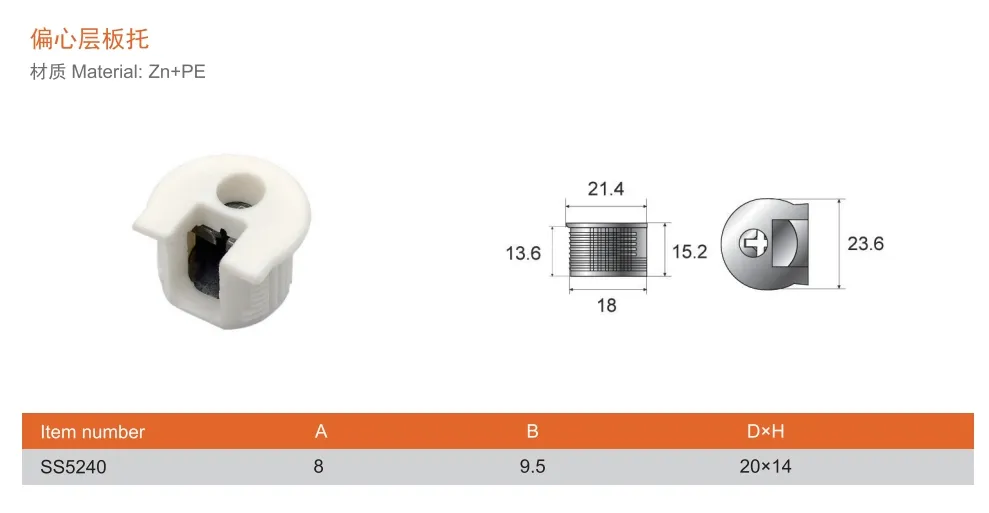

Technical Drawing 1

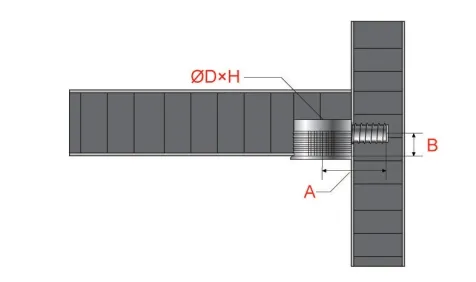

Technical Drawing 2

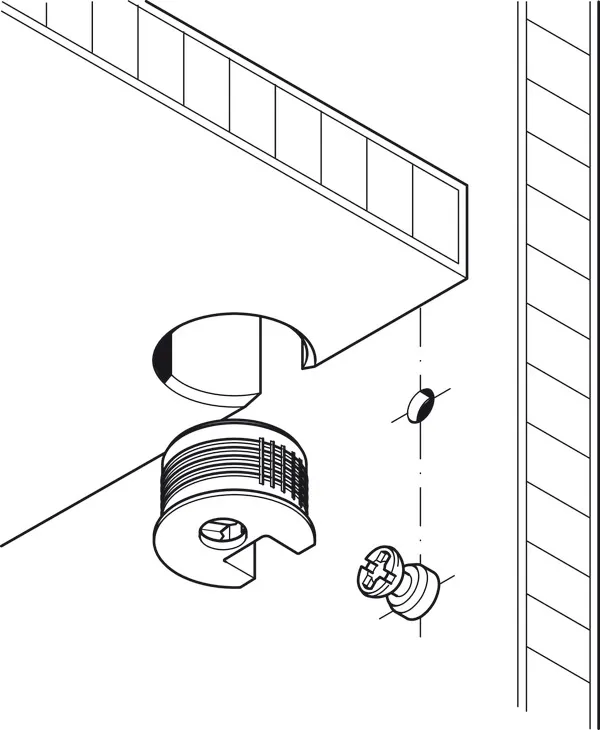

Product Dimensions 1

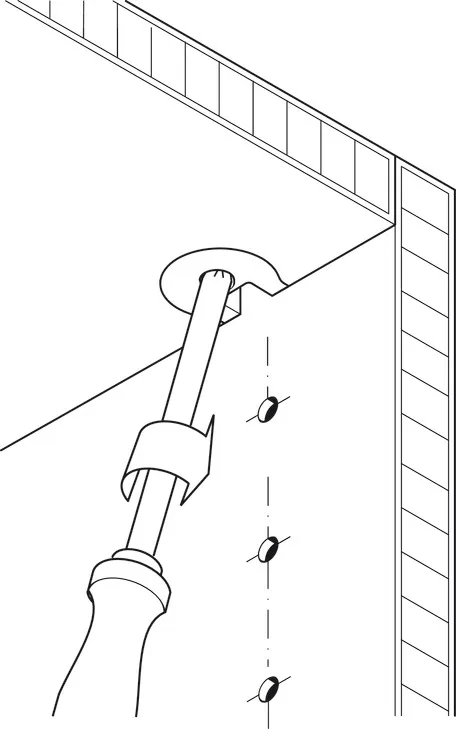

Product Dimensions 2
Packaging & Shipping

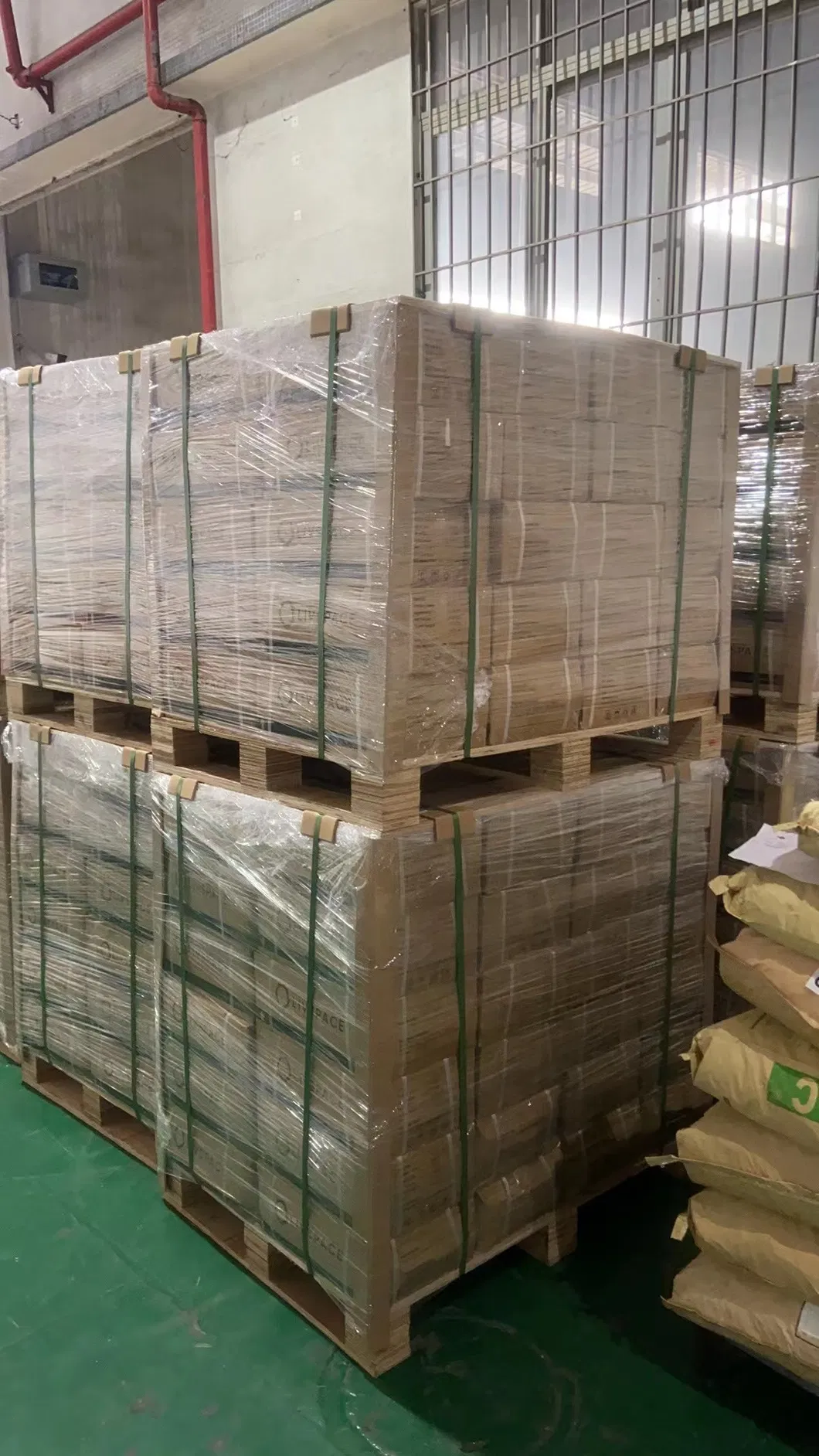

Packaging Detail 1
Packaging Detail 2
Packing MethodCartons and fumigation-free wooden box or customized
Transportation ModeVessels
Loading PortChina Seaports
Delivery TermMolds within 30-45 days; bulk production within 25-35 days
