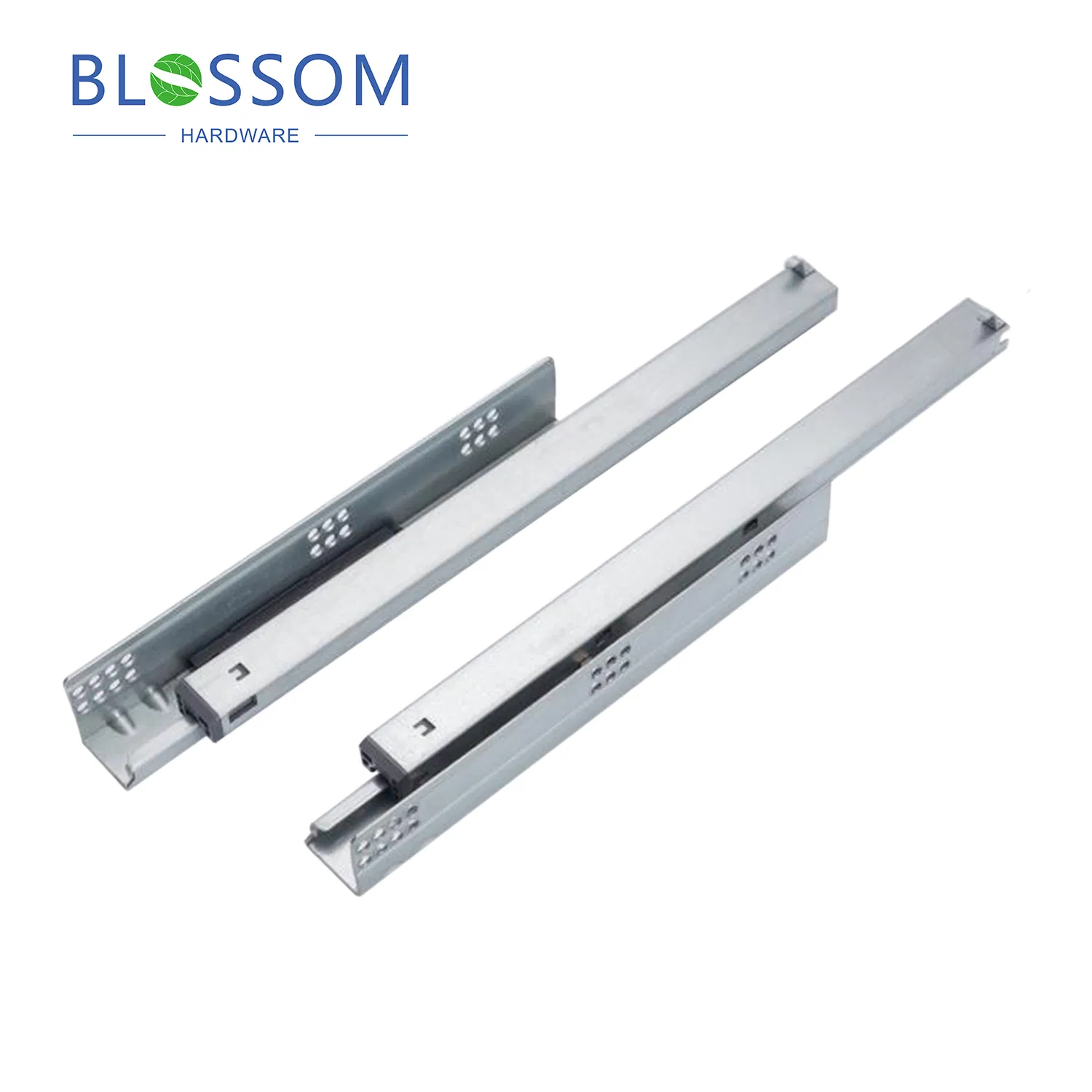

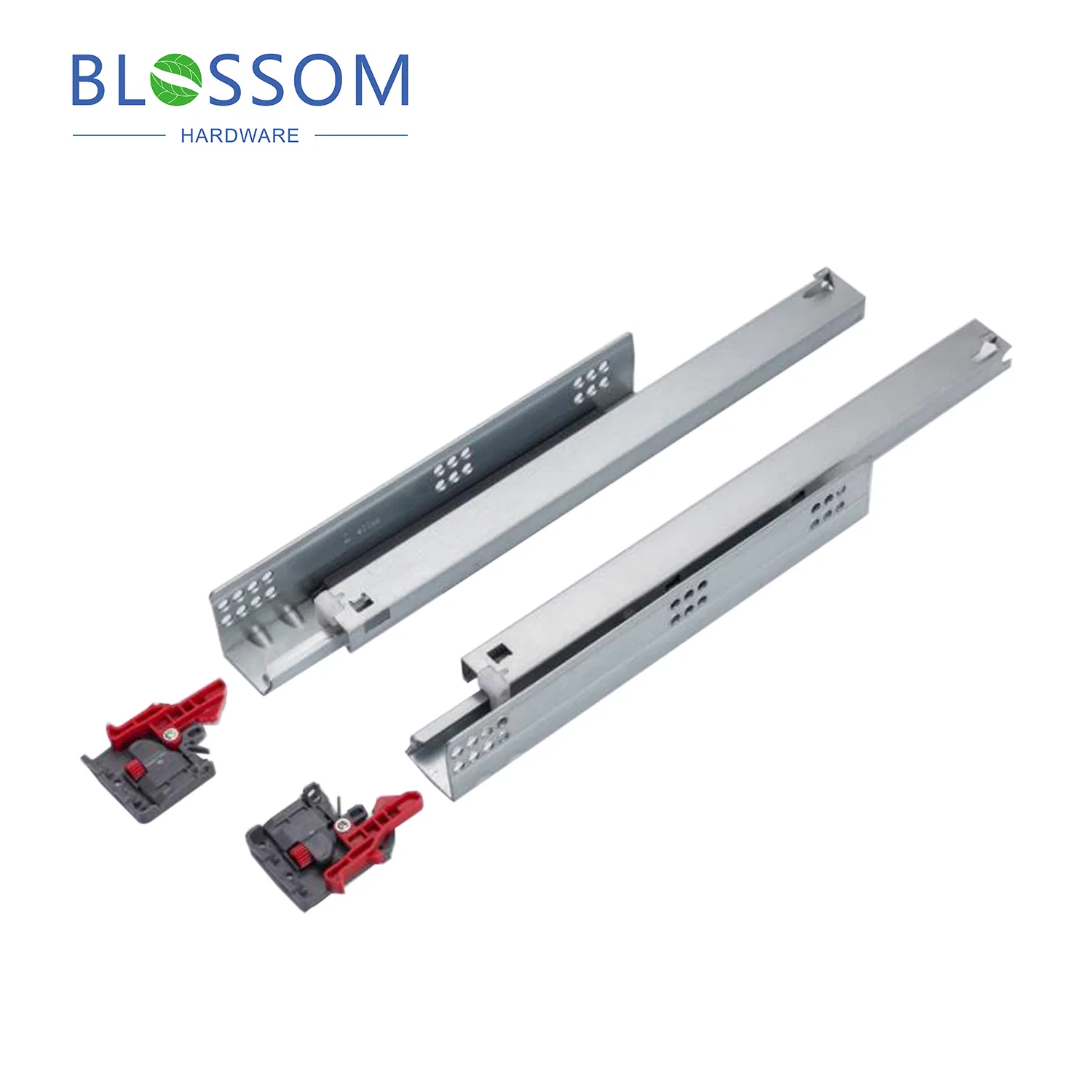

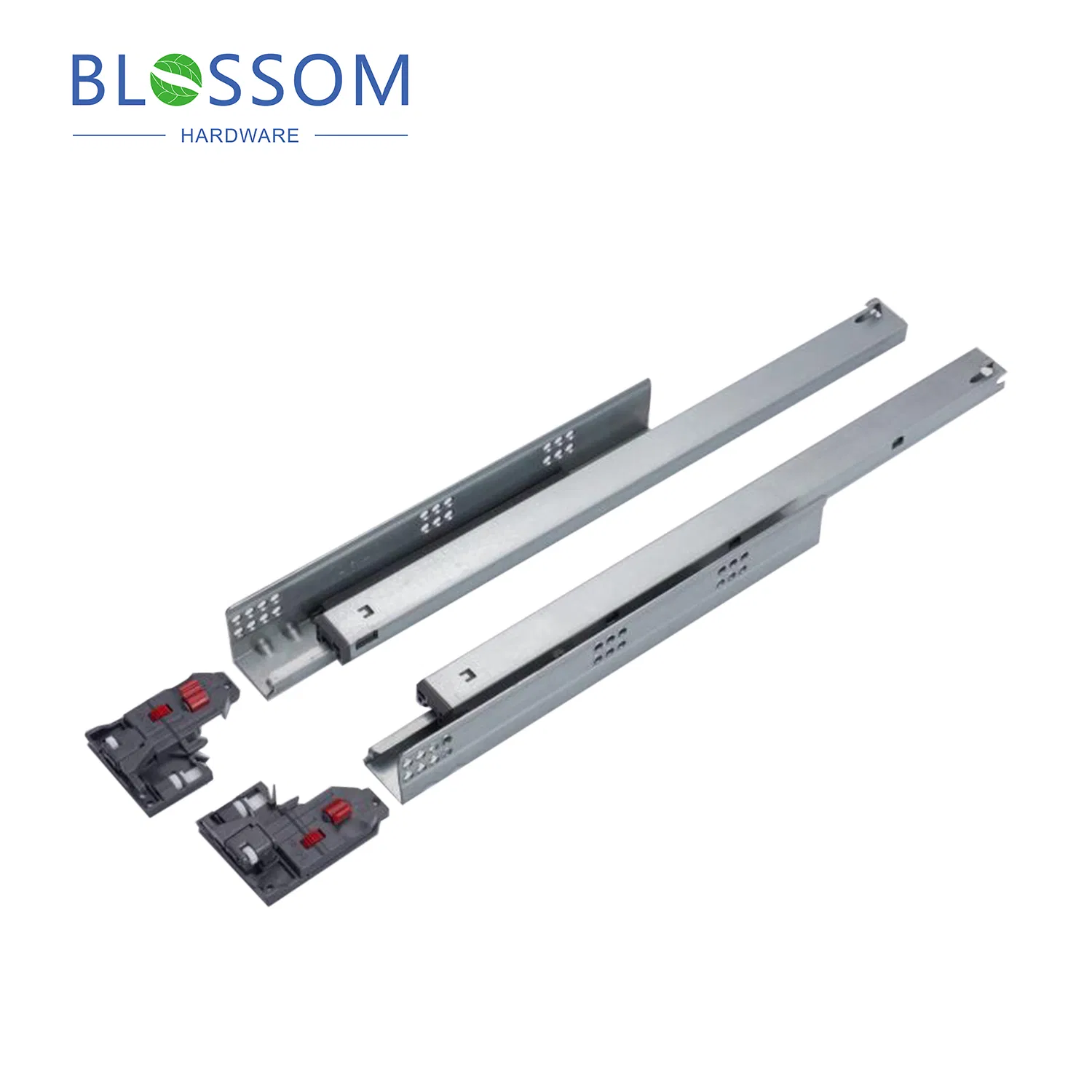

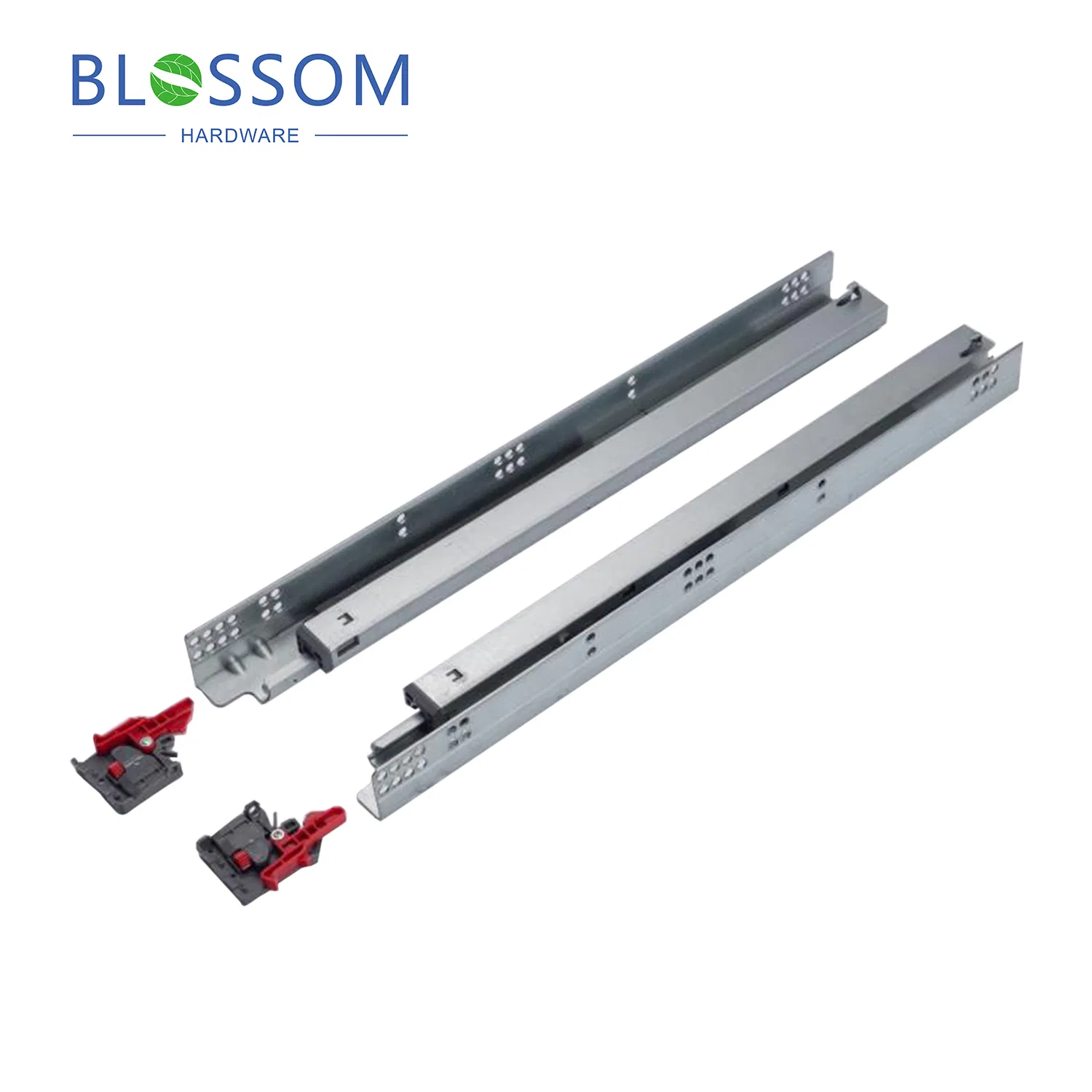

Kitchen Drawer Rails Drawer Sliding Drawer Furniture Hardware
Kitchen Drawer Rails Drawer Sliding Drawer Furniture Hardware
Kitchen Drawer Rails Drawer Sliding Drawer Furniture Hardware
Kitchen Drawer Rails Drawer Sliding Drawer Furniture Hardware
Kitchen Drawer Rails Drawer Sliding Drawer Furniture Hardware
1 / 5
Kitchen Drawer Rails Drawer Sliding Drawer Furniture Hardware
Kitchen Drawer Rails Drawer Sliding Drawer Furniture Hardware
Kitchen Drawer Rails Drawer Sliding Drawer Furniture Hardware
Kitchen Drawer Rails Drawer Sliding Drawer Furniture Hardware
Kitchen Drawer Rails Drawer Sliding Drawer Furniture Hardware

Kitchen Drawer Rails Drawer Sliding Drawer Furniture Hardware

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Structure
Three Members
Slide Type
Soft Close/Push Open
Condition
New
Length
9''-24''
Application
Commercial and Domestic Drawers
Load Capacity
35kg
Durability
50,000 Cycles
Features
Smooth and Silent
Package
Paper Carton
Origin
China
HS Code
8302420000
Capacity
80 Container/Month
Product Description
  • Application: Suitable for professional commercial and domestic drawer systems.
  • Advanced Features: Built-in Buffer for constant speed deceleration and automatic closing. Provides a soft, smooth, and silent shutdown.
  • Adjustability: Easy to disassemble with 2D/3D adjustment (height 0-3mm, lateral 0-3mm).
  • High Performance: 35kg load rating with a long lifespan exceeding 50,000 use cycles.
  • Quality Material: High-grade Galvanized sheet (1.8mm * 1.4mm * 1.0mm).
Product Number Series Length Drawer Length(L) Cabinet Depth (Min Ext) Cabinet Depth (Min Built-in) Packing (Set/CTN)
BS901-HT/BS1801-HT-9''229mm229mm266mm286mm8
BS901-HT/BS1801-HT-12''305mm305mm342mm362mm8
BS901-HT/BS1801-HT-15''381mm381mm418mm438mm8
BS901-HT/BS1801-HT-18''457mm457mm494mm514mm8
BS901-HT/BS1801-HT-21''533mm533mm570mm590mm8

* Note: Model suitable for 18mm drawer side panels.

Product Number Series Length Drawer Length(L) Cabinet Depth (Min Ext) Cabinet Depth (Min Built-in) Packing (Set/CTN)
BS804-HH/BS1804-HH-10''250mm250mm269mm269mm+X10
BS804-HH/BS1804-HH-12''300mm300mm319mm319mm+X10
BS804-HH/BS1804-HH-14''350mm350mm369mm369mm+X10
BS804-HH/BS1804-HH-16''400mm400mm419mm419mm+X10
BS804-HH/BS1804-HH-18''450mm450mm469mm469mm+X10
BS804-HH/BS1804-HH-20''500mm500mm519mm519mm+X10
BS804-HH/BS1804-HH-22''550mm550mm569mm569mm+X10
BS804-HH/BS1804-HH-24''600mm600mm619mm619mm+X10

* X: Panel thickness. Model for 18mm drawer side panels.

Product Display
Hardware Slide 1
Hardware Slide 2
Hardware Slide 3
Hardware Slide 4
Hardware Slide 5
Hardware Slide 6
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Full Set Overview
Application View
Installation Detail
Frequently Asked Questions
How can I obtain samples?
Free samples are available for quality checks. You can provide your tracking number, arrange a pick-up to consolidate with your shipment, or pay the freight cost directly for 1-week delivery.
What is the Minimum Order Quantity (MOQ)?
MOQ depends on the item. For drawer slides, it is typically 500 sets, with a total order value exceeding $5,000.
What is the estimated delivery time?
Standard delivery is 15-30 days after receiving the deposit. For consolidated orders with many items, lead time is approximately 45 days.
What are your standard payment terms?
We support EXW, FOB, and CNF terms based on customer requirements.
What is the loading capacity for a 20ft container?
The normal loading capacity is 22 tons. However, for shipments destined for the United States, the limit is approximately 17 tons.
Is it possible to mix different items in one shipment?
Yes, you can mix different items. Please send us your specific requirements for a detailed quotation.
