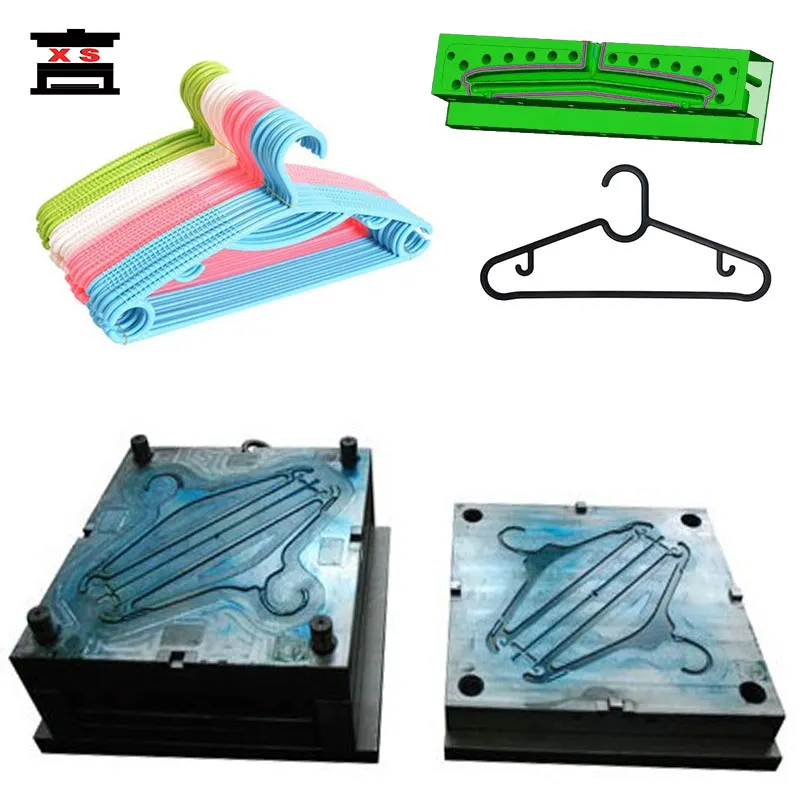

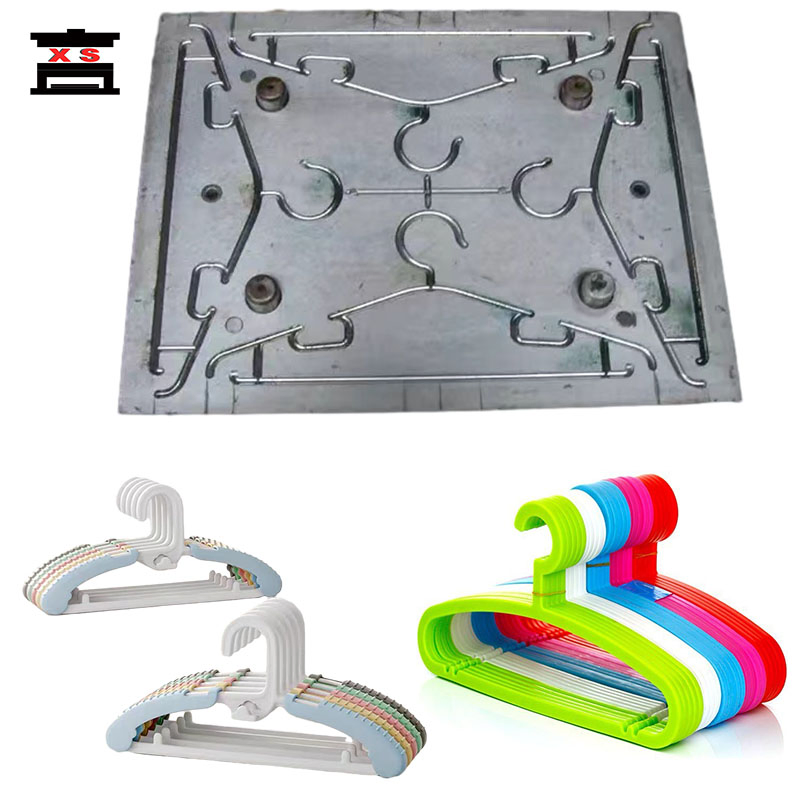

Hanger Product Drawing & Design
After receiving initial designs, we analyze the part design and plastic raw materials. For complicated parts, a DFM report is generated to identify potential issues and define the mould design conception. Our experienced designers (10+ years) finalize detailed ejector, cooling, and runner systems to ensure an excellent mould structure.

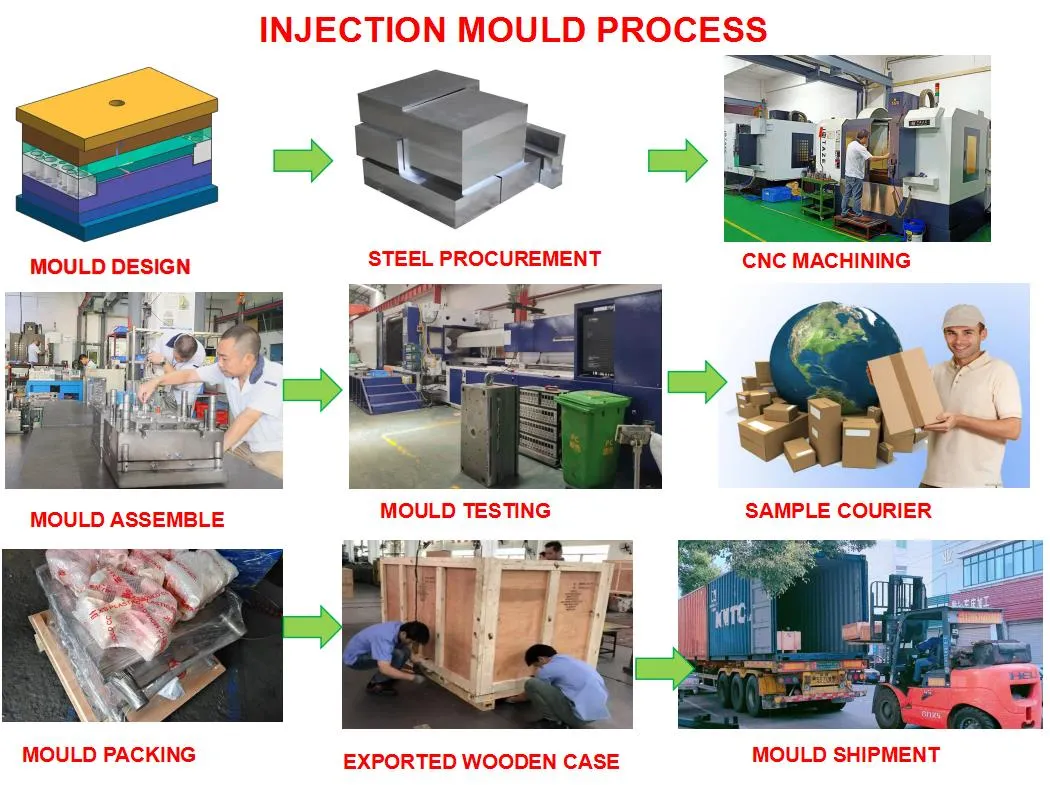

Mould Machining Process
1. Steel Procurement: We inspect steel hardness upon delivery to ensure it matches the specified quality level (P20h, 718h, H13, etc.).
2. Rough Tooling: Utilizing CNC milling centers for fast material removal, especially for large home appliance moulds.
3. Precise Tooling: Includes high-speed CNC engraving, EDM (using copper or carbon electrodes), and EDW for high-precision components and narrow ribs.
4. Deep Hole Drilling: Specifically for cooling lines and ejector pin holes to ensure perfectly straight alignment.
5. Polishing: Manual polishing is employed for high-gloss surface requirements to achieve a mirror finish.
We are a professional plastic injection mould manufacturer that has been in business since 2009. Our expertise lies in the design and production of injection moulds for household products, automotive interior/exterior, motorcycles, plastic packaging, home appliances, consumer electronics, agriculture, and the LED industry. With our experienced design and technical teams and precision CNC machining equipment, we provide high-quality and reliable injection moulds while offering exceptional services.
Frequently Asked Questions
Are you a mould factory or a trader?
We are a specialized plastic injection mould factory.
What is your standard payment term?
Our standard term is TT: 40% advance payment, with the balance amount to be paid before mould shipment.
How can I achieve a satisfied product design?
Even if you only have a rough idea or drawing, we are capable of creating initial designs and improving them through effective mutual communication until a final, satisfied design is achieved.
What is the typical delivery time for a mould?
The T1 trial time normally ranges from 25 to 70 days depending on the mould complexity. Once samples are approved, moulds can be shipped within one week.
What specific services do you offer?
We offer product drawing improvement, mould 2D & 3D design, prototype samples, mould flow analysis, DFM reports, and comprehensive after-sales service.
How do you ensure the quality of the mould steel?
We inspect the steel hardness upon delivery to our factory. Matching the hardness to the specific steel grade ordered ensures the exact quality required for your project.
