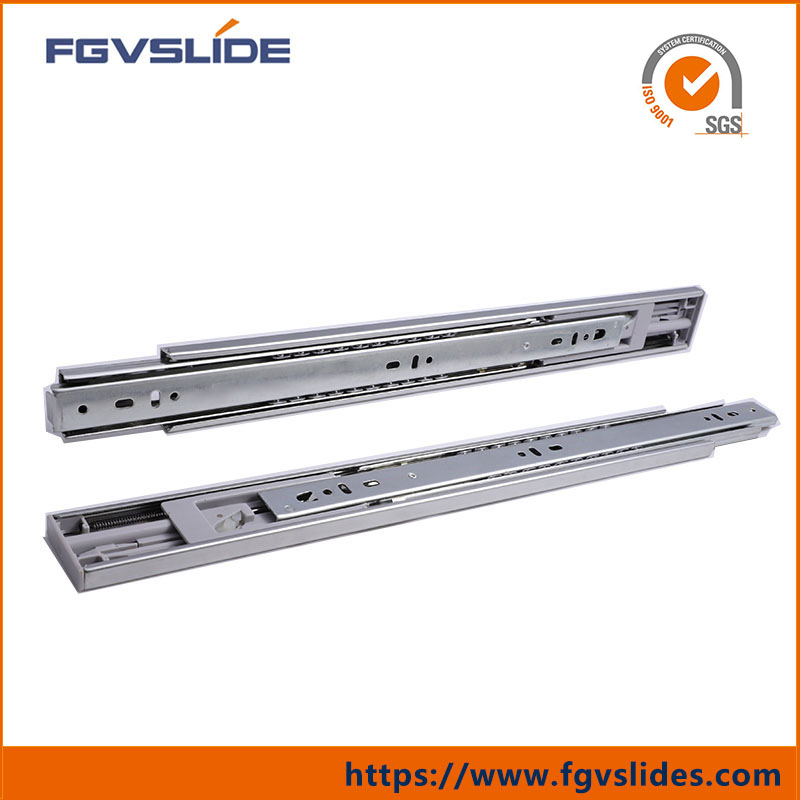

Premium Drawer Slim Box Cabinet Hardware - 1 Pair in Polybag

1 / 5

Premium Drawer Slim Box Cabinet Hardware - 1 Pair in Polybag

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

DY4507SN-06

Structure

Three Knots

Slide Type

Steel Ball Type

Condition

New

Load Rate

30~45kg

Mount Method

Side Mounting

Length

12" 14" 16" 18" 20" 22" 24"

Test

SGS

Finish

Electro-Zinc Plated/Black

Gap

12.7+_0.2mm

Thickness

0.8*0.8*0.8 to 1.2*1.2*1.5

Capacity

50000 pairs/Week

Origin

China

HS Code

83024200

🛠️ Product Overview

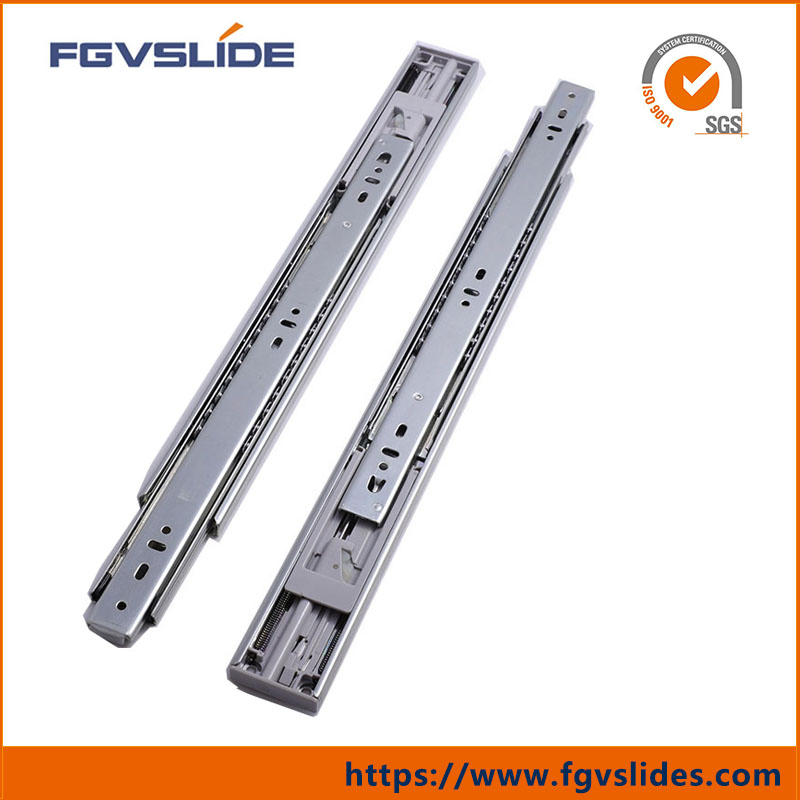

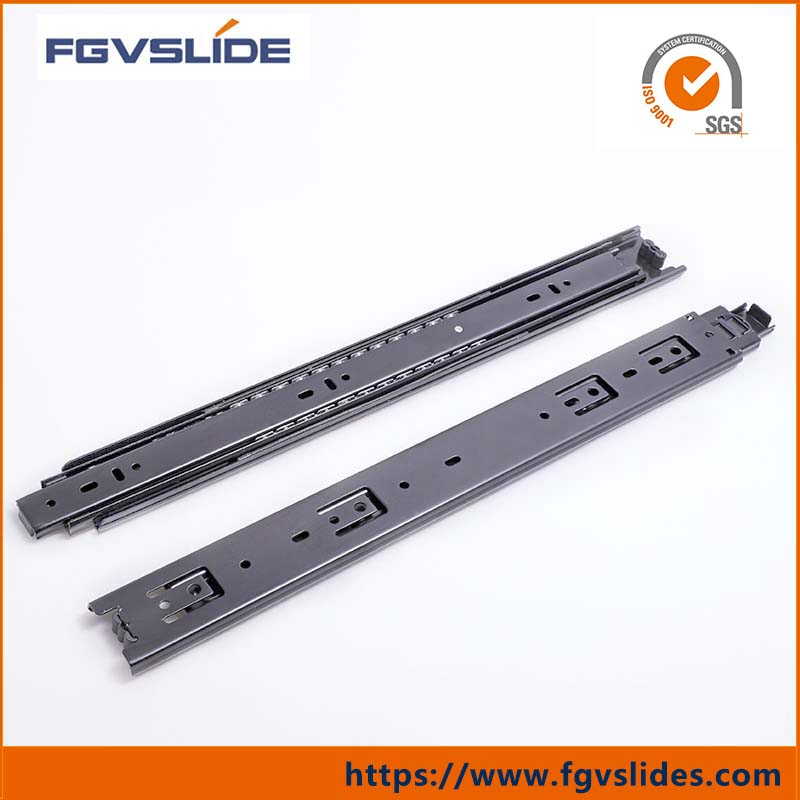

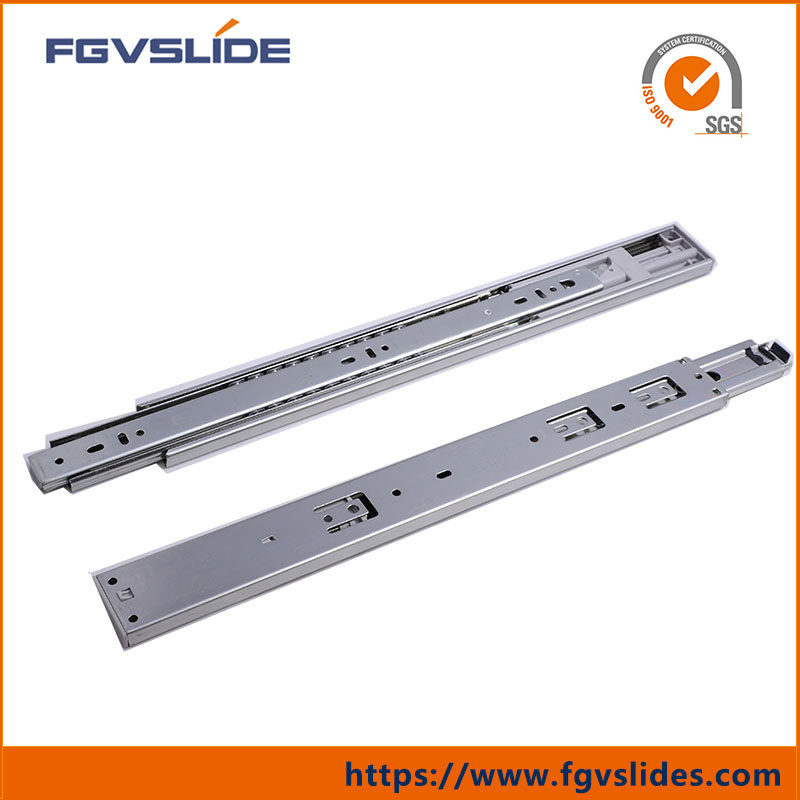

Cabinet Hardware 45mm Telescopic Furniture Ball Bearing Drawer Slide

Description: High-performance cold-rolled steel drawer slides designed for office, cabinet, and household furniture. Featuring full extension and side installation for maximum accessibility.

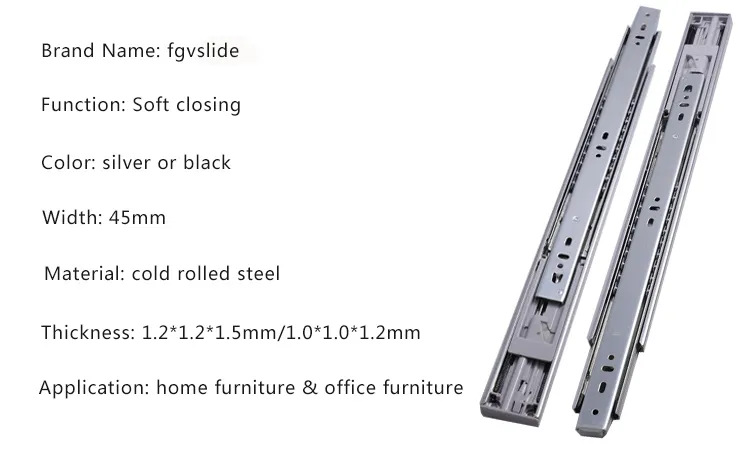

Technical Parameters
MATERIAL	cold rolled steel	FINISH	Zinc-plated / Black
WIDTH	45mm	LENGTH	10-24 inches
LOAD RATING	30 KGs / 45 KGs	INSTALLATION	side mount
EXTENSION	full extension	TEST	48 hrs salt spray test

⭐ Key Features

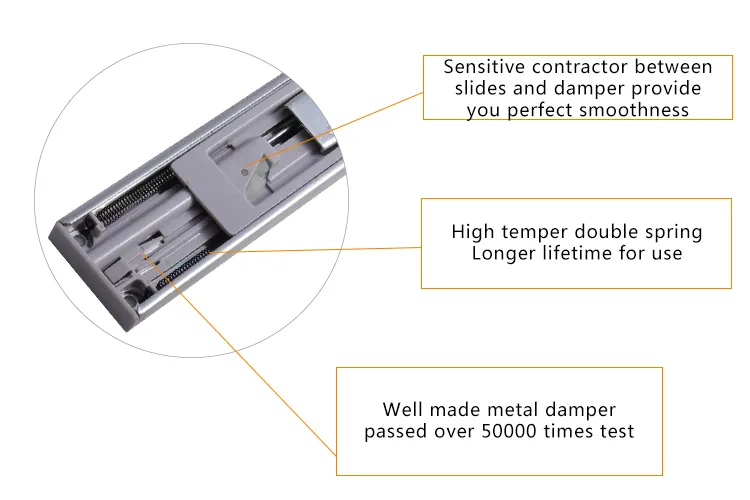

Smooth and quiet ball bearing action for effortless operation.
Soft-Close Functionality ensures drawers close softly and silently.
Zinc Plated, Steel Construction rated for Medium-Duty Use (40 to 100 lbs).
Integrated technology prevents drawers from slamming shut.
Front disconnect mechanism for simple drawer removal.
Hold-In feature keeps the drawer securely closed when not in use.

🔬 Quality Control & Testing

Testing	SGS TEST Certified
	Passed over 50,000 open-close cycles
	Passed 48 hours salt spray test
	Passed 75 pounds load test
Advanced Features	Adopt advanced hydraulic system, longer life time, smaller volume

❓ Frequently Asked Questions

What are the standard trade terms for orders?

We typically operate under FOB, CIF, and FCA trade terms to accommodate international shipping needs.

What are your accepted payment methods?

Our standard payment terms are T/T 40% deposit in advance, and the remaining 60% balance against the B/L copy.

Can I request samples for testing before placing a bulk order?

Yes, we provide 1-2 pieces as free samples for your testing. However, the express courier cost is to be covered by the recipient.

What is the typical lead time for production?

Mass production usually takes 30-35 days, while sample lead time is within 7 days.

How is the quality of the drawer slides guaranteed?

We maintain a strict quality control system with a professional QC team monitoring every stage of production and testing.

What applications are these 45mm slides suitable for?

These telescopic slides are perfect for office furniture, kitchen cabinets, and various household drawers requiring a load capacity of 30-45kg.

Premium Drawer Slim Box Cabinet Hardware - 1 Pair in Polybag

Product Description

Cabinet Hardware 45mm Telescopic Furniture Ball Bearing Drawer Slide
