Professional Furniture Hardware Supplier 200 Lb Undermount Drawer Slides
Professional Furniture Hardware Supplier 200 Lb Undermount Drawer Slides
Professional Furniture Hardware Supplier 200 Lb Undermount Drawer Slides
Professional Furniture Hardware Supplier 200 Lb Undermount Drawer Slides
Professional Furniture Hardware Supplier 200 Lb Undermount Drawer Slides
1 / 5
Professional Furniture Hardware Supplier 200 Lb Undermount Drawer Slides
Professional Furniture Hardware Supplier 200 Lb Undermount Drawer Slides
Professional Furniture Hardware Supplier 200 Lb Undermount Drawer Slides
Professional Furniture Hardware Supplier 200 Lb Undermount Drawer Slides
Professional Furniture Hardware Supplier 200 Lb Undermount Drawer Slides

Professional Furniture Hardware Supplier 200 Lb Undermount Drawer Slides

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Structure
Three Members
Slide Type
Soft Close/Push Open
Condition
New
Length
9''-24''
Application
Commercial and Domestic Drawers
Load
35kg
Times of Use
50,000
Features
Smooth and Silent
Transport Package
Paper Carton
Specification
American & European style
Key Features
✨ Smooth Operation

Built-in Buffer for constant speed deceleration and silent shutdown.

🛠️ Easy Adjustment

2D/3D adjustable drawer height (0-3mm) for perfect alignment.

🛡️ High Durability

Galvanized sheet material (1.8mm*1.4mm*1.0mm) tested for 50,000 cycles.

Product Parameters
Product Number Series Length Drawer Length (L) Internal Depth (Min Ext) Cabinet Deep (Built-in Min) Packing Unit
BS901-HT/BS1801-HT-9''229mm229mm266mm286mm8 Set
BS901-HT/BS1801-HT-12''305mm305mm342mm362mm8 Set
BS901-HT/BS1801-HT-15''381mm381mm418mm438mm8 Set
BS901-HT/BS1801-HT-18''457mm457mm494mm514mm8 Set
BS901-HT/BS1801-HT-21''533mm533mm570mm590mm8 Set
Product Number Series Length Drawer Length (L) Internal Depth (Min Ext) Cabinet Deep (Built-in Min) Packing Unit
BS804-HH-10''250mm250mm269mm269mm+X10 Set
BS804-HH-12''300mm300mm319mm319mm+X10 Set
BS804-HH-14''350mm350mm369mm369mm+X10 Set
BS804-HH-16''400mm400mm419mm419mm+X10 Set
BS804-HH-18''450mm450mm469mm469mm+X10 Set
BS804-HH-20''500mm500mm519mm519mm+X10 Set
BS804-HH-22''550mm550mm569mm569mm+X10 Set
BS804-HH-24''600mm600mm619mm619mm+X10 Set

*PS: The drawer side panel is 18mm model. X: Panel thickness.

Product Gallery

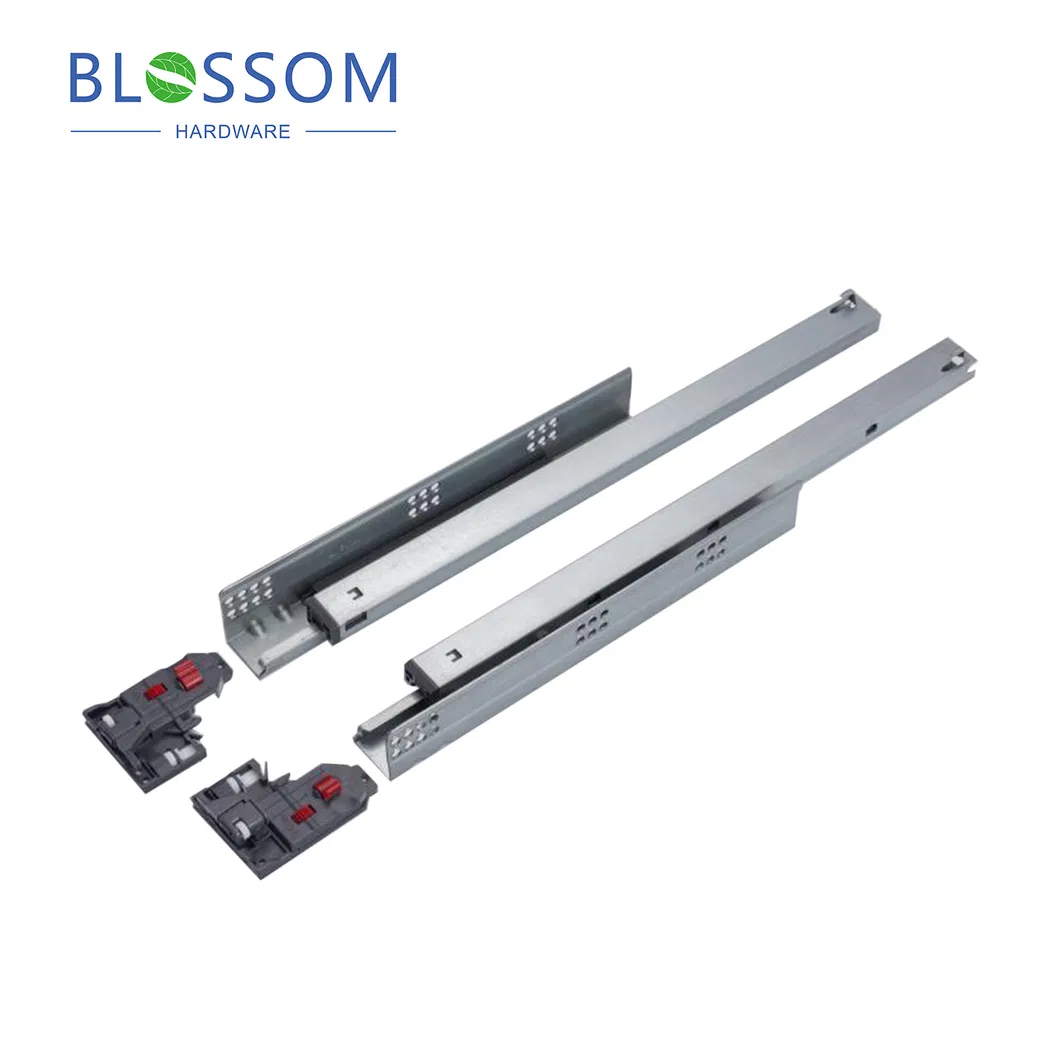

Drawer Slide Gallery 1

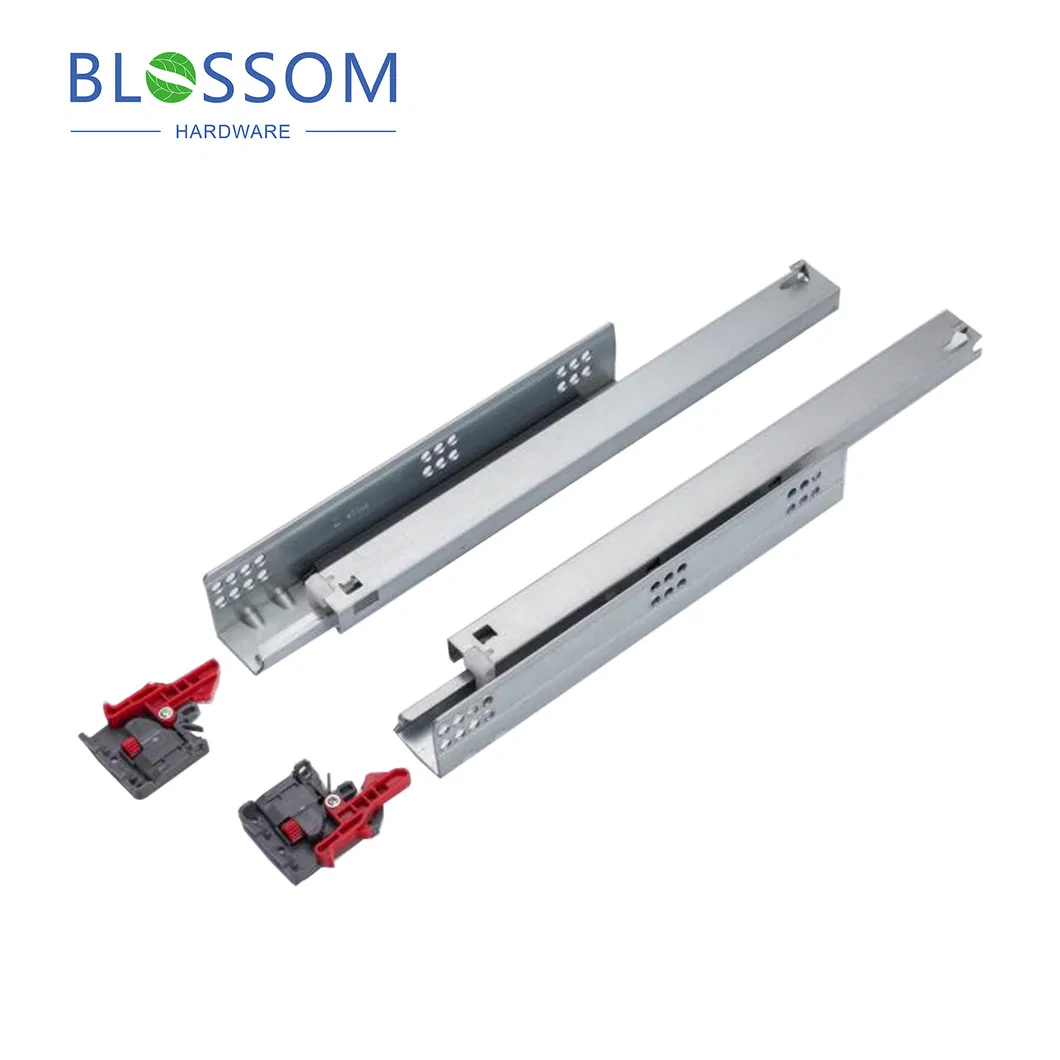

Drawer Slide Gallery 2
Drawer Slide Gallery 3

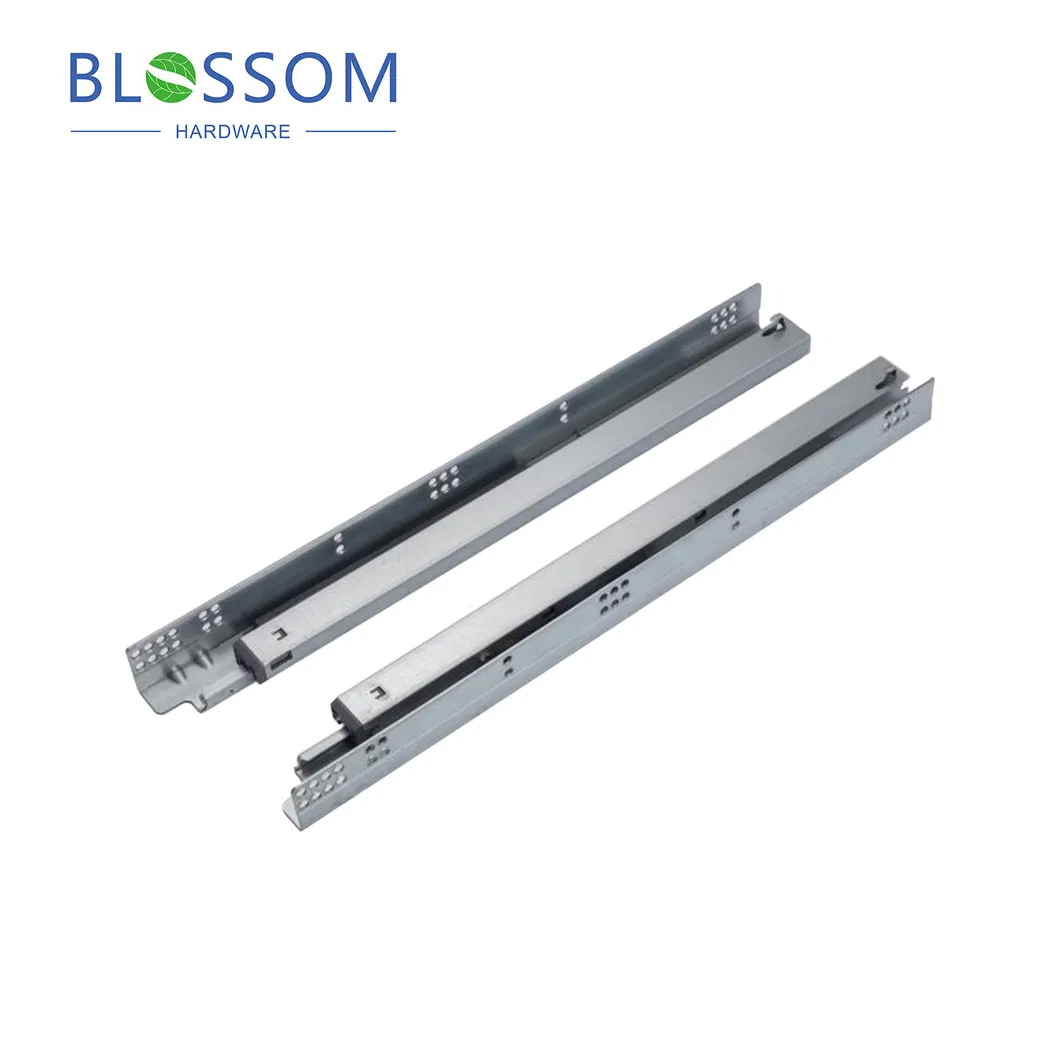

Drawer Slide Gallery 4

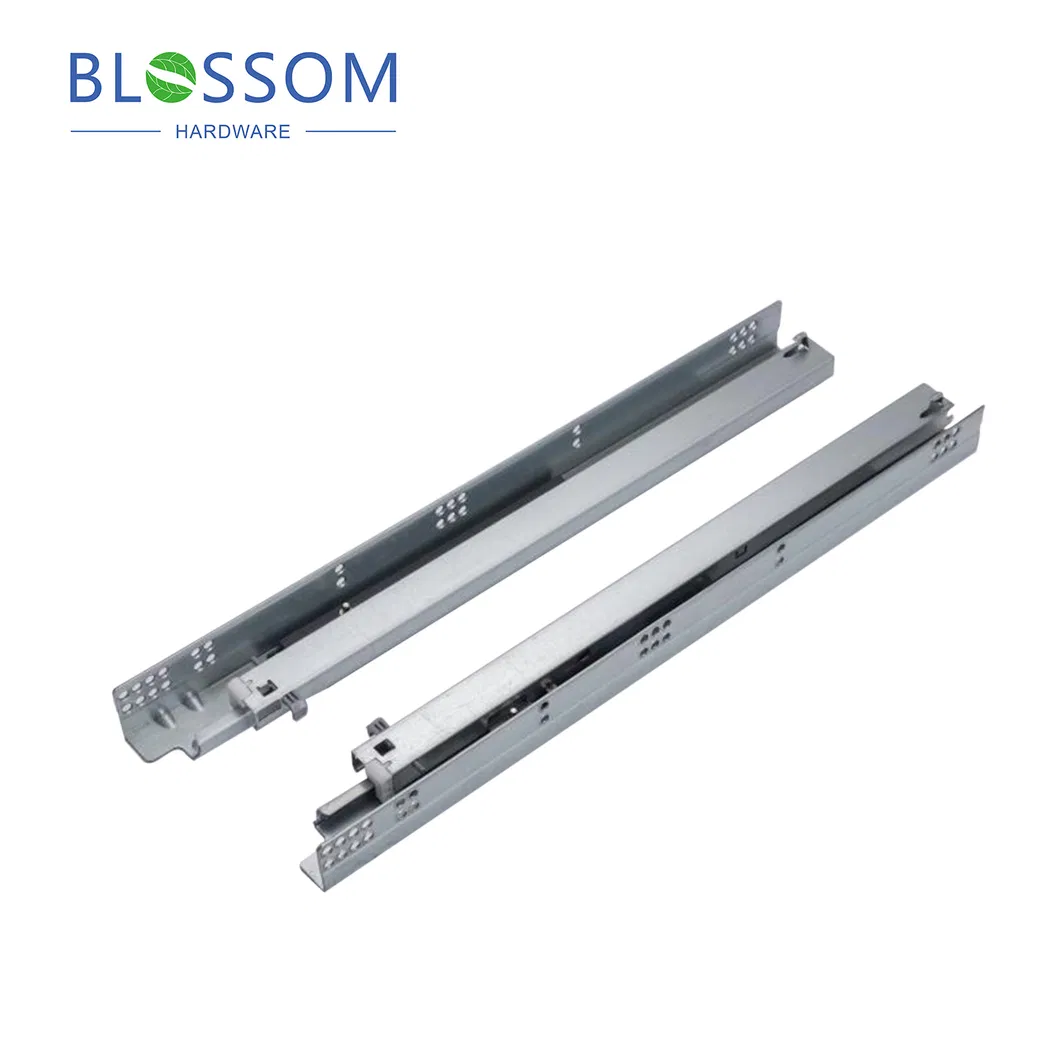

Drawer Slide Gallery 5
Drawer Slide Gallery 6

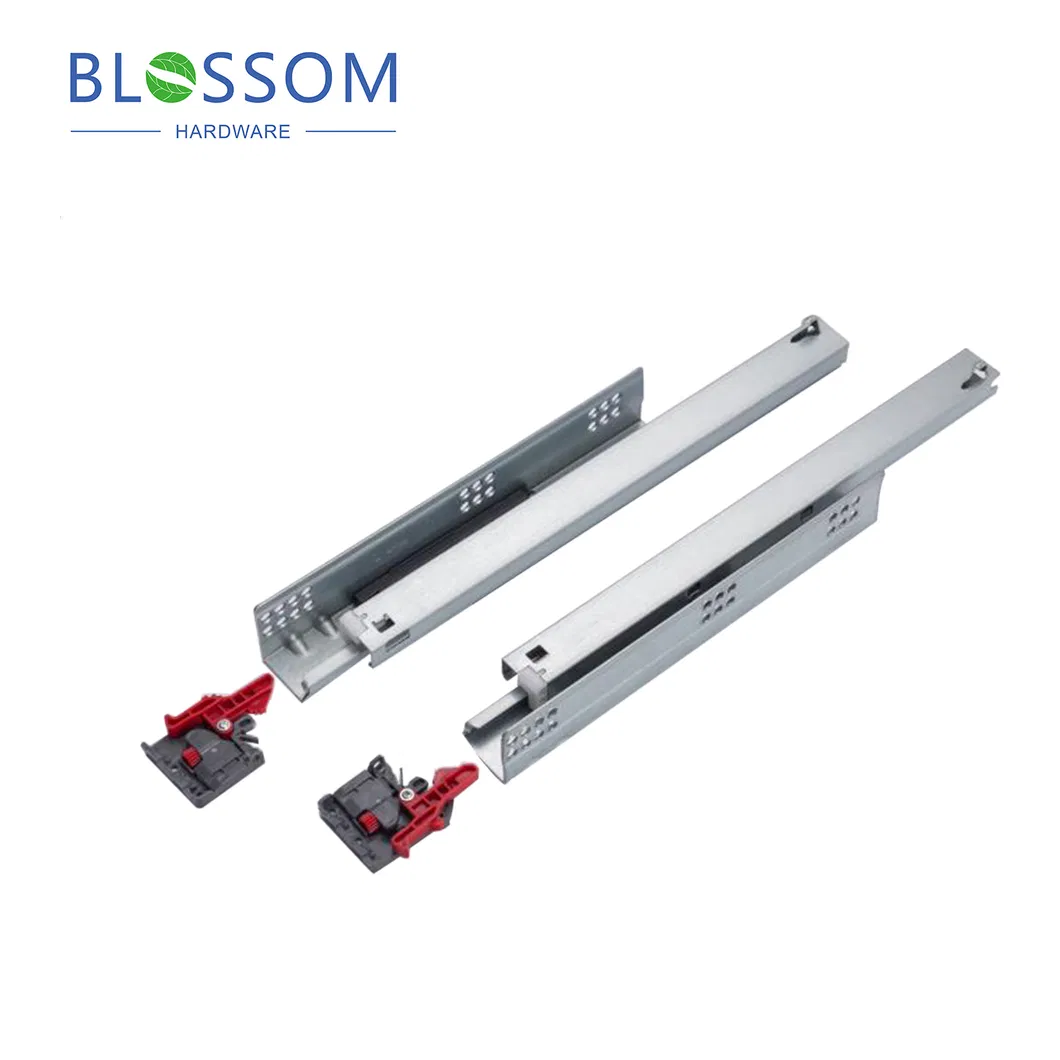

Drawer Slide Gallery 7

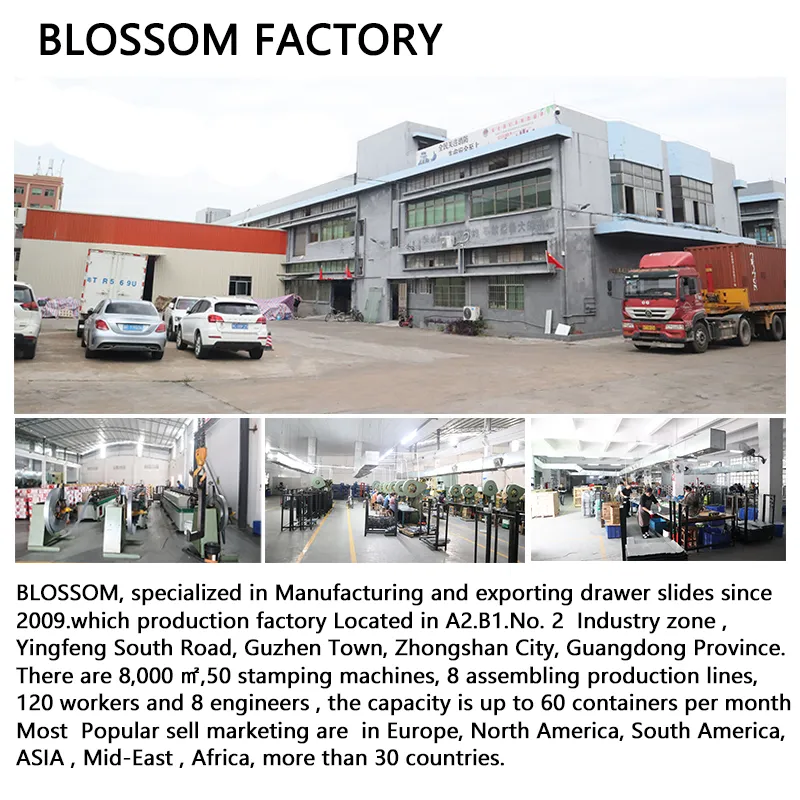

Detailed View 1
Detailed View 2
Detailed View 3

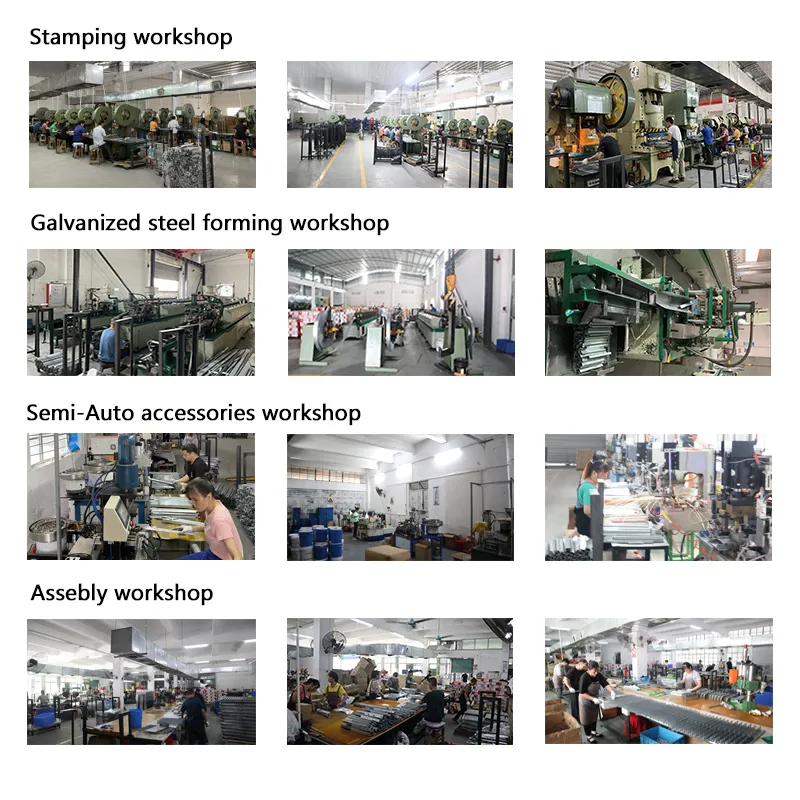

Application View 1

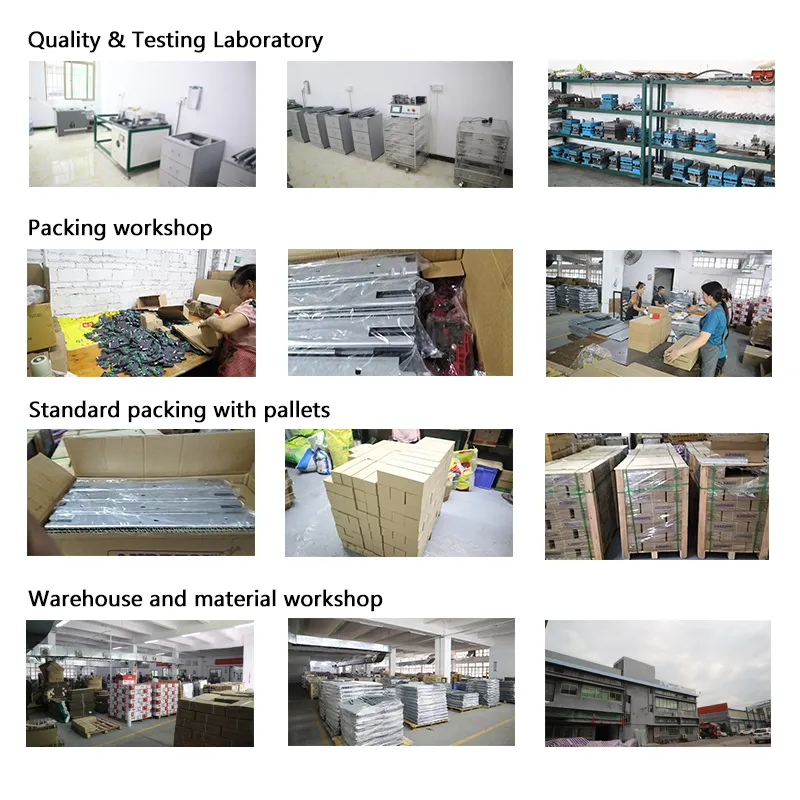

Application View 2
Frequently Asked Questions
How to get samples?
Free samples are available to check quality. Freight costs can be handled via your tracking number, arranging a pick-up with your shipment, or paying for freight directly (recommended for 1-week arrival).
What is the MOQ?
It depends on different items. Normally for slides, the MOQ is 500 sets, with a total order amount exceeding $5,000.
How long is the delivery time?
Typically 15-30 days after receiving the deposit. Consolidated orders with many items may take around 45 days.
What are the payment terms?
We offer EXW, FOB, and CNF terms depending on the customer's specific requirements.
What is the loading capacity for 20ft?
Normally it is 22 tons, though for shipments to the United States, it is approximately 17 tons.
Is it possible to mix different items?
Yes, you can send your requirements and we will provide a comprehensive quotation for mixed items.
