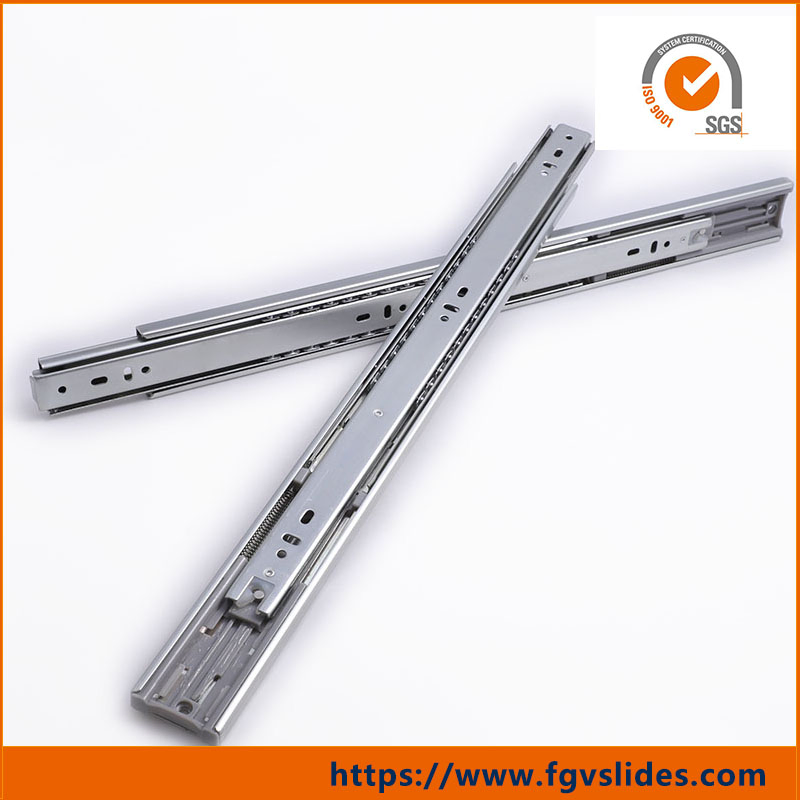

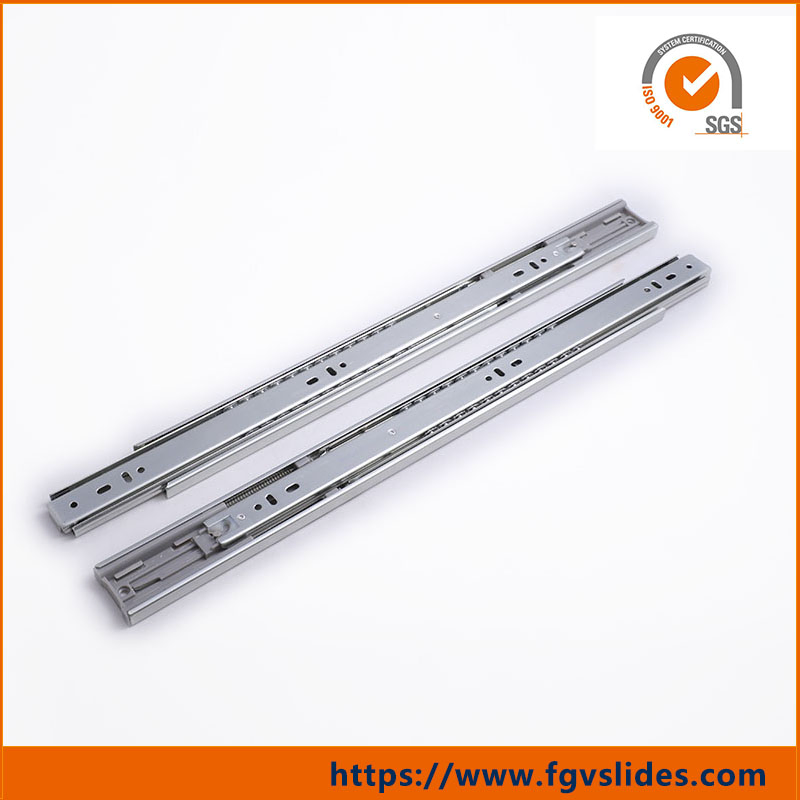

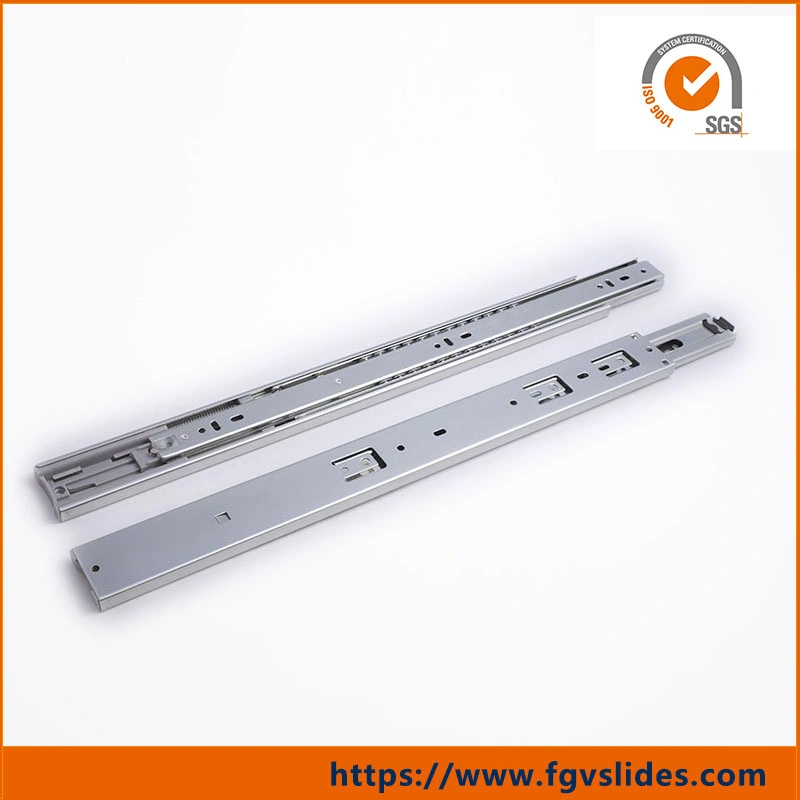

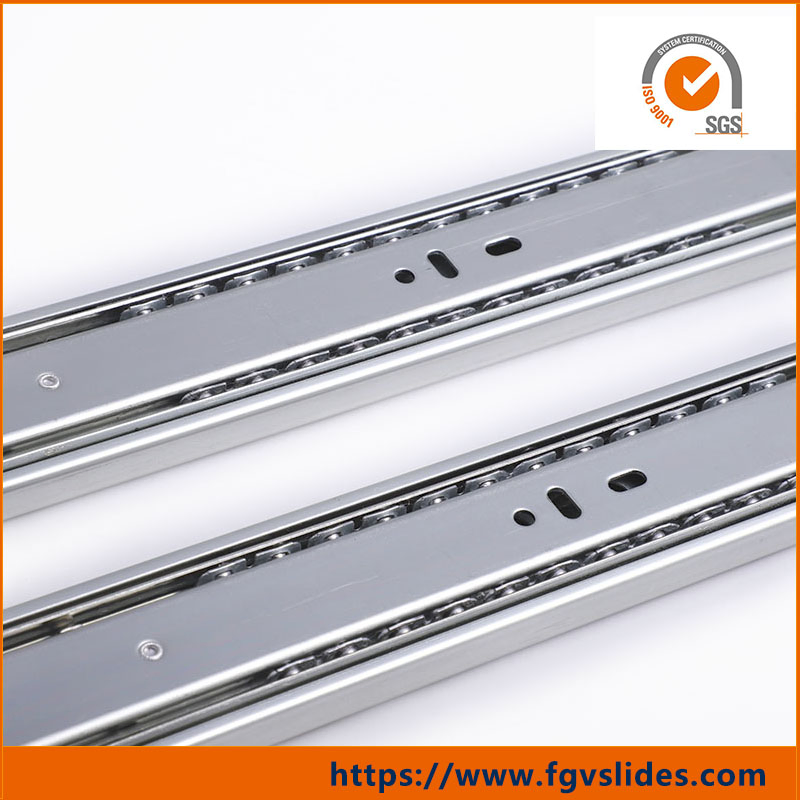

Smooth-Glide 45mm Ball Bearing Drawer Slides with Soft Close Feature

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
DY4507SN-04
Structure
Three Knots
Slide Type
Steel Ball Type
Material
Cold-rolled Steel
Finish
Zinc-Plated / Black
Mounting
Side / Under Mounting
Load Rate
40kg (18inch)
Thickness
1.0*1.0*1.2mm / 1.2*1.2*1.5mm

Product Description

45mm Soft Closing Furniture Accessory Ball Bearing Drawer Slide

Ball Bearing Drawer Slide

Premium Slide Solution: Designed for office, cabinet, and household drawers, these 45mm slides provide a full extension and high load capacity ranging from 30kg to 45kg.

MATERIAL Cold rolled steel FINISH Zinc-plated
WIDTH 45mm LENGTH 10-24 inches
THICKNESS 1.0*1.0*1.2mm / 1.2*1.2*1.5mm HOLE PATTERN Standard
LOAD RATING 35 KGs / 45 KGs EXTENSION Full extension

Key Features

Smooth & Quiet: Precision ball bearing action for silent operation.
Soft-Close Tech: Integrated functionality to prevent slamming and ensure gentle closing.
Durable Build: Steel construction rated for medium-duty use (40 to 100 lbs).
Easy Maintenance: Front disconnect lever for simple drawer removal.
Secure Closure: Hold-in feature keeps drawers securely shut.
SGS Certified: Passed 50,000 open-close cycles and 48-hour salt spray tests.

Product Showcase

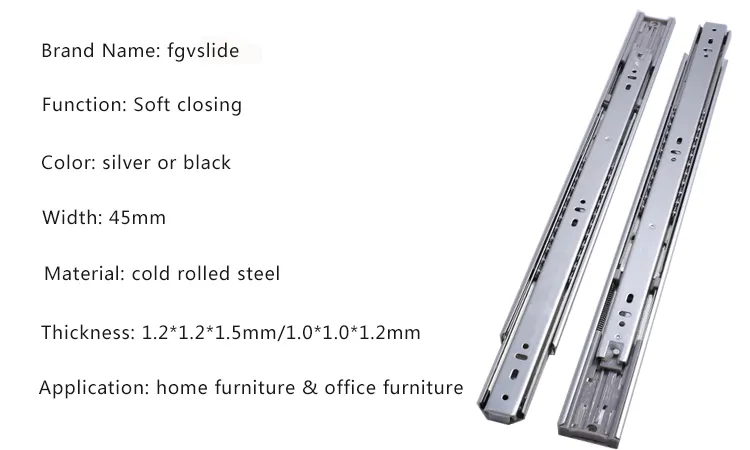

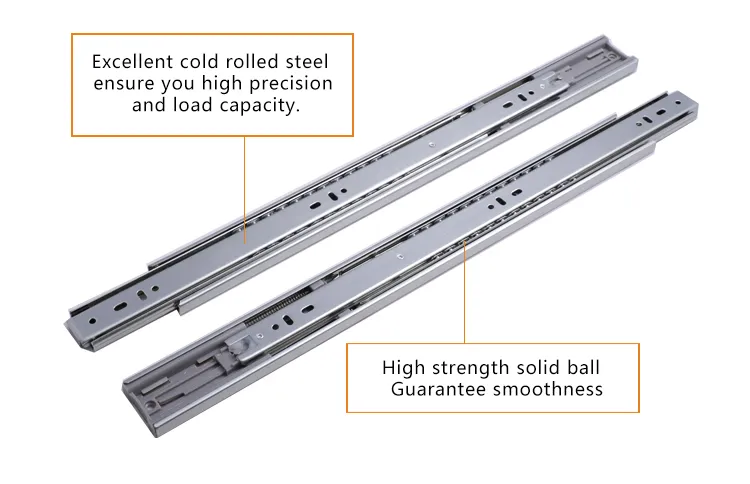

Feature View 1 Feature View 2 Feature View 3
Technical Drawing

Installation & Details

Installation Guide Dimension Details Mechanism View Final Assembly

Frequently Asked Questions

What are the available trade terms?
We support FOB, CIF, and FCA trade terms for international shipping.
What is your standard payment procedure?
Our terms are a 40% T/T deposit in advance, with the remaining 60% balance payable against the B/L copy.
Can I request samples for testing?
Yes, we provide 1-2 free samples for quality testing. Customers are responsible for the express shipping costs.
What is the expected lead time for orders?
Mass production typically takes 30-35 days. Samples can be prepared within 7 days.
How do you ensure the quality of the drawer slides?
We implement a strict quality control system and utilize a professional QC team to inspect every production stage.
Do the slides pass industry standard tests?
Yes, our products are SGS tested, passing over 50,000 cycles, 48-hour salt spray, and 75-pound load tests.
