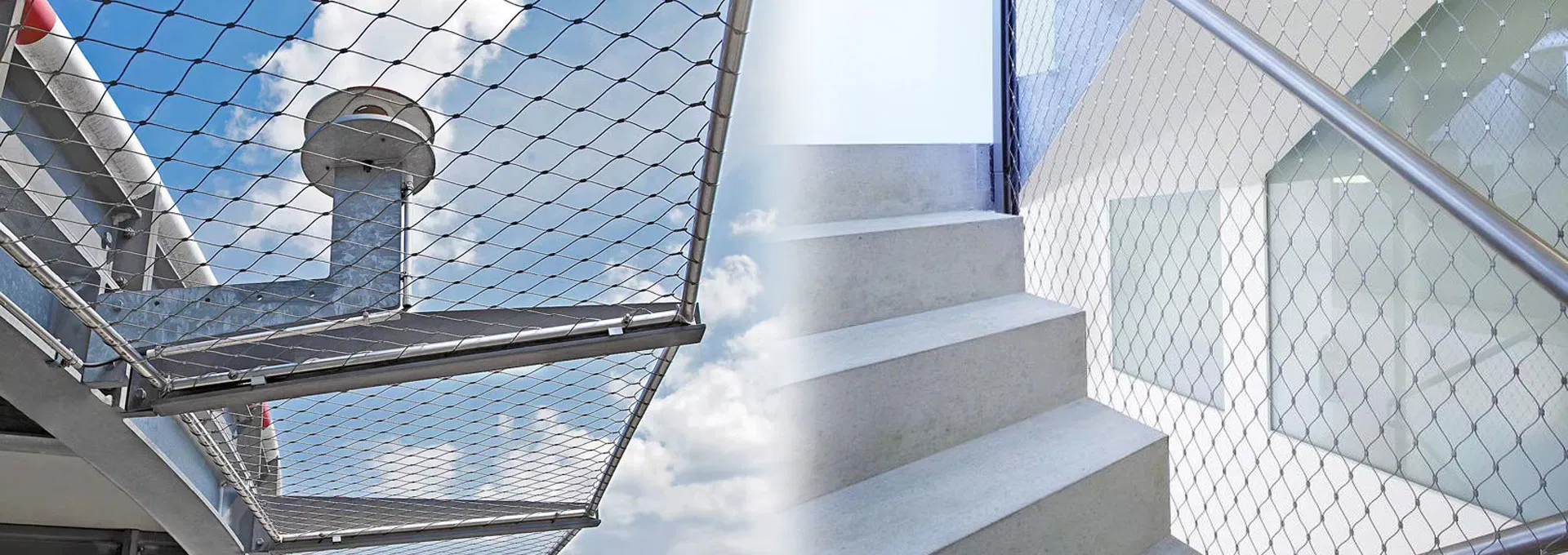

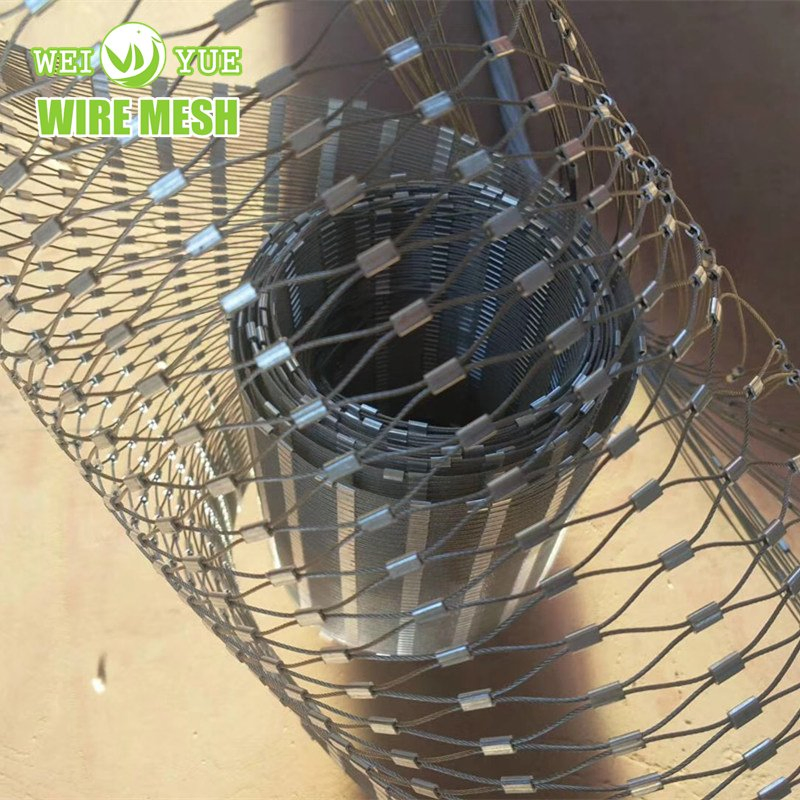

Stainless steel rope mesh is a versatile material combining elegance and robustness. Constructed from high-quality stainless steel wire ropes (304, 316, 304L, 316L), this flexible mesh provides unique design flexibility for modern architecture. It incorporates the tensile strength of indestructible stainless steel with aesthetically pleasing diamond openings.
The mesh is light, robust, and transparent, capable of standing up to heavy loads. It is widely utilized as balustrade infill, zoo enclosures, tensile facades, safety netting, and green wall systems for both interior and exterior applications.

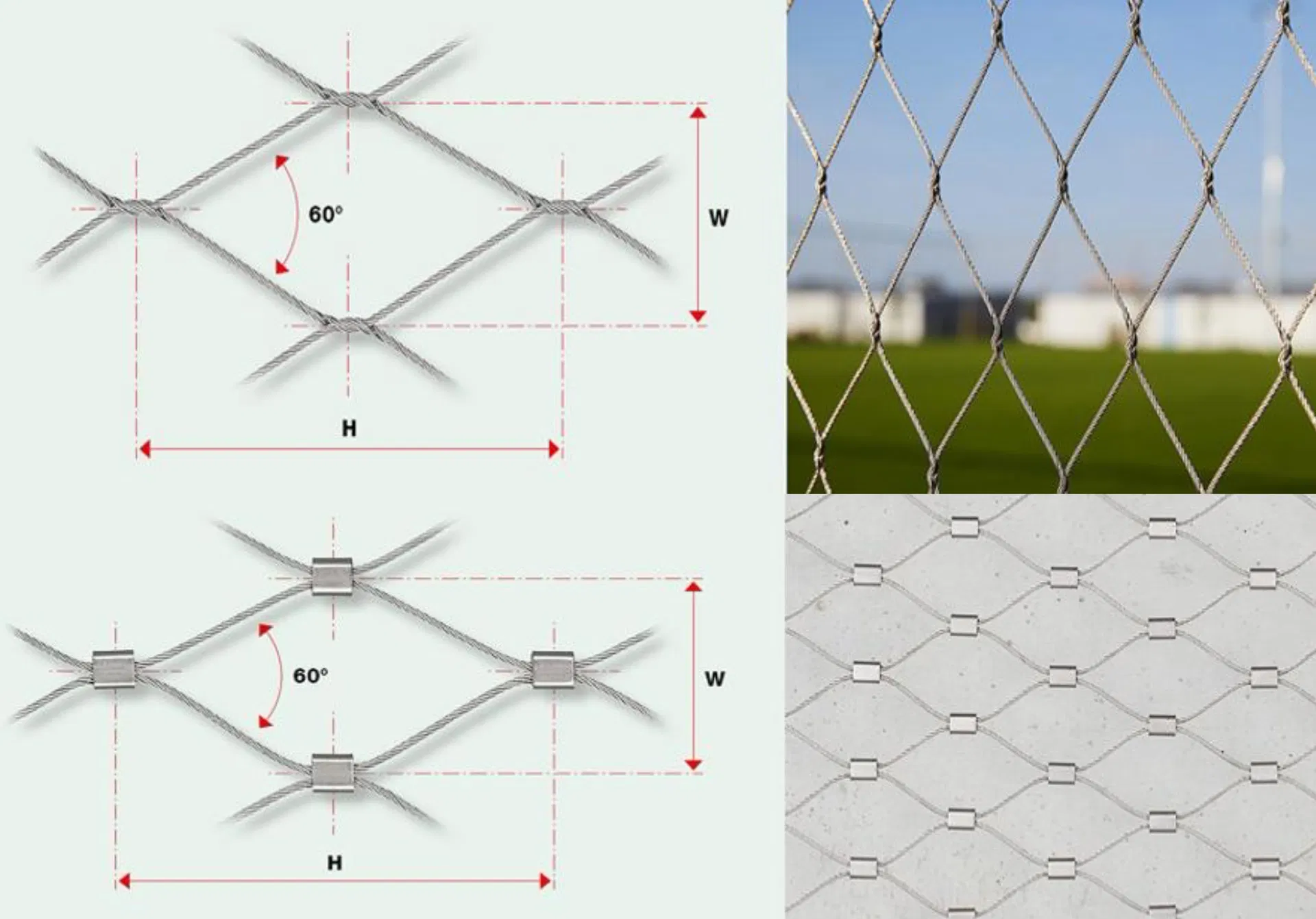

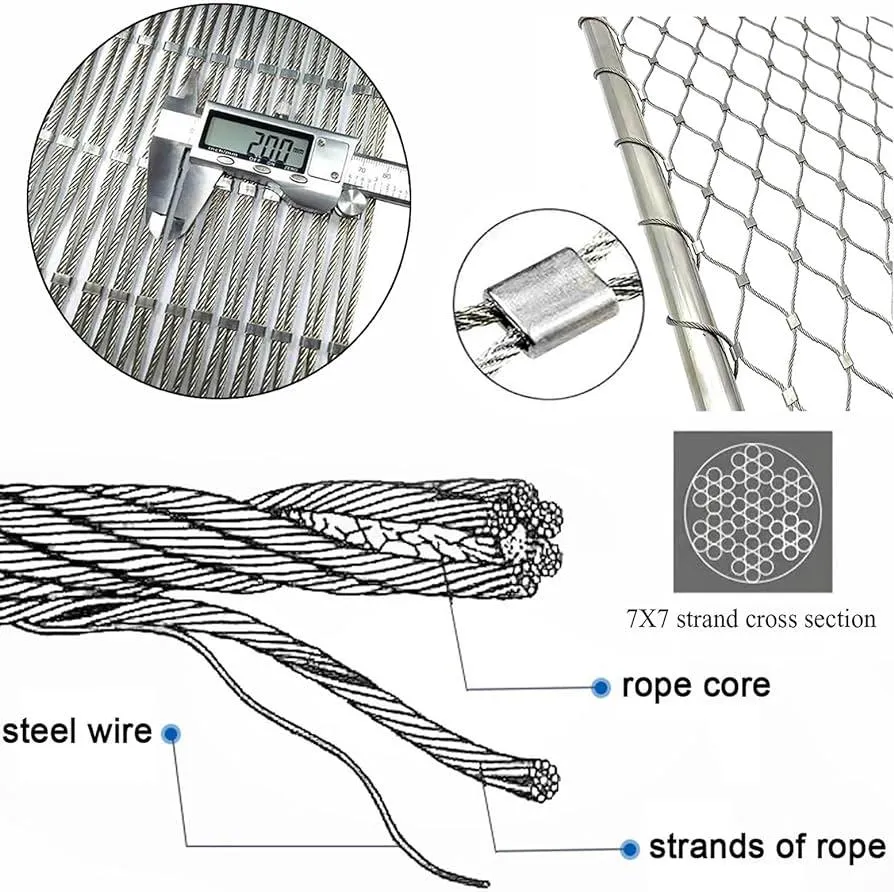

Stainless steel rope mesh can be divided into two main types based on the combination method:
| Code | Rope Construction | Diameter (mm) | Opening Size (mm) | Breaking Force (KN) |
|---|---|---|---|---|
| WY-01 | 7 × 19 | 3.2 | 120 × 120 | 7.38 |
| WY-02 | 7 × 19 | 3.2 | 102 × 102 | 7.38 |
| WY-05 | 7 × 19 | 3.2 | 51 × 51 | 7.38 |
| WY-08 | 7 × 7 | 2.4 | 76 × 76 | 4.18 |
| WY-13 | 7 × 7 | 2.0 | 51 × 51 | 3.17 |
| WY-17 | 7 × 7 | 1.6 | 38 × 38 | 2.17 |

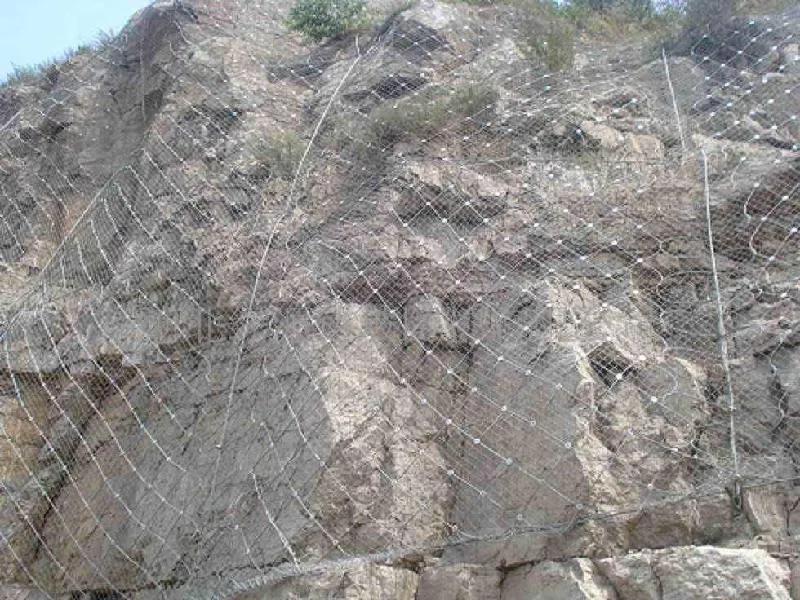

Slope Protection

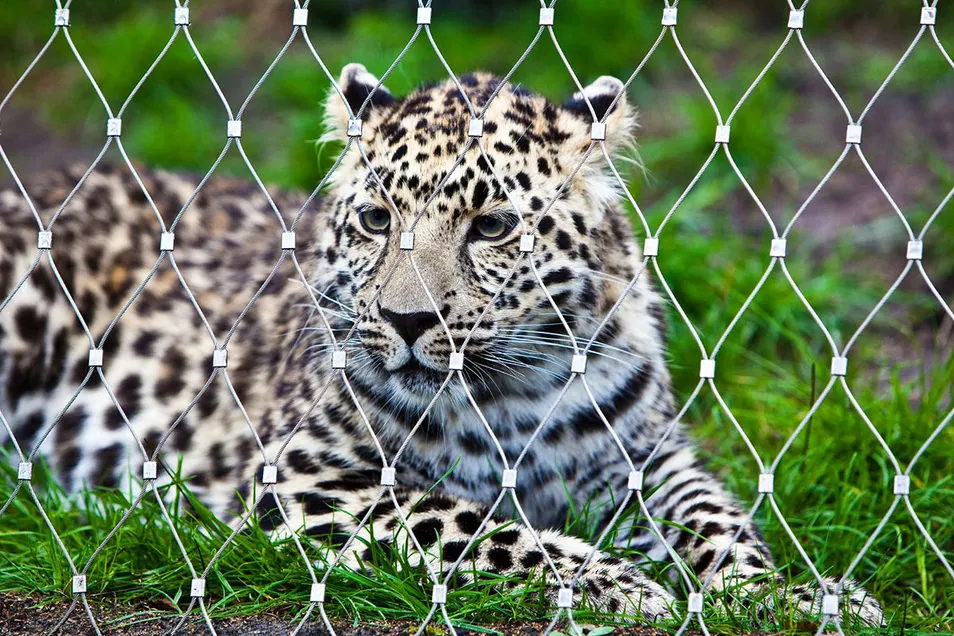

Zoo Enclosures

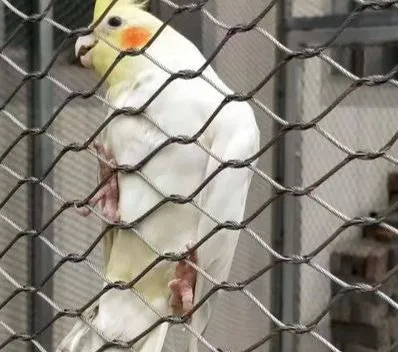

Aviary Netting

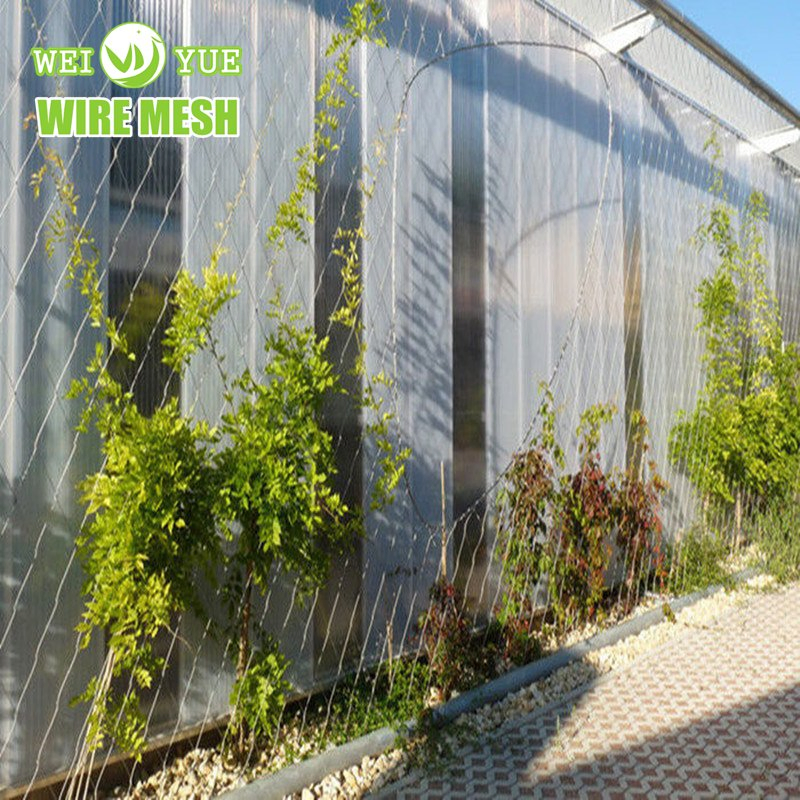

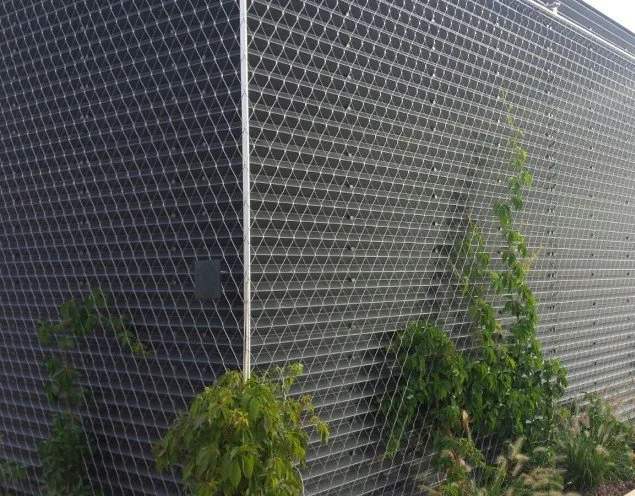

Green Wall Systems

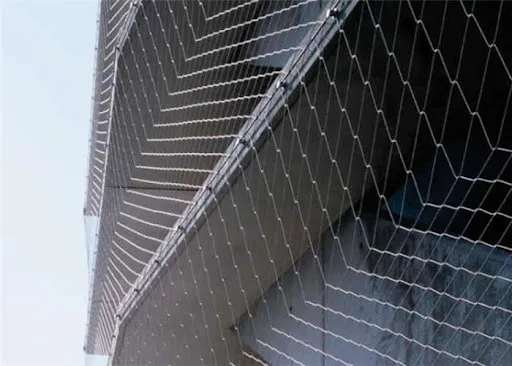

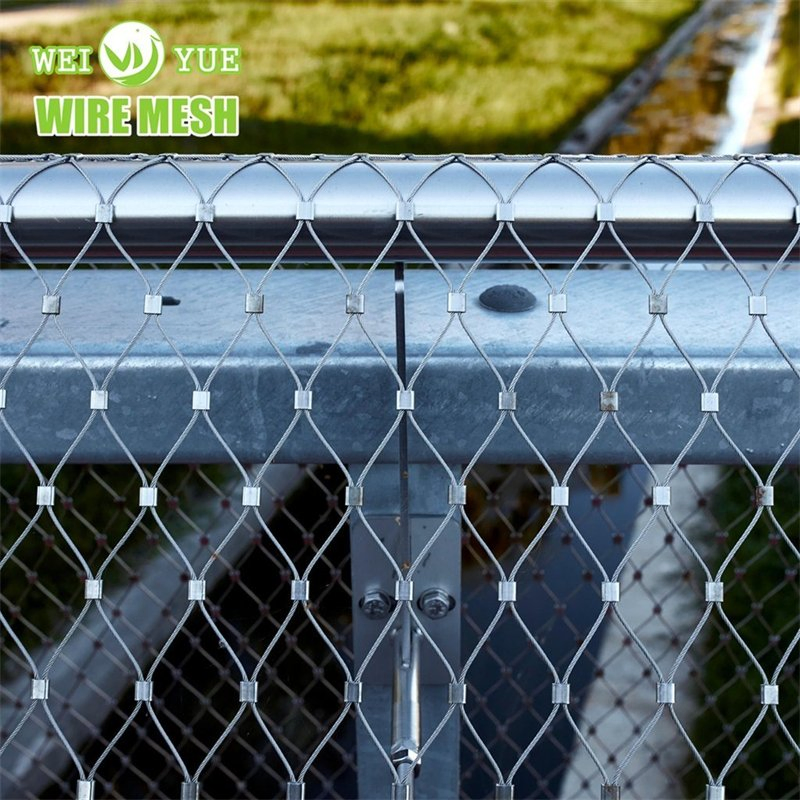

Suspension Bridge Railing

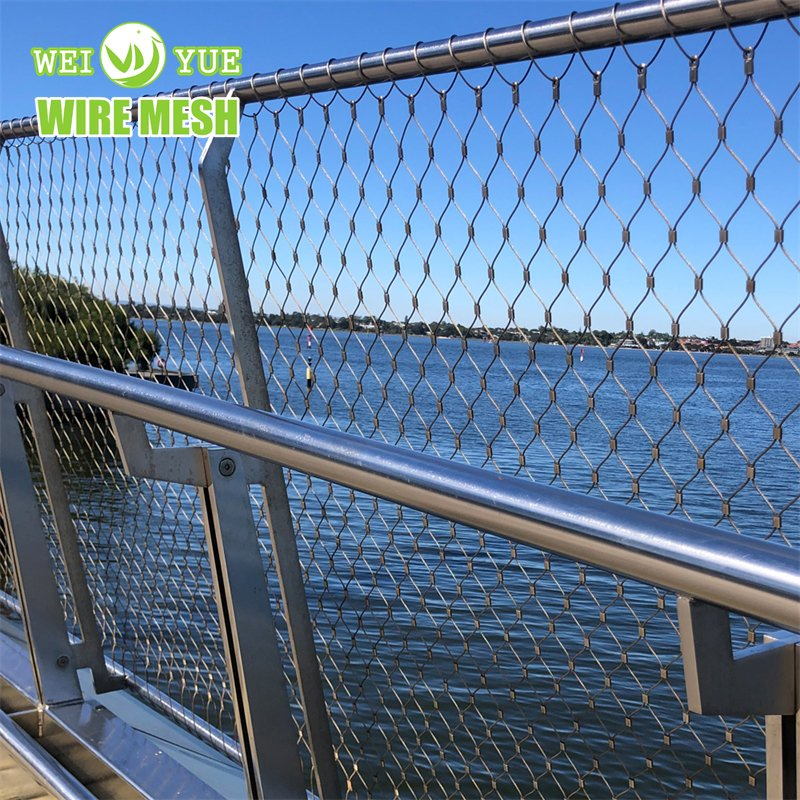

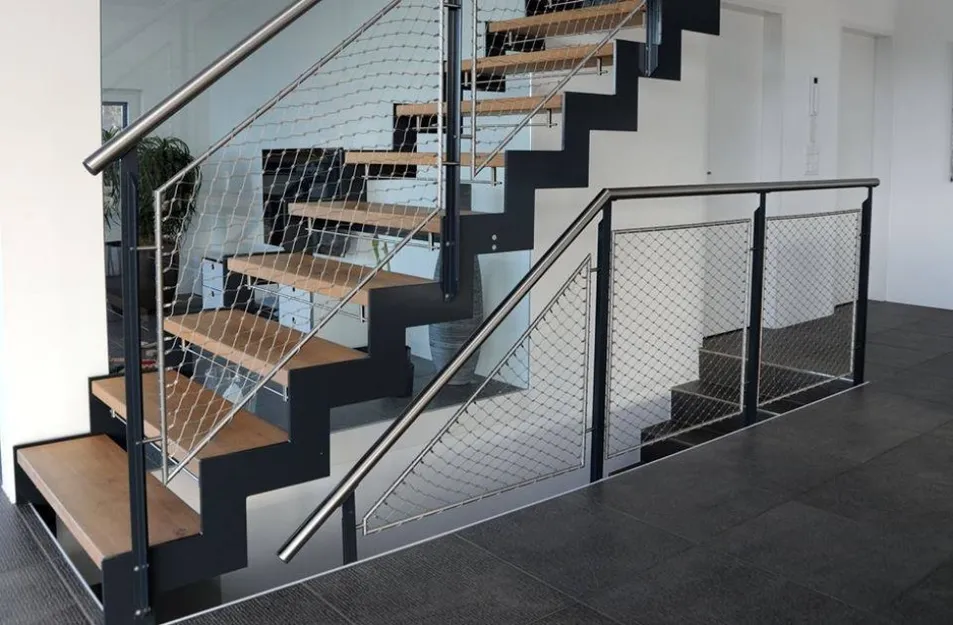

Balustrade & Stair Mesh
