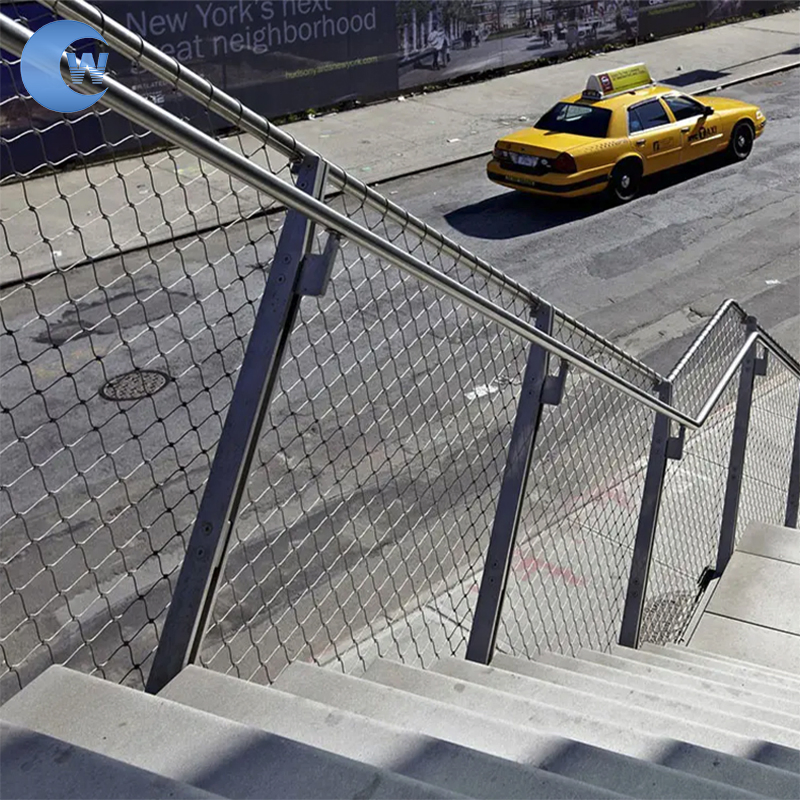

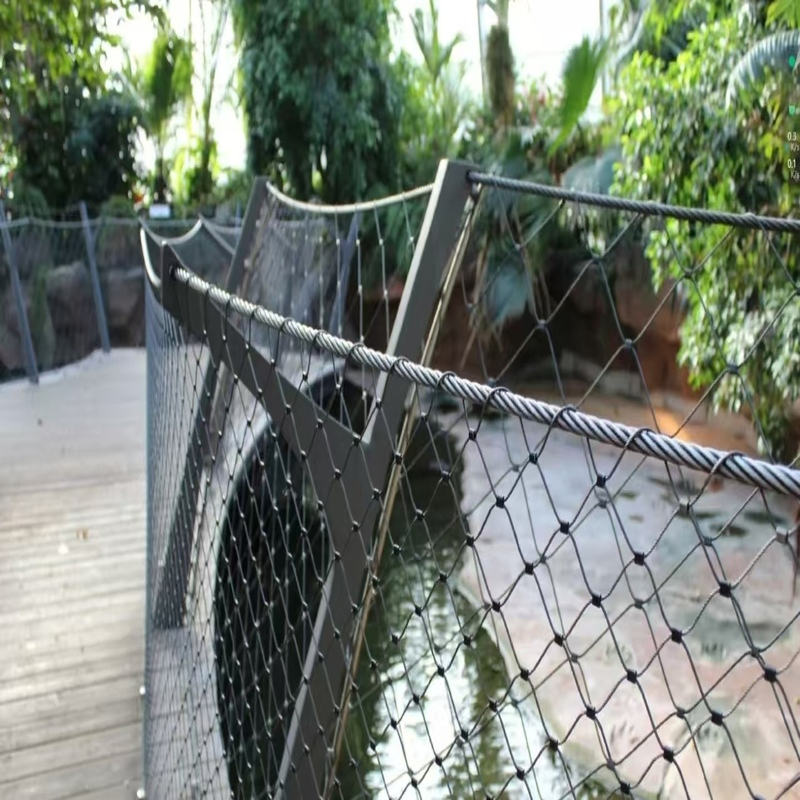

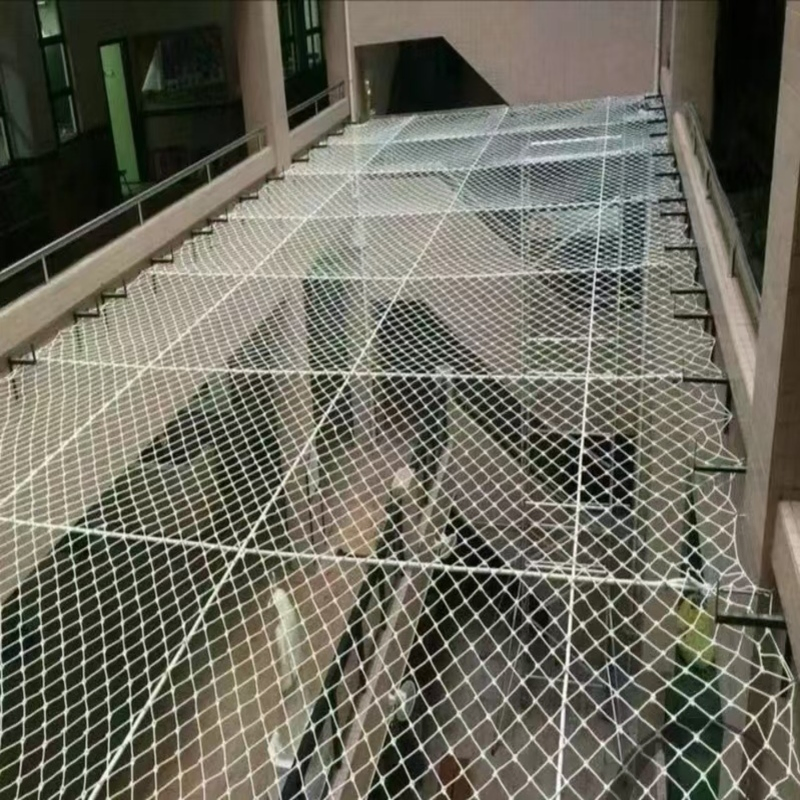

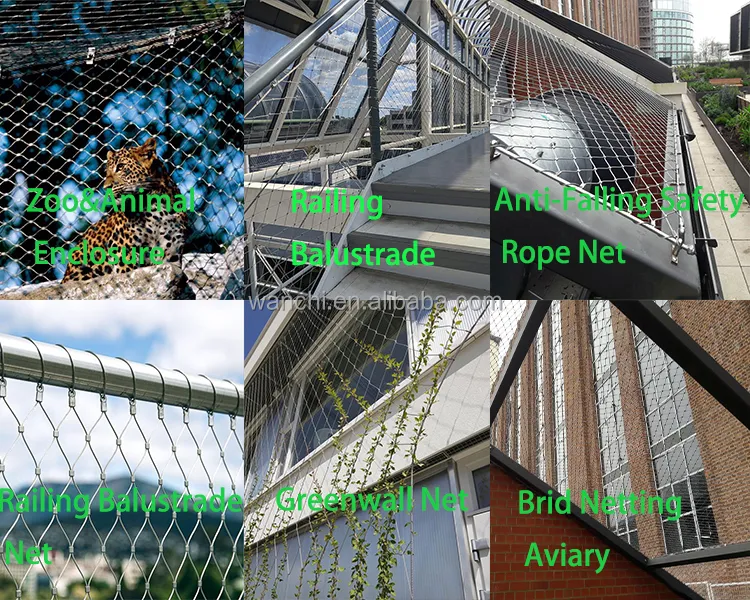

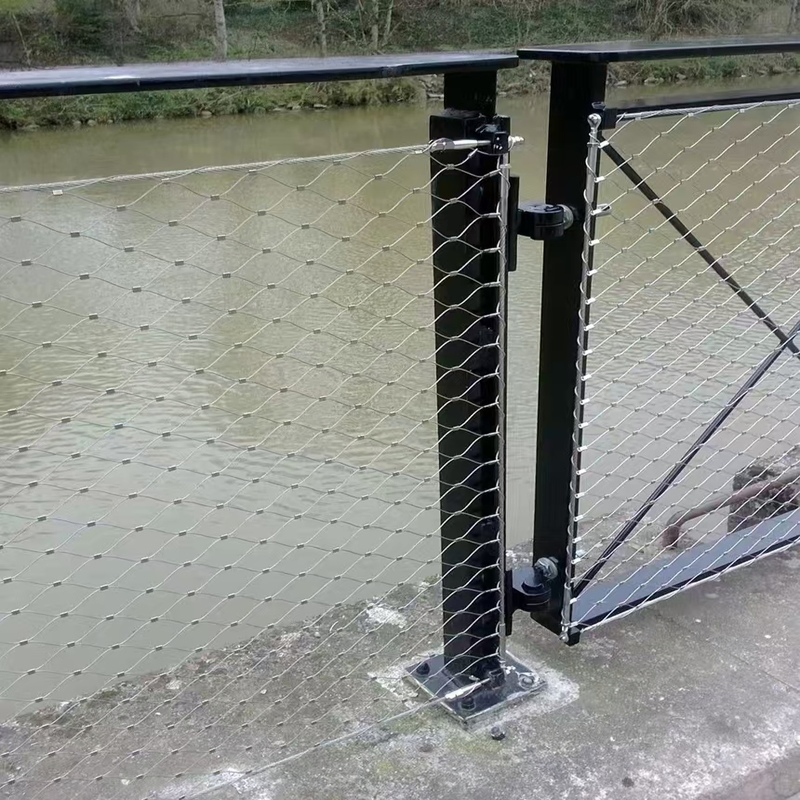

We are a factory for 12+ years. We can customize various stainless steel rope nets according to different needs of customers! Applicable to zoo fence, plant green wall net, railing fence net, complete anti-fall net, etc.
Material & Types

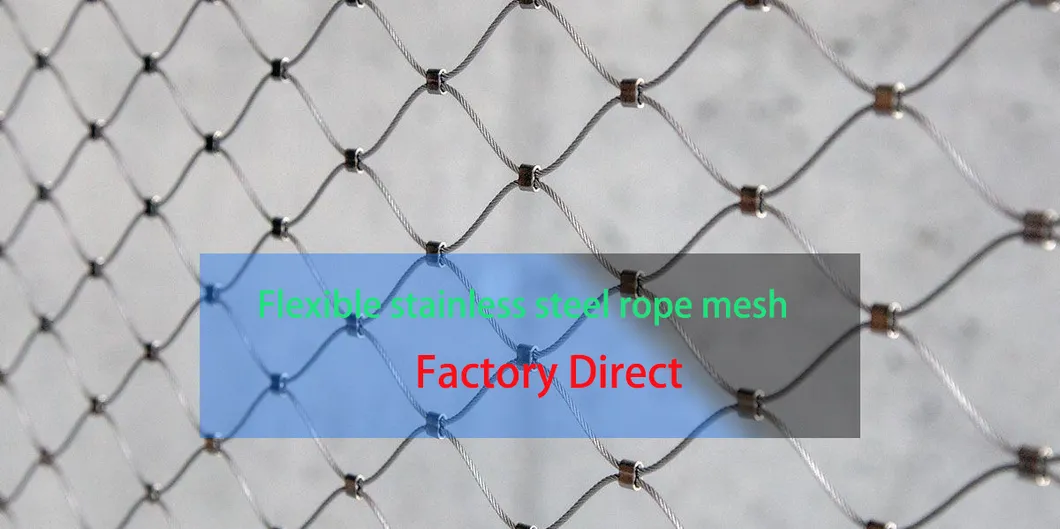

The stainless steel rope mesh is made of stainless steel wire (201, 304, 304L, 316, 316L, etc.). Hot and cold galvanized steel wire rope can also be used as required.
| Model | Steel Wire Mesh Structure | Breaking Force (KN) | Wire Rope Diameter (mm) | Mesh Size (mm) |
|---|---|---|---|---|
| BN32120 | 7*19 | 7.38 | 3.2 | 120*208 |
| BN2470 | 7*7 | 4.18 | 2.4 | 70*102 |
| BN20100 | 7*7 | 3.17 | 2.0 | 100*173 |
| BN1680 | 7*7 | 2.17 | 1.6 | 80*140 |

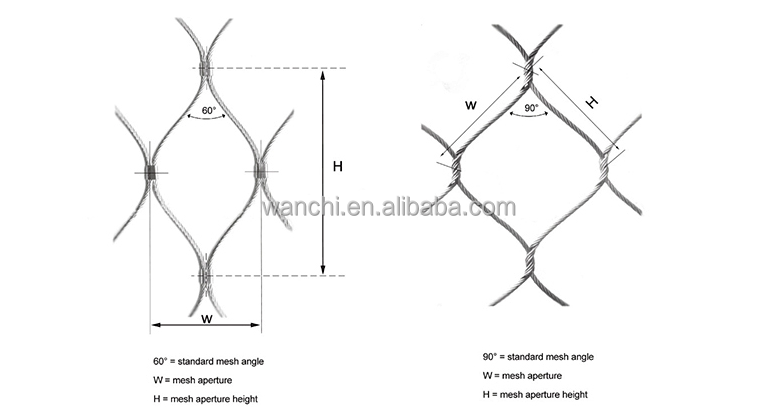

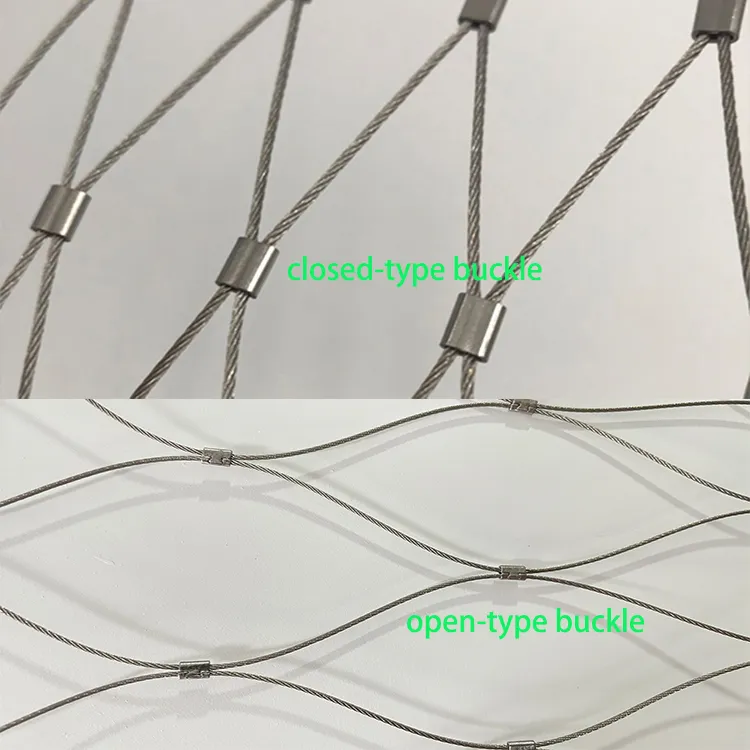

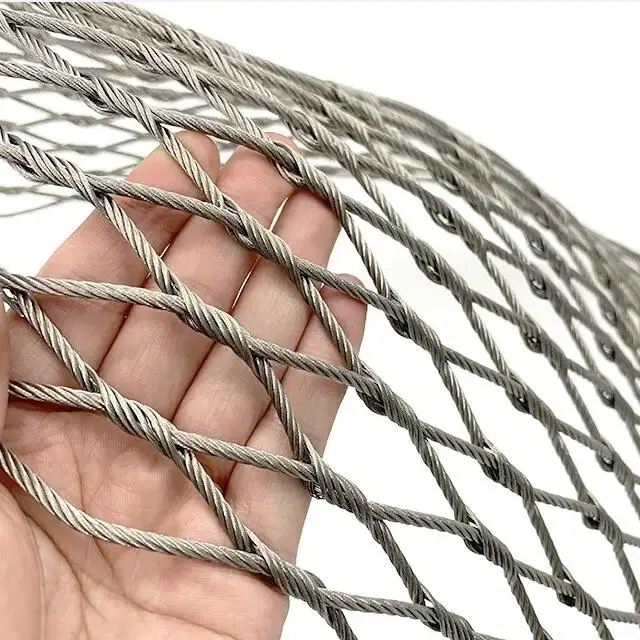

Technical Specs: 60°/90° standard mesh angles. W=mesh aperture; H=mesh aperture height. Formed by tightening a plurality of rope strands around the rope core.

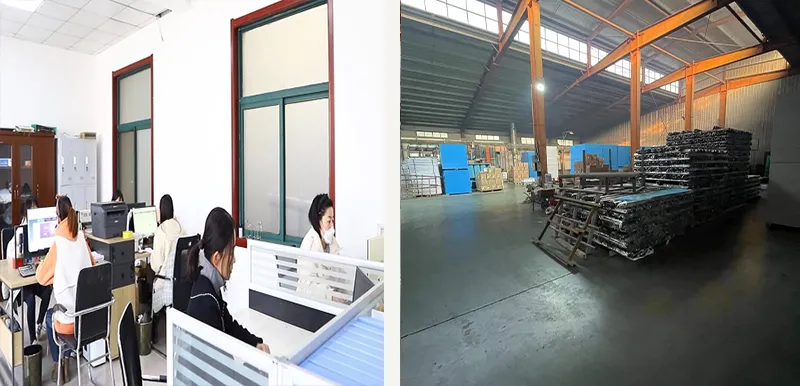

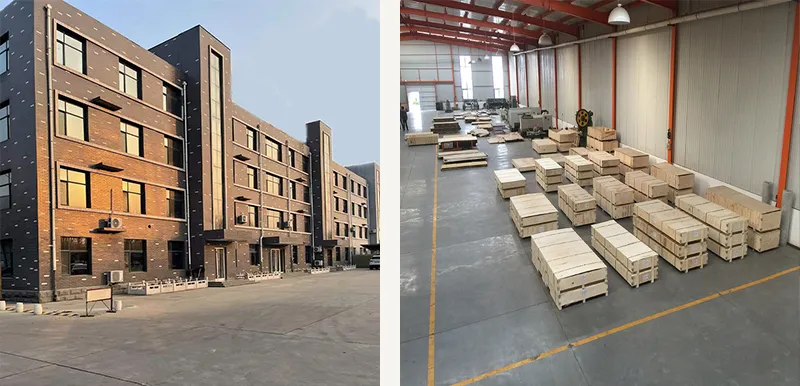

With strong technical force and complete manufacturing equipment, our products are widely used in construction, agriculture and other industries. We have established business relations with many customers at home and abroad with high-quality service and advanced technology. Our products are exported to the USA, Canada, Australia, South Asia, Middle East, and European Countries.
