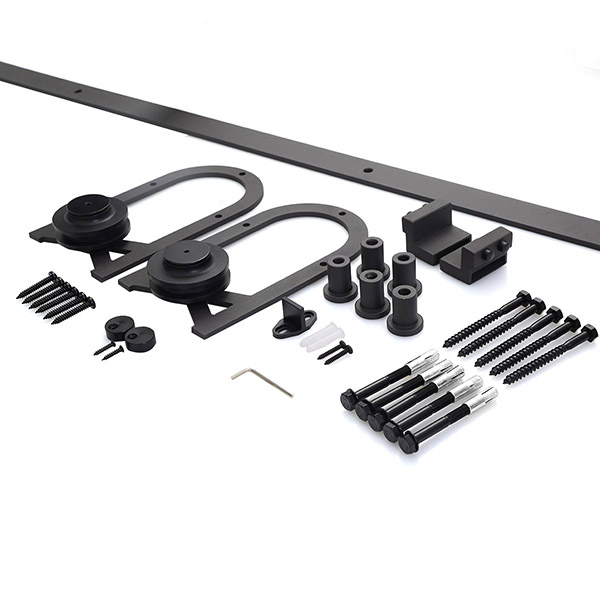

Steel Sliding Barn Wood Door Closet Hardware Track Set

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Model NO.
BDH-A10
Frame Material
Steel
Roller Material
Steel
Load Bearing
175kgs
Warranty
5 Year
Usage
Door (Living room/Veranda/Laundry)
Delivery
30 Working Days
MOQ
100 Sets
Specification
2000*40*6mm
Production Capacity
1000sets/Mon

Product Description

Material: Carbon steel with black/dark coffee powder coating finish.

Applications: Suitable for interior/exterior wooden doors for living rooms, store rooms, verandas, and laundry rooms. Compatible with single or double open wooden doors.

Technical Parameters:

  • Door thickness: 1 3/8" -- 1 5/8" (35-45MM)
  • Door width: 31 1/2" -- 39 3/8"
  • Rail/track length: 2m/79" standard or customized

Track Match Guide:

  • 1500mm track: Under 750mm door
  • 1800mm track: Under 900mm door
  • 2000mm track: 800-1000mm door
  • 3000mm track (1500+1500): 1500mm door

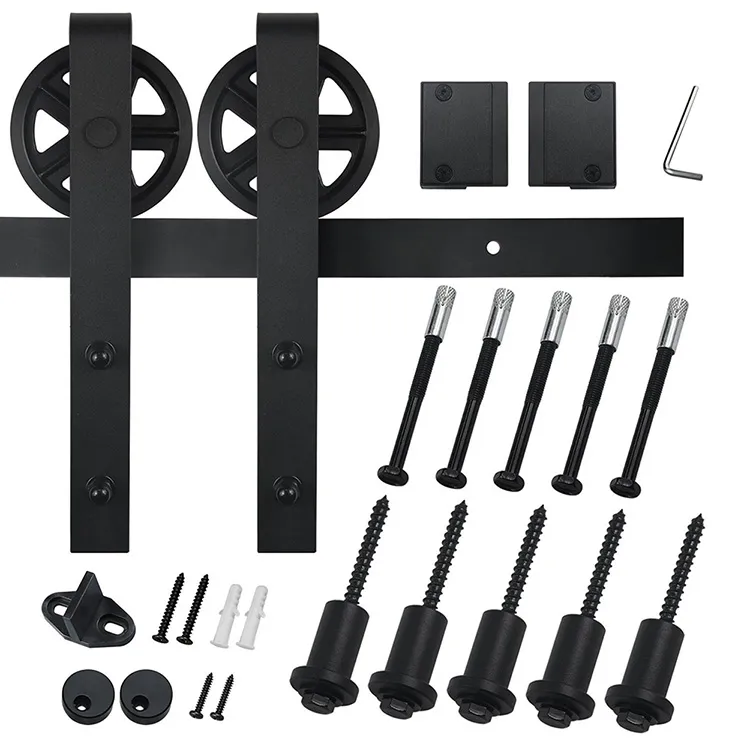

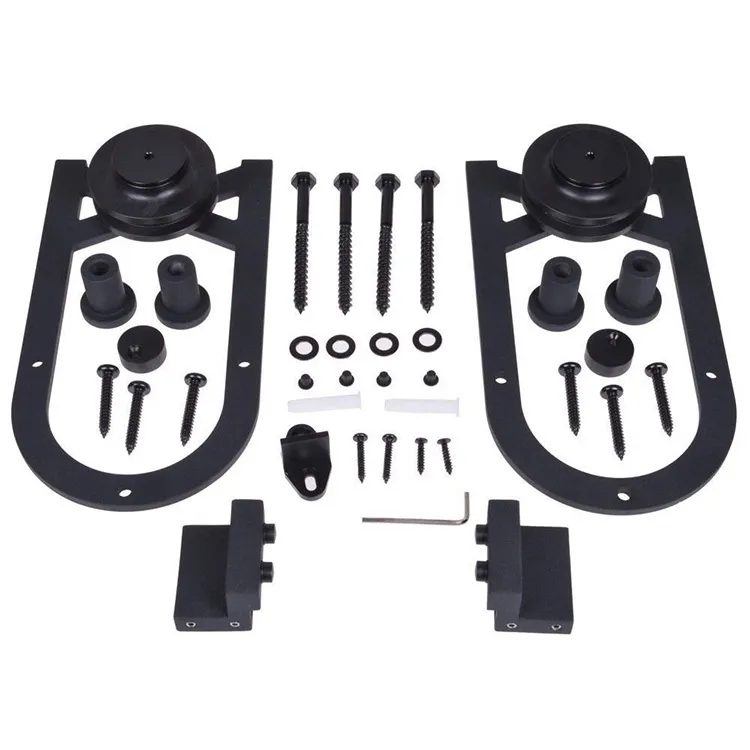

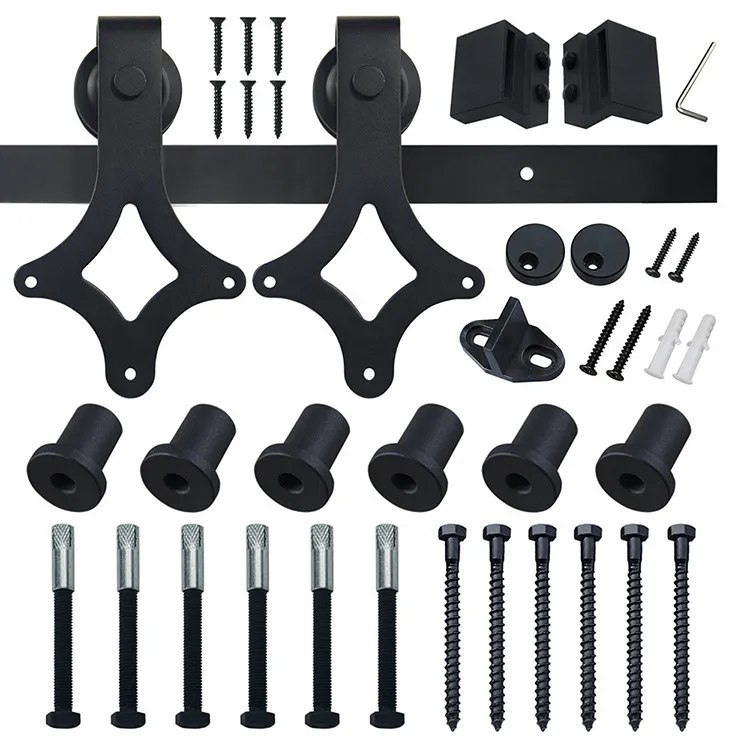

Kit Components

ITEM Qty Material & Surface
Sliding Track (Customizable) 1*2mm Carbon Steel + black powder coating
Sliding Rollers 2 Carbon Steel + black powder coating
Door Stops 2 Carbon Steel + black powder coating
Wall Mounts & Screws 5 Carbon Steel + black powder coating
Anti-Jump Disks 2 POM

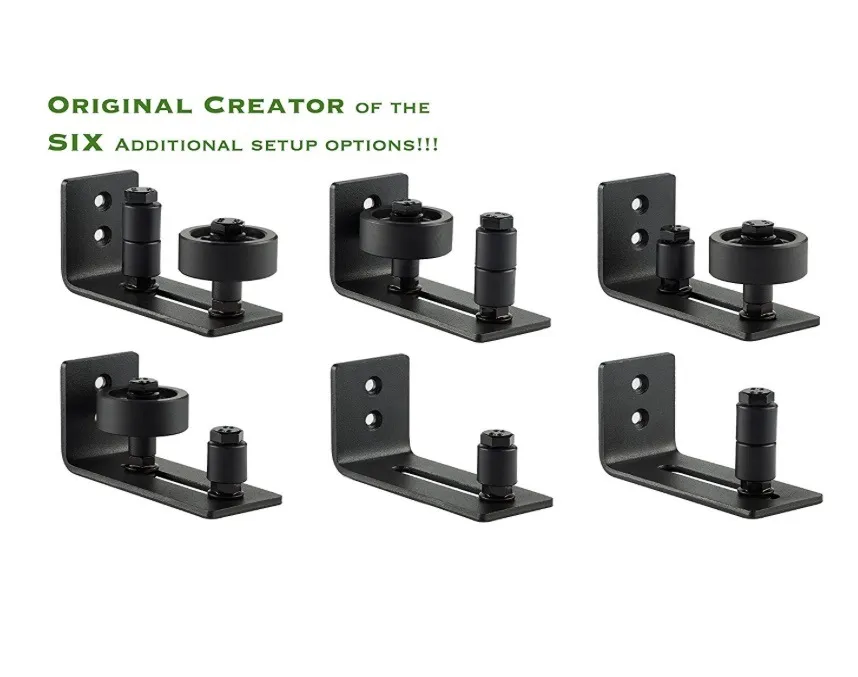

Floor Guide 1 POM
Door Handle (Optional) 1 Carbon Steel + black powder coating

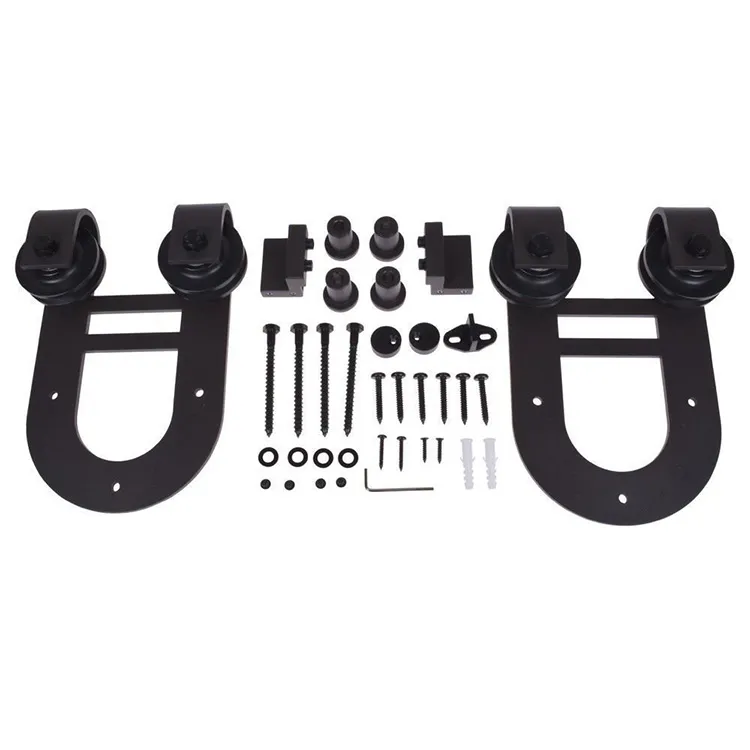

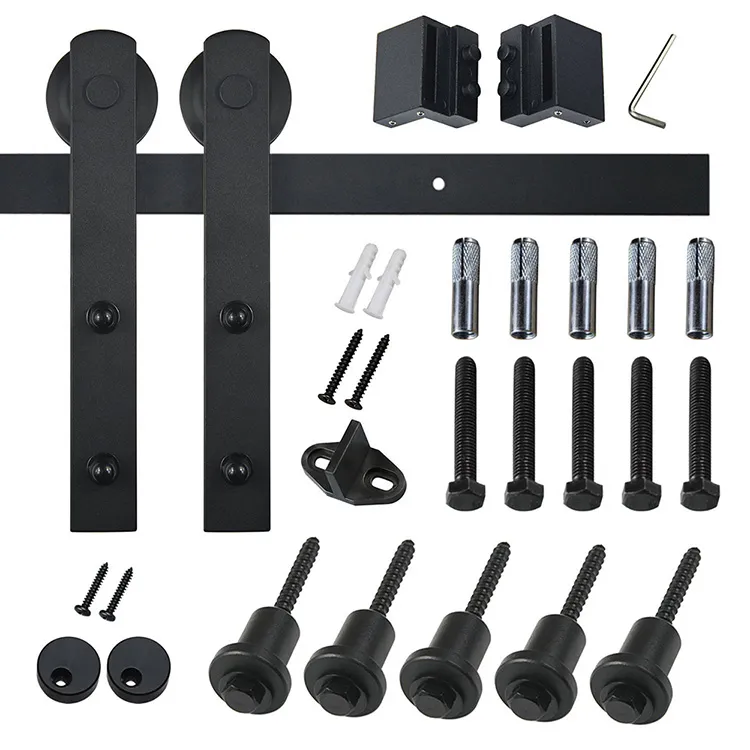

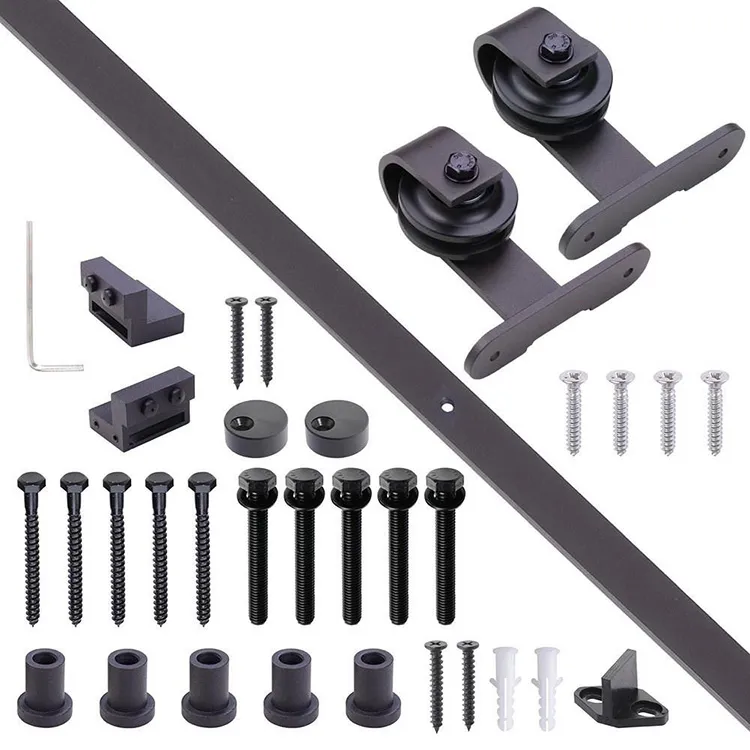

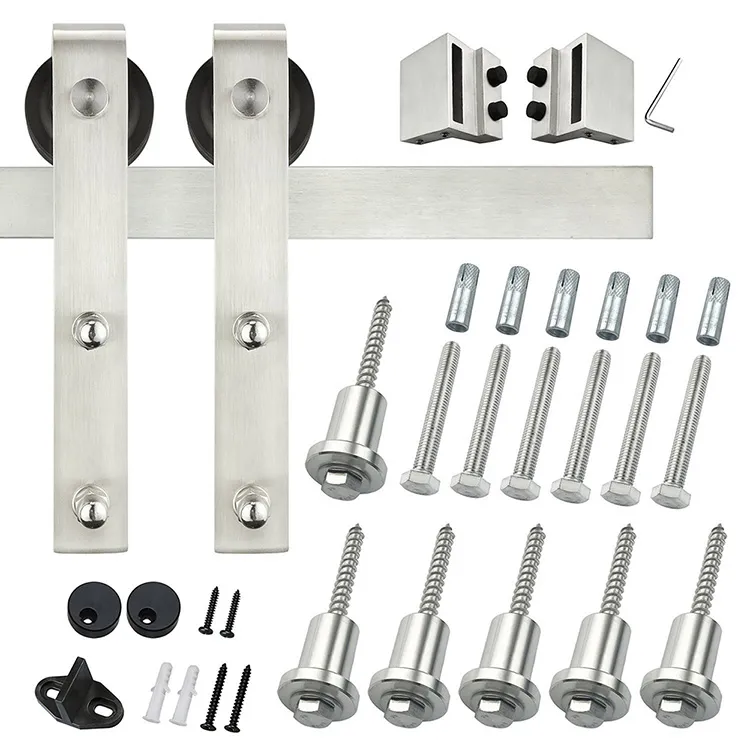

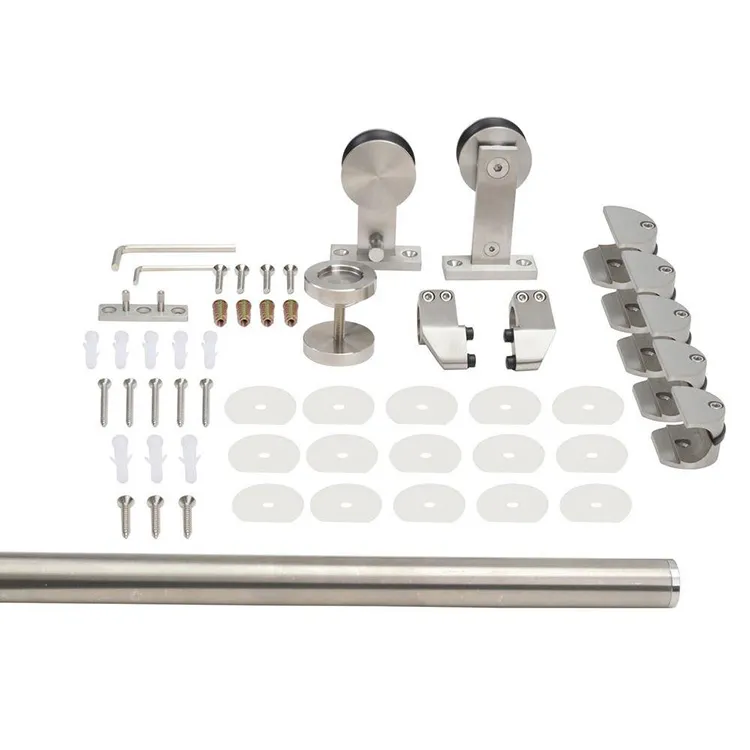

Detailed Photos

Advanced Technology

New Door Stop with Damper:

We have developed a new technology model featuring a door stop with an integrated damper. This innovation replaces the original door stop and anti-jump components. The structure is more compact and the technology is more advanced, ensuring smoother operation and enhanced durability.

Frequently Asked Questions

What is the maximum weight capacity for this hardware kit?
The BDH-A10 model is designed to support a load bearing capacity of up to 175kgs, making it suitable for heavy interior and exterior wooden doors.
What door thickness is compatible with this system?
This hardware set is ideal for doors with a thickness ranging from 1 3/8" to 1 5/8" (35mm to 45mm).
What is the warranty period for the barn door hardware?
We provide a 3 to 5-year warranty on this product, ensuring long-term reliability and performance.
Can the track length be customized?
Yes, while the standard track length is 2m (79"), we offer customization for the rail length to meet your specific installation requirements.
What material are the rollers and tracks made of?
The sliding tracks and rollers are manufactured from high-quality carbon steel with a durable black or dark coffee powder coating.
Is the door handle included in the standard kit?
The door handle is a selective/optional item and is not included in the standard hardware kit unless specified.
