Wooden Concealed Sliding door / Ghost Sliding Door Hardware
A sleek, modern sliding door system characterized by its minimalist aluminum frame and "invisible" design. The panels appear to float without visible floor tracks, creating a seamless, spacious aesthetic. Ideal for contemporary interiors seeking clean sightlines, natural light flow, and space efficiency.
✔No bottom track: Sophisticated top-hung system.
✔Minimalist Framing: Supports tempered glass or wooden panels.
✔Silent Mechanism: Smooth and quiet sliding experience.
✔Premium Finishes: Sandblasting matte silver and custom options.
WE OFFER TWO TYPES

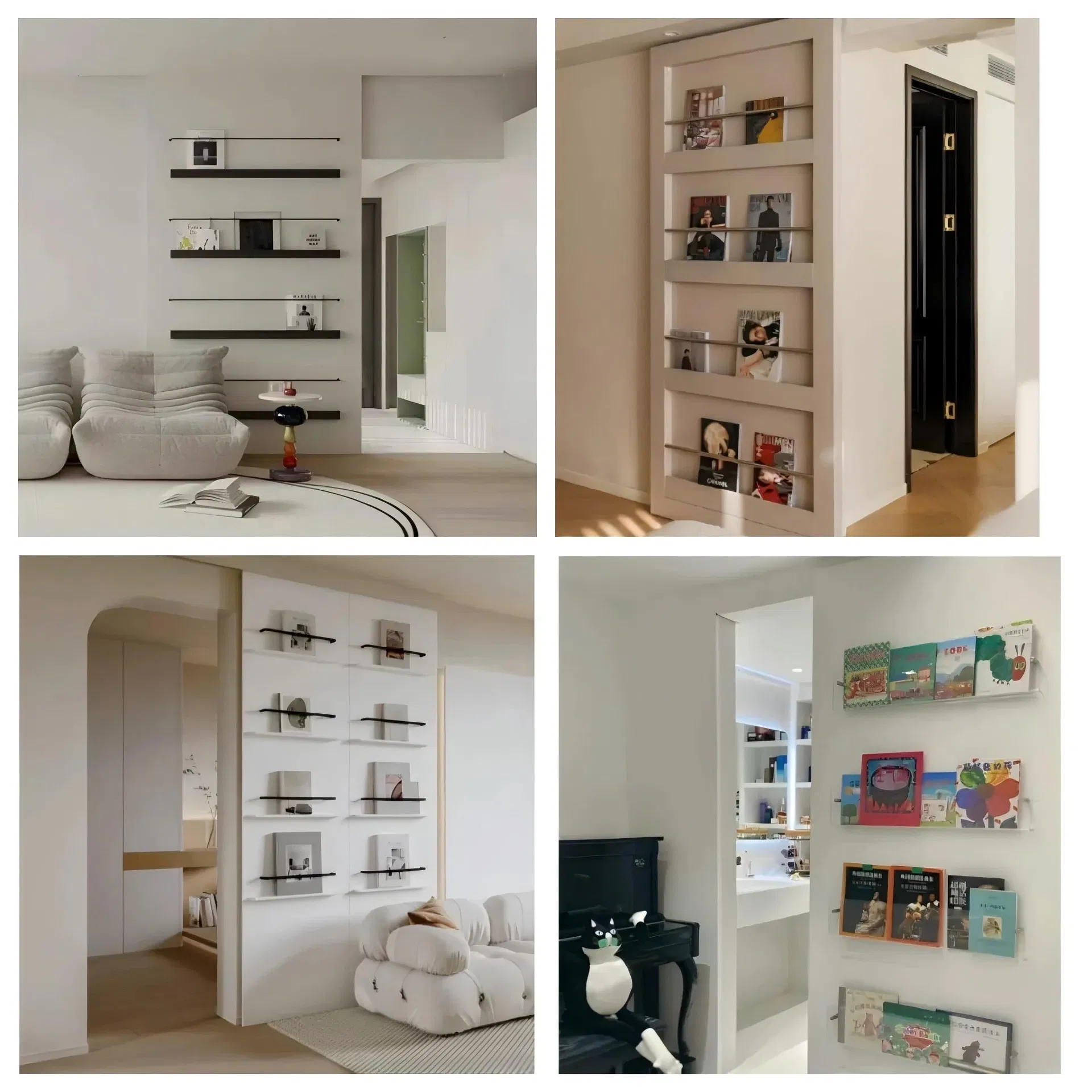

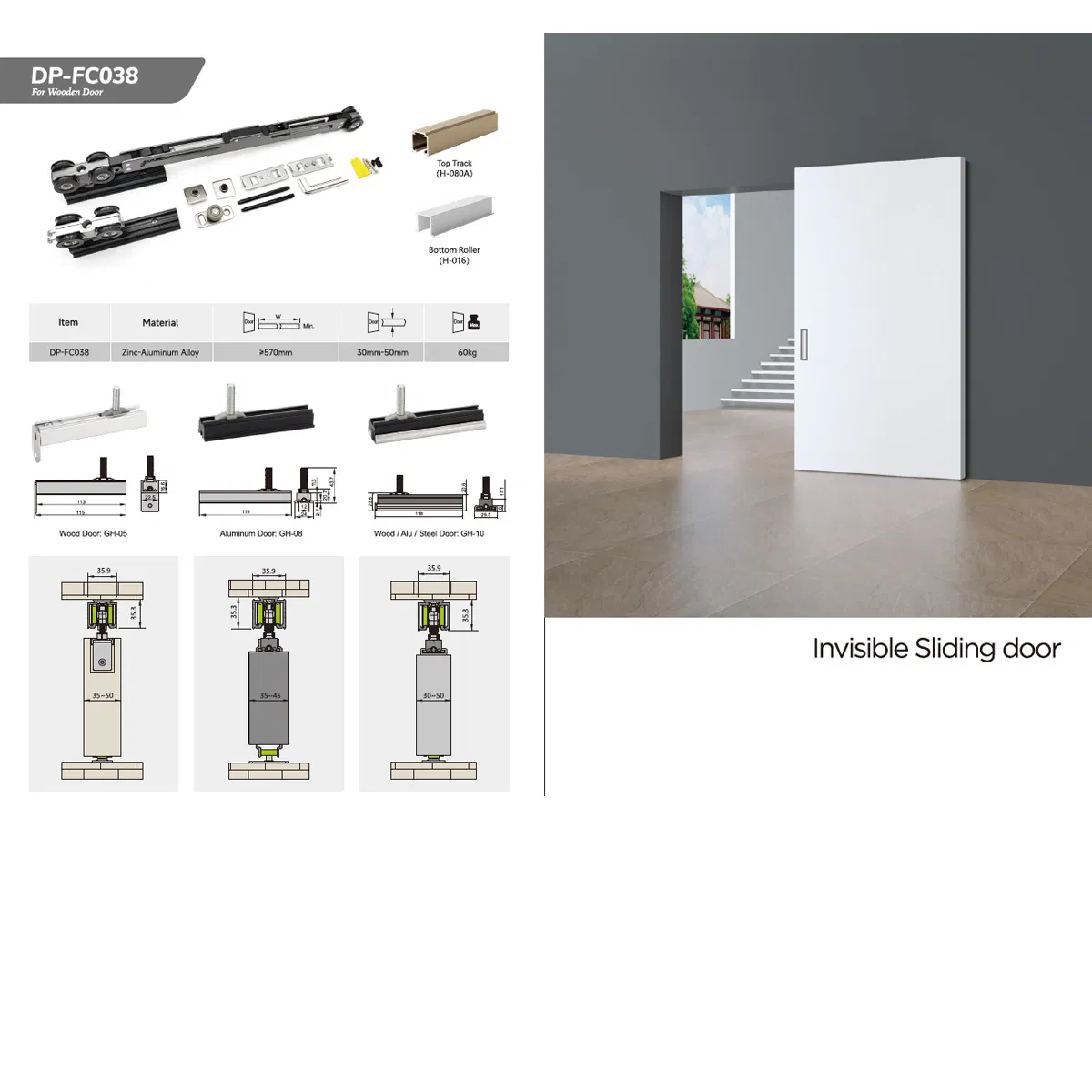

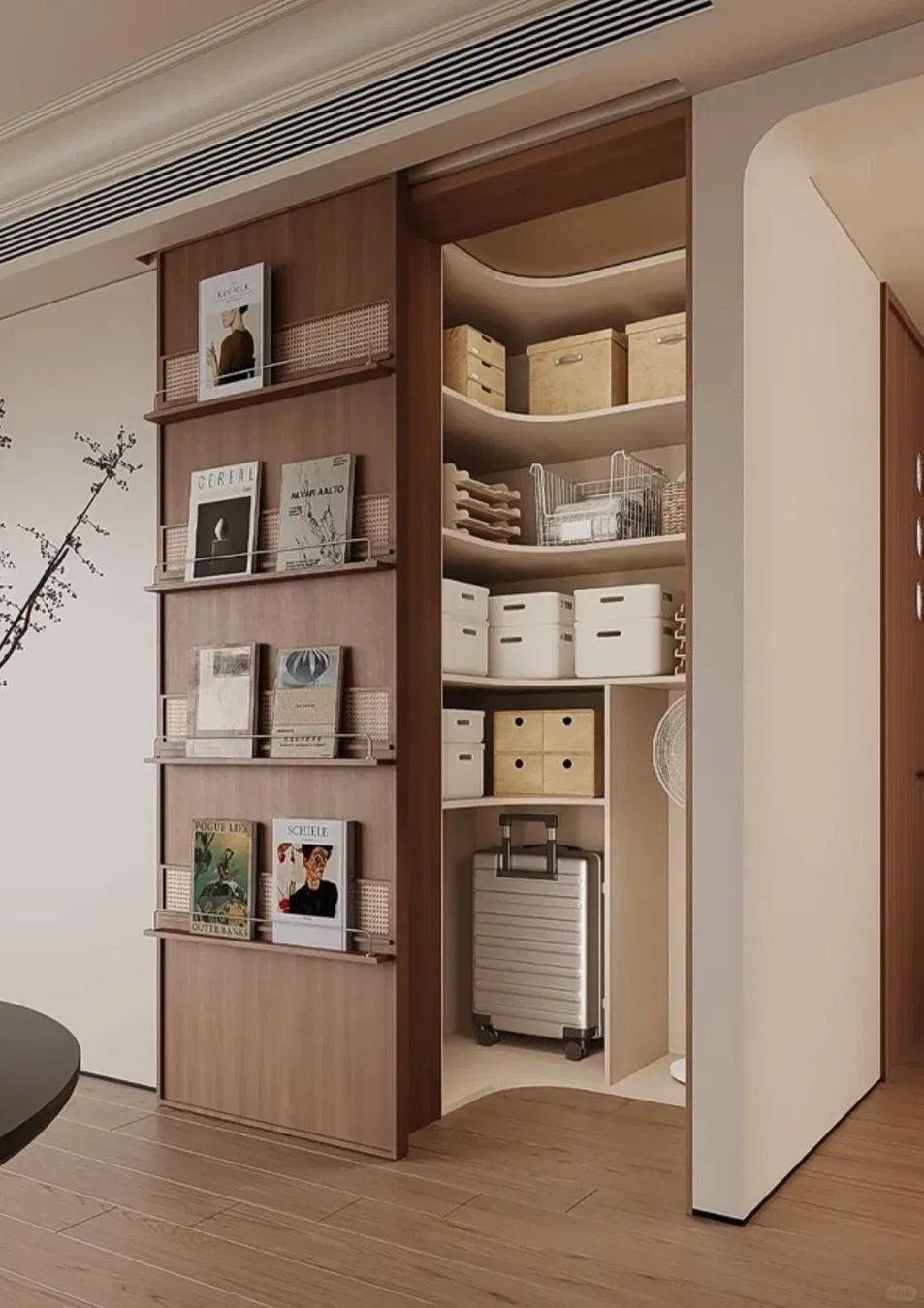

WOODEN GHOST SLIDING DOOR

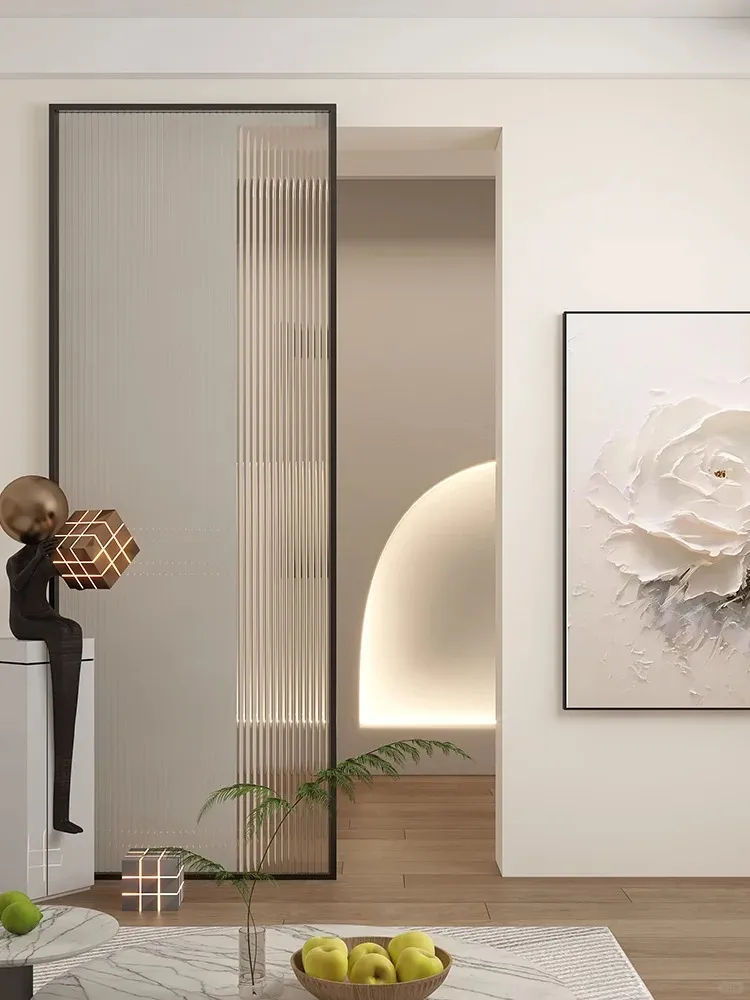

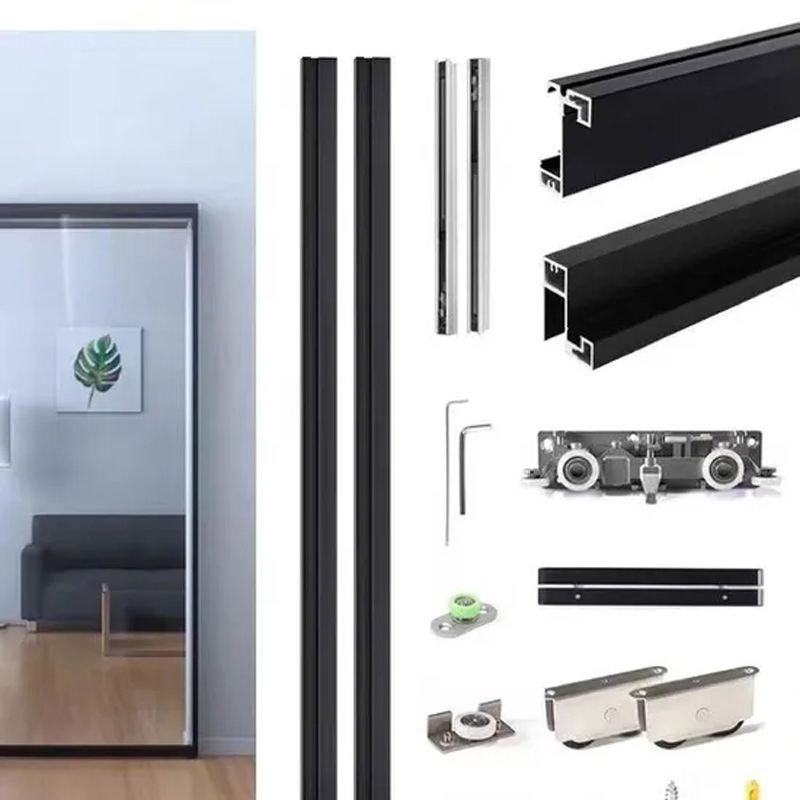

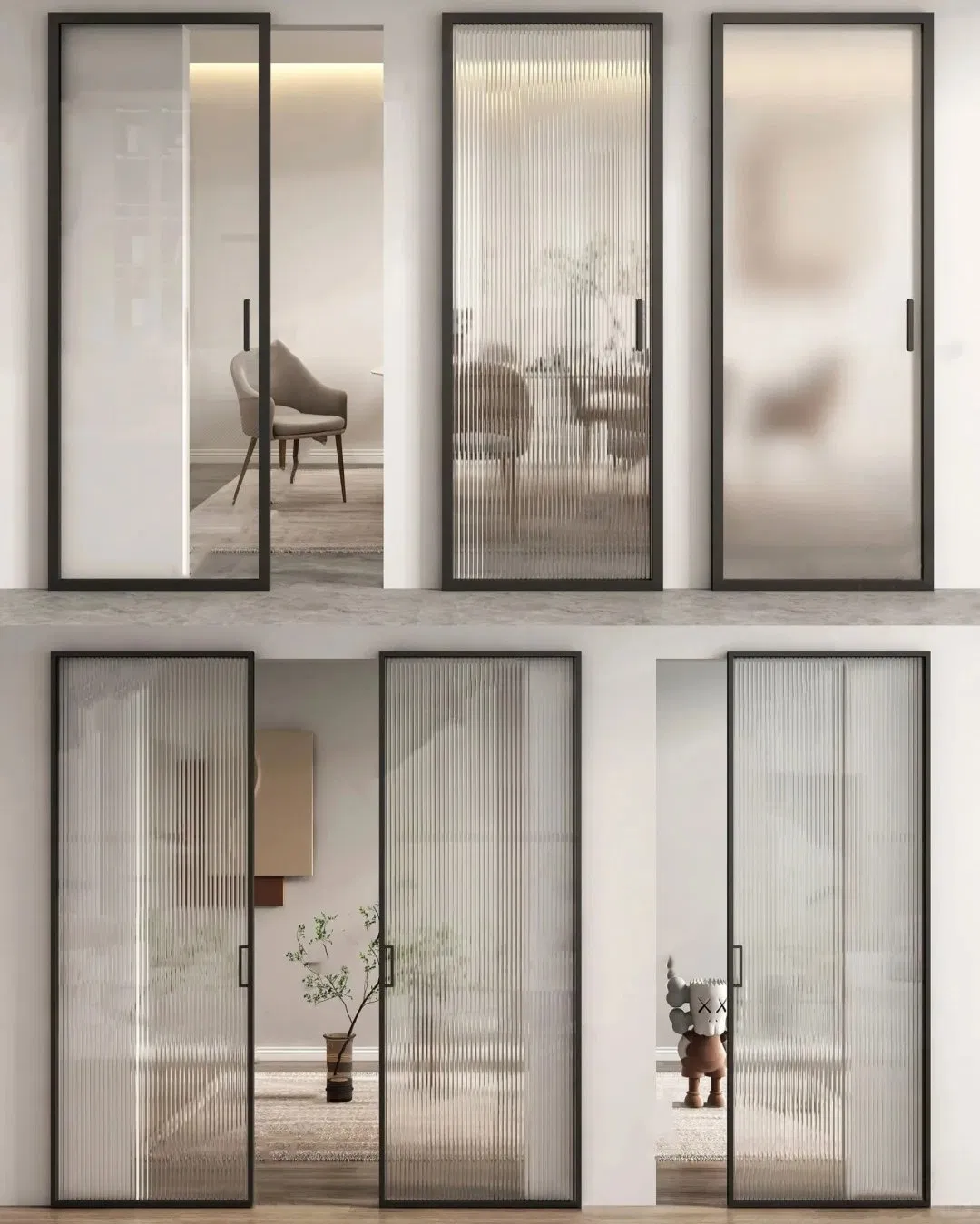

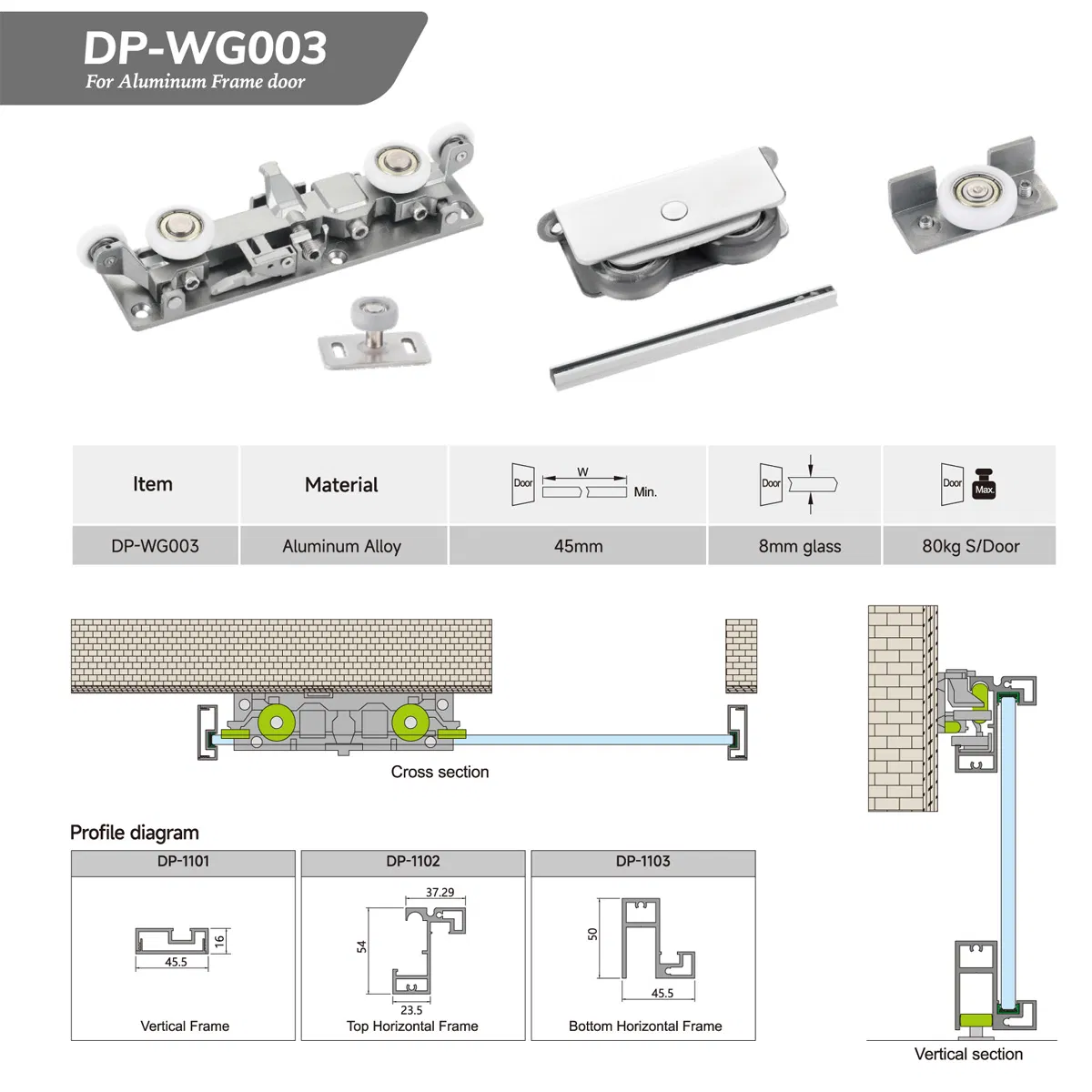

ALUMINUM GLASS GHOST SLIDING DOOR
🟦 Product Gallery
🟦 Technical Specifications
Product Name
Concealed sliding door / Ghost sliding door
Types of Door
Wood door & Aluminum frame door
Door Width
1.2 meters / 1.5 meters
Soft-closing Distance
60mm
Weight Capacity
80KG

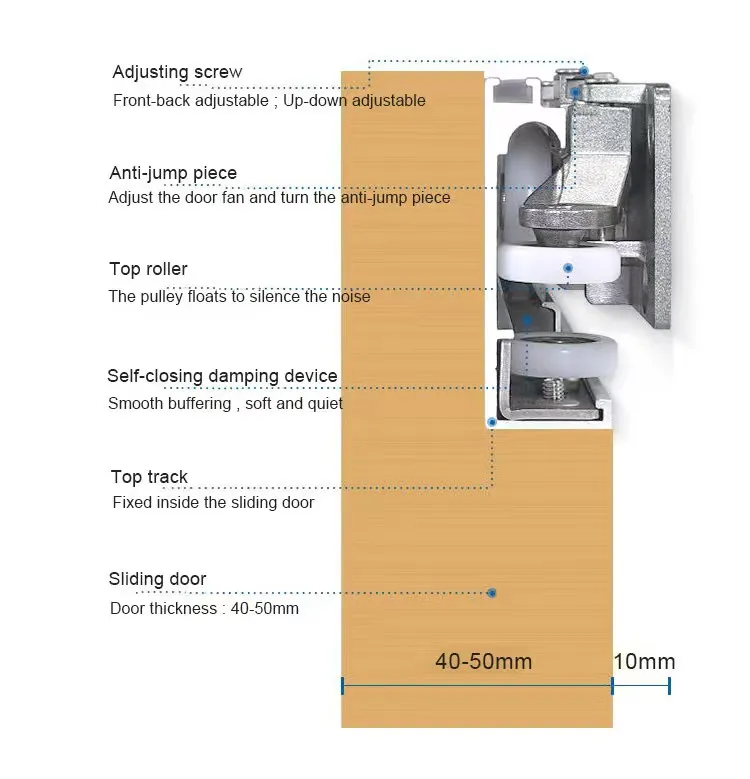

Door Thickness
Approx. 45mm
Finish
Sandblasting matte silver
Configuration

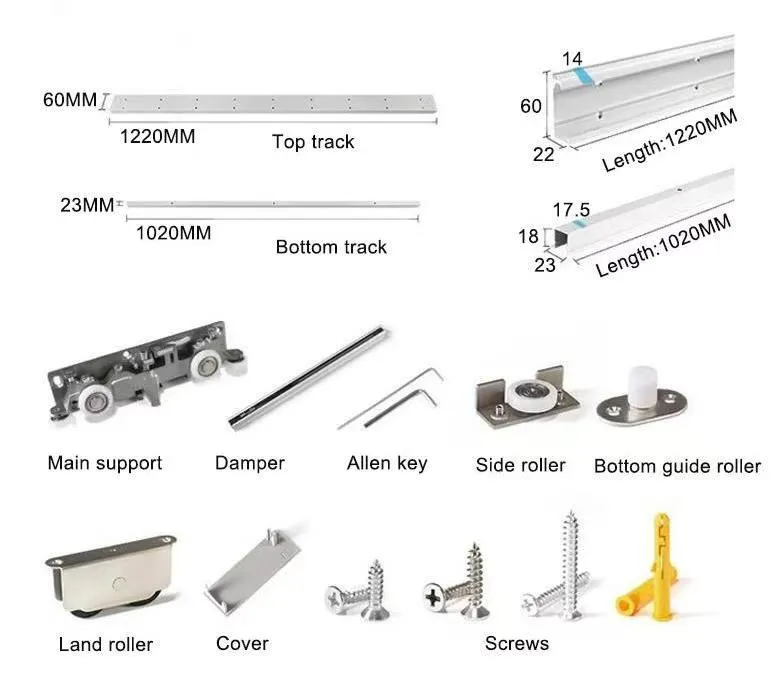

Main track, left/right covers, bottom guide roller, top track, ground roller, side roller
🟦 Demonstration Video

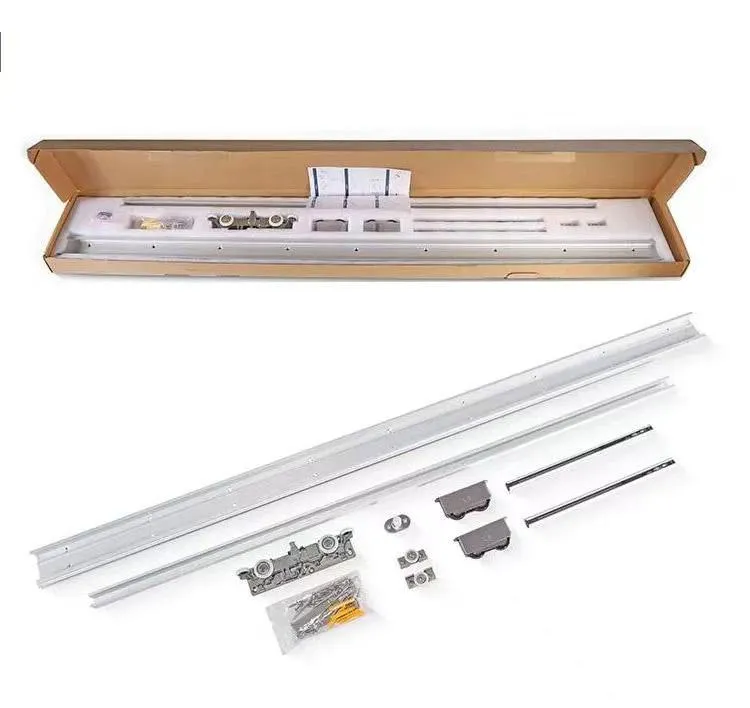

🟦 Packing & Delivery
Package Size
1250 * 100 * 100mm
Package Gross Weight
2.5 KGS
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a dedicated manufacturer with over 18 years of experience specializing in sliding door systems.
What payment and delivery options are available?
For smaller orders, we use UPS, FedEx, TNT, DHL, or EMS. Larger shipments are handled via air or sea freight (FOB, EXW). Payments are accepted through T/T for large orders, or PayPal and Western Union for smaller transactions.
What is the estimated delivery lead time?
We typically maintain a stock of 100 sets. Standard versions ship within 3-7 days. If items are out of stock, the estimated lead time is approximately 25 days.
What is the maximum weight capacity for the Ghost Sliding system?
The system is engineered to support a maximum weight capacity of 80kg, making it suitable for both heavy wooden doors and aluminum frame glass doors.
Does this system require a floor track?
No, one of the primary features of our Ghost Sliding hardware is that it is a trackless system on the floor. It uses a top-hung mechanism and a discreet bottom guide to maintain the "invisible" look.
What door thickness is compatible with this hardware?
The standard hardware is designed for doors with a thickness of approximately 45mm. Custom solutions may be available upon request.
