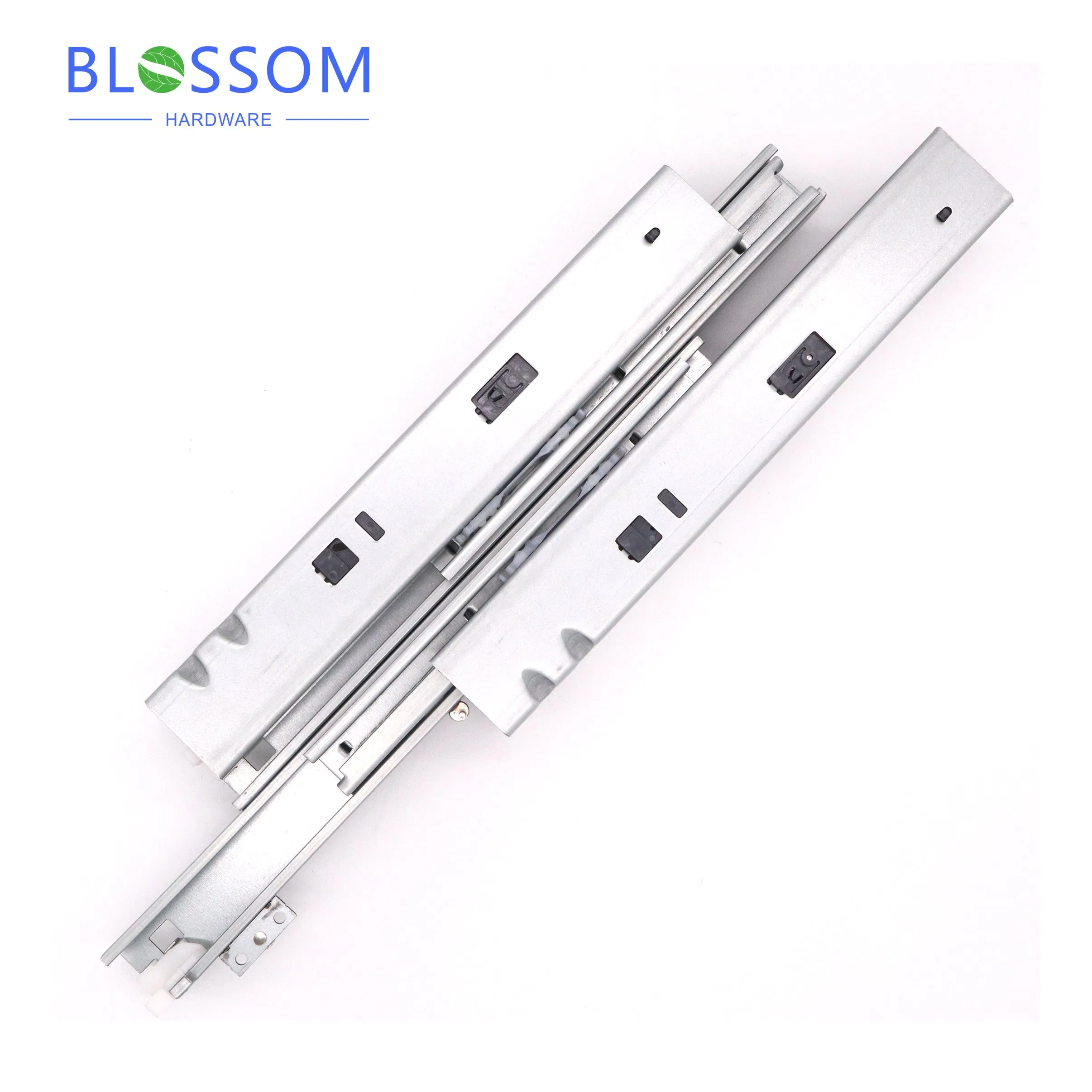

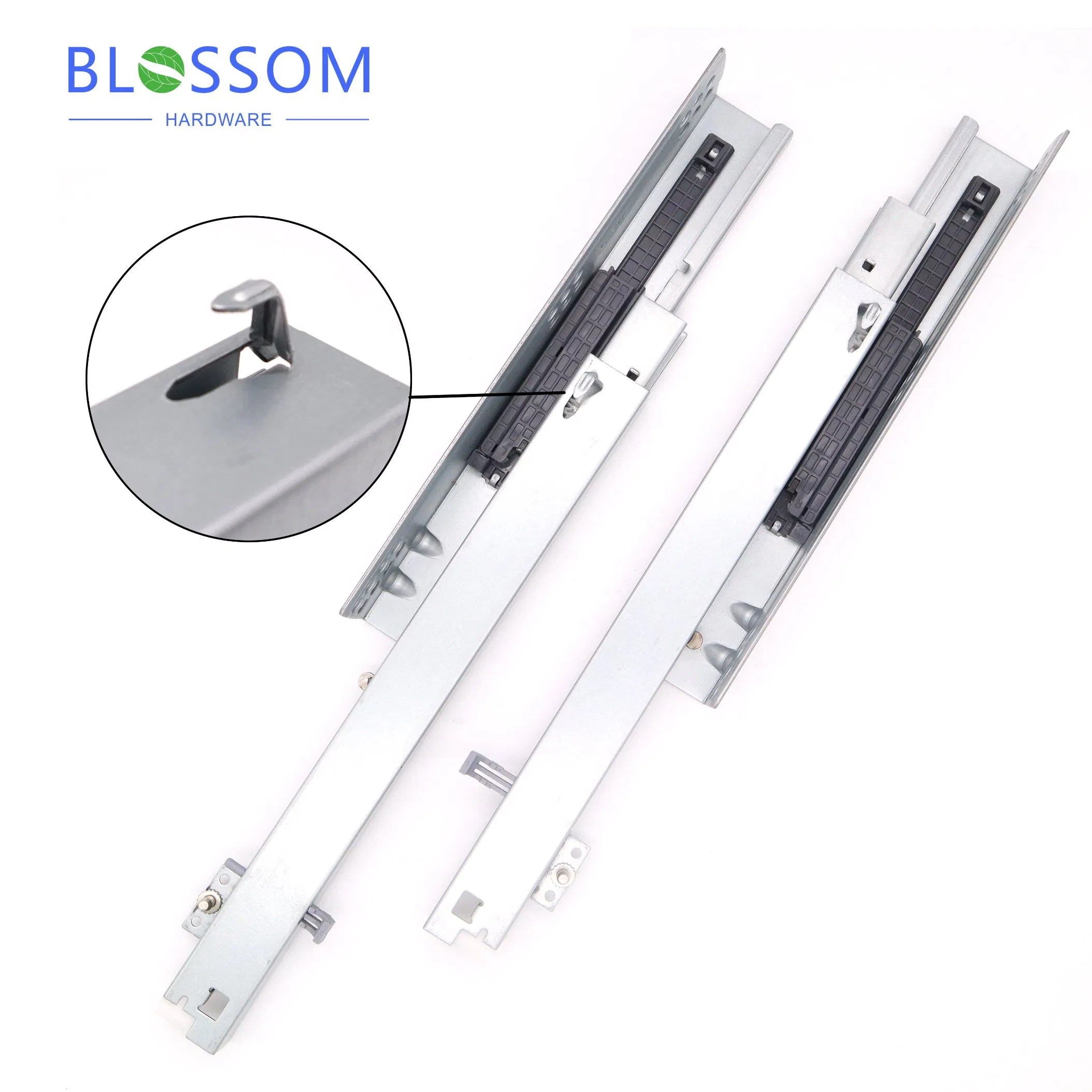

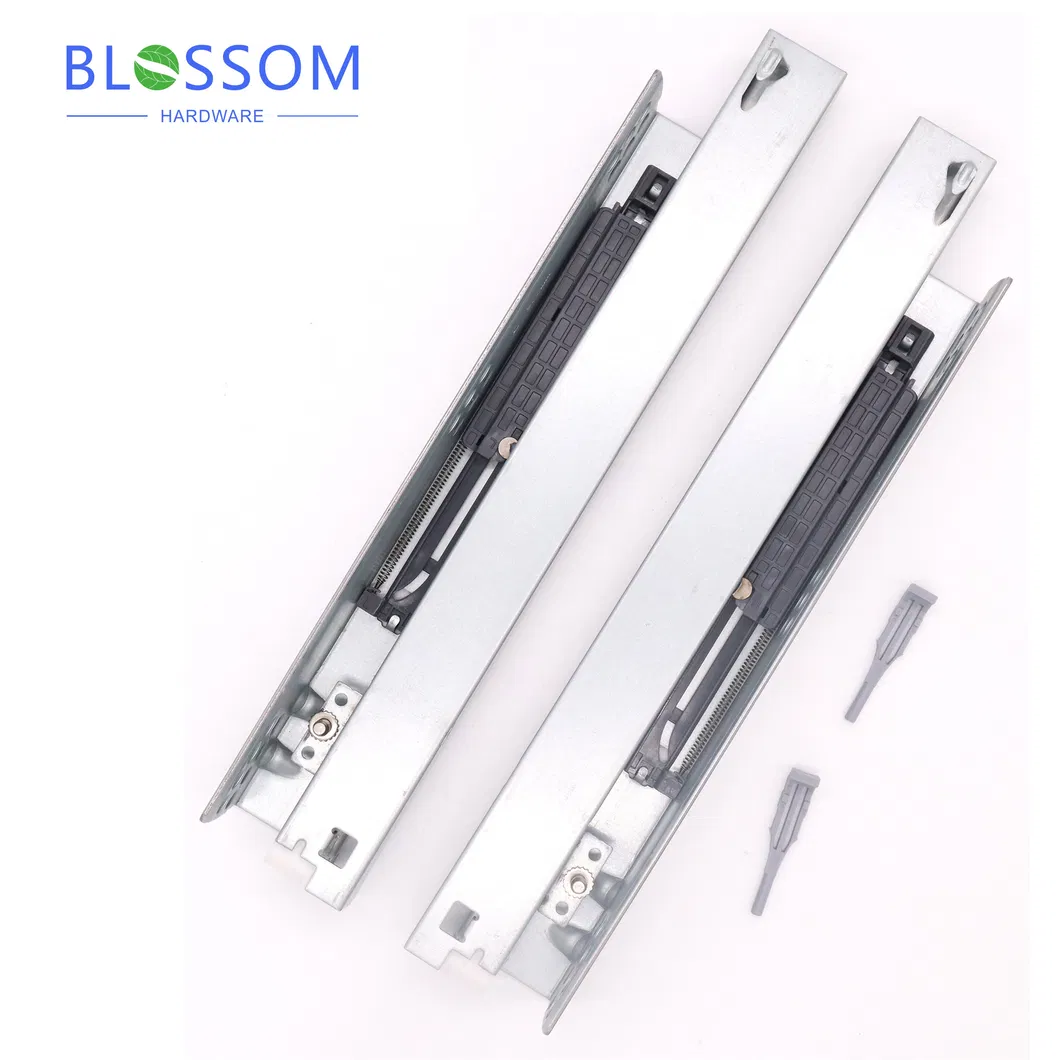

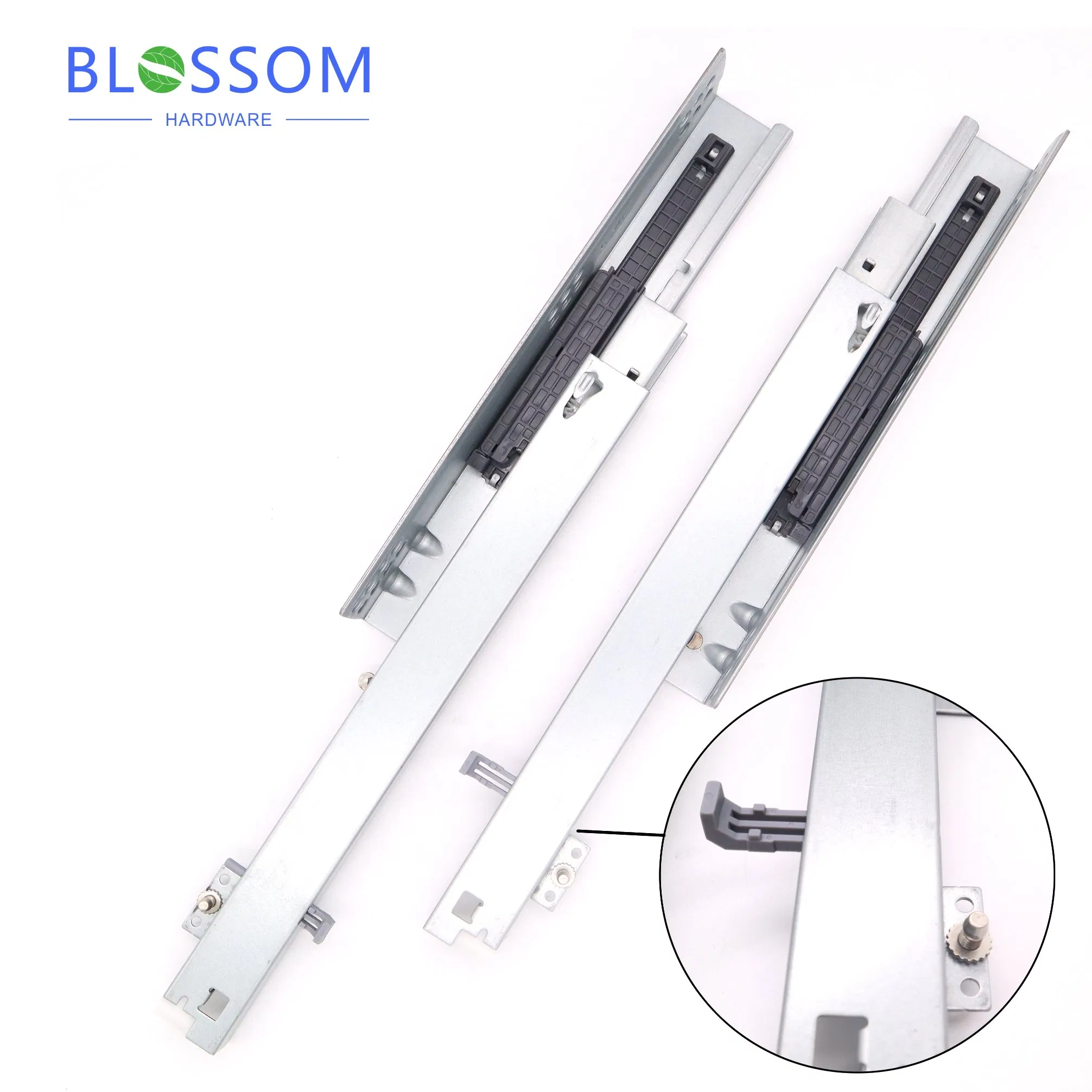

Application: Suitable for commercial and domestic drawer systems.

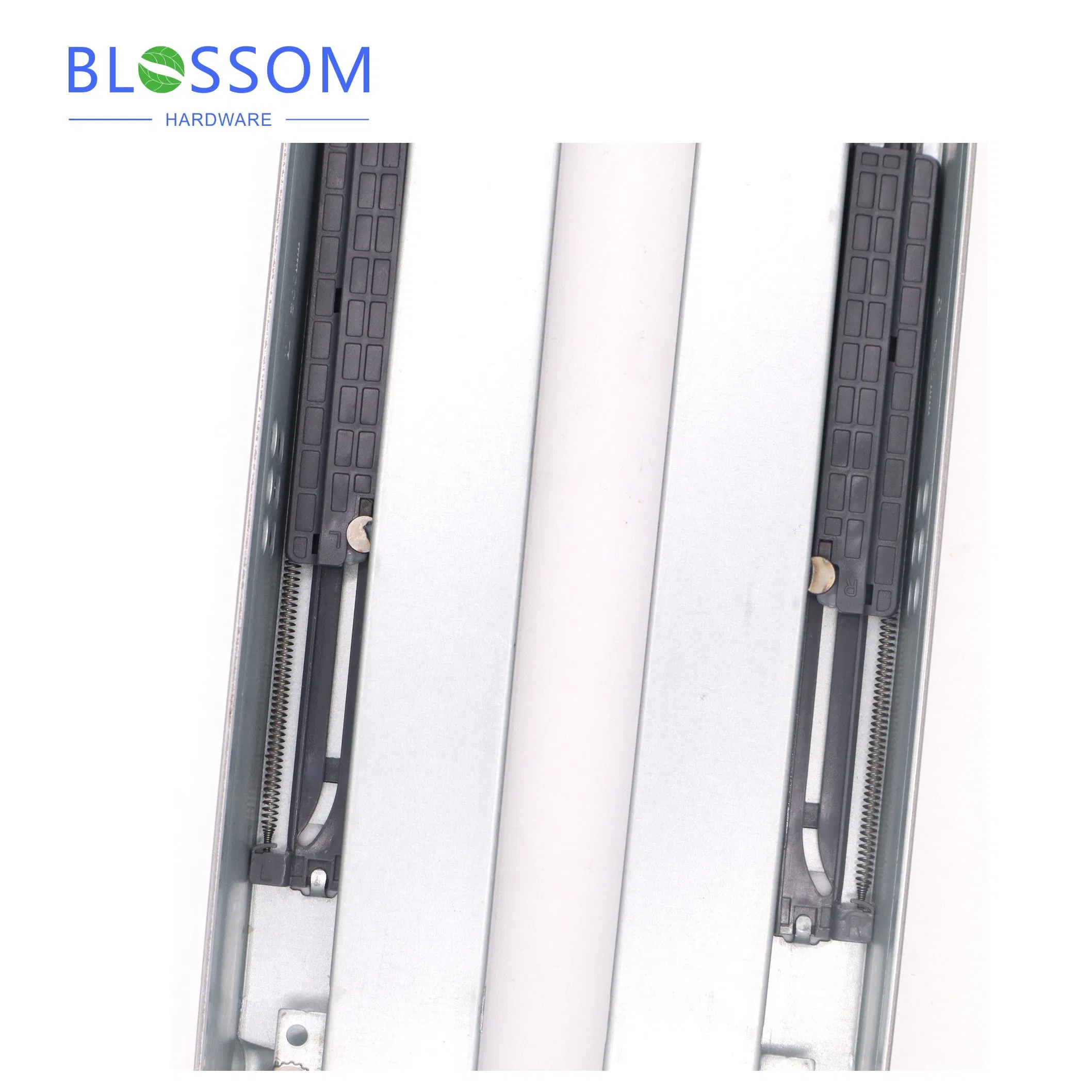

Material: High-quality Galvanized sheet (1.8mm * 1.4mm * 1.0mm). Features constant speed deceleration and automatic closing. Easy to disassemble with multi-directional adjustment capabilities.
| Product Number | Series Length | Drawer Length(L) | Internal Depth (Min) | Built-in Minimum | Packing (Set/CTN) |
|---|---|---|---|---|---|
| BS901-HT-9'' | 229mm | 229mm | 266mm | 286mm | 8 |
| BS901-HT-12'' | 305mm | 305mm | 342mm | 362mm | 8 |
| BS901-HT-15'' | 381mm | 381mm | 418mm | 438mm | 8 |
| BS901-HT-18'' | 457mm | 457mm | 494mm | 514mm | 8 |
| BS901-HT-21'' | 533mm | 533mm | 570mm | 590mm | 8 |
| Product Number | Series Length | Drawer Length(L) | Internal Depth (Min) | Built-in Minimum | Packing (Set/CTN) |
|---|---|---|---|---|---|
| BS804-HH-10'' | 250mm | 250mm | 269mm | 269mm+X | 10 |
| BS804-HH-12'' | 300mm | 300mm | 319mm | 319mm+X | 10 |
| BS804-HH-16'' | 400mm | 400mm | 419mm | 419mm+X | 10 |
| BS804-HH-20'' | 500mm | 500mm | 519mm | 519mm+X | 10 |
| BS804-HH-24'' | 600mm | 600mm | 619mm | 619mm+X | 10 |
*PS: The drawer side panel is 18mm model. X: Panel thickness
