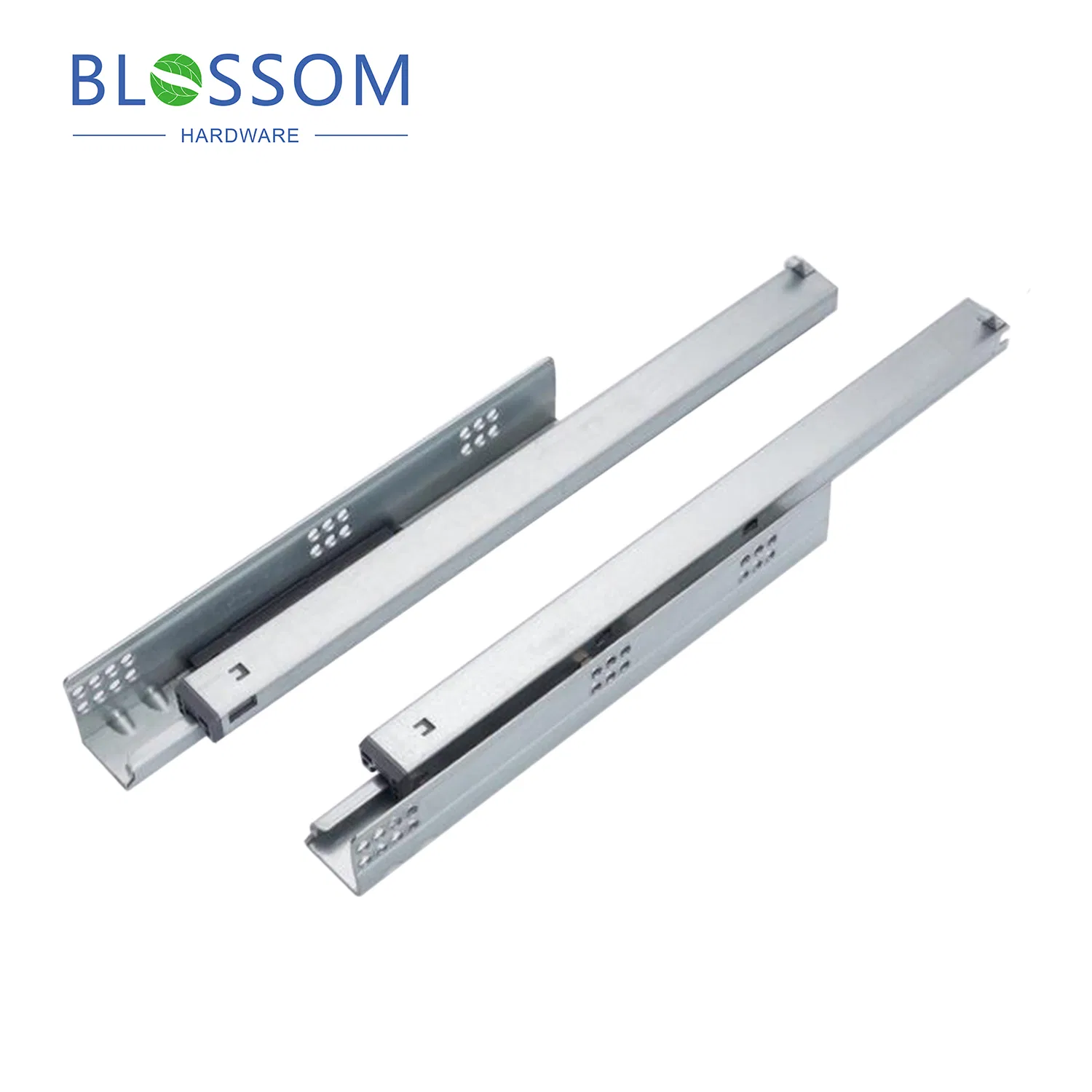

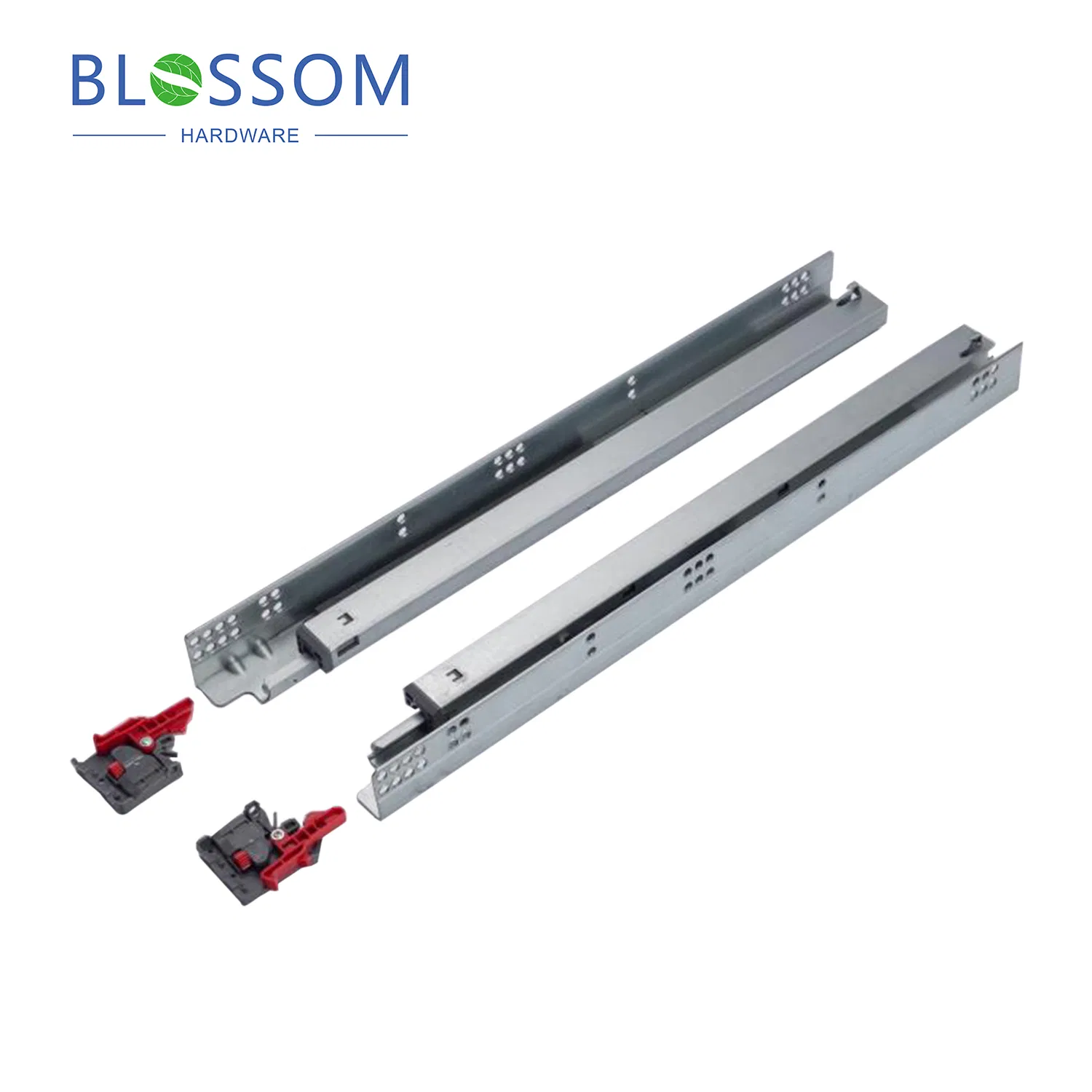

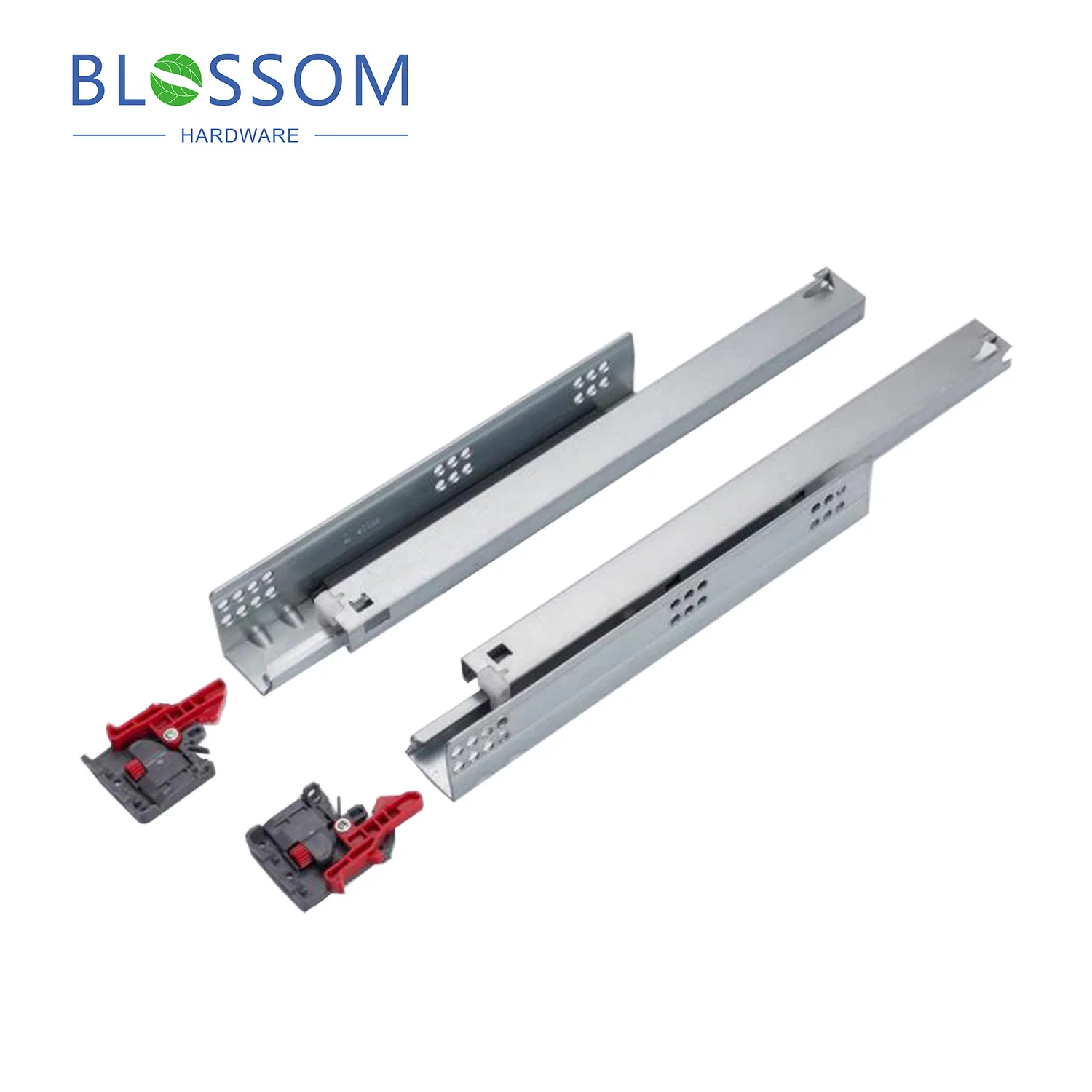

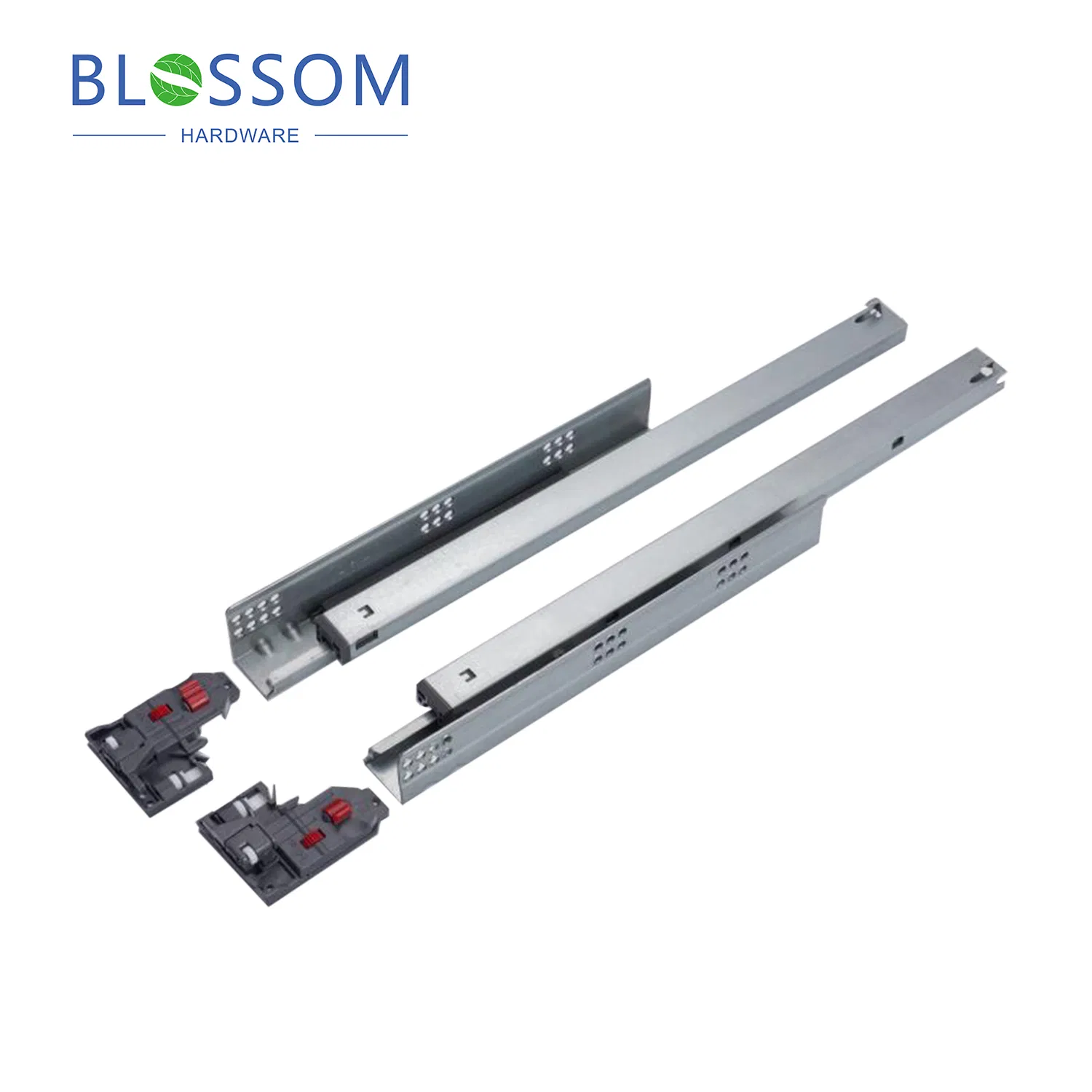

Wholesale Furniture Hardware Cabinet 3-Fold Telescopic Ball Bearing Runners Drawer Slide
Wholesale Furniture Hardware Cabinet 3-Fold Telescopic Ball Bearing Runners Drawer Slide
Wholesale Furniture Hardware Cabinet 3-Fold Telescopic Ball Bearing Runners Drawer Slide
Wholesale Furniture Hardware Cabinet 3-Fold Telescopic Ball Bearing Runners Drawer Slide
Wholesale Furniture Hardware Cabinet 3-Fold Telescopic Ball Bearing Runners Drawer Slide
1 / 5
Wholesale Furniture Hardware Cabinet 3-Fold Telescopic Ball Bearing Runners Drawer Slide
Wholesale Furniture Hardware Cabinet 3-Fold Telescopic Ball Bearing Runners Drawer Slide
Wholesale Furniture Hardware Cabinet 3-Fold Telescopic Ball Bearing Runners Drawer Slide
Wholesale Furniture Hardware Cabinet 3-Fold Telescopic Ball Bearing Runners Drawer Slide
Wholesale Furniture Hardware Cabinet 3-Fold Telescopic Ball Bearing Runners Drawer Slide

Wholesale Furniture Hardware Cabinet 3-Fold Telescopic Ball Bearing Runners Drawer Slide

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Structure
Three Members
Slide Type
Soft Close/Push Open
Condition
New
Length
9''-24''
Application
Commercial and Domestic Drawers
Load Capacity
35kg
Durability
50,000 Cycles
Features
Smooth and Silent
Origin
China
HS Code
8302420000
Package
Paper Carton
Style
American & European

Product Description

Performance Built-in Buffer, constant speed deceleration and automatic closing. Provides a soft, smooth, and silent shutdown experience.
Adjustability Easy to disassemble. Features 2D adjustable drawer height (0-3mm) or 3D adjustment (up, down, left, right 0-3mm).
High Quality Material Constructed from Galvanized sheet (1.8mm * 1.4mm * 1.0mm) for long-lasting durability and 35kg load support.
Product Number Series Length Drawer Length(L) Internal Depth (Min Ext) Inside Cabinet Depth (Min) Packing (Set/CTN)
BS901-HT/BS1801-HT-9''229mm229mm266mm286mm8
BS901-HT/BS1801-HT-12''305mm305mm342mm362mm8
BS901-HT/BS1801-HT-15''381mm381mm418mm438mm8
BS901-HT/BS1801-HT-18''457mm457mm494mm514mm8
BS901-HT/BS1801-HT-21''533mm533mm570mm590mm8
Product Number Series Length Drawer Length(L) Internal Depth (Min Ext) Inside Cabinet Depth (Min) Packing (Set/CTN)
BS804-HH/BS1804-HH-10''250mm250mm269mm269mm+X10
BS804-HH/BS1804-HH-12''300mm300mm319mm319mm+X10
BS804-HH/BS1804-HH-14''350mm350mm369mm369mm+X10
BS804-HH/BS1804-HH-16''400mm400mm419mm419mm+X10
BS804-HH/BS1804-HH-18''450mm450mm469mm469mm+X10
BS804-HH/BS1804-HH-20''500mm500mm519mm519mm+X10
BS804-HH/BS1804-HH-22''550mm550mm569mm569mm+X10
BS804-HH/BS1804-HH-24''600mm600mm619mm619mm+X10

*PS: The drawer side panel is 18mm model. X: Panel thickness.

Drawer Slide Showcase 1
Drawer Slide Showcase 2
Drawer Slide Showcase 3

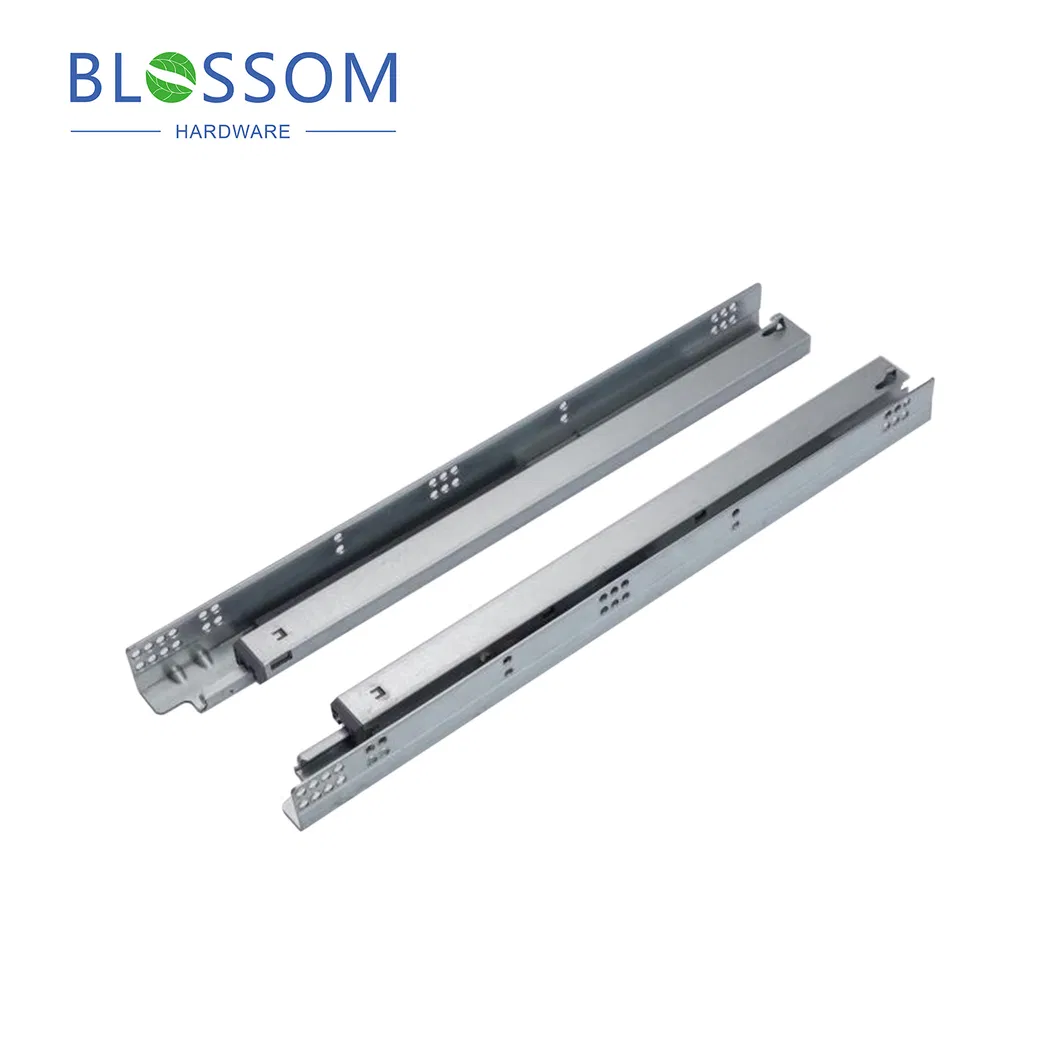

Drawer Slide Showcase 4

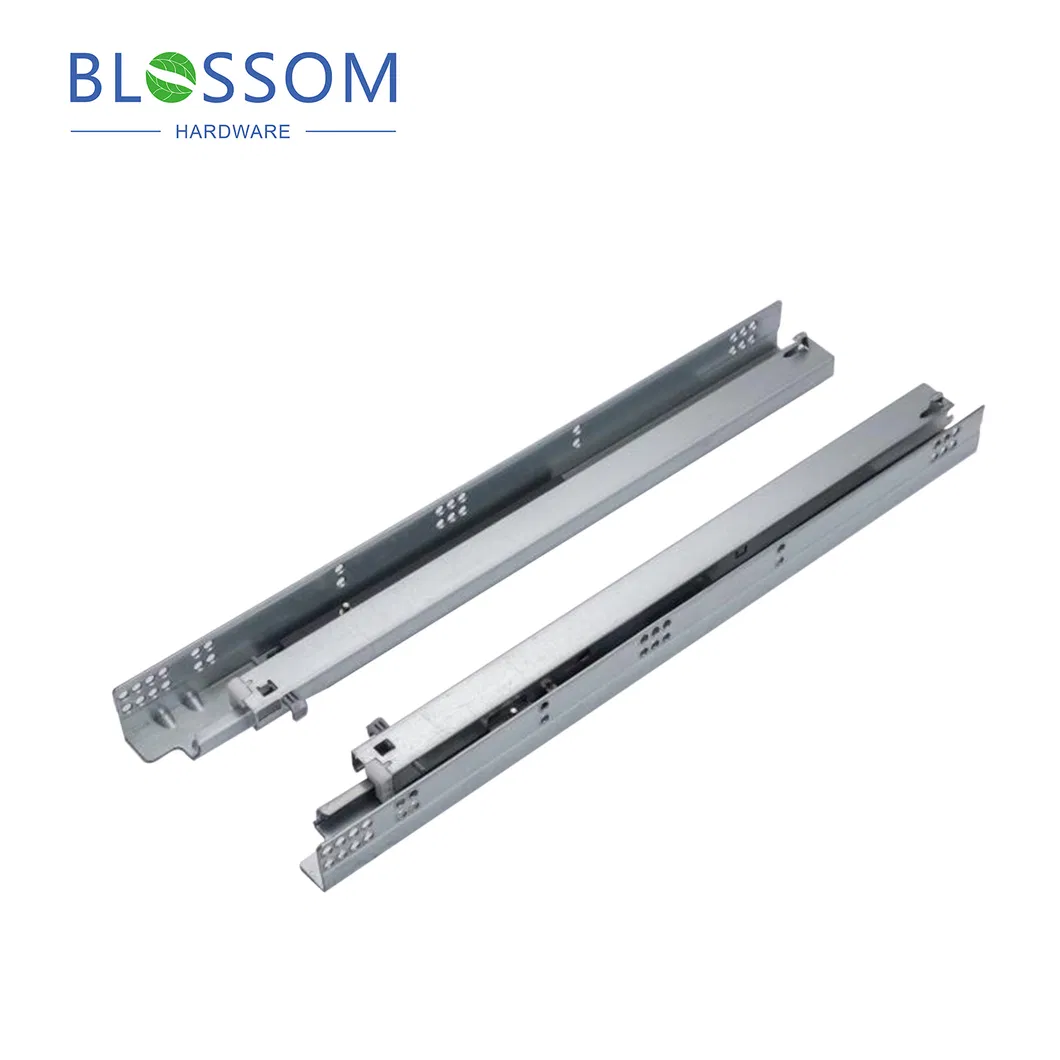

Drawer Slide Showcase 5
Drawer Slide Showcase 6

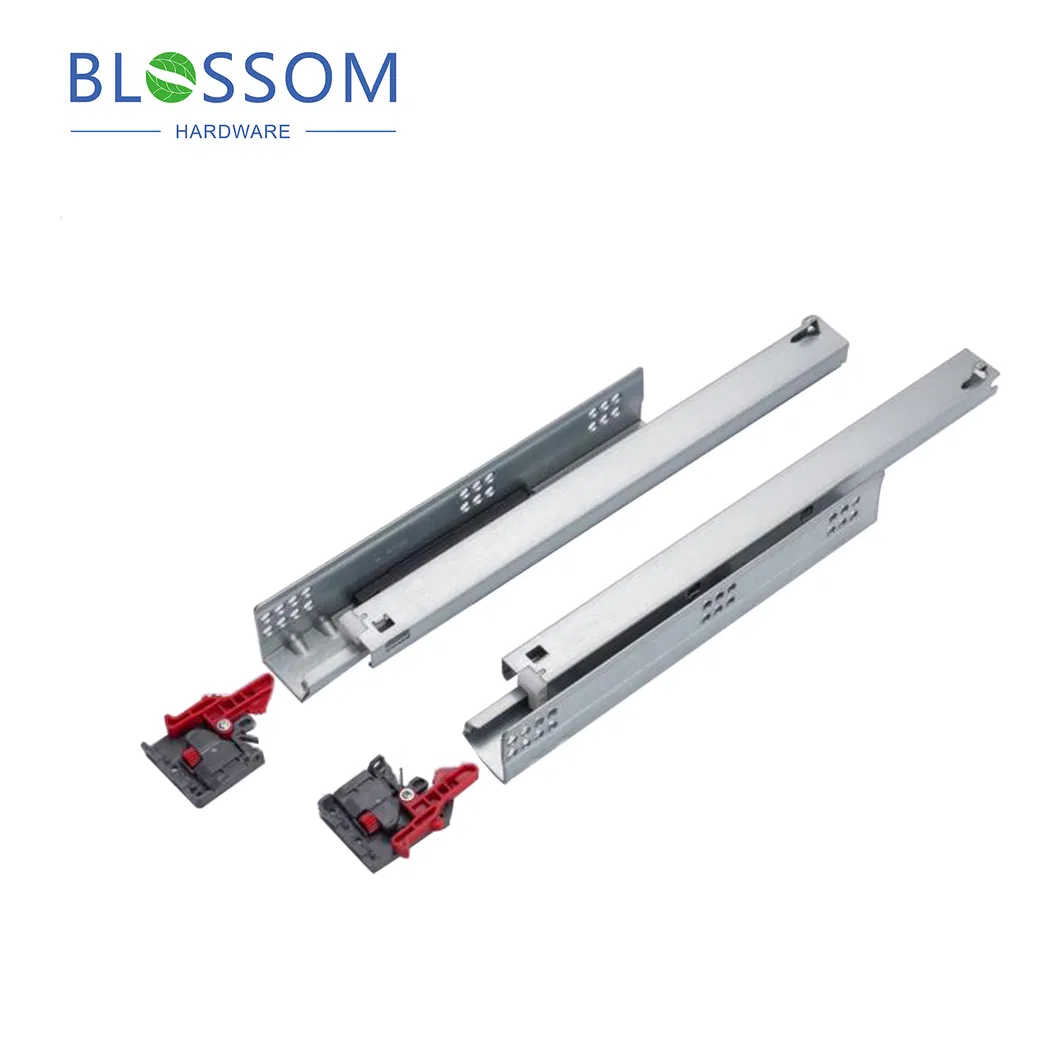

Drawer Slide Showcase 7
Drawer Slide Showcase 8
Drawer Slide Showcase 9
Drawer Slide Showcase 10

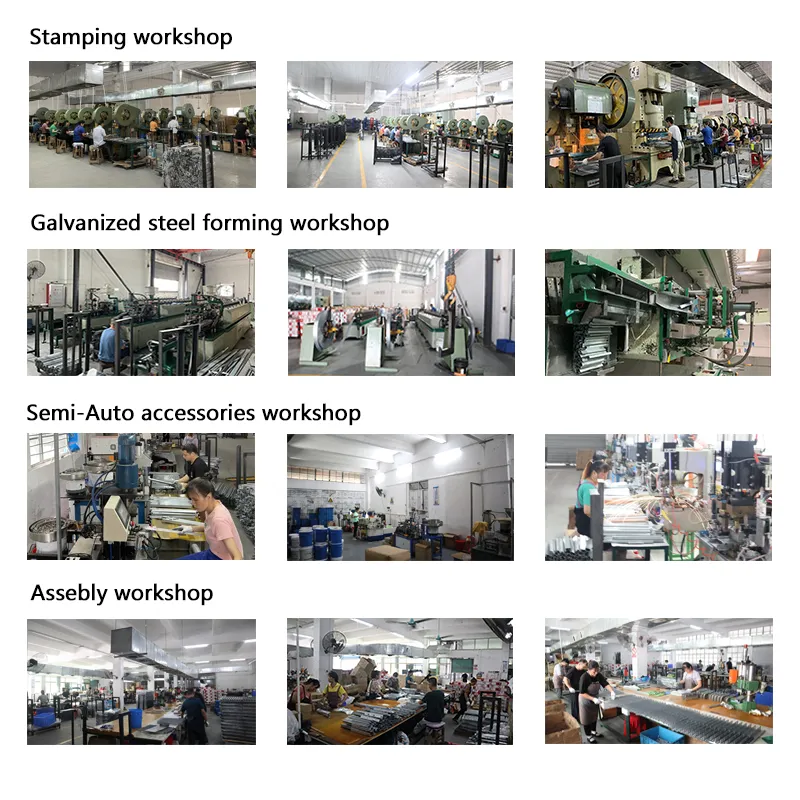

Drawer Slide Showcase 11

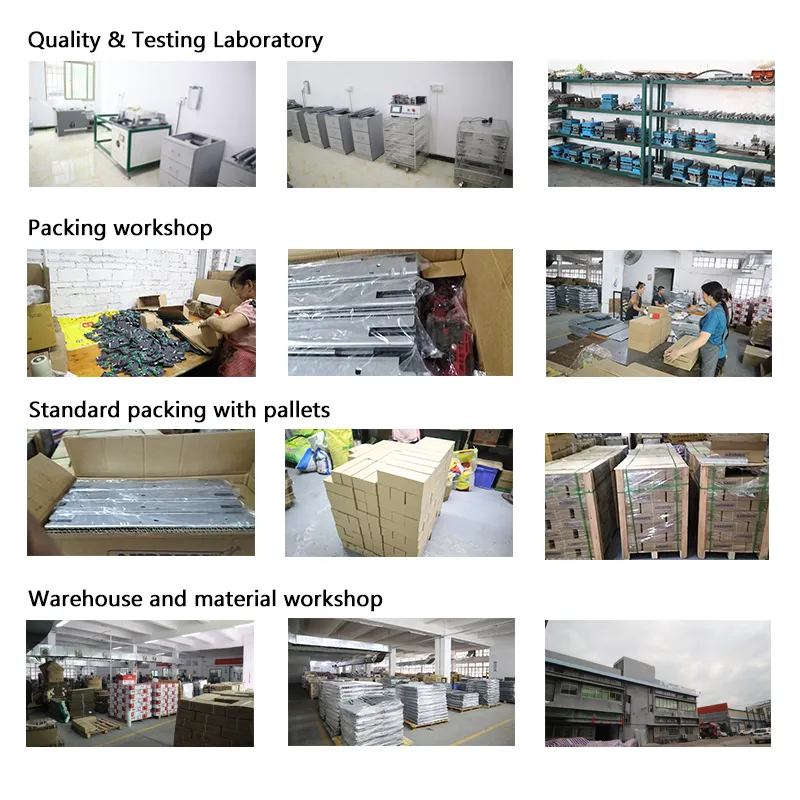

Drawer Slide Showcase 12

Frequently Asked Questions

How can I obtain samples?
Free samples are available for quality checks. Freight costs can be handled via your tracking number, by arranging a pick-up to be added to your shipment, or by paying for freight (approx. 1 week delivery).
What is the Minimum Order Quantity (MOQ)?
The MOQ varies by item. For slides, it is typically 500 sets, with a total order amount exceeding $5,000.
What is the standard delivery time?
Delivery usually takes 15-30 days after receiving the deposit. For consolidated orders with multiple items, the shipment may take around 45 days.
What payment terms do you offer?
We offer EXW, FOB, and CNF terms depending on the customer's requirements.
What is the loading capacity for a 20ft container?
The standard capacity is approximately 22 tons, though for shipments to the United States, it is around 17 tons.
Is it possible to mix different items in one order?
Yes, you can mix different items. Please send your specific requirements to receive a customized quotation.
