Stainless Steel Wire Rope Mesh Netting (SS Cable Mesh) is made of high-quality stainless steel wire twisted together. It features extreme anti-corrosion properties and resistance to UV rays, ensuring a long lifespan even in harsh environments. Its greatest benefit is its unique resilience and flexibility.

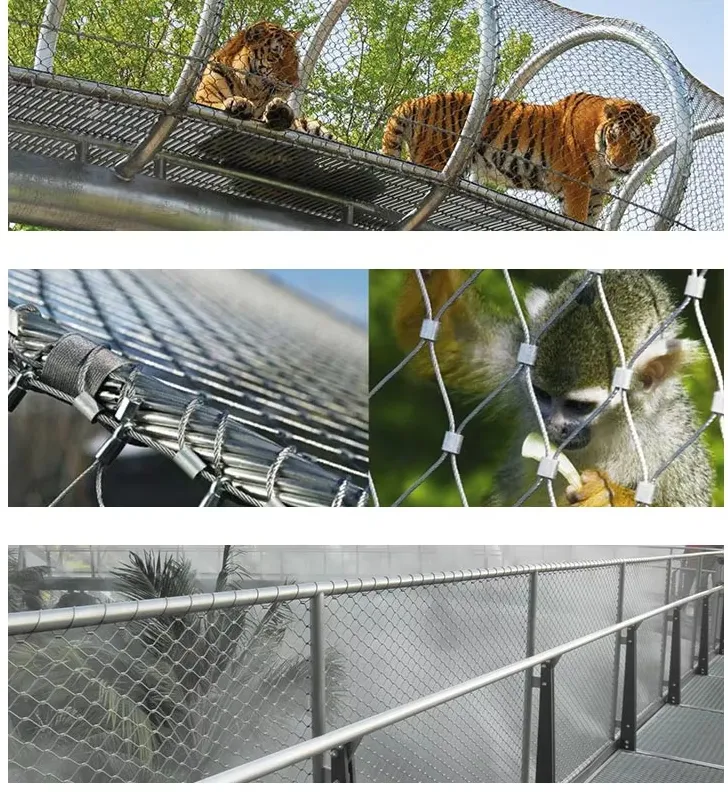

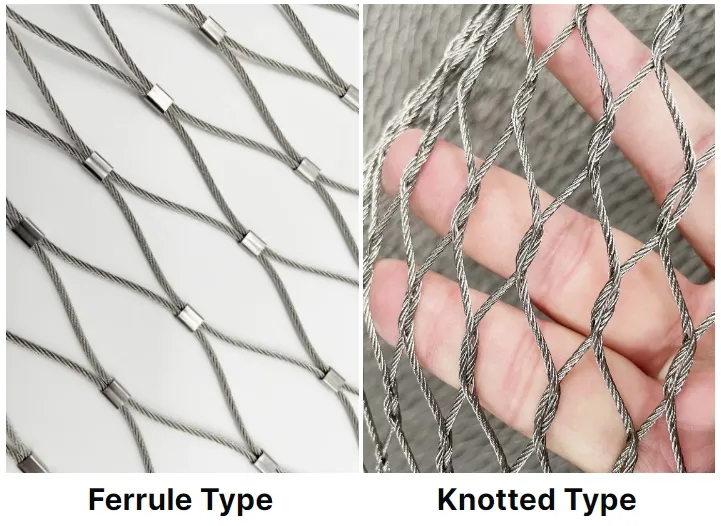

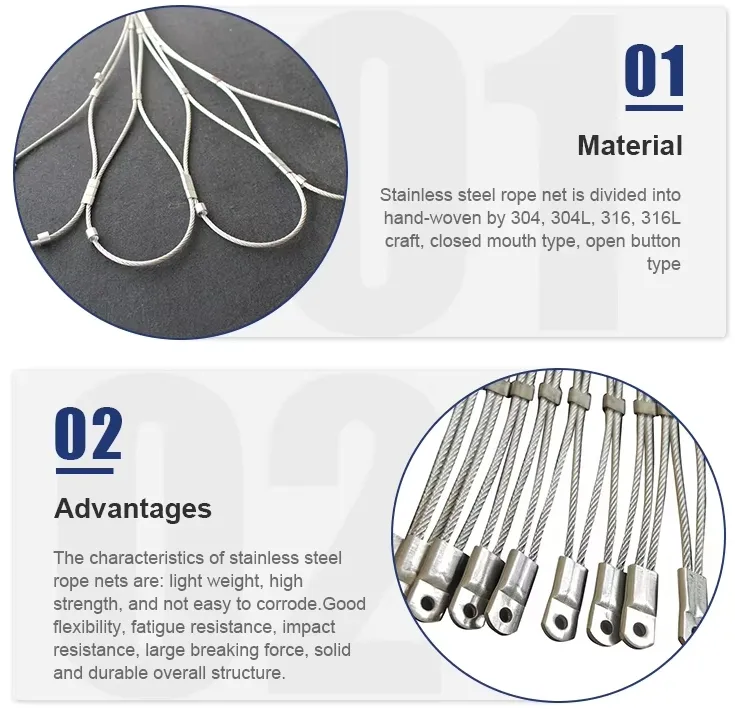

Our rope mesh is available in knotted, ferrule type, woven square, or square mesh with cross clamps. These designs are highly favored by modern architects for their aesthetic and functional versatility. Manufactured from high tensile stainless steel AISI 304, 304L, 316, or 316L, they are available in diameters from 1mm to 4mm.

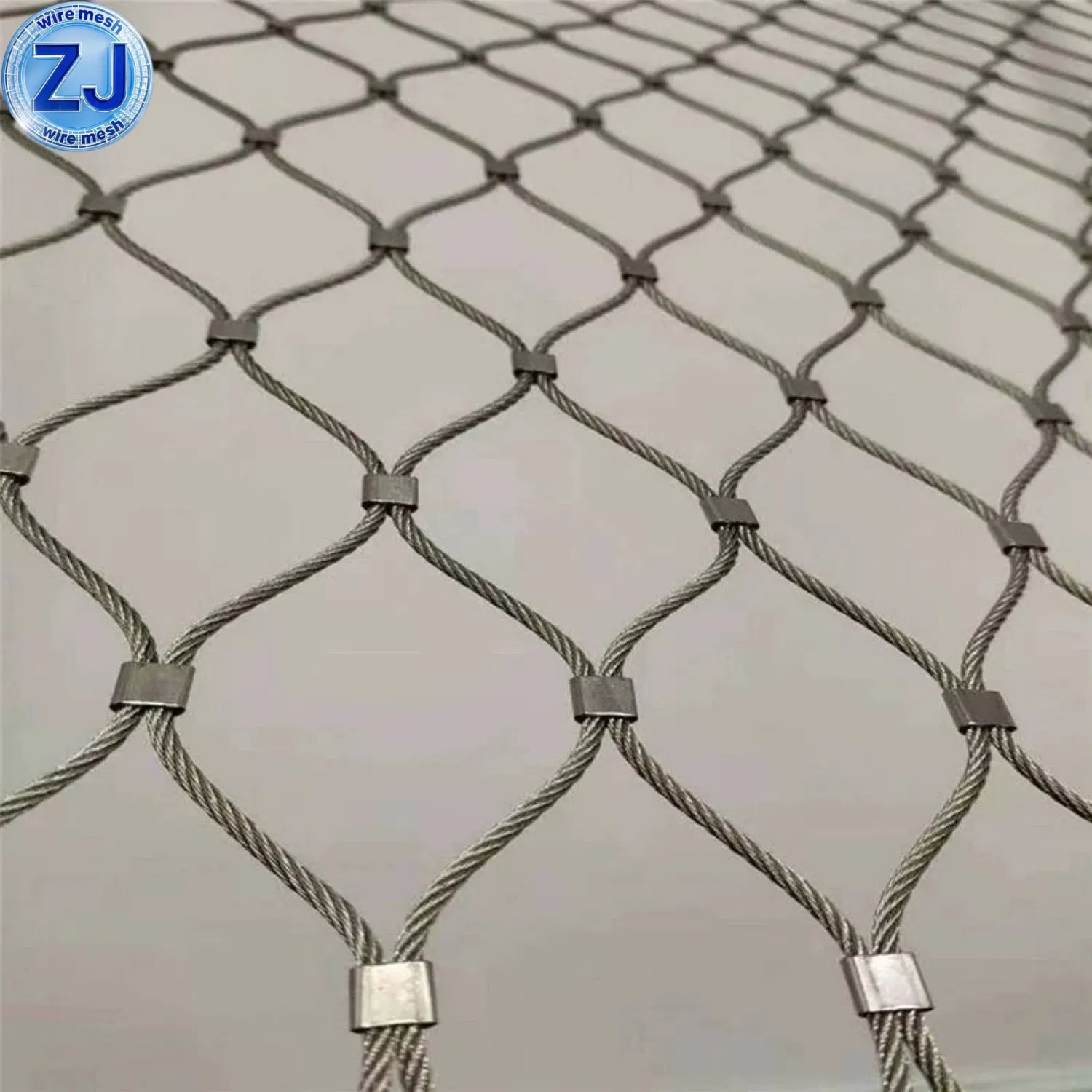

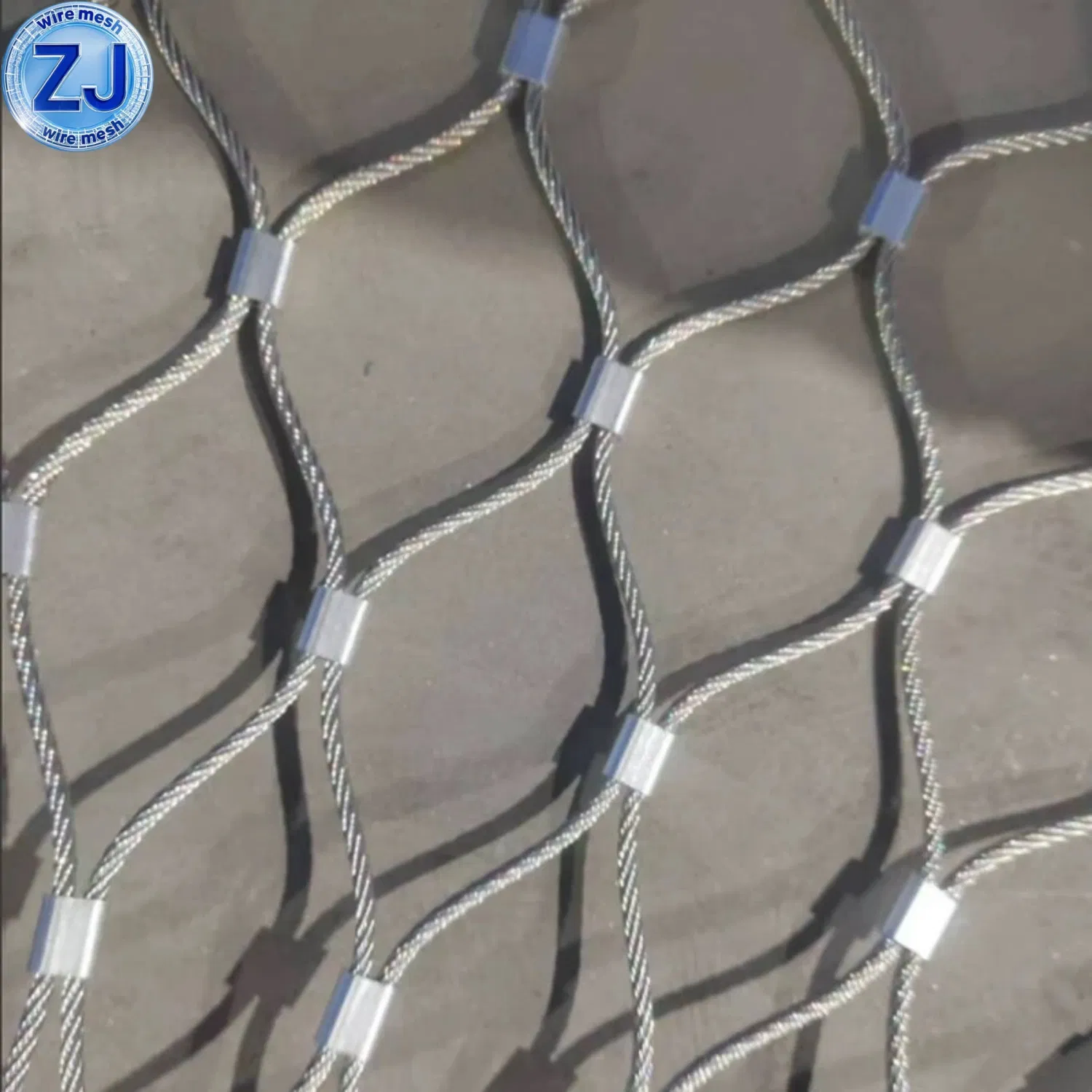

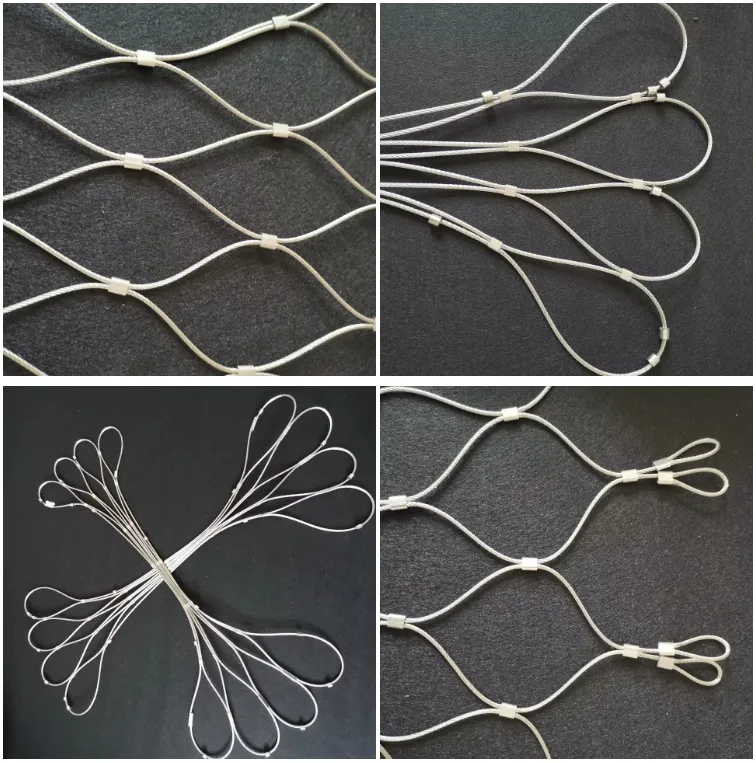

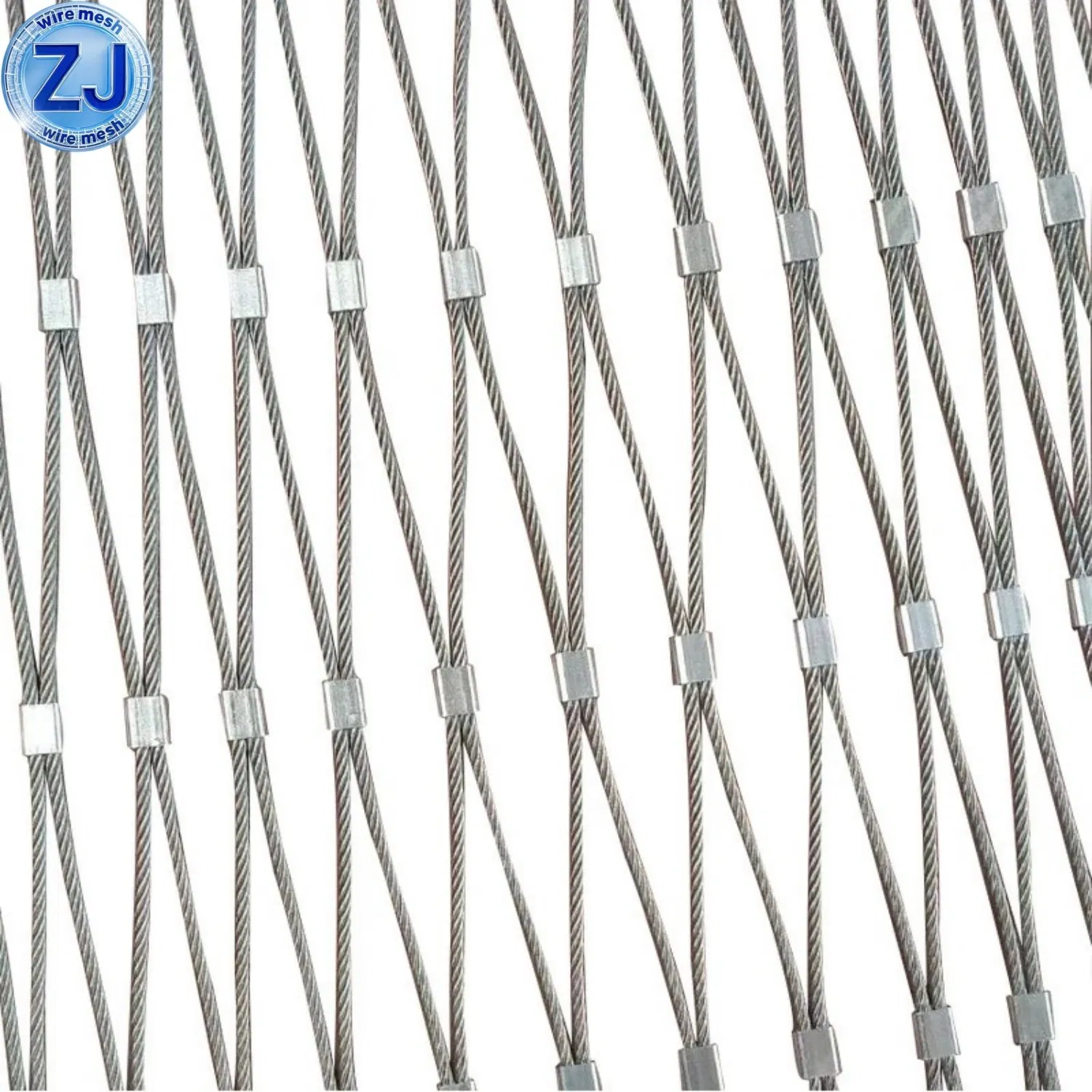

With Buckle (Ferrule Type)

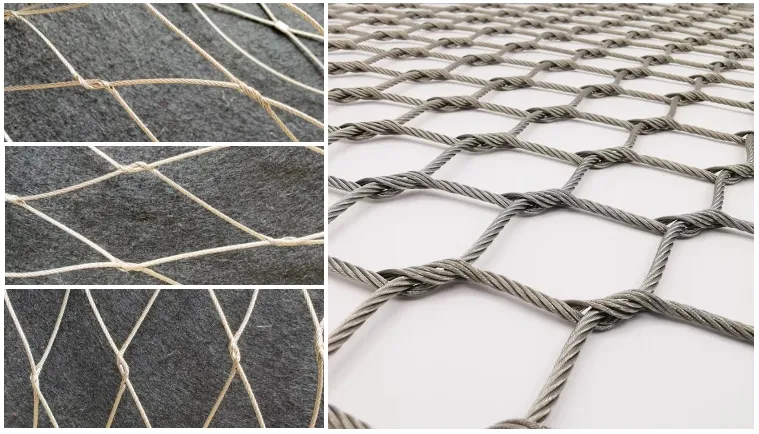

Without Buckle (Knotted Type)

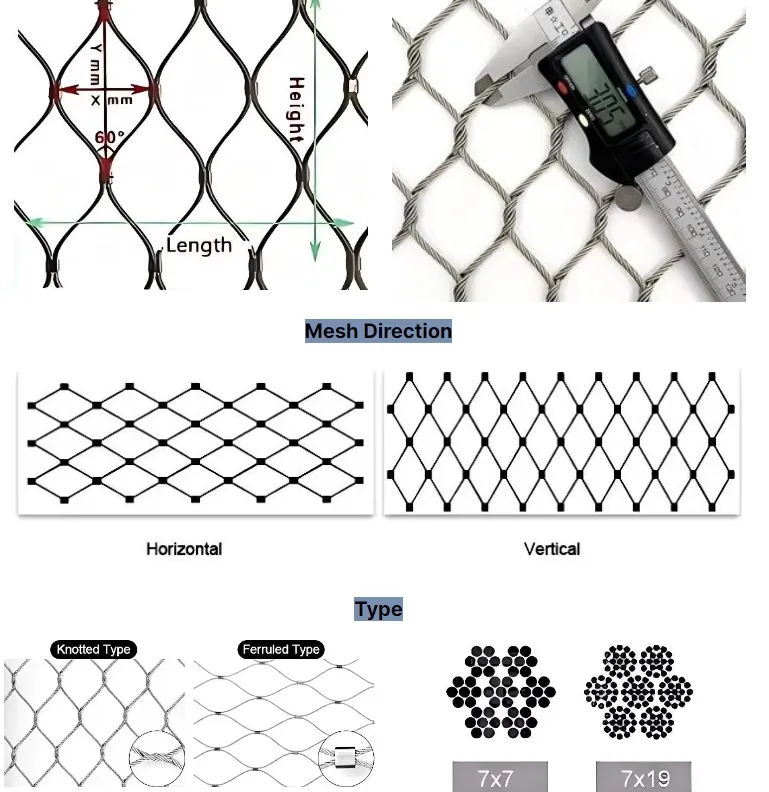

| Structure | Diameter (mm) | Aperture (mm) |
|---|---|---|
| 7*7 | 1.0 | 10*10 |
| 7*7 | 1.2 | 15*15 / 20*20 |
| 7*7 | 1.5 | 25*25 |
| 7*7/7*19 | 2.0 | 30*30, 50*50 |
| 7*7/7*19 | 2.5 | 50*50, 80*80 |
| 7*7/7*19 | 3.0 | 50*50, 80*80, 100*100 |
| 7*7/7*19 | 3.5 | 80*80, 100*100, 150*150 |
| 7*7/7*19 | 4.0 | 100*100, 150*150, 200*200 |
| Standard Length: 1-100m | Standard Width: 1-10m (Customizable) | ||

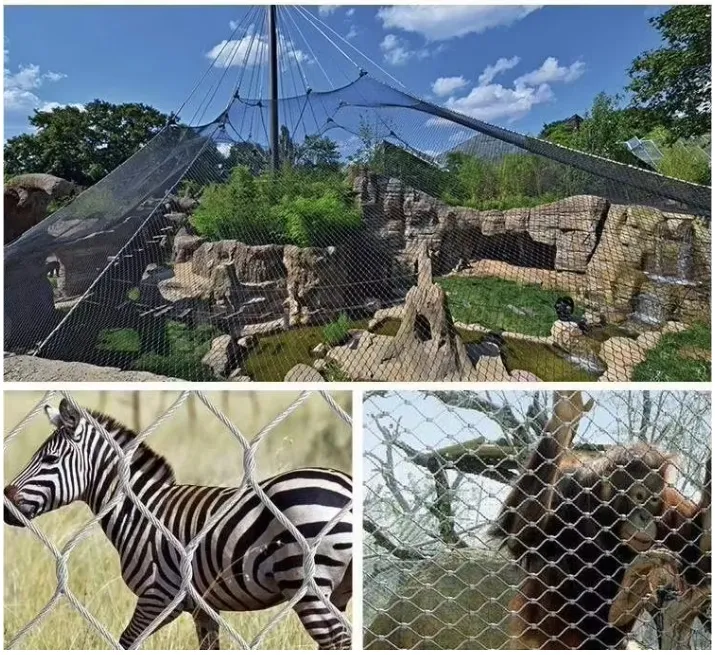

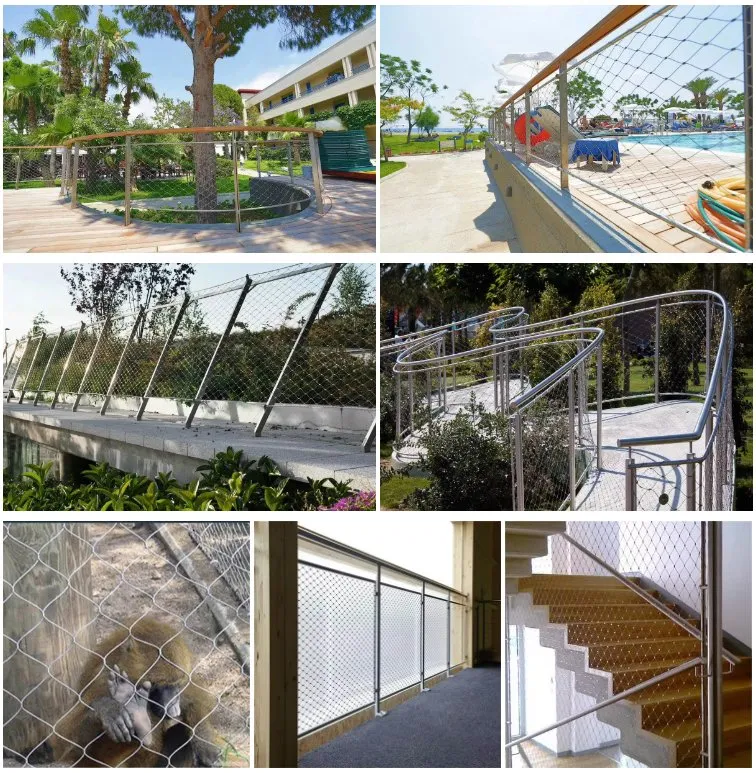

This versatile mesh is suitable for:
