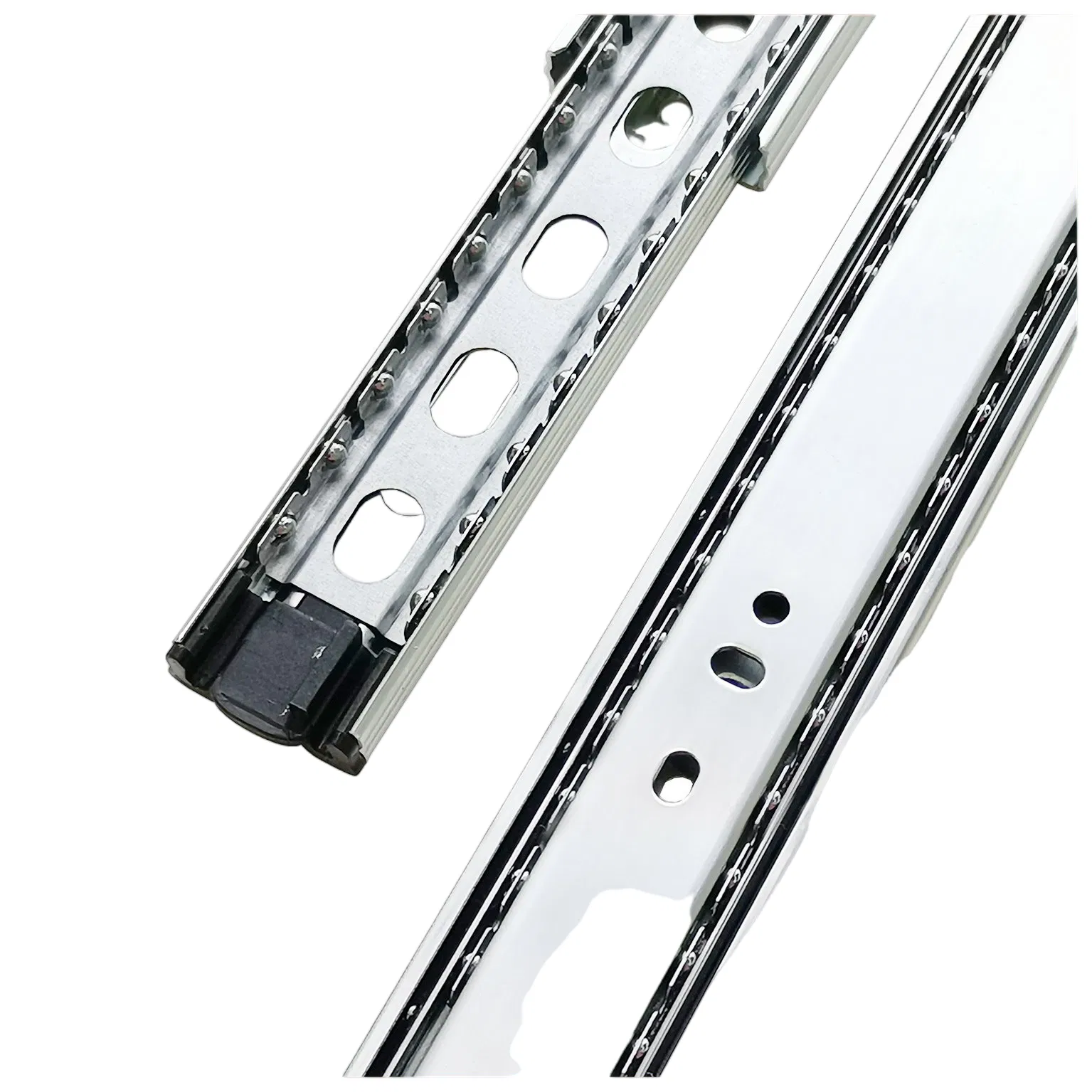

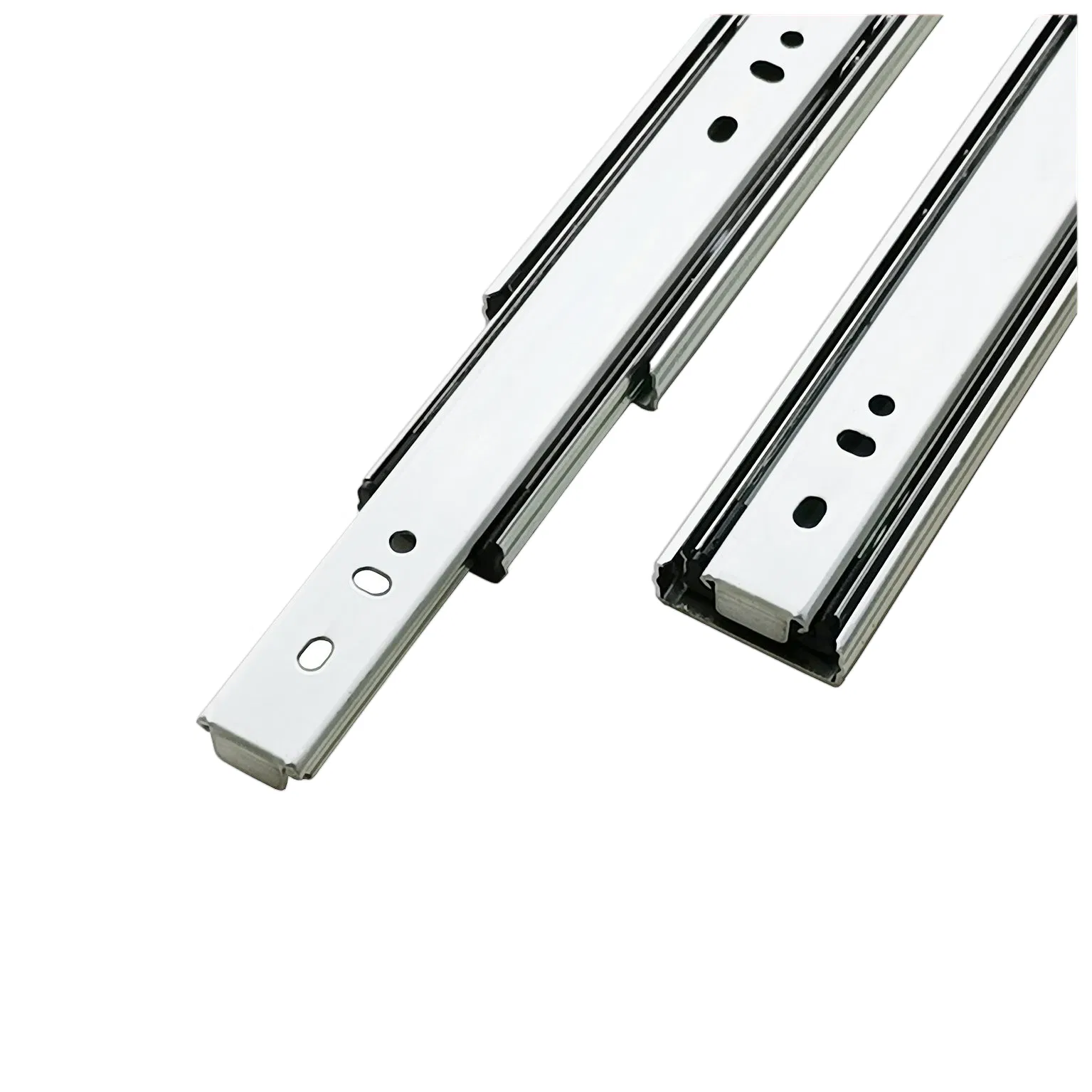

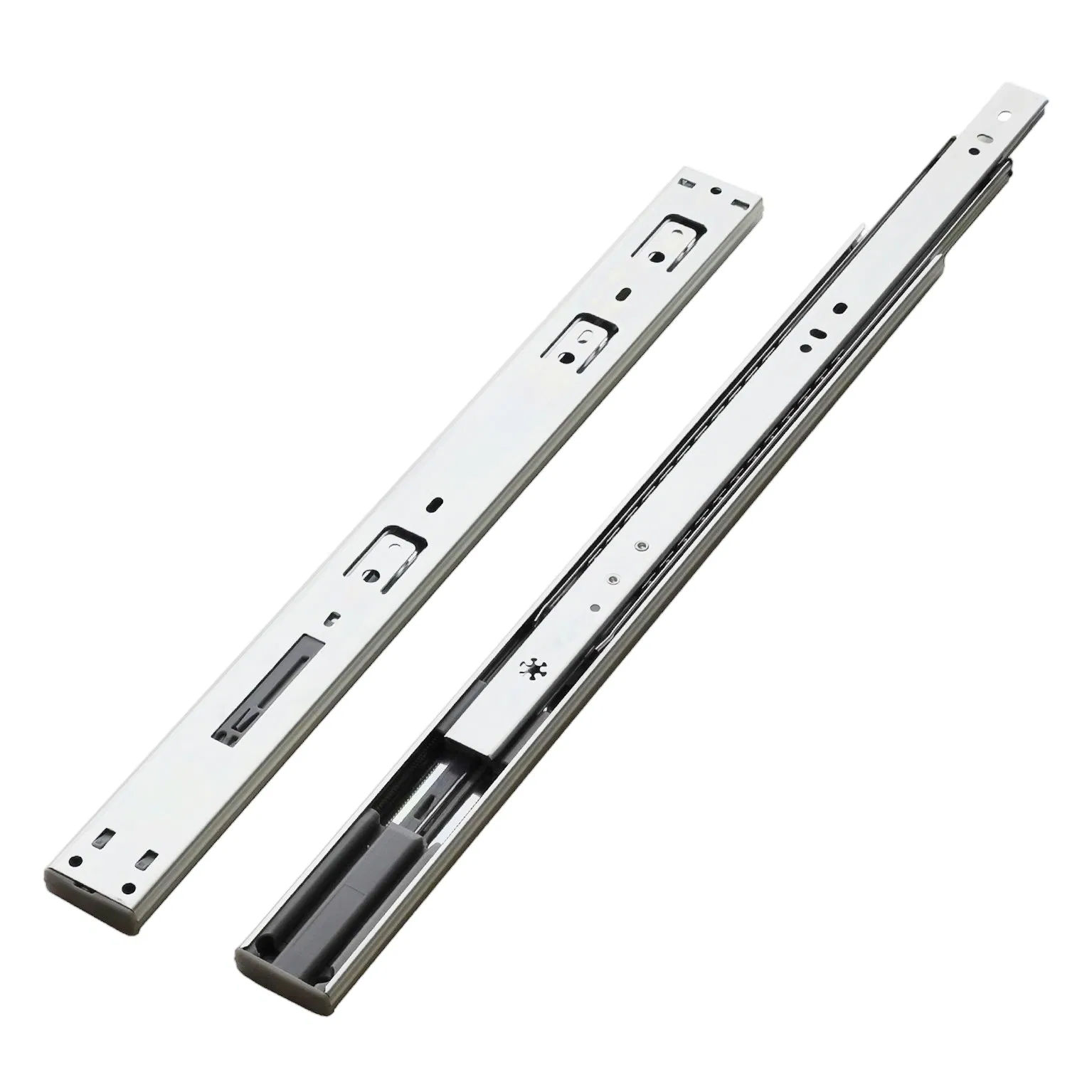

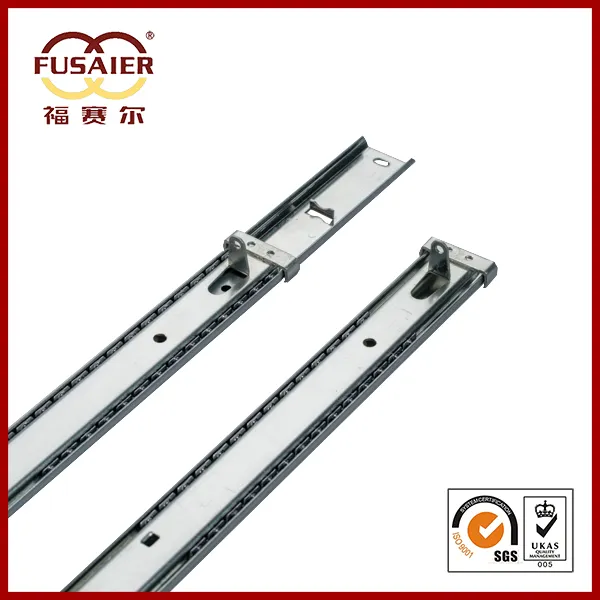

Foshan Factory 36mm High Quality Soft Close Ball Bearing Drawer Slides

1 / 5

Foshan Factory 36mm High Quality Soft Close Ball Bearing Drawer Slides

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

BS3601A

Material

Zinc / Q235B Cold Rolled Steel

Type

Closed Type

Shape

U-shaped

Surface Treatment

Galvanized / Zinc Plated / Black

Load Capacity

35kg (Max) / 20kg per 450mm

Width

45mm / 36mm

Size Range

250mm - 700mm

Origin

China

HS Code

83024200

Product Features

Furniture Hardware

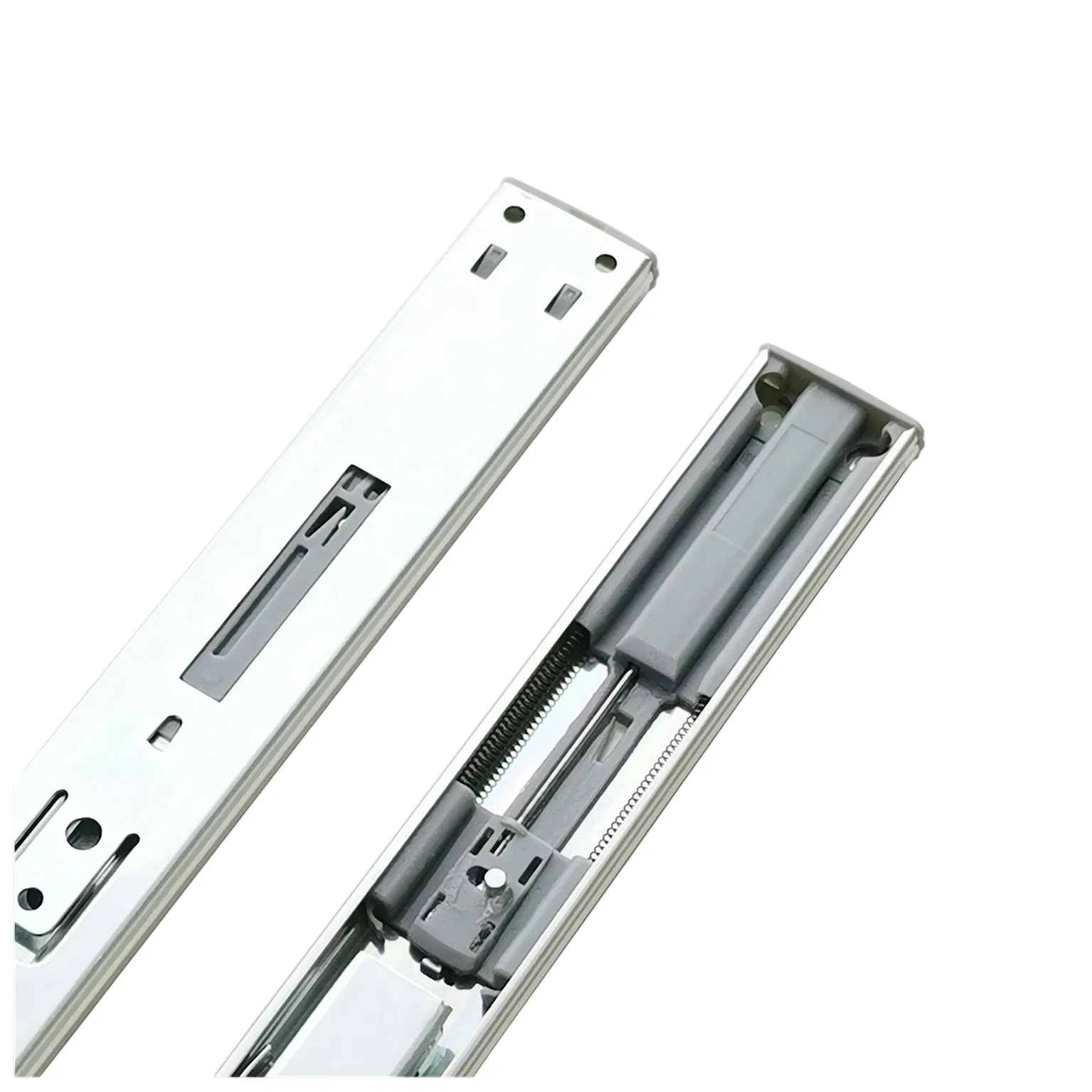

Soft Closing Drawer Slides: Engineered for smooth operation and silent closing, these ball bearing slides are ideal for high-end furniture applications.

Material	Work Hardened Cold Rolled Steel
Finish	Zinc Plated / Black
Installation Gap	9.8 +/- 0.2mm
Thickness	1.5mm * 1.5mm

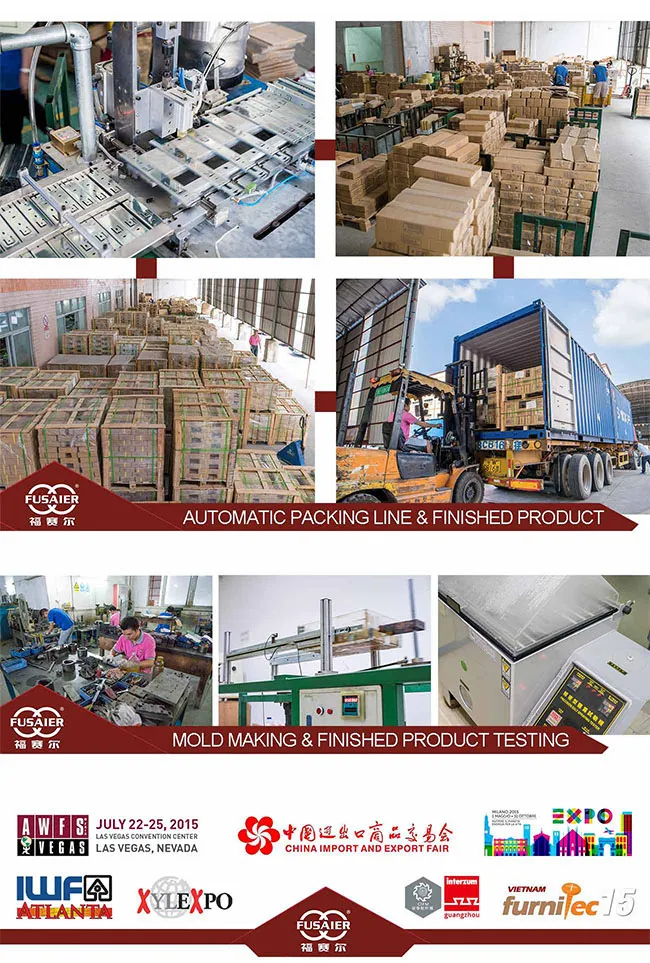

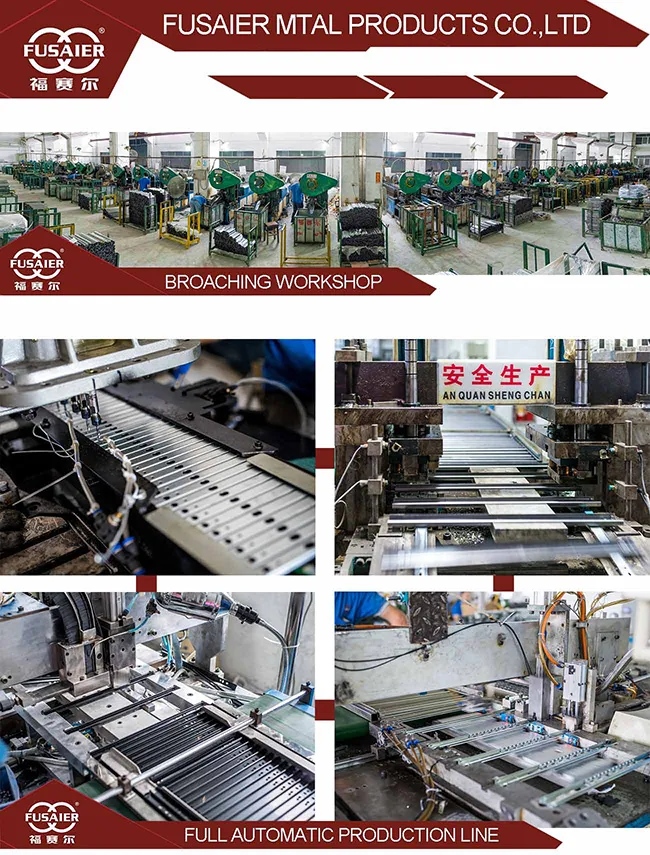

Production & Quality

Quality Assurance:

Operating in a facility over 10,000 square meters, we implement full-line quality control and spot inspections. Products undergo rigorous SGS testing, including 48-hour salt fog tests and extension tests exceeding 75,000 cycles for basic models and 50,000 cycles for functional models.

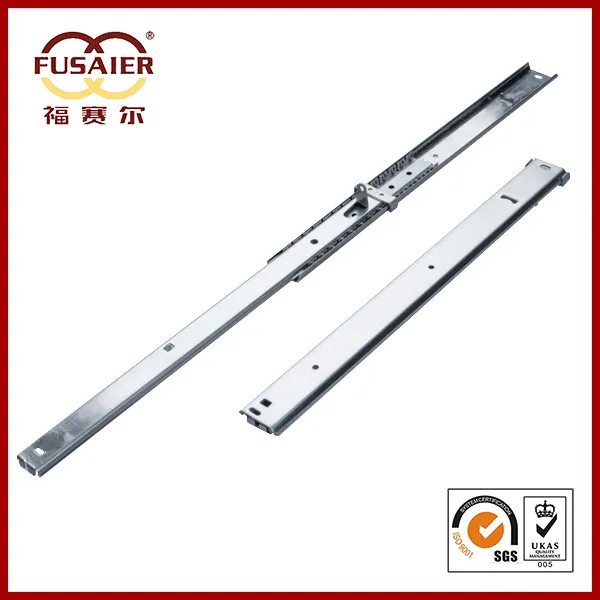

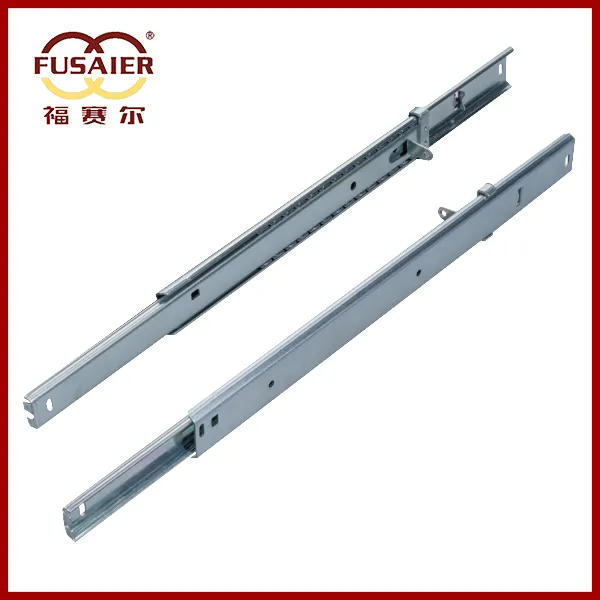

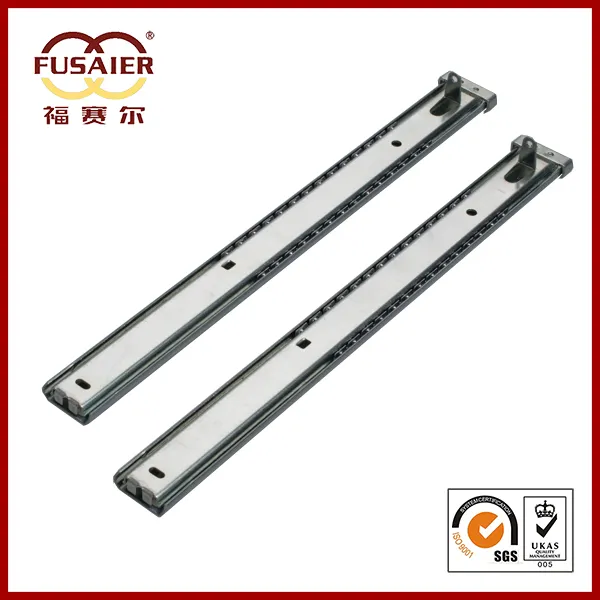

Product Gallery

Frequently Asked Questions

1. What materials are used for these drawer slides?

The slides are manufactured using high-quality work-hardened cold rolled steel (Q235B) and zinc components for maximum durability.

2. What is the maximum load capacity for the BS3601A model?

The model has a maximum load capacity of 35kg, while specific configurations (e.g., 450mm length) are rated for 20kg.

3. What size range is available for these slides?

We offer a wide range of sizes from 250mm up to 700mm to accommodate various furniture designs.

4. How are the slides tested for quality?

Our products undergo ISO-certified quality control, including 48-hour salt fog testing and cycle tests reaching up to 75,000 extensions to ensure long-term reliability.

5. What are the installation requirements?

The required installation gap between the rails is 9.8mm (+/- 0.2mm) with a steel thickness of 1.5mm * 1.5mm.

6. Can the product finish be customized?

Yes, the standard finishes include Zinc Plated and Black, providing options to match different furniture styles.
