Product Description

Specifications & Basic Info

Model NO.
C6207
Shell Material
Copper
Package
Foam Paper, Paper Case, Moisture-Proof Film
Specification
Brass Chrome Plated
Trademark
Customizable
Capacity
50,000 pieces/Month
Package Size
12.00cm * 5.00cm * 10.00cm
Gross Weight
0.800kg

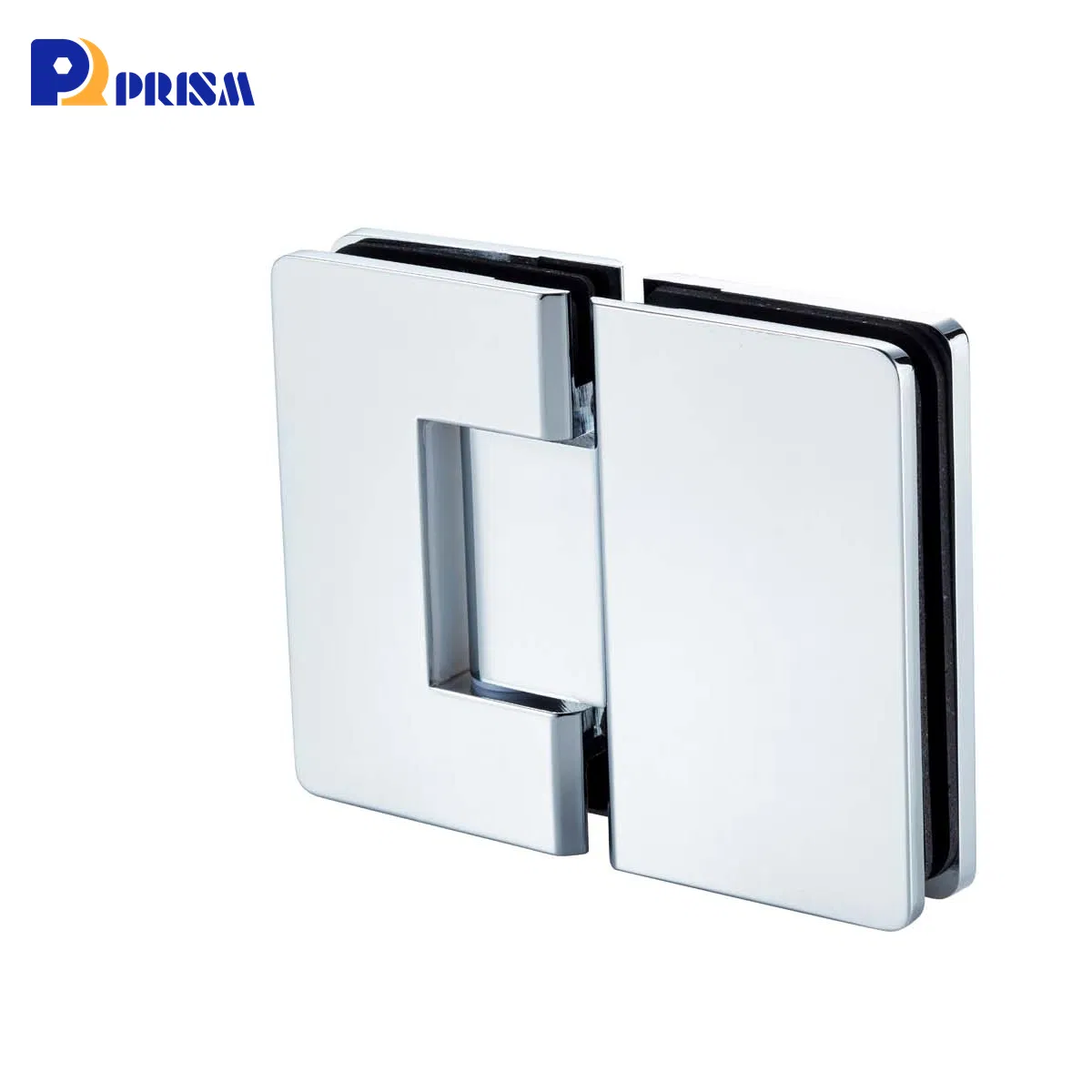

Glass to Glass 135 Hinge
135 Square Hinge Shower Door Detail

Product Features

  • Material: High-Quality Solid Brass
  • Net Weight: 1kg per unit
  • Opening Angle: 135° Glass-to-Glass connection
  • Load Capacity: Supports up to 45kg (per pair/2 pcs)
  • Glass Compatibility: Fits 6-12mm flat tempered or laminated glass

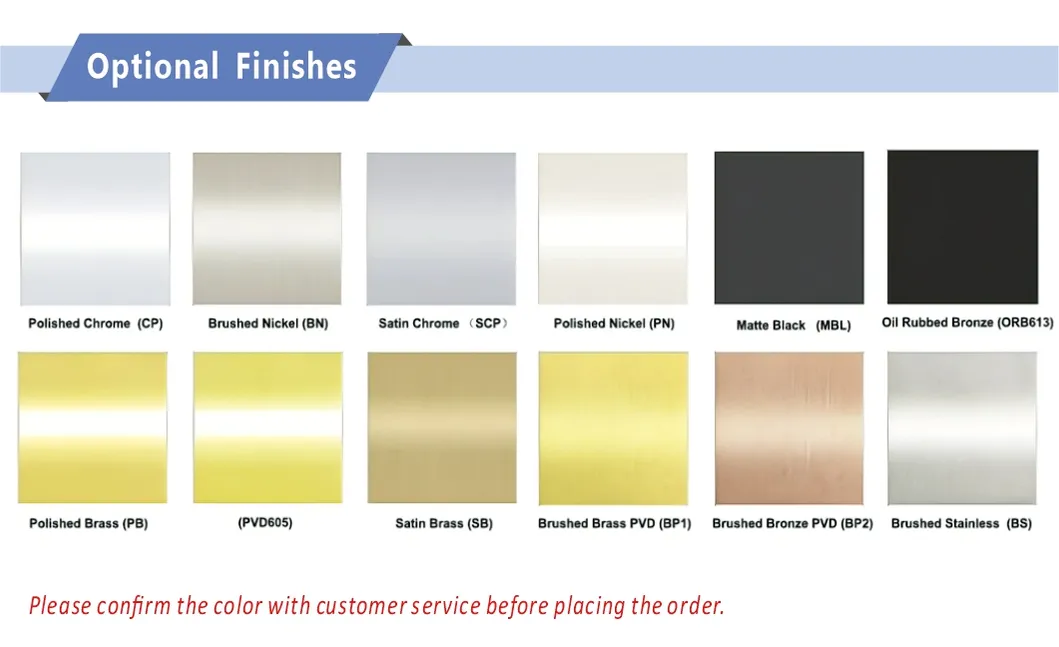

  • Available Finishes: Chrome, Nickel, Brass, Black (Customization supported)
Self-Closing Technology

This series of hinges features a high-performance self-closing function. When the hinge is within a ±15° angle of the closed position, it will automatically swing to the fully closed state for enhanced convenience and safety.

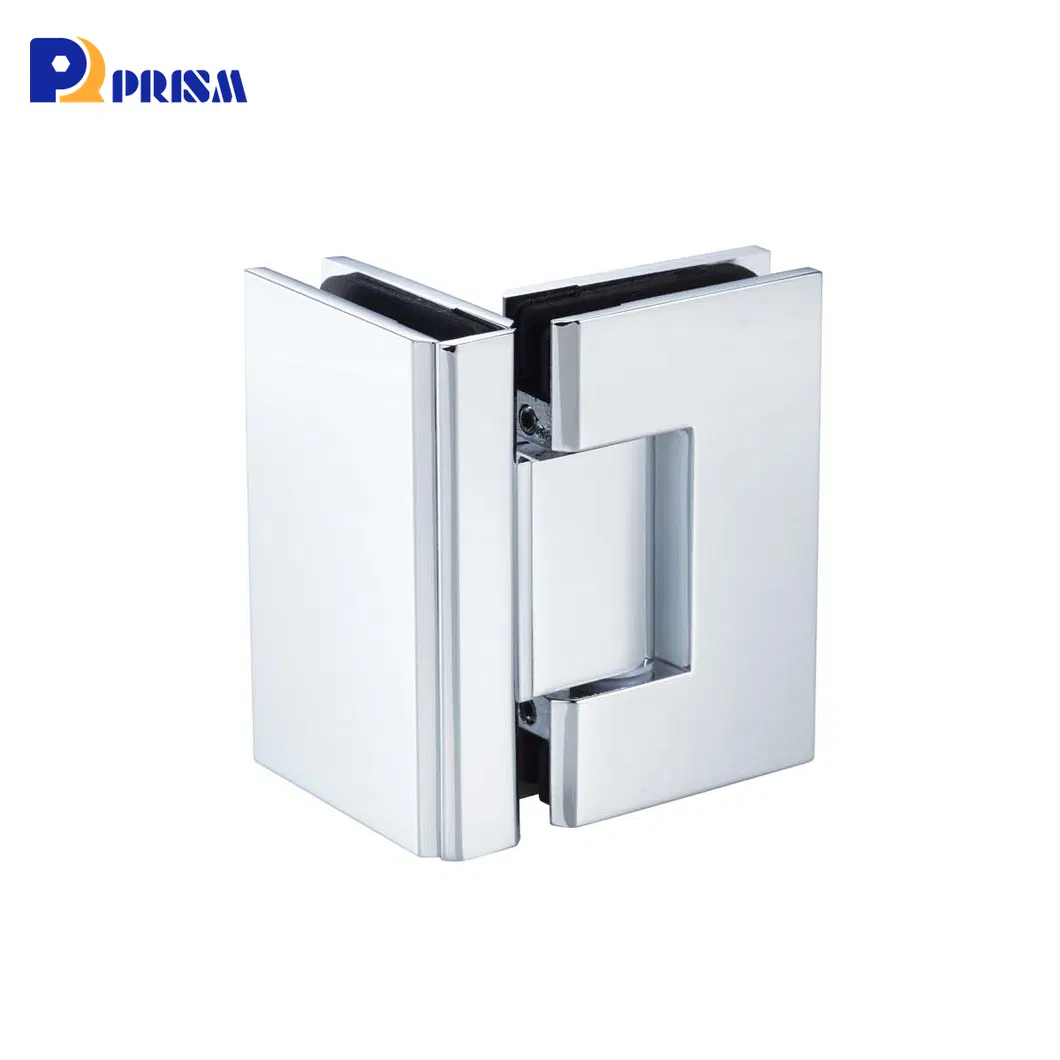

Product Layout
Installation View

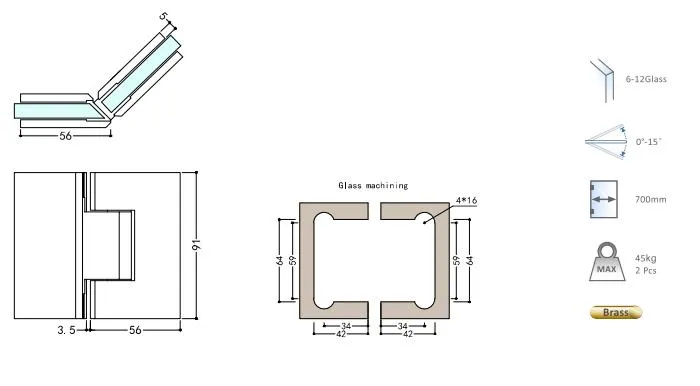

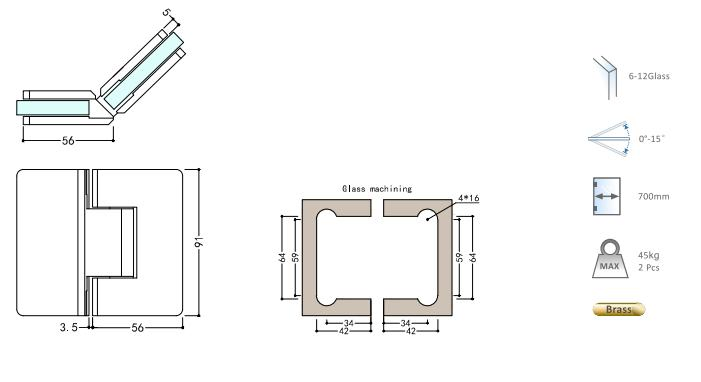

Dimensions

Installation & Maintenance

  • Always use tempered safety glass for installation.
  • Avoid using power tools during installation to prevent damage to hinges or decorative hardware.
  • Ensure the product is set into suitable, supportive material.
  • Never exceed the manufacturer's recommended load or maximum glass size.
  • Maintenance: Clean regularly with a soft cloth and non-abrasive soap or ammonia.
Hinge Close-up
Technical Specs
Finish Options
Application Scene
Packaging Detail

Frequently Asked Questions

What is the main material of the C6207 shower hinge?
The hinge is constructed from high-quality Solid Brass (Copper), ensuring durability and corrosion resistance in humid bathroom environments.
What type of glass is compatible with this 135-degree hinge?
It is designed for 6mm to 12mm thick flat tempered glass or laminated glass.
How does the self-closing feature work?
The hinge is equipped with a mechanism that automatically closes the door once it reaches a ±15° angle relative to the closed position.
What is the maximum weight capacity for a pair of hinges?
A pair (2 pieces) of these hinges can safely support a maximum load of 45kg.
Can I customize the finish of the hinges?
Yes, while standard finishes include Chrome, Nickel, Brass, and Black, additional customization is available upon request.
What is the best way to maintain the hinge's appearance?
We recommend cleaning the hardware with a soft cloth and a non-abrasive soap or ammonia-based cleaner to preserve its finish.
