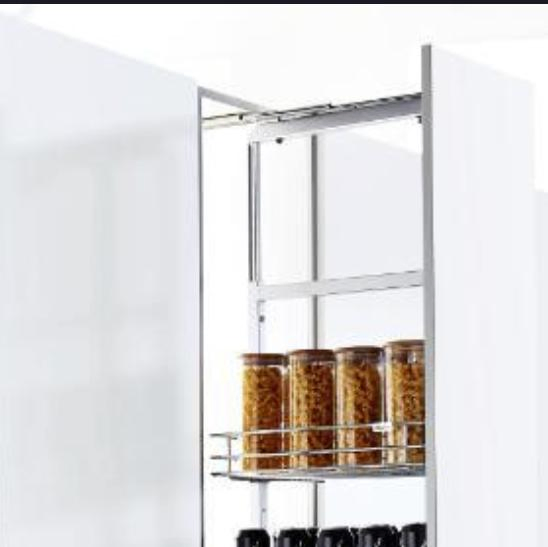

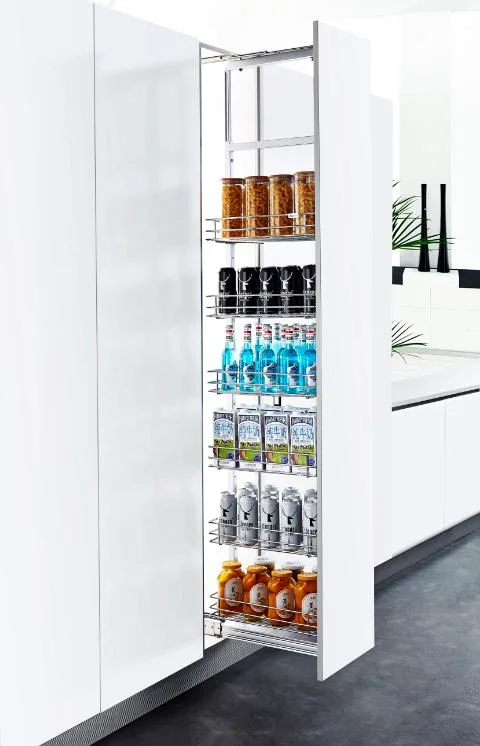

Wellmax High Deep Damping Buffer Cabinet Basket Adjustable Soft-Closing Pull-out Steel Drawer Ultra-Large Kitchen Capacity Hardware Tall Unit
Wellmax High Deep Damping Buffer Cabinet Basket Adjustable Soft-Closing Pull-out Steel Drawer Ultra-Large Kitchen Capacity Hardware Tall Unit
Wellmax High Deep Damping Buffer Cabinet Basket Adjustable Soft-Closing Pull-out Steel Drawer Ultra-Large Kitchen Capacity Hardware Tall Unit
Wellmax High Deep Damping Buffer Cabinet Basket Adjustable Soft-Closing Pull-out Steel Drawer Ultra-Large Kitchen Capacity Hardware Tall Unit
Wellmax High Deep Damping Buffer Cabinet Basket Adjustable Soft-Closing Pull-out Steel Drawer Ultra-Large Kitchen Capacity Hardware Tall Unit
1 / 5
Wellmax High Deep Damping Buffer Cabinet Basket Adjustable Soft-Closing Pull-out Steel Drawer Ultra-Large Kitchen Capacity Hardware Tall Unit
Wellmax High Deep Damping Buffer Cabinet Basket Adjustable Soft-Closing Pull-out Steel Drawer Ultra-Large Kitchen Capacity Hardware Tall Unit
Wellmax High Deep Damping Buffer Cabinet Basket Adjustable Soft-Closing Pull-out Steel Drawer Ultra-Large Kitchen Capacity Hardware Tall Unit
Wellmax High Deep Damping Buffer Cabinet Basket Adjustable Soft-Closing Pull-out Steel Drawer Ultra-Large Kitchen Capacity Hardware Tall Unit
Wellmax High Deep Damping Buffer Cabinet Basket Adjustable Soft-Closing Pull-out Steel Drawer Ultra-Large Kitchen Capacity Hardware Tall Unit

Wellmax High Deep Damping Buffer Cabinet Basket Adjustable Soft-Closing Pull-out Steel Drawer Ultra-Large Kitchen Capacity Hardware Tall Unit

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
KPTJ012D-500
Number of Layers
Six
Feature
Common
Design
With Drawer
Packaging
Set
Color
Chrome Plating
Size
Large
Shape
Common
Transport Package
Export Brown Carton
Specification
480*450*(1850-2200)mm
HS Code
9403900099
Capacity
500,000
📦 Product Description

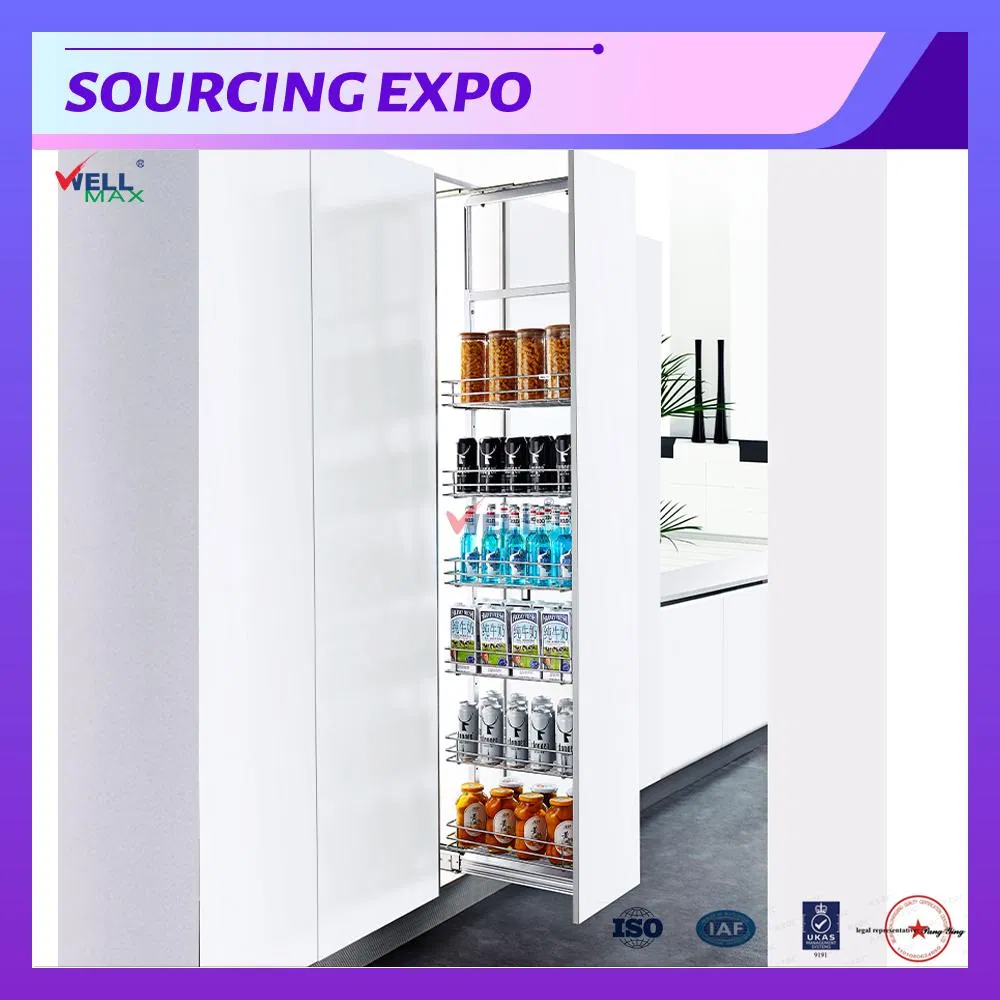

High Deep Damping Buffer Cabinet Basket

High Deep Damping Buffer Snack Cabinet Adjustable Tall Steel Unit

This premium tall unit basket features a soft-closing mechanism designed for kitchen tall unit cabinets. It utilizes a heavy-duty rail in both the carrier mechanism and top guide to ensure smooth, silent operation.

  • Carrying capacity is 80 kg maximum.
  • Product length can be adjusted according to the height of the cabinet.
  • Door can be adjustable on two axes via door connection parts.
  • Available in multiple sizes appropriate to the width of the cabinet (custom sizes available).
  • Baskets can be fixed to desired height of the frame with plastic hangers.
  • Frame is grey painted, while basket frames are chrome plated.
  • Options available in wire basket, wooden bottom basket, or glass basket styles.
Name Item Cabinet Depth x Width x Height Description Material Color
Tall Unit BasketKPTJ012D-150150mm480 x 100 x (1850-2200) mm6 LayersIronSilver grey+chrome
Tall Unit BasketKPTJ012D-200200mm480 x 150 x (1850-2200) mm6 LayersIronSilver grey+chrome
Tall Unit BasketKPTJ012D-250250mm480 x 200 x (1850-2200) mm6 LayersIronSilver grey+chrome
Tall Unit BasketKPTJ012D-300300mm480 x 250 x (1850-2200) mm6 LayersIronSilver grey+chrome
Tall Unit BasketKPTJ012D400mm480 x 350 x (1850-2200) mm6 LayersIronSilver grey+chrome
Tall Unit BasketKPTJ012D-500500mm450 x 450 x (1850-2200) mm6 LayersIronSilver grey+chrome
🛠️ Installation Instructions

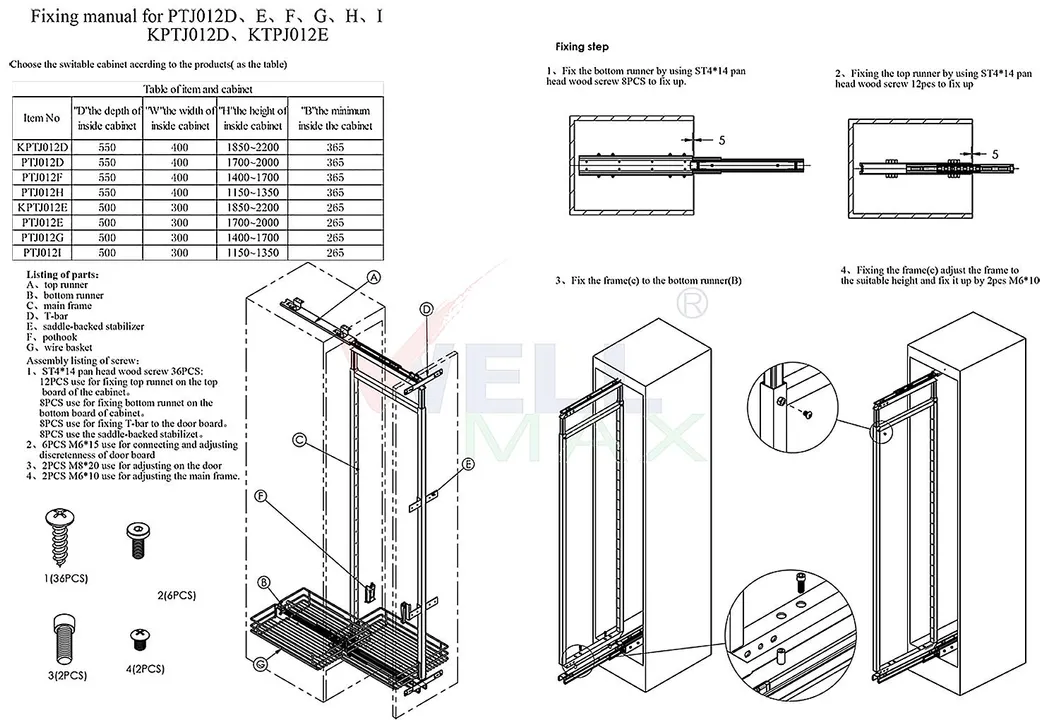

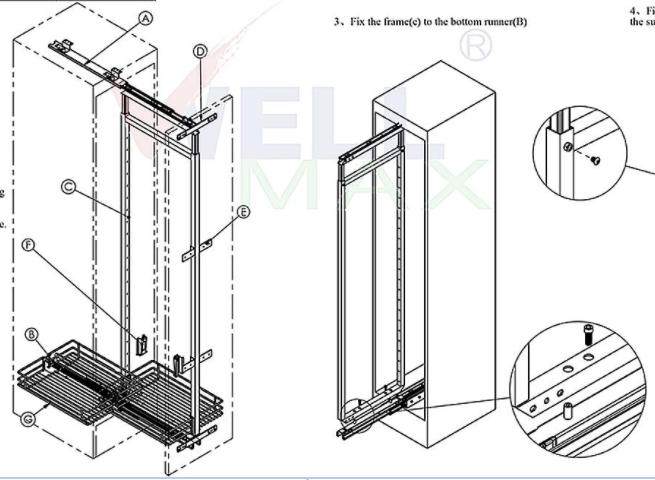

Installation Guide
🏭 Production Showcase

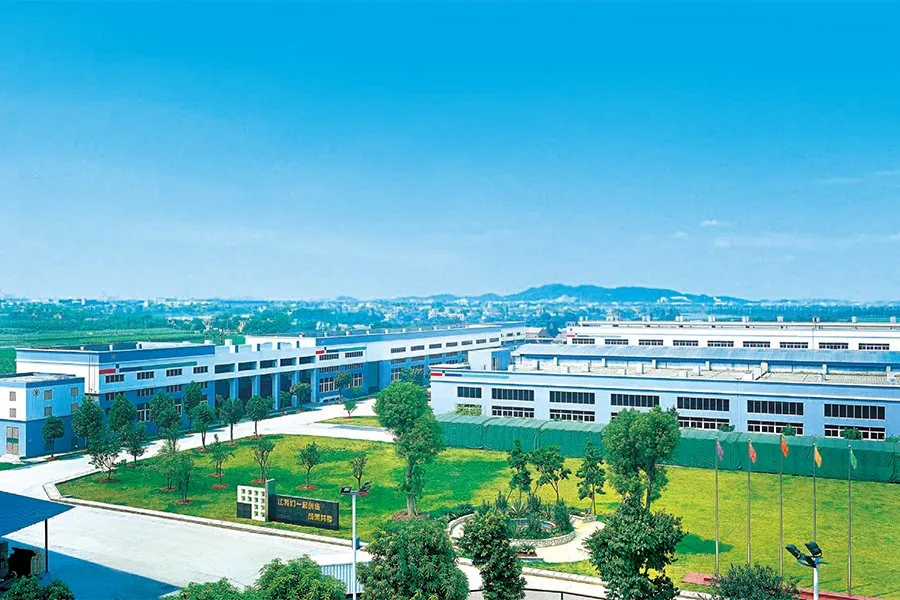

Production Display 1
Production Display 2

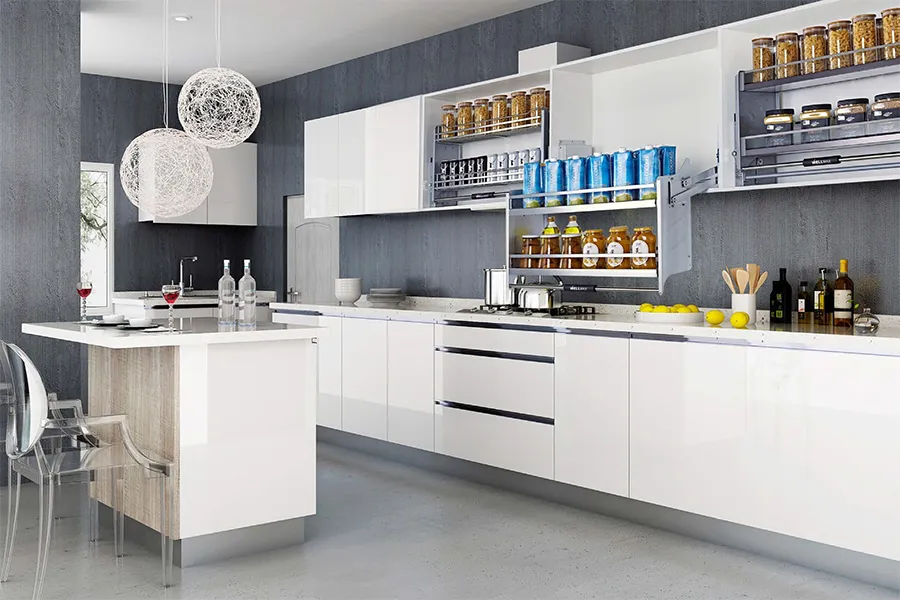

Production Display 3
🔍 Detailed Views
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
💡 Frequently Asked Questions
What is the maximum weight capacity of the tall unit?
The carrier mechanism is built to handle a maximum load capacity of 80 kg.
Is the height of the unit adjustable?
Yes, the product length can be adjusted to match the specific height of your kitchen cabinet, typically ranging from 1850mm to 2200mm.
Does the basket system include soft-closing features?
Yes, it uses heavy-duty rails with a damping buffer system to ensure soft-closing and smooth movement.
What materials are the baskets made of?
The standard baskets are made of iron with chrome plating. Alternatively, wire, wooden bottom, and glass basket options are available.
Can the door position be adjusted after installation?
Yes, the door connection parts allow for adjustment across two axes for perfect alignment.
How many layers are included in the standard tall unit?
The standard configuration for this tall unit model includes 6 layers of baskets.
